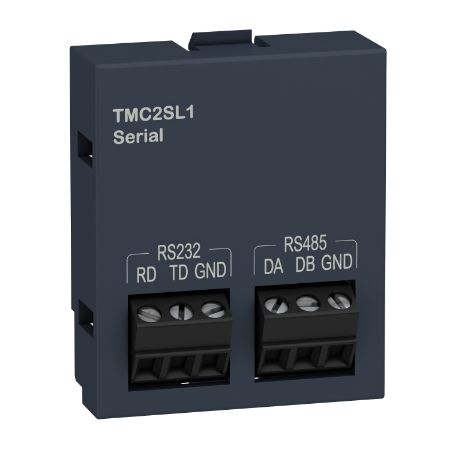

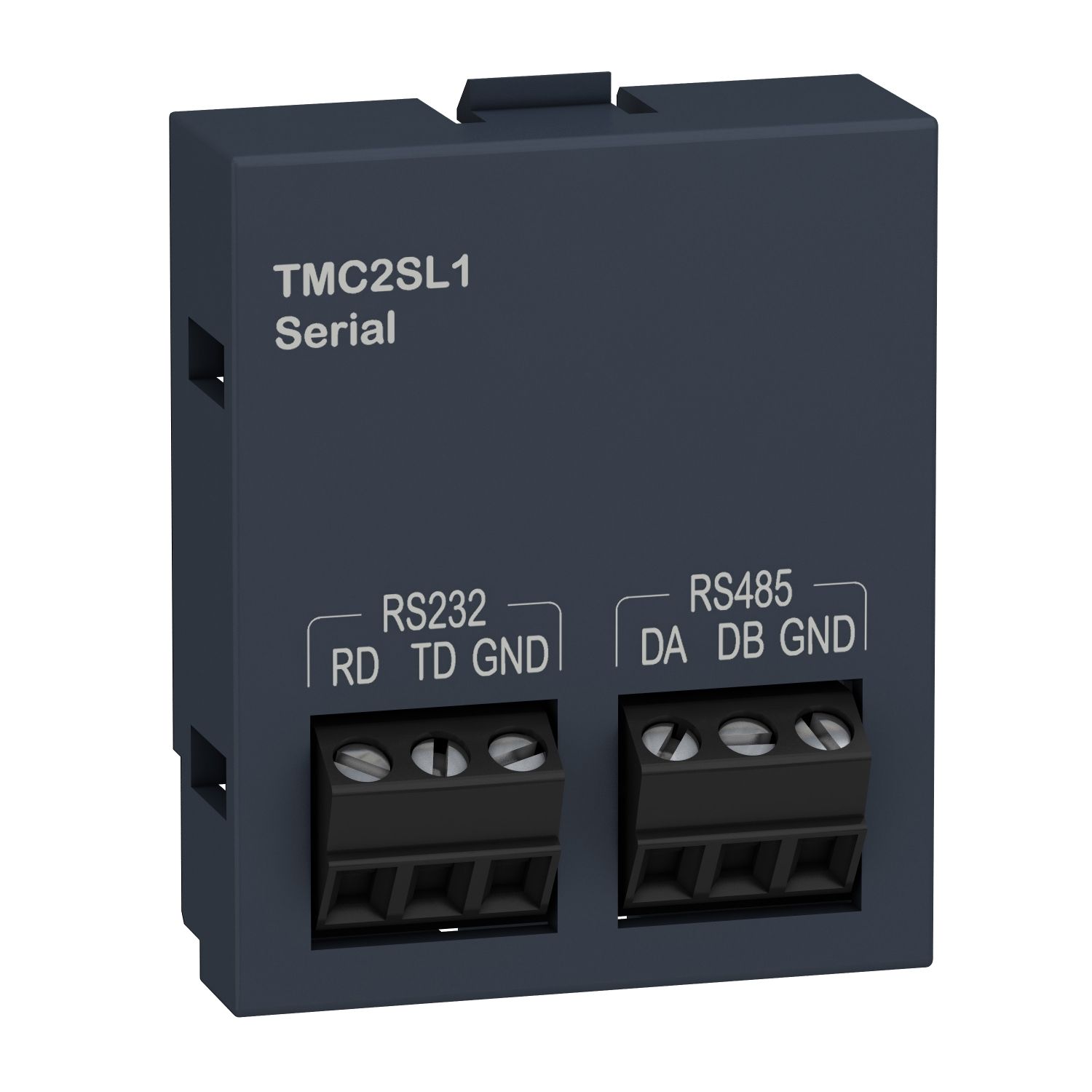

Picture of Modicon M221, Serial line cartridge, 1 communication extension
SKU:

TMC2SL1

Modicon M221, Serial line cartridge, 1 communication extension

$181.40
Available for Shipping : 05-Dec-2024
Product Selector
Modicon M221, Serial line cartridge, 1 communication extension
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
User guide
End of life manual
Instruction sheet
Declaration of conformity
Product environmental
Product Page Link
Product Data Sheet
This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This serial line cartridge is a communication extension which support transmission rate 1.2kbps to 115.2kbps for bus length of 15m for RS485 and 3m for RS232. This product requires minimal installation and offers tremendous versatility. There is no insulation between lines and internal logic. It has non isolated serial link communication port protocols like Modbus master/slave and RTU/ASCII or SoMachine-Network. Its dimensions are 35mm (Width) x 15mm (Depth) x 41mm (Height). It weighs 0.015kg. This cartridge is compatible with Modicon M221C PLC. Achieve benchmark performance while increasing profitability with the Modicon M221 through intuitive machine programming with SoMachine Basic, ready-to-use applications and function blocks

Products specifications

Attribute name Attribute value
Main
Product compatibility Modicon M221C
Range of product Modicon M221
Product or component type serial line cartridge
Complementary
Insulation non-insulated between lines and internal logic
Communication port protocol non isolated serial link: Modbus master/slave - RTU/ASCII or SoMachine-Network
Transmission rate 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 3-3 m for RS232, 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 15-15 m for RS485
Height 41 mm
Depth 15 mm
Width 35 mm
Integrated connection type non isolated serial link - screw terminal block for RS485, non isolated serial link - screw terminal block for RS232
Net weight 0.015 kg
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.569 cm
Package 1 Width 4.742 cm
Package 1 Length 6.985 cm
Package 1 Weight 30.0 g
Unit Type of Package 2 2
Number of Units in Package 2 75
Package 2 Height 14.4 cm
Package 2 Width 29.2 cm
Package 2 Length 39.5 cm
Package 2 Weight 3.32 kg
Unit Type of Package 3 3
Number of Units in Package 3 2400
Package 3 Height 105 cm
Package 3 Width 120 cm
Package 3 Length 80 cm
Package 3 Weight 111 kg
