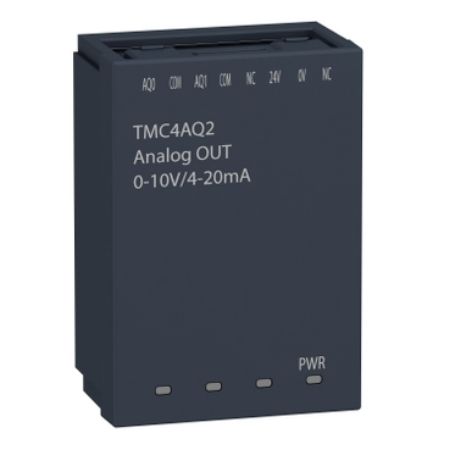

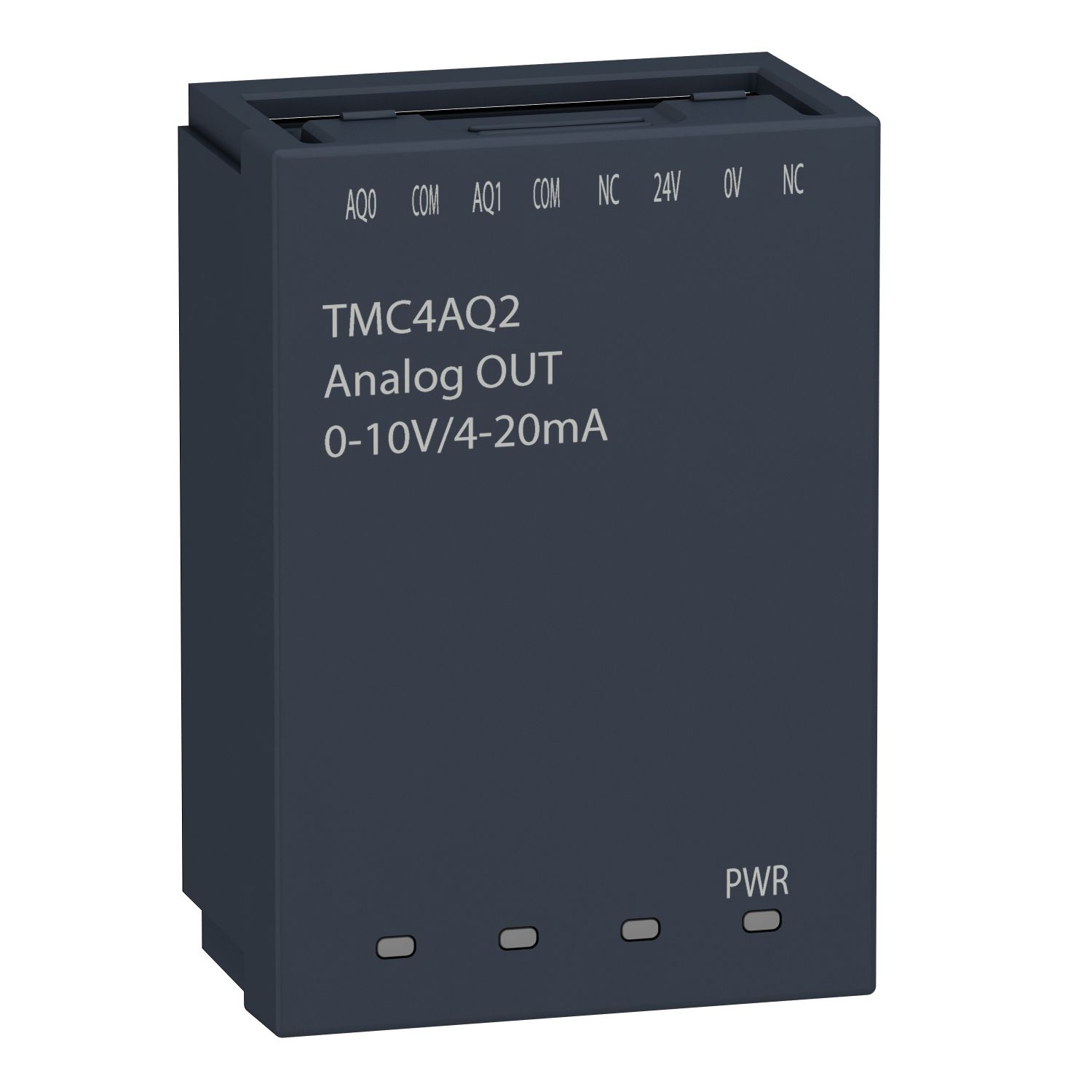

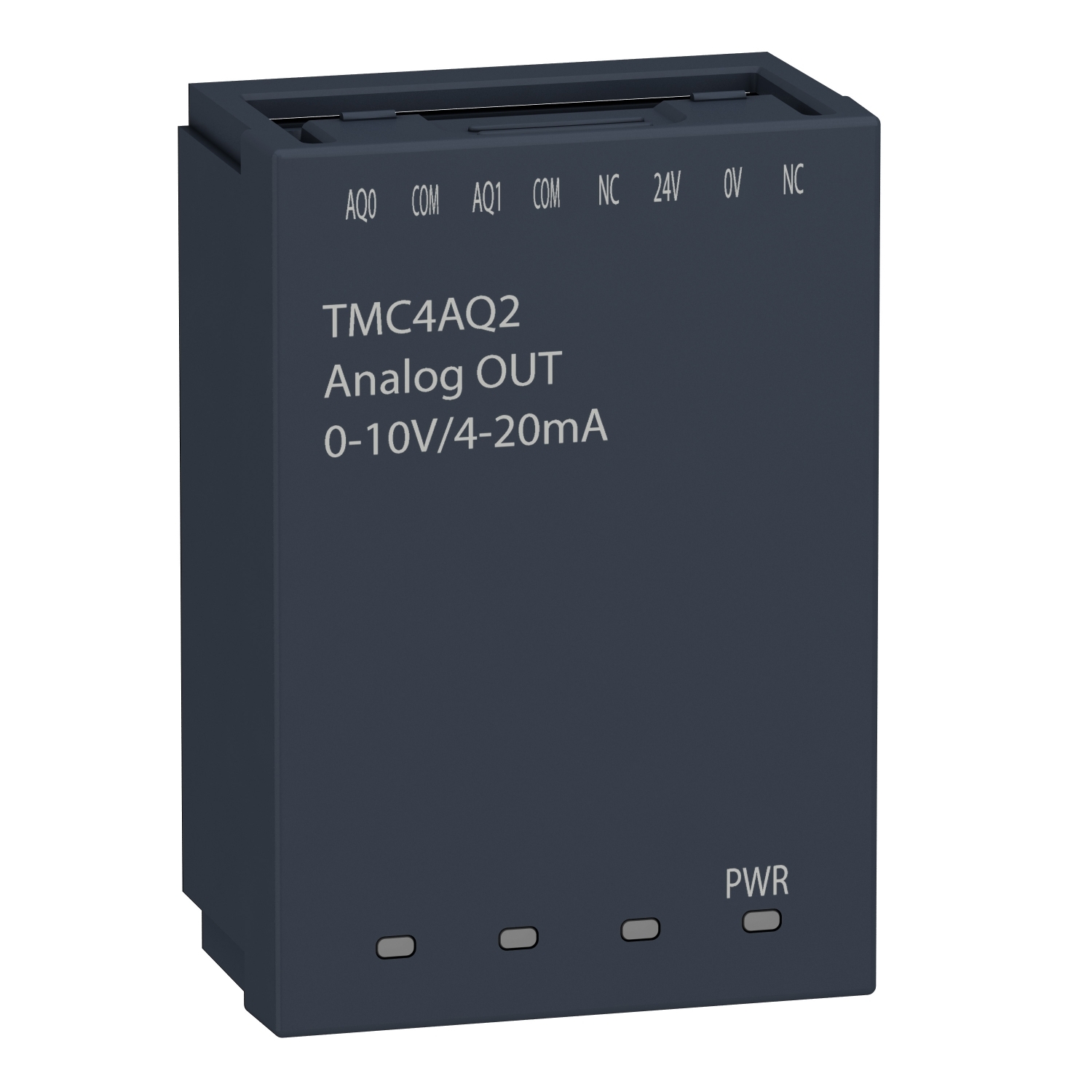

Picture of analogue output cartridge, Modicon M241, 2 analog outputs
SKU:

TMC4AQ2

analogue output cartridge, Modicon M241, 2 analog outputs

Please Contact Sales to buy this Product. click here
Product Selector
analogue output cartridge, Modicon M241, 2 analog outputs
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 07-Nov-2024
Catalogue
End of life manual
CAD
User guide
Declaration of conformity
Instruction sheet
Product environmental
Product Page Link
Product Data Sheet
cartridge M241 - 2 analog outputs This product is part of the Modicon M241 range, an offer of logic controllers for performance demanding applications. This analogue output cartridge is for Modicon M241 logic controllers. It provides 2 analogue current outputs with 16bit resolution. The maximum twisted shielded pairs cable distance between devices is <30m for input. There is an insulation between output and internal logic at 500V DC and no insulation between outputs. It is furnished with spring terminal for electrical connection. Its dimensions are 34mm (Width) x 21mm (Depth) x 50mm (Height). It weighs 0.055kg. The Modicon M241 logic controllers are designed for high-performance compact machines incorporating speed and position control functions. This product is certified by CE, IACS E10, RCM, CSA, CULus. It meets ANSI/ISA 12-12-01, CSA C22.2 No 142, CSA C22.2 No 213, EN/IEC 61131-22007, marine specification (LR, ABS, DNV, GL), UL 1604 and UL 508 standards. This analogue output cartridge is compatible with Modicon M241C PLC. There is 1 slot for I/O cartridge on TM241C*24 . There are 2 slots for I/O cartridge on TM241C*40.

Products specifications

Attribute name Attribute value
Main
Product compatibility Modicon M241C
Range of product Modicon M241
Product or component type analogue output cartridge
Complementary
Insulation non-insulated between outputs, between output and internal logic at 500 V DC
Load impedance ohmic >= 2 kOhm voltage, <= 500 Ohm current
Analogue output number 2
Supply voltage limits 20.4-28.8 V
Temperature drift +/- 0.006 %FS/°C
Type of cable twisted shielded pairs cable
Load type resistive
Height 50 mm
Maximum cable distance between devices twisted shielded pairs cable: <30 m for input
Electrical connection 1 x 1.5 mm² 1 spring terminal block with pitch 3.81 mm adjustment for outputs and supply
Repeat accuracy +/- 0.5 %FS
Conversion time 10 ms + 1 controller cycle time
Depth 21 mm
Width 34 mm
Cross talk 80 dB
Local signalling 1 LED (green) for PWR
Output ripple +/- 20 mV
Stabilisation time 10 ms
Analogue output resolution 16 bits
Absolute accuracy error +/- 0.2 % of full scale at 25 °C
Net weight 0.055 kg
LSB value 2 µA 4...20 mA current, 1 mV 0...10 V voltage
Non-linearity +/- 0.05 %FS
Analogue output type voltage: 0...10 V, current: 4...20 mA
Environment
Immunity to microbreaks 10 ms
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.0 cm
Package 1 Width 3.0 cm
Package 1 Length 3.5 cm
Package 1 Weight 74.0 g
Unit Type of Package 2 2
Number of Units in Package 2 27
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 2.042 kg
Unit Type of Package 3 3
Number of Units in Package 3 432
Package 3 Height 75 cm
Package 3 Width 60 cm
Package 3 Length 80 cm
Package 3 Weight 44 kg
