Picture of Analogue input cartridge, Modicon M241, packaging 2 analog inputs
SKU:

TMC4PACK01

Analogue input cartridge, Modicon M241, packaging 2 analog inputs

Please Contact Sales to buy this Product. click here
Product Selector
Analogue input cartridge, Modicon M241, packaging 2 analog inputs
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 25-Oct-2024
Catalogue
End of life manual
CAD
User guide
Declaration of conformity
Instruction sheet
Product environmental
Product Page Link
Product Data Sheet

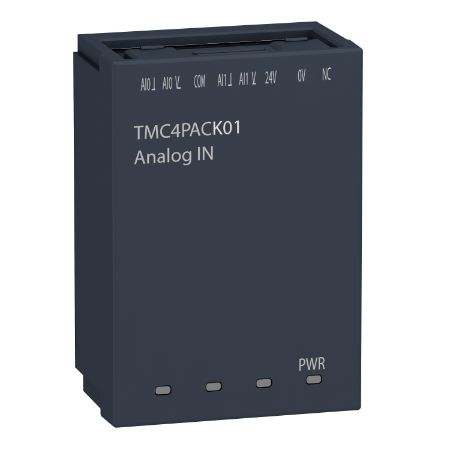

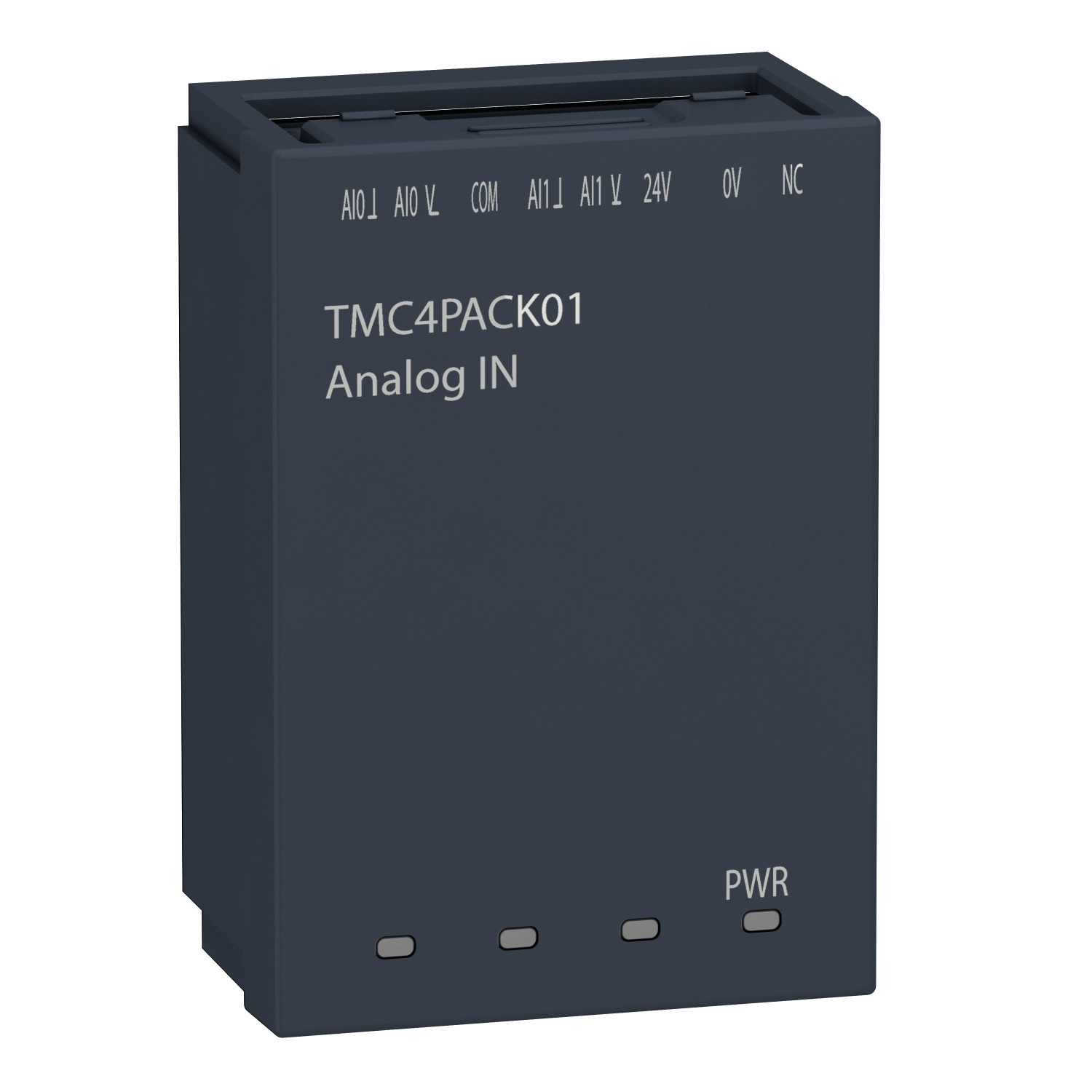

cartridge M241 - packaging 2 analog inputs This product is part of the Modicon M241 range, an offer of logic controllers for performance demanding applications. This application cartridge is for Modicon M241 logic controllers. It provides 2 analog inputs (voltage or current) for packaging with 16bit resolution. The maximum twisted shielded pairs cable distance between devices is <30m for input. There is an insulation between input and internal logic at 500V DC and no insulation between inputs. It is furnished with spring terminal for electrical connection. Its dimensions are 34mm (Width) x 21mm (Depth) x 50mm (Height). It weighs 0.055kg. The Modicon M241 logic controllers are designed for high-performance compact machines incorporating speed and position control functions. This product is certified by CE, IACS E10, RCM, CSA, CULus. It meets ANSI/ISA 12-12-01, CSA C22.2 No 142, CSA C22.2 No 213, EN/IEC 61131-22007, marine specification (LR, ABS, DNV, GL), UL 1604 and UL 508 standards. This analogue output cartridge is compatible with Modicon M241C PLC. There is 1 slot for application cartridge on TM241C*24 . There are 2 slots for application cartridge on TM241C*40.

Products specifications

Attribute name Attribute value
Main
Product compatibility Modicon M241C
Product specific application packaging
Analogue input number 2
Product or component type analogue input cartridge
Range of product Modicon M241
Complementary
Analogue input type voltage 0...10 V,  current 0...20 mA,  current 4...20 mA
Repeat accuracy +/- 0.2 %FS
Sampling duration 10 ms
Insulation non-insulated between inputs, between input and internal logic at 500 V DC
Depth 21 mm
Width 34 mm
Cross talk 80 dB
Local signalling 1 LED (green) for PWR
Supply voltage limits 20.4-28.8 V
Temperature drift +/- 0.006 %FS/°C
Absolute accuracy error +/- 0.2 % of full scale at 25 °C
Type of cable twisted shielded pairs cable
Net weight 0.055 kg
Analogue input resolution 16 bits
Permissible continuous overload 30 V, analogue input type: voltage, 40 mA, analogue input type: current
LSB value 2 µAcurrent 4...20 mA, 2 µAcurrent 0...20 mA, 1 mVvoltage 0...10 V
Non-linearity +/- 0.05 %FS
Input impedance >= 1 MOhm voltage, <= 250 Ohm current
Height 50 mm
Maximum cable distance between devices twisted shielded pairs cable: <30 m for input
Electrical connection 1 x 1.5 mm² 1 spring terminal block with pitch 3.81 mm adjustment for inputs and supply
Environment
Immunity to microbreaks 10 ms
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.56 cm
Package 1 Width 8.38 cm
Package 1 Length 11.18 cm
Package 1 Weight 0.07 kg
