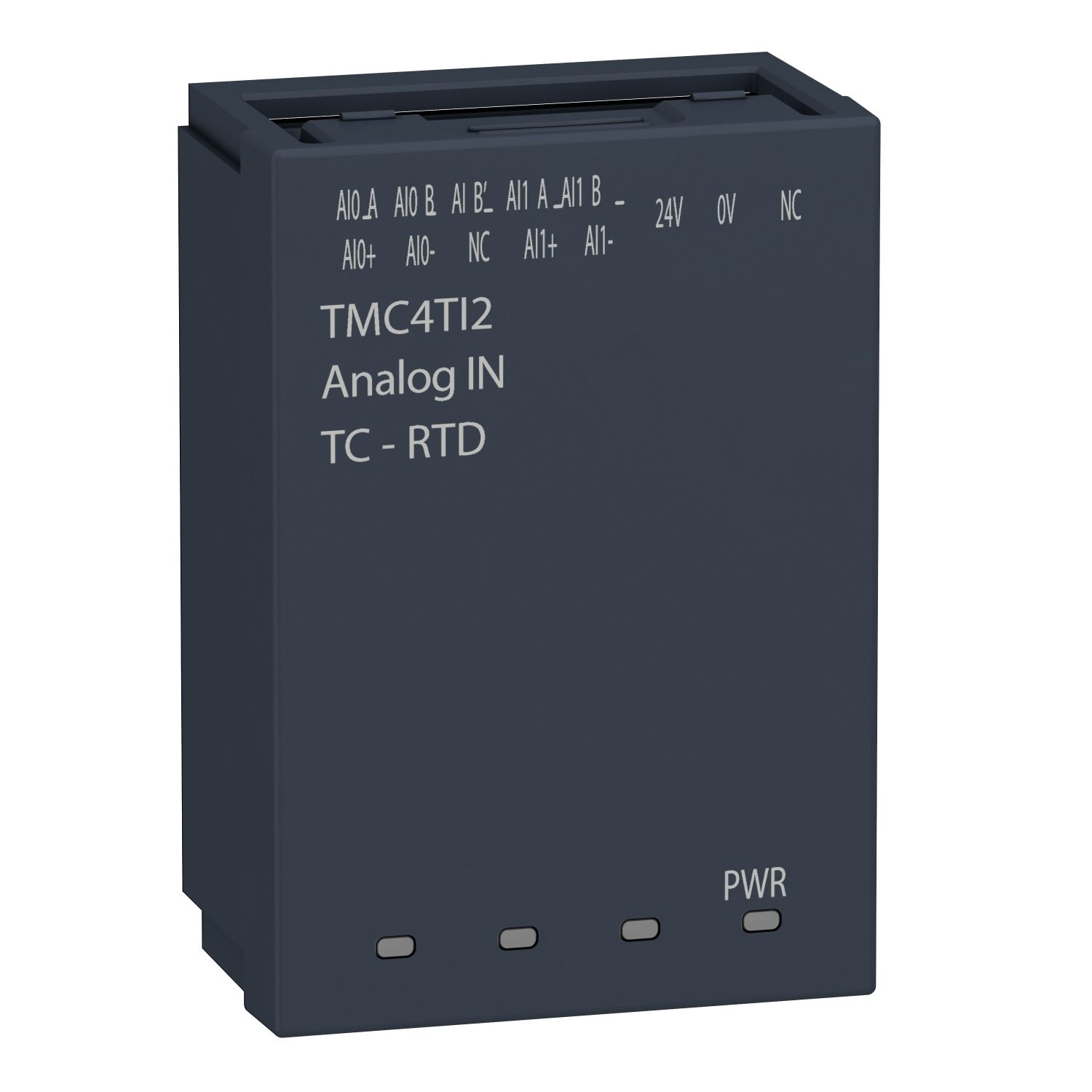

Picture of analogue input cartridge, Modicon M241, 2 temperature inputs
SKU:

TMC4TI2

analogue input cartridge, Modicon M241, 2 temperature inputs

Please Contact Sales to buy this Product. click here
Product Selector
analogue input cartridge, Modicon M241, 2 temperature inputs
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 25-Oct-2024
End of life manual
Catalogue
CAD
User guide
Declaration of conformity
Instruction sheet
Product environmental
Product Page Link
Product Data Sheet
This product is part of the Modicon M241 range, an offer of logic controllers for performance demanding applications. This analogue input cartridge is for logic controllers. It provides 2 temperature inputs with 14bit resolution. The maximum twisted shielded pairs cable distance between devices is <30m for input. There is an insulation between input and internal logic at 500V DC and no insulation between inputs. It is furnished with spring terminal for electrical connection. Its dimensions are 34mm (Width) x 21mm (Depth) x 50mm (Height). It weighs 0.055kg. This analogue input cartridge is compatible with Modicon M241C PLC. Achieve benchmark performance while increasing profitability with the Modicon M241 through intuitive machine programming with EcoStruxure Machine Expert, ready-to-use applications and function blocks.

Products specifications

Attribute name Attribute value
Main
Product compatibility Modicon M241C
Analogue input number 2
Product or component type analogue input cartridge
Range of product Modicon M241
Complementary
Analogue input type Ni 100/Ni 1000 temperature probe - 60...180 °C,  thermocouple - 200...800 °C with thermocouple E,  thermocouple - 200...1300 °C with thermocouple N,  thermocouple - 200...400 °C with thermocouple T,  thermocouple 0...1820 °C with thermocouple B,  thermocouple 0...1760 °C with thermocouple S,  thermocouple 0...1760 °C with thermocouple R,  thermocouple - 200...1300 °C with thermocouple K, Pt 1000 temperature probe - 200...600 °C, Pt 100 temperature probe - 200...850 °C,  thermocouple - 200...1000 °C with thermocouple J
Repeat accuracy +/- 0.1 %FS
Sampling duration 100 ms
Insulation non-insulated between inputs, between input and internal logic at 500 V DC
Depth 21 mm
Width 34 mm
Cross talk 80 dB
Local signalling 1 LED (green) for PWR
Supply voltage limits 20.4-28.8 V
Temperature drift +/- 0.008 %FS/°C
Absolute accuracy error +/- 0.2 % of full scale at 25 °C for thermocouple R, S 0...1760°C, +/- 0.1 % of full scale at 25 °C for thermocouple B 400...1280 °C, +/- 0.2 % of full scale at 25 °C for thermocouple B 250...400 °C, +/- 0.2 % of full scale at 25 °C for thermocouple N - 200...1300 °C, +/- 0.2 % of full scale at 25 °C for thermocouple T - 200...400 °C, +/- 0.2 % of full scale at 25 °C for thermocouple E - 200...800 °C, +/- 0.2 % of full scale at 25 °C for thermocouple J - 200...1000 °C, +/- 0.2 % of full scale at 25 °C for thermocouple K - 200...1300 °C, +/- 0.5 % of full scale at 25 °C for Pt 100/Pt 1000, Ni 100/ Ni 1000 temperature probe
Type of cable twisted shielded pairs cable
Net weight 0.055 kg
Analogue input resolution 14 bits
Permissible continuous overload 6 V
LSB value 0.1 °C
Non-linearity +/- 0.05 %FS
Input impedance >= 1 MOhm
Height 50 mm
Maximum cable distance between devices twisted shielded pairs cable: <30 m for input
Electrical connection 1 x 1.5 mm² 1 spring terminal block with pitch 3.81 mm adjustment for outputs and supply
Environment
Immunity to microbreaks 10 ms
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.0 cm
Package 1 Width 3.0 cm
Package 1 Length 3.5 cm
Package 1 Weight 74.0 g
Unit Type of Package 2 2
Number of Units in Package 2 50
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 4.164 kg
