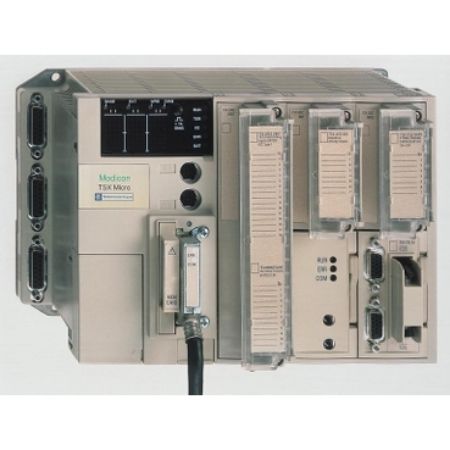

Modular base controller, Modicon TSX Micro, UNI-TELWAY, 10Hz, 0.5A, 19.2kbit/s

$4,703.39
Available for Shipping : 16-Dec-2024
Modular base controller, Modicon TSX Micro, UNI-TELWAY, 10Hz, 0.5A, 19.2kbit/s
  • Connection to the screw terminal block on the front panel of mixed I/O module
  • The communication enables the connectivity to the CANopen machine bus
  • It is appeared as a PCMCIA card equipped with a cable and a tap junction
  • These RS 485 type non-isolated links use Uni-Telway master/slave
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Declaration of conformity
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Primary voltage 24 V 19.2-30 V DC
Input current 2 mA 60 A
Immunity to microbreaks 10 ms
Range of product Modicon TSX Micro automation platform
Product or component type modular base controller
Complementary
Memory description internal RAM 128 Kwords data storage, internal RAM (with PCMCIA card) 128 Kwords program and data, internal RAM 20 Kwords data, flash 15 Kwords data
Protection type overload protection, short-circuit
Realtime clock with
Number of slots 3
Counting input type incremental 1 10 Hz, discrete incremental counter 1 10 Hz
Maximum size of object areas 256 %Mi, 128 %KWi constant words, 1 %MWi internal words
Application structure 1 fast task, 16 event tasks, 1 master task
Electromagnetic compatibility immunity to electromagnetic interference conforming to IEC 61131-2, damped oscillatory wave conforming to IEC 1000-4-12, immunity to impulse waves conforming to IEC 1000-4-5, resistance to fast transient conforming to IEC 1000-4-4 level 3, electromagnetic field immunity test conforming to IEC 1000-4-3 level 3, electrostatic discharge conforming to IEC 1000-4-2 level 3
Execution time for 1 KInstruction 0.266 65 % Boolean and 35 % numerical with PCMCIA card, 4 100 % Boolean with PCMCIA card, 5.88 100 % Boolean without PCMCIA card
Analogue input type 0...10 V 8
Integrated connection type 1 Modbus Modbus RTU 19.2 kbit/s, 1 serial link (TER/AUX) Uni-Telway 19.2 kbit/s
Execution time per instruction 4.5 µs arithmetic REAL floating with PCMCIA card, 0.19 µs Boolean with PCMCIA card, 4.5 µs arithmetic REAL floating without PCMCIA card, 0.13 µs Boolean without PCMCIA card
System overhead 2.3 ms for master task
Total useful secondary power 16 W
Analogue output type 0...10 V 1
Environment
Relative humidity 5-95 % without condensation for operation, 10-95 % without condensation for operation
Ambient air temperature for storage -25-70 °C
Ambient air temperature for operation 0-60 °C
Height 151 mm
Operating altitude 0...2000 m
Depth 152 mm
Width 341.4 mm
Net weight 1.75 kg
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 16.0 cm
Package 1 Width 16.5 cm
Package 1 Length 23.5 cm
Package 1 Weight 1.739 kg
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 30.0 cm
Package 2 Width 40.0 cm
Package 2 Length 60.0 cm
Package 2 Weight 6.956 kg
