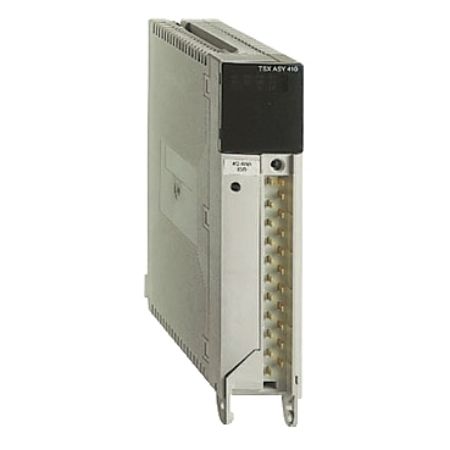

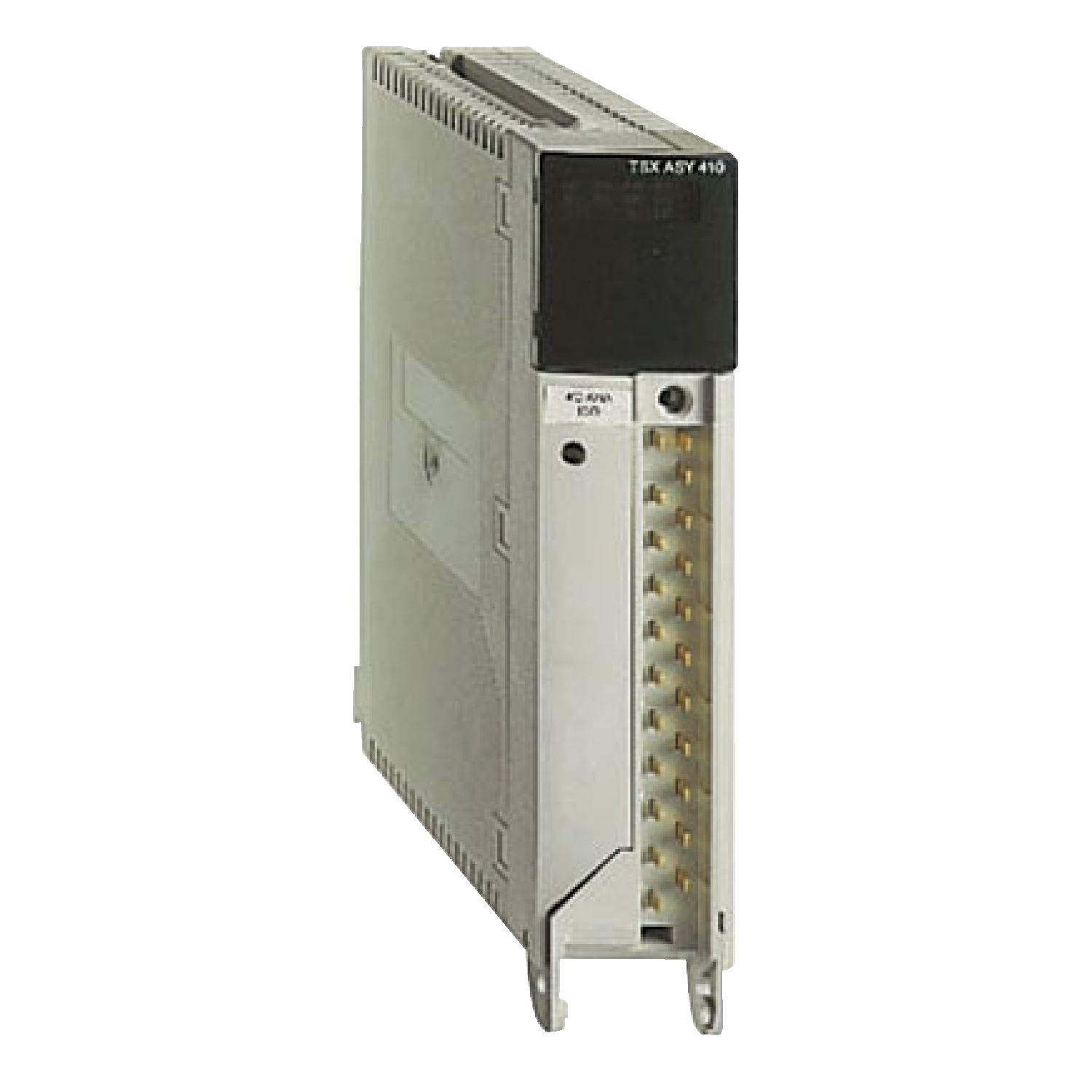

Picture of Analog input module, Modicon Premium, 4 high level inputs, 16 bits conversion, 660mA at 5VDC
SKU:

TSXAEY414

Analog input module, Modicon Premium, 4 high level inputs, 16 bits conversion, 660mA at 5VDC

$4,048.50
Availability: Please contact our sales team on 1300 724 622.
Analog input module, Modicon Premium, 4 high level inputs, 16 bits conversion, 660mA at 5VDC
  • The discrete input module has 4 screw terminal block inputs
  • Perform digitization of input signals
  • Scanning of input channels
  • New High End processors
  • High-level multitasking system
Be the first to review this product
Manufacturer: Schneider Electric
Quick start guide
User guide
Catalogue
Declaration of conformity
Instruction sheet
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Analogue input type thermocouple thermocouple K, thermocouple thermocouple J, thermocouple thermocouple E, thermocouple thermocouple B, voltage 1...5 V, voltage 0...5 V, voltage 0...10 V, voltage +/- 5 V, voltage - 13...63 mV, temperature probe Pt 1000 4 wires, temperature probe Pt 1000 2 wires, temperature probe Pt 100 4 wires, temperature probe Pt 100 2 wires, voltage +/- 10 V, temperature probe Ni 1000 4 wires, temperature probe Ni 1000 2 wires, resistor 0...400 Ohm, resistor 0...3850 Ohm, thermocouple thermocouple U, thermocouple thermocouple T, thermocouple thermocouple S, thermocouple thermocouple R, thermocouple thermocouple N, thermocouple thermocouple L, current 4...20 mA
Analog/digital conversion 16 bits
Analogue input number 4
Input level low level
Product or component type analog input module
Range of product Modicon Premium Automation platform
Complementary
Common mode between channels and earth 240 V AC or 110 V DC
Module format standard
Common mode between channels 415 V AC or 200 V DC
Input overvoltage protection -30-30 V at state 1 250 Ohm, -15-15 V at state 0 250 Ohm
Nominal read cycle time 550 ms
Net weight 0.32 kg
Marking CE
Isolation between channels 2830 Vrms
Overcurrent -30-30 mA at state 1 250 kOhm
Current consumption 660 mA at 5 V DC
Isolation between channels and bus 1780 Vrms
Electrical connection screw terminal block
Measurement error 0.27 % of full scale 1...5 V 25 °C, 0.27 % of full scale 0...400 Ohm 0...60 °C, 0.27 % of full scale +/- 5 V 25 °C, 5 °C Pt 1000 0...60 °C, 2.5 °C Pt 1000 25 °C, 2.4 °C Pt 100 0...60 °C, 2 °C Ni 1000 0...60 °C, 1.2 °C Pt 100 25 °C, 0.27 % of full scale +/- 10 V 25 °C, 1 °C Ni 1000 25 °C, 9.8 °C thermocouple L internal 0...60 °C, 9.5 °C thermocouple J internal 0...60 °C, 8.8 °C thermocouple T internal 0...60 °C, 8.7 °C thermocouple N internal 0...60 °C, 8.5 °C thermocouple S external 0...60 °C, 8.1 °C thermocouple E internal 0...60 °C, 8.1 °C thermocouple B internal 0...60 °C, 7.8 °C thermocouple K internal 25 °C, 7.7 °C thermocouple R external 0...60 °C, 0.22 % of full scale 0...5 V 25 °C, 7.5 °C thermocouple L internal 25 °C, 7.3 °C thermocouple U internal 0...60 °C, 7.3 °C thermocouple J internal 25 °C, 6.6 °C thermocouple T internal 25 °C, 6.6 °C thermocouple S internal 25 °C, 6.1 °C thermocouple E internal 25 °C, 6 °C thermocouple R internal 25 °C, 6 °C thermocouple N internal 25 °C, 5.4 °C thermocouple U internal 25 °C, 4.7 °C thermocouple K external 0...60 °C, 0.22 % of full scale 0...3850 Ohm 25 °C, 4.3 °C thermocouple N external 0...60 °C, 4.1 °C thermocouple L external 0...60 °C, 3.8 °C thermocouple J external 0...60 °C, 3.5 °C thermocouple B internal 25 °C, 3.5 °C thermocouple B external 0...60 °C, 3.4 °C thermocouple S external 25 °C, 3.2 °C thermocouple T external 0...60 °C, 3.2 °C thermocouple R external 25 °C, 3.2 °C thermocouple E external 0...60 °C, 3.1 °C thermocouple U external 0...60 °C, 0.19 % of full scale - 13...63 mV 25 °C, 2.3 °C thermocouple K external 25 °C, 2 °C thermocouple N external 25 °C, 2 °C thermocouple L external 25 °C, 12 °C thermocouple S internal 0...60 °C, 11 °C thermocouple R internal 0...60 °C, 10.5 °C thermocouple K internal 0...60 °C, 1.8 °C thermocouple J external 25 °C, 1.5 °C thermocouple U external 25 °C, 1.5 °C thermocouple T external 25 °C, 1.5 °C thermocouple E external 25 °C, 0.16 % of full scale 0...10 V 25 °C, 1.5 °C thermocouple B external 25 °C, 0.86 % of full scale 4...20 mA 0...60 °C, 0.56 % of full scale 1...5 V 0...60 °C, 0.5 % of full scale +/- 5 V 0...60 °C, 0.5 % of full scale +/- 10 V 0...60 °C, 0.48 % of full scale 0...3850 Ohm 0...60 °C, 0.45 % of full scale 4...20 mA 25 °C, 0.45 % of full scale 0...5 V 0...60 °C, 0.44 % of full scale - 13...63 mV 0...60 °C, 0.39 % of full scale 0...10 V 0...60 °C, 0.13 % of full scale 0...400 Ohm 25 °C
Isolation between channels and ground 1780 Vrms
Environment
Operating altitude 0...2000 m
IP degree of protection IP20
Protective treatment TC
Relative humidity 5-95 % without condensation for storage, 10-95 % without condensation for operation
Ambient air temperature for storage -25-70 °C
Pollution degree 2
Standards IEC 1131, NFC 42-330, DIN 43710, IEC 751, IEC 584, DIN 43760
Ambient air temperature for operation 0-60 °C
Product certifications LR, GL, RINA, RMRS, ABS, BV, DNV
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.5 cm
Package 1 Width 18.0 cm
Package 1 Length 26.0 cm
Package 1 Weight 455.0 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 30.0 cm
Package 2 Width 40.0 cm
Package 2 Length 60.0 cm
Package 2 Weight 6.407 kg
