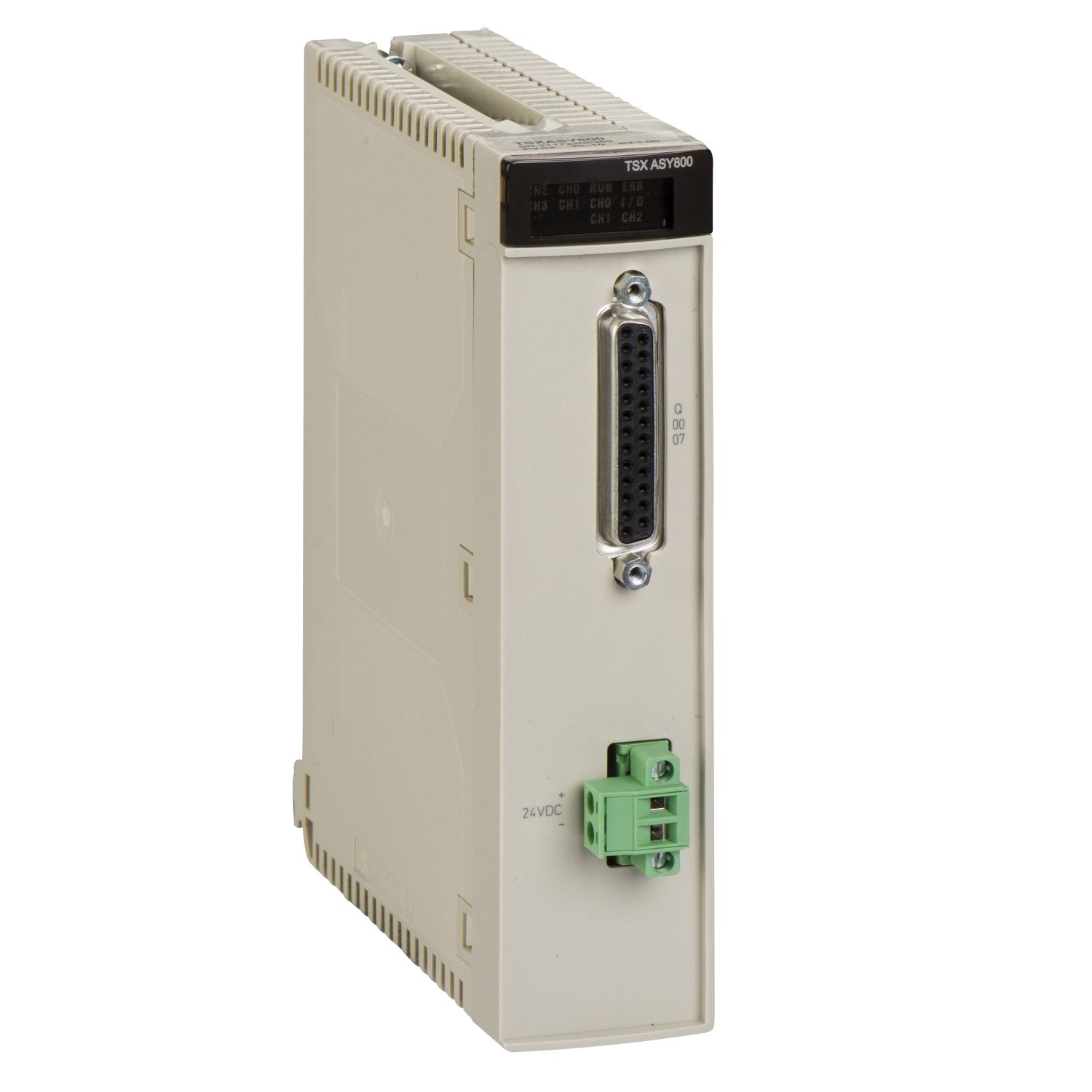

Picture of Analog output module, Modicon Premium, 8 high level outputs, 13 bits coversion, 200mA at 5VDC
SKU:

TSXASY800

Analog output module, Modicon Premium, 8 high level outputs, 13 bits coversion, 200mA at 5VDC

$9,519.00 INC GST
Availability: Please contact our sales team on 1300 724 622.
Analog output module, Modicon Premium, 8 high level outputs, 13 bits coversion, 200mA at 5VDC
  • The discrete output module has 4 screw terminal block high level outputs
  • Has 13-bit Analog/Digital conversion rate
  • The module has common point isolation between channels
  • Provides short-circuit & overload protection
Be the first to review this product
Manufacturer: Schneider Electric
Quick start guide
User guide
Catalogue
Declaration of conformity
Instruction sheet
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Analogue output number 8
Analog/digital conversion 13 bits 4...20 mA, 13 bits 0...20 mA, 13 bits + sign +/- 10 V
Product or component type analog output module
Analogue output type voltage: +/- 10 V, current: 4...20 mA, current: 0...20 mA
Range of product Modicon Premium Automation platform
Complementary
Measurement resolution 2.56 µA 4...20 mA, 2.56 µA 0...20 mA, 1.28 mV +/- 10 V
Maximum load capacitance 0.1 µF
Conversion time 5 ms
Module format standard
Protection type overload protection, short-circuit protection
Electrical connection 1 SUB-D 25 connector
Output voltage limits <= 30 V
Load impedance ohmic > 1000 Ohm +/- 10 V, < 600 Ohm 4...20 mA, < 600 Ohm 0...20 mA
Maximum load inductance 300 µH
Marking CE
Isolation between channels common point
Current consumption 300 mA at 24 V DC, 200 mA at 5 V DC
Isolation between channels and bus 1000 Vrms
Terminals description PLC n°1 (21)OUT_ANA_VOLT#5, (7)OUT_ANA_VOLT#4, (2)OUT_ANA_CUR#0, (23)OUT_ANA_COM#6, (14)OUT_ANA_COM#0, PW_POS#, (10)OUT_ANA_VOLT#6, (22)OUT_ANA_CUR#5, (18)OUT_ANA_VOLT#3, (15)OUT_ANA_VOLT#1, (6)OUT_ANA_COM#3, (5)OUT_ANA_CUR#2, (12)OUT_ANA_COM#7, (3)OUT_ANA_COM#1, (25)OUT_ANA_CUR#7, PW_NEG#, (19)OUT_ANA_CUR#3, (11)OUT_ANA_CUR#6, (9)OUT_ANA_COM#5, (4)OUT_ANA_VOLT#2, (17)OUT_ANA_COM#2, (1)OUT_ANA_VOLT#0, (20)OUT_ANA_COM#4, (8)OUT_ANA_CUR#4, (24)OUT_ANA_VOLT#7, (13)IN_ANA_STD#, (16)OUT_ANA_CUR#1
Measurement error 0.52 % of full scale 4...20 mA 0...60 °C, 0.52 % of full scale 0...20 mA 0...60 °C, 0.28 % of full scale +/- 10 V 0...60 °C, 0.21 % of full scale 4...20 mA 25 °C, 0.21 % of full scale 0...20 mA 25 °C, 0.14 % of full scale +/- 10 V 25 °C
Isolation between channels and ground 1000 Vrms
Environment
Operating altitude 0...2000 m
IP degree of protection IP20
Protective treatment TC
Relative humidity 5-95 % without condensation for storage, 10-95 % without condensation for operation
Ambient air temperature for storage -25-70 °C
Pollution degree 2
Standards CSA C22.2 No 213 Class I Division 2 Group C, 92/31/EEC, IEC 61131-2, UL 508, CSA C22.2 No 213 Class I Division 2 Group D, 89/336/EEC, CSA C22.2 No 213 Class I Division 2 Group B, 73/23/EEC, CSA C22.2 No 142, CSA C22.2 No 213 Class I Division 2 Group A, 93/68/EEC
Ambient air temperature for operation 0-60 °C
Product certifications GL, RMRS, ABS, LR, DNV, RINA, BV
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.5 cm
Package 1 Width 18.0 cm
Package 1 Length 26.0 cm
Package 1 Weight 465.0 g
