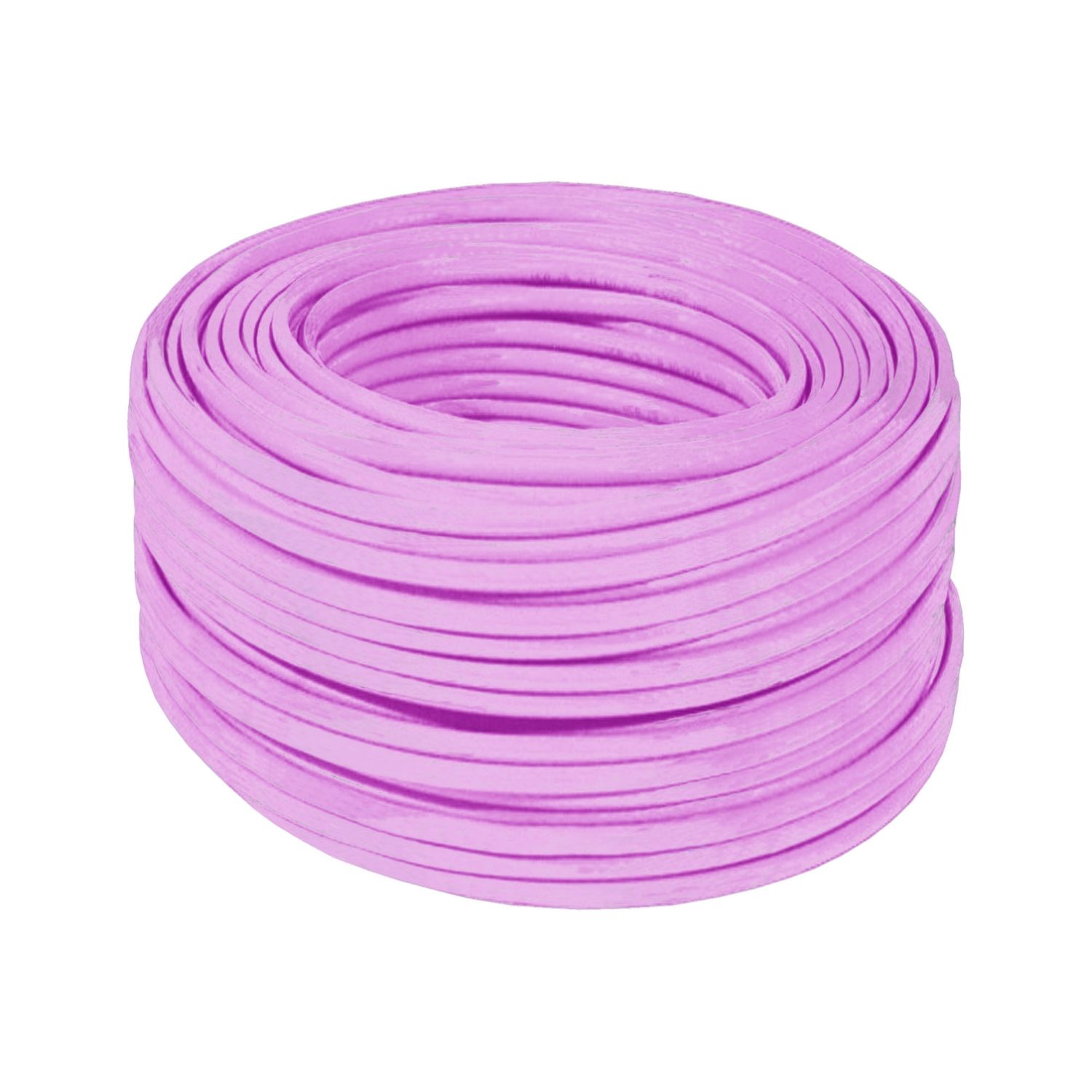

Picture of CANopen standard cable - IP20 - IEC 60332-1 - 300 m
SKU:

TSXCANCA300

CANopen standard cable - IP20 - IEC 60332-1 - 300 m

$3,313.57
Available for Shipping : 28-Nov-2024
Product Selector
CANopen standard cable - IP20 - IEC 60332-1 - 300 m
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Catalogue
User guide
Product Page Link
Product Data Sheet

This product is part of the CANopen range, an offer of connection components. This CANopen standard cable is a low smoke, zero halogen and flame-retardant cable, an accessory of variable speed drive. The length of this cable is 300m. Its wide range of operating temperature between 5°C and 60°C makes it suitable for standard environment, fixed installation. The cable configuration is (2 x 22AWG) + (2 x 24AWG). It is an IP20 rated product. It weighs 24.56kg. It is compatible for Altivar 32 communication buses and networks. It is suitable for used in material handling, hoisting, wood machines, process machines, textile machines and packaging applications. This product is certified by CE. Connection via SUB-D connector with VWA3618 CANopen card. This range is open to all communication networks, applications, users, and provides ingenious solutions for all specific requirements.

Products specifications

Attribute name Attribute value
Main
Accessory / separate part destination CANopen bus
Accessory / separate part type connecting cable
Bus type CANopen
Accessory / separate part category connection accessories
Cable length 300 m
Range of product CANopen
Complementary
Net weight 24.56 kg
Marking CE
Environment
IP degree of protection IP20
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 33.500 cm
Package 1 Width 39.500 cm
Package 1 Length 39.500 cm
Package 1 Weight 24.560 kg
Unit Type of Package 2 2
Number of Units in Package 2 18
Package 2 Height 113.000 cm
Package 2 Width 80.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 454.000 kg
