SKU:

TSXCDP301

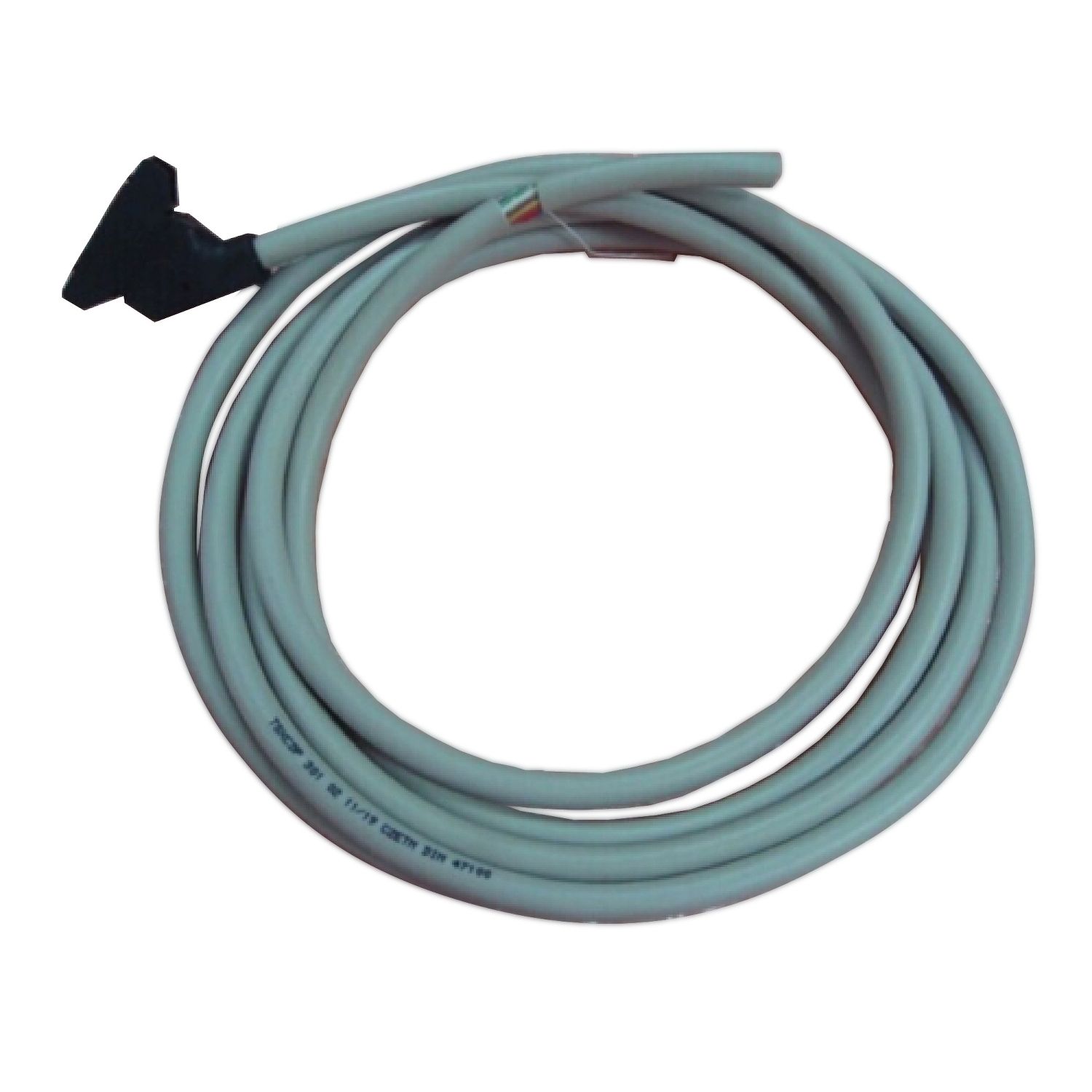

preformed cable - 3 m - for Modicon Premium PLC servodrive

$218.95
Available for Shipping : 03-Dec-2024
preformed cable - 3 m - for Modicon Premium PLC servodrive
Manufacturer: Schneider Electric
This cable is part of the Modicon TSX Micro range, an offer of compact and modular PLCs up to 484 I/Os. This preformed cable is used to connect the sensors, pre-actuators or terminals directly to the counting modules. The length of this cable is 3m. The connecting cable offers 22AWG gauge with 0.324mm² wire section. It is furnished with 20-way HE10 insulated connector for module side and 4 color-coded free end wires for PLC side. It weighs 0.4kg. The main application of this module is machine and manufacturing control, infrastructures. It is compatible with TSXCCY1128, TSXCTY4A, TSXCTY2C,TSXCFY11, TSXCTY2A and TSXCFY21. With micro's accuracy, flexibility and increased productivity, it is a real partner at the heart of the machine. Compact and modular PLC for OEM machine builders and infrastructure, with up to 484 I/O.

Products specifications

Attribute name Attribute value
Main
Accessory / separate part destination servo drive, Modicon Premium PLC
Accessory / separate part type connecting cable
Accessory / separate part category connection accessories
Accessory / separate part designation preformed cable
Range of product Modicon Premium
Complementary
Product compatibility TSXCFY21, TSXCTY2A, TSXCFY11, TSXCTY2C, TSXCTY4A, TSXCCY1128
AWG gauge AWG 22
Net weight 0.4 kg
Cable length 3 m
Wire section 0.324 mm²
Electrical connection free end with 4 colour-coded wires for PLC side, 1 insulated connector HE10, 20 ways for module side
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.000 cm
Package 1 Width 20.600 cm
Package 1 Length 21.000 cm
Package 1 Weight 448.000 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.788 kg
