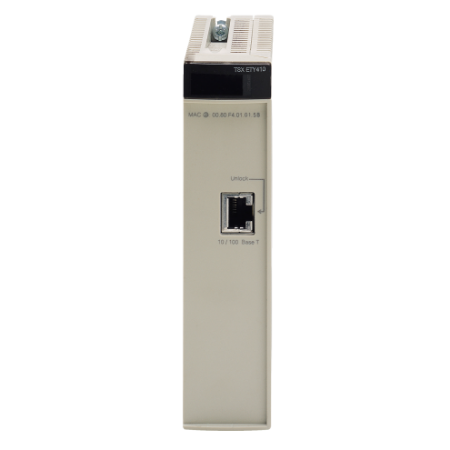

Picture of EtherNet TCP/IP module, Modicon Premium, Modbus TCP, UNI-TELWAY, 360mA at 5VDC, 10Mbit/s
SKU:

TSXETY4103

EtherNet TCP/IP module, Modicon Premium, Modbus TCP, UNI-TELWAY, 360mA at 5VDC, 10Mbit/s

Call for pricing
Availability: Please contact our sales team on 1300 724 622.
EtherNet TCP/IP module, Modicon Premium, Modbus TCP, UNI-TELWAY, 360mA at 5VDC, 10Mbit/s
  • Ethernet Modbus/TCP communication module for Warm Standby redundant architecture on premium
  • The Premium Warm Standby redundant architecture combines physical redundancy of PLC with Normal/Backup type operation
  • The Normal and Backup PLCs are physically and functionally identical
  • During each cycle, the Backup PLC receives the values of the I/O on the Fipio bus from the Normal PLC.
  • It receives it via inter-PLC Ethway link and applies them to its own outputs
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
User guide
Instruction sheet
Catalogue
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Range of product Modicon Premium Automation platform
Local signalling 1 LED for transmission/reception activity (TX/TR), 1 LED for Ethernet port fault (ERR), 1 LED for Ethernet network status (RUN), 1 LED for collision detection (COL)
Transmission rate 10/100 Mbit/s
Communication service Uni-TE messaging, SNMP agent, SMTP e-mail notification, Modbus TCP messaging, I/O scanning, Global Data, FDR server, bandwidth management
Product or component type Ethernet TCP/IP module
Supply via the power supply of the rack
Physical interface RJ45 - 10BASE-T/100BASE-TX 1 twisted pair
Complementary
Web server transparent ready class B30
Web services Data Editor (via PC terminal), rack viewer
Module format standard
Product compatibility Unity Pro, PL7 Pro
Marking CE
Maximum number of connections 64
Communication port protocol Uni-Telway, Modbus TCP
Net weight 0.34 kg
Current consumption 360 mA 5 V DC
Environment
IP degree of protection IP20
Relative humidity 10-95 % at 60-60 °C without condensation
Ambient air temperature for operation 0-60 °C
Standards UL 508, EN 61131-2, FM Class 1 Division 2 group D, FM Class 1 Division 2 group B, FM Class 1 Division 2 group C, FM Class 1 Division 2 group A, CSA 1010-1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.5 cm
Package 1 Width 18.0 cm
Package 1 Length 26.0 cm
Package 1 Weight 426.0 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 30.0 cm
Package 2 Width 40.0 cm
Package 2 Length 60.0 cm
Package 2 Weight 5.991 kg
