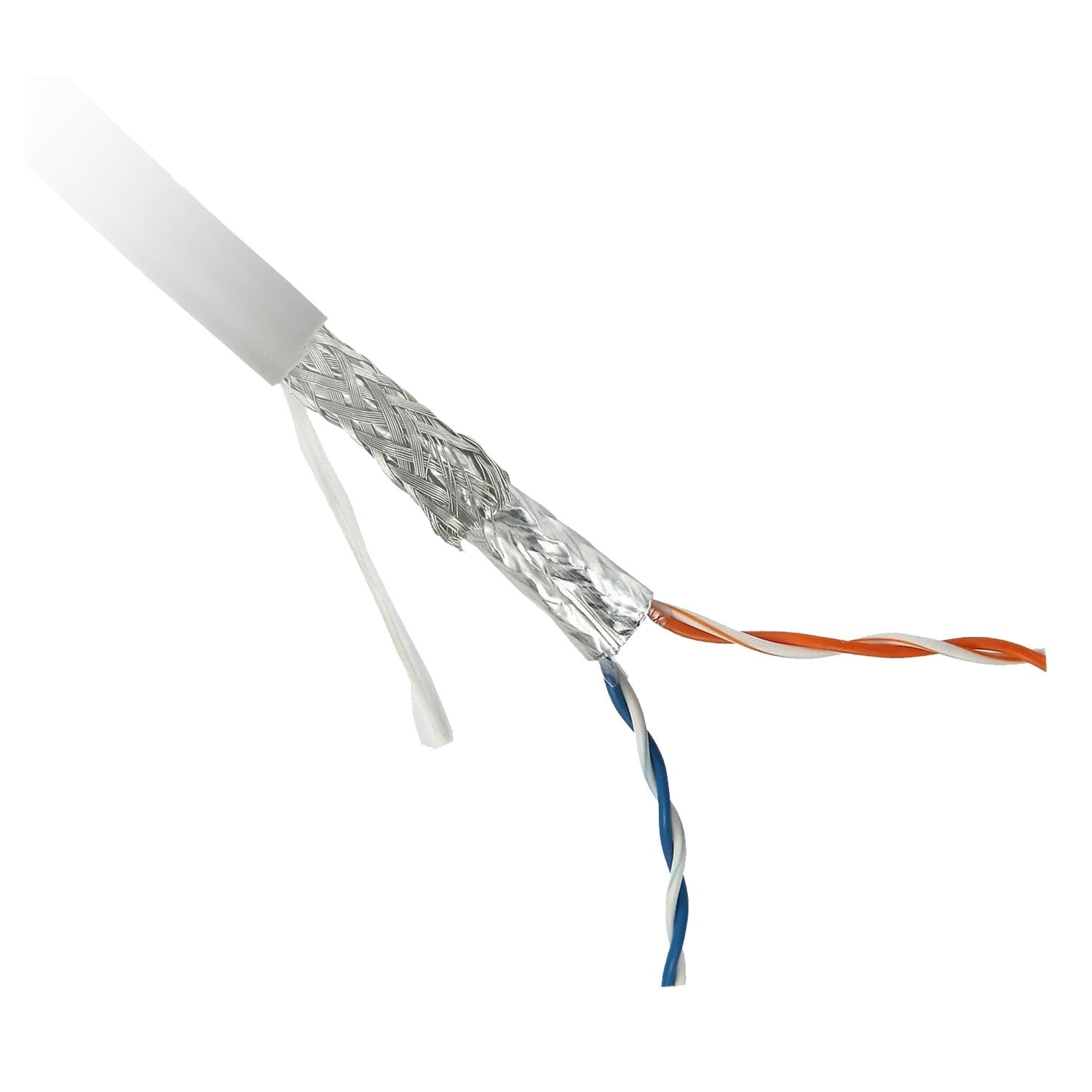

Picture of RS485 shielded cable to build safety islands with safe com. modules - 50 m
SKU:

TSXSCMCN050

RS485 shielded cable to build safety islands with safe com. modules - 50 m

Please Contact Sales to buy this Product. click here
RS485 shielded cable to build safety islands with safe com. modules - 50 m
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 18-Oct-2024
Catalogue
User guide
Product Page Link
Product Data Sheet
This RS485 shielded cable is used to connect 2 safe communication expansion modules. It is designed to link two safe communication modules, in order to create decentralized cabinets of remote IO. This cable figures 2 pairs of twisted conductors with shielding with flying lead connection. RS485 serial interface shielded cables are used between the Bus expansion communication modules to create up to six decentralized safety-related islands with a maximum of 50 meters between each island. It weighs 4.6kg. It measures 50m. It is ideal for monitoring safety functions such as emergency stop, guard monitoring, perimeter guarding, position monitoring, speed monitoring and enabling movement. The Modicon MCM modular safety controller system provide flexibility and scalability from 8 inputs, 2 dual/4 single channel outputs up to 128 inputs, 16 dual/32 single channel outputs, up to 32 or 48 diagnostic status outputs. Modicon MCM modular safety controller system are designed to monitor multiple safety functions on and around a machine to minimise the risk of people accessing the dangerous moving parts of the machine.

Products specifications

Attribute nameAttribute value
Main
Accessory / separate part destinationRS485 safe communication expansion module
Accessory / separate part typeconnecting cable
Accessory / separate part categorycabling accessory
Range of productPreventa Safety automation
Complementary
[Ue] rated operational voltage300 Vrms
Product compatibilityXPSMCMCO0000S...
Attenuation1.97 dB
Nominal velocity propagation66 %
Electrical connectionflying leads
Delay skew1.54 ns
AWG gaugeAWG 24
Cable shielding typeS/FTP
Net weight4.6 kg
Insulation resistance2.2 MOhm nominal outer shield DC resistance, 24 MOhm nominal conductor DC resistance
Cable length50 m
Cable insulation materialPE (polyethylene)
Cable capacitance0.3772 nF (between conductor and shield), 0.2096 nF (between two conductors)
Permissible current2.1 A
Type of cabletwisted pair cable: orange/white, twisted pair cable: white/blue
Environment
Ambient air temperature for operation-20-80 °C
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height12.0 cm
Package 1 Width29.0 cm
Package 1 Length30.0 cm
Package 1 Weight3.438 kg
