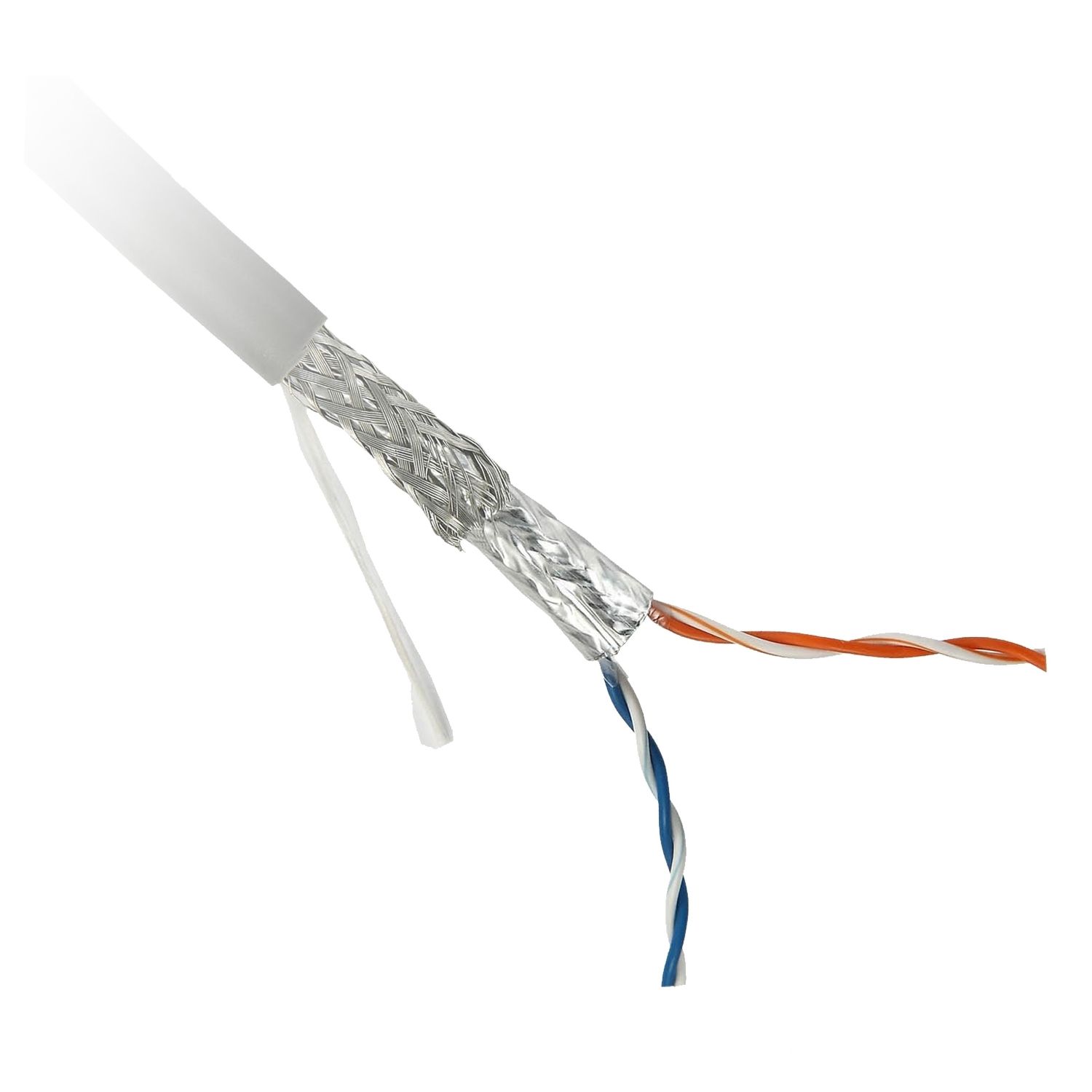

Picture of RS485 shielded cable to build safety islands with safe com. modules - 25 m
SKU:

TSXSCMCN025

RS485 shielded cable to build safety islands with safe com. modules - 25 m

$349.20
Available for Shipping : 10-Dec-2024
RS485 shielded cable to build safety islands with safe com. modules - 25 m
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
User guide
Product Page Link
Product Data Sheet
This RS485 shielded cable is used to connect 2 safe communication expansion modules. It is designed to link two safe communication modules, in order to create decentralized cabinets of remote IO. This cable figures 2 pairs of twisted conductors with shielding with flying lead connection. RS485 serial interface shielded cables are used between the Bus expansion communication modules to create up to six decentralized safety-related islands with a maximum of 50 meters between each island. It weighs 2.3kg. It measures 25m. It is ideal for monitoring safety functions such as emergency stop, guard monitoring, perimeter guarding, position monitoring, speed monitoring and enabling movement. The Modicon MCM modular safety controller system provide flexibility and scalability from 8 inputs, 2 dual/4 single channel outputs up to 128 inputs, 16 dual/32 single channel outputs, up to 32 or 48 diagnostic status outputs. Modicon MCM modular safety controller system are designed to monitor multiple safety functions on and around a machine to minimise the risk of people accessing the dangerous moving parts of the machine.

Products specifications

Attribute name Attribute value
Main
Accessory / separate part destination RS485 safe communication expansion module
Accessory / separate part type connecting cable
Accessory / separate part category cabling accessory
Range of product Preventa Safety automation
Complementary
[Ue] rated operational voltage 300 Vrms
Product compatibility XPSMCMCO0000S...
Attenuation 1.97 dB
Nominal velocity propagation 66 %
Electrical connection flying leads
Delay skew 1.54 ns
AWG gauge AWG 24
Cable shielding type S/FTP
Net weight 2.3 kg
Insulation resistance 2.2 MOhm nominal outer shield DC resistance, 24 MOhm nominal conductor DC resistance
Cable length 25 m
Cable insulation material PE (polyethylene)
Cable capacitance 0.1886 nF (between conductor and shield), 0.10478 nF (between two conductors)
Permissible current 2.1 A
Type of cable twisted pair cable: orange/white, twisted pair cable: white/blue
Environment
Ambient air temperature for operation -20-80 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.000 cm
Package 1 Width 24.000 cm
Package 1 Length 24.000 cm
Package 1 Weight 1.810 kg
Unit Type of Package 2 2
Number of Units in Package 2 2
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.900 kg
