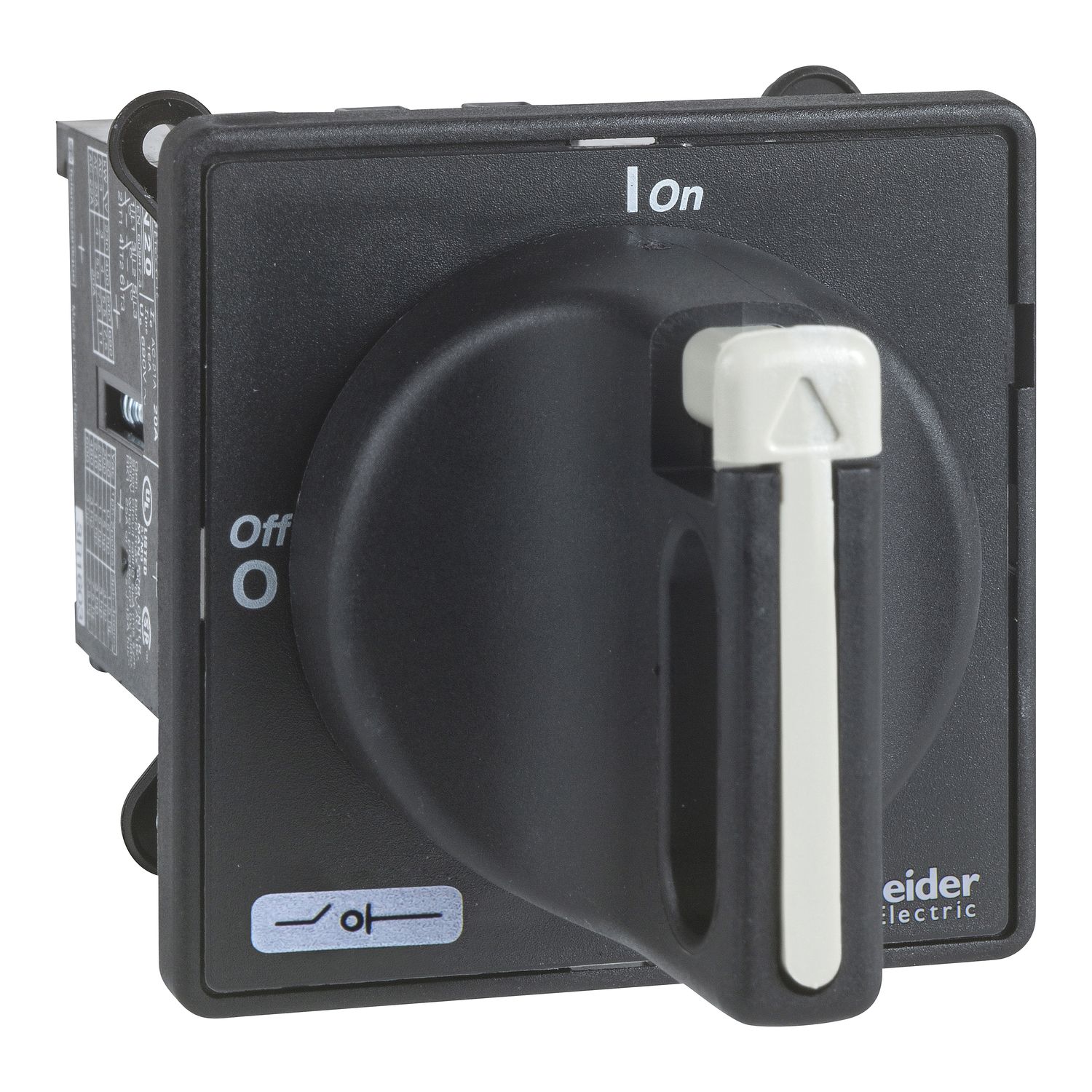

Picture of Switch disconnector,TeSys Control,for ON/OFF,12A(VN12),Ø22.5 fixing,for mountingfor mounting on door
SKU:

VBDN12

Switch disconnector,TeSys Control,for ON/OFF,12A(VN12),Ø22.5 fixing,for mountingfor mounting on door

$89.65
Available for Shipping : 12-Dec-2024
Switch disconnector,TeSys Control,for ON/OFF,12A(VN12),Ø22.5 fixing,for mountingfor mounting on door
  • Convenient to use with 3 options of padlockable operating handle
  • Ensure high protection degree under harsh environment
  • Multi standards certified
  • Compliant with Green Premium
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Instruction sheet
Catalogue
Product Page Link
Product Data Sheet
TeSys Vario switch disconnector for door mounting, 3 poles, 12A/690V, for motor switching applications up to 4kW@400V AC-23. Complete unit composed of a switch body VN12, a black handle with black 60x60mm front plate KAD1PZ. Intended for main switch disconnecting usage. Padlockable handle, for 3 padlocks (to be ordered separately). Handle with central fixing on door, ensuring IP65 to the mounting. Multi standards certified (IEC, UL, CSA), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name VBDN
Control type rotary handle
Range TeSys
Rotary handle mounting style direct
Poles description 3P
Contacts type and composition 3 NO
Performance level standard
Product name TeSys Mini-VARIO
Product or component type switch disconnector
Handle colour black
Handle front plate colour black
Network type DC, AC
Rotary handle padlocking 1 to 3 padlocks 4-8 mm
Complementary
[Icw] rated short-time withstand current 140 A at 400 V duration: 1 s
Tightening torque power circuit: 0.7-0.7 N.m - on screw clamp terminals
Compatibility code main switch disconnector
Mechanical durability 50000 cycles
[Ie] rated operational current 8.1 A (AC-23) at 400 V
Electrical durability 50000 cycles AC-21, 30000 cycles DC-1...5
Base dimension 60 x 60 mm
Marking 0 - 1
Fixing mode hole with 22.5 mm for handle
[Ith] conventional free air thermal current 12 A
Intermittent duty class 30
Height 60 mm
Rated conditional short-circuit current 6 kA at 400 V - associated fuse 12 A gG, 6 kA at 400 V - associated fuse 12 A aM
Rated operational power in W 4 kW at 690 V (AC-3), 4 kW at 500 V (AC-3), 3 kW at 400...415 V (AC-3), 1.5 kW at 230...240 V (AC-3), 7.5 kW at 690 V (AC-23A), 5.5 kW at 500 V (AC-23A), 4 kW at 400...415 V (AC-23A), 3 kW at 230...240 V (AC-23A)
Breaking capacity 120 kA at 400 V (AC-23A), 120 kA at 400 V (AC-22A), 120 kA at 400 V (AC-21A)
Device composition handle, switch
Width 60 mm
Mounting support switch: door, handle: door
Suitability for isolation yes
[Icm] rated short-circuit making capacity 0.5 kA at 400 V at Ipeak
Connections - terminals power circuit: screw clamp terminals4-4 mm² - solid, power circuit: screw clamp terminals4-4 mm² - flexible - with cable end
[Uimp] rated impulse withstand voltage 6 kV
Making capacity 120 A at 400 V AC-23A, 120 A at 400 V AC-22A, 120 A at 400 V AC-21A
Net weight 0.177 kg
[Ithe] conventional enclosed thermal current 10 A
[Ue] rated operational voltage 690 V AC 50/60 Hz
Environment
Fire resistance 960 °C conforming to IEC 60695-2-1
Mechanical robustness shocks 11 ms (15 gn) conforming to IEC 60068-2-27, vibrations 10...150 Hz (5 gn) conforming to IEC 60068-2-6
Protective treatment TC
IP degree of protection IP65
Ambient air temperature for operation -20-50 °C
Standards IEC 60947-3
Product certifications UKCA, CSA, CCC, GL, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.0 cm
Package 1 Width 8.5 cm
Package 1 Length 12.0 cm
Package 1 Weight 178.0 g
Unit Type of Package 2 2
Number of Units in Package 2 24
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 4.776 kg
