SKU:

VCM8001V5045

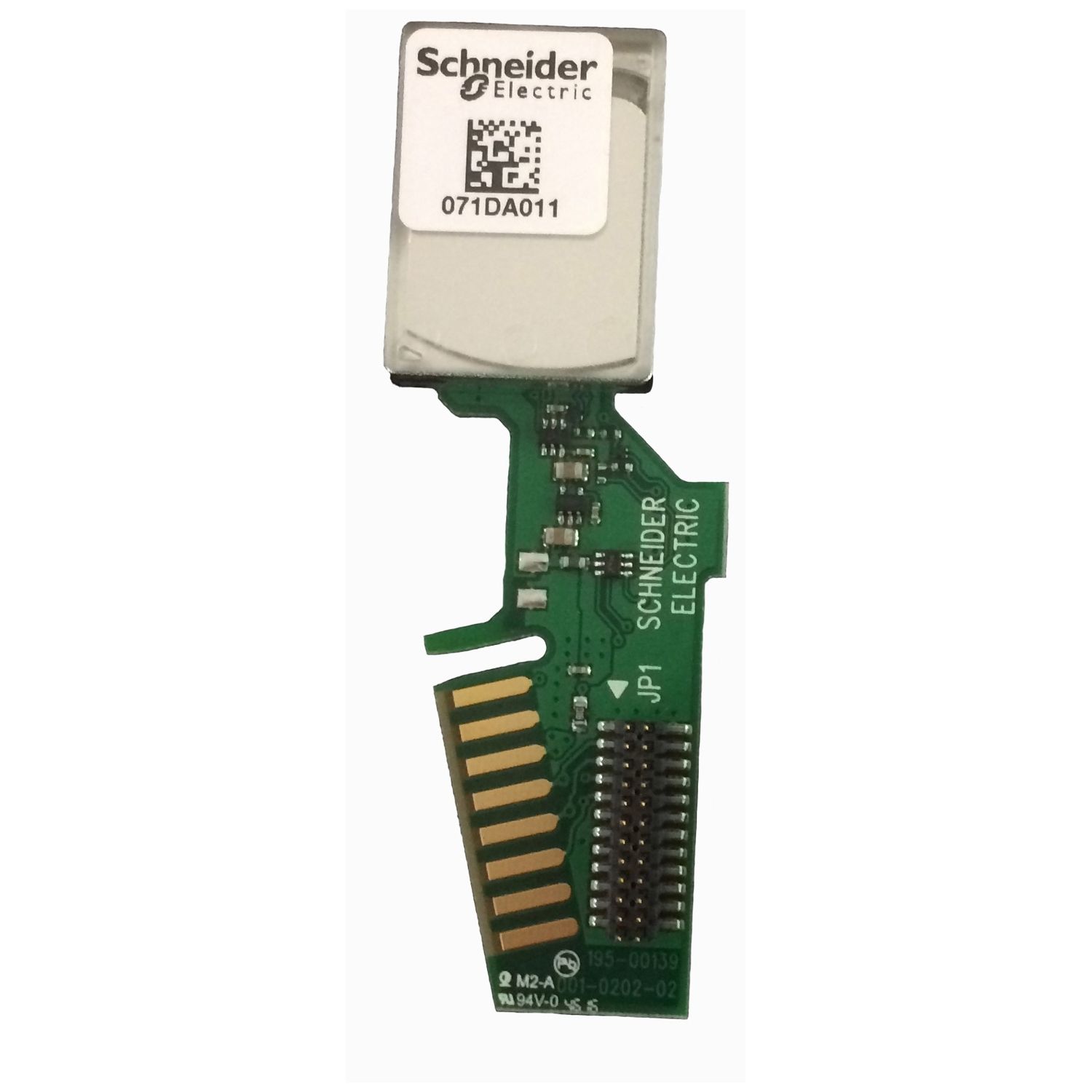

CO2 sensor module for SE8000 Room Controllers

$458.40

Qty:

Available for Shipping : 10-Dec-2024

CO2 sensor module for SE8000 Room Controllers

Manufacturer: Schneider Electric

Instruction sheet

Catalogue

Product Page Link

Product Data Sheet

This is a CO2 sensor module for SE8000 Room Controllers ti ebavke Fresh and IAQ applications.

Attribute name	Attribute value
Main
Depth	8.2 mm
Width	71 mm
CO2 measurement accuracy	+/- 30 ppm + 3 % of reading
Relative humidity	0-95 % without condensation
Response time	2 min
Ambient air temperature for storage	-40-70 °C
Communication port protocol	Modbus, serial link
Range	EcoStruxure Building Expert
CO2 measurement range	400...10000 ppm
Net weight	8 g
Product name	SE8000 Series
Product or component type	sensor
Type of measurement	CO2
Mounting support	surface mount
Ambient air temperature for operation	-5-55 °C
Height	25.1 mm
[Us] rated supply voltage	3.4...4.5 V
Complementary
Technology type	infrared
Function available	with CO2 sensor
Pressure dependance	1.6 % change in reading per 1 kPa deviation from 100kPa
Power consumption in VA	0.1-3.6 VA
Minimum interval duration	2 s
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	4.000 cm
Package 1 Width	9.000 cm
Package 1 Length	11.500 cm
Package 1 Weight	40.000 g
Unit Type of Package 2	2
Number of Units in Package 2	12
Package 2 Height	15 cm
Package 2 Width	15 cm
Package 2 Length	40 cm
Package 2 Weight	680.000 g
Unit Type of Package 3	3
Number of Units in Package 3	384
Package 3 Height	45.000 cm
Package 3 Width	80.000 cm
Package 3 Length	120.000 cm
Package 3 Weight	33.760 kg
