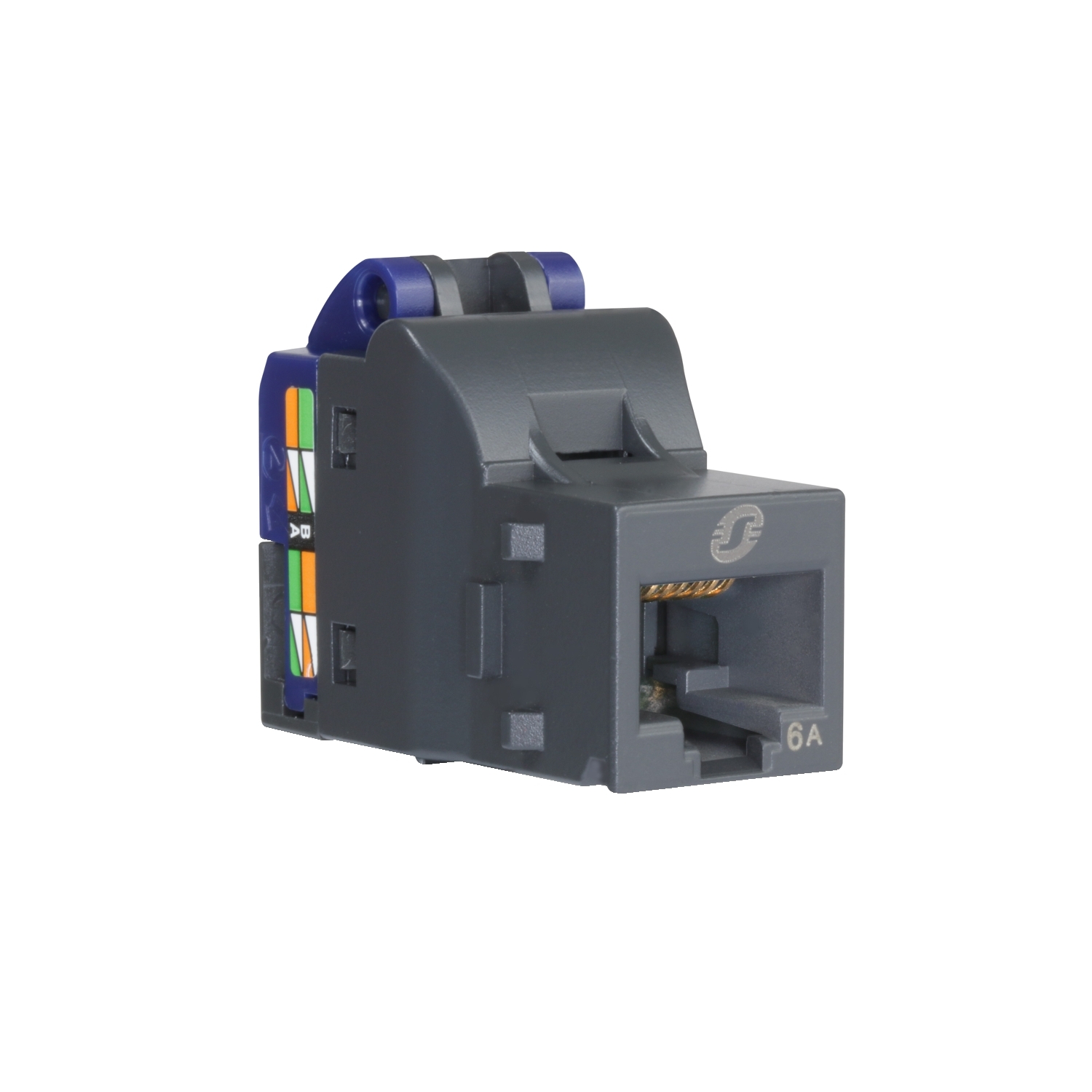

Picture of Actassi S-One Connector RJ45 Unshielded Cat 6 - A - DPM box x 12
SKU:

VDIB1771XU12

Actassi S-One Connector RJ45 Unshielded Cat 6 - A - DPM box x 12

$19.66 INC GST
Available for Shipping : 08-Dec-2025
Actassi S-One Connector RJ45 Unshielded Cat 6 - A - DPM box x 12
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 08-Dec-2025
Declaration of conformity
Product environmental
User guide
Instruction sheet
Brochure
Catalogue
Product Page Link
Product Data Sheet

This ACTASSI S-ONE DPM is state-of-the-art RJ45 connector for cabling systems solutions designed for buildings and data centres. Its one piece design allows faster and safer installation and delivers Cat6A high performance level. It is a tooless RJ45 connector which is part of the entire ACTASSI range to create full cabling solutions, backed by extended system warranty. It is designed for unshielded infrastructure and is mutli-standard certified(IEC,TIA,UL)as well as Green Premium compliant(RoHS/REACH). The connector is delivered in carton box of 12 pieces and is open ready to be used. Cat6A unshielded tooless RJ45 connector with S-ONE DPM footprint. Delivered in a practical eco-carton box of 12 pcs. One piece design -easy to handle and to make connection.Delivered open/ready to use/ - U-shape for cable entry to ease installer job. Ergonomic design - smooth bridle to avoid installer pain during closing for connection. Smart bridle with elastomer for cable locking. Central cable entry for optimized performances.protected IDC so that impossible to damage cable or fingers. Component certified according to ISO/IEC 60603-7. Audible /clic/ to know that S-ONE is closed and connection is done. Quick release button to re-open the jack in case of wiring check or modification required. Compatible with all ACTASSI range with extended system warranty.

Products specifications

Attribute name Attribute value
Main
Colour code 568 A/B
Quantity per set set of 12
Device presentation integrated one piece design
Range Actassi
Type of packing carton
Product or component type RJ45 network socket
Colour tint connector: dark grey (ABS + PC), wire organizer: dark blue (ABS + PC)
Complementary
Contact resistance 20 mOhm
Communication network category 6<sub>A</sub>
AWG gauge AWG 24...AWG 23
Pulling force 50 N during 60 s
Transmission frequency 0-500 MHz
Cable shielding type UTP
Permissible voltage 1000 V AC/DC peak, between contacts
Transverse conversion loss >= 68 - 20 x log(f) dB at 1-500000 kHz, >= 50 dB
Insulation resistance initial insulation resistance: >= 500 MOhm at 100 V DC
Height 28 mm
Type of footprint S-One DPM
Pin number 8 pins of copper alloy and gold plated conforming to IEC 60603-7
Cable outer diameter 0.9-1.4 mm
Width 18 mm
Mechanical durability 750 cycles
Communication port protocol 4PPoE 100W (Power over Ethernet), PoE+ (Power over Ethernet), VoIP (Voice IP)
Length 33 mm
Targeted region Europe
Tool type without tool
[In] rated current 1.5 A at 25 °C
Coupling attenuation >= 75 - 20 x log(f) dB at 100-1000 MHz, >= 35 dB at 30-100 MHz
Communication network type 10GBASE-T
Environment
Climatic withstand 40/070/21 (21 days)
Standards IEC 60512-99-002, UL 1863, ISO/IEC 11801:2011 Ed.2.2, IEC 60603-7-5, ANSI/TIA-568-C.2
Ambient air temperature for operation -40-70 °C
Flame retardance UL94-V0
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.800 cm
Package 1 Width 1.800 cm
Package 1 Length 3.500 cm
Package 1 Weight 9.000 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 4.000 cm
Package 2 Width 18.000 cm
Package 2 Length 8.000 cm
Package 2 Weight 142.000 g
Unit Type of Package 3 3
Number of Units in Package 3 1008
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 12.340 kg
Unit Type of Package 4 4
Number of Units in Package 4 4032
Package 4 Height 14.900 cm
Package 4 Width 60.000 cm
Package 4 Length 80.000 cm
Package 4 Weight 58.295 kg
