SKU:

VW3A1111

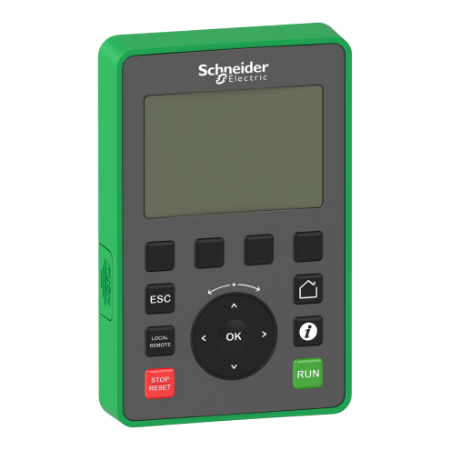

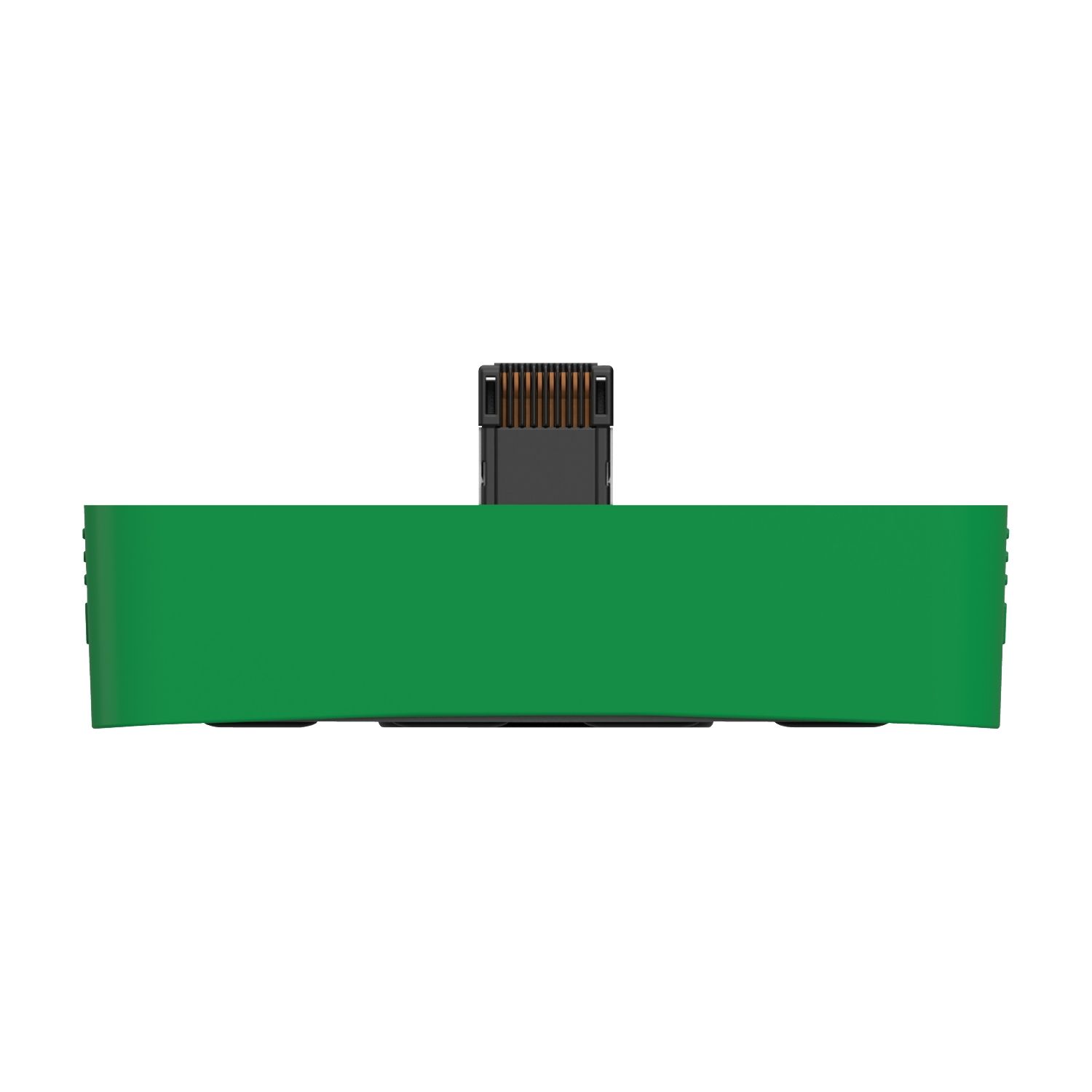

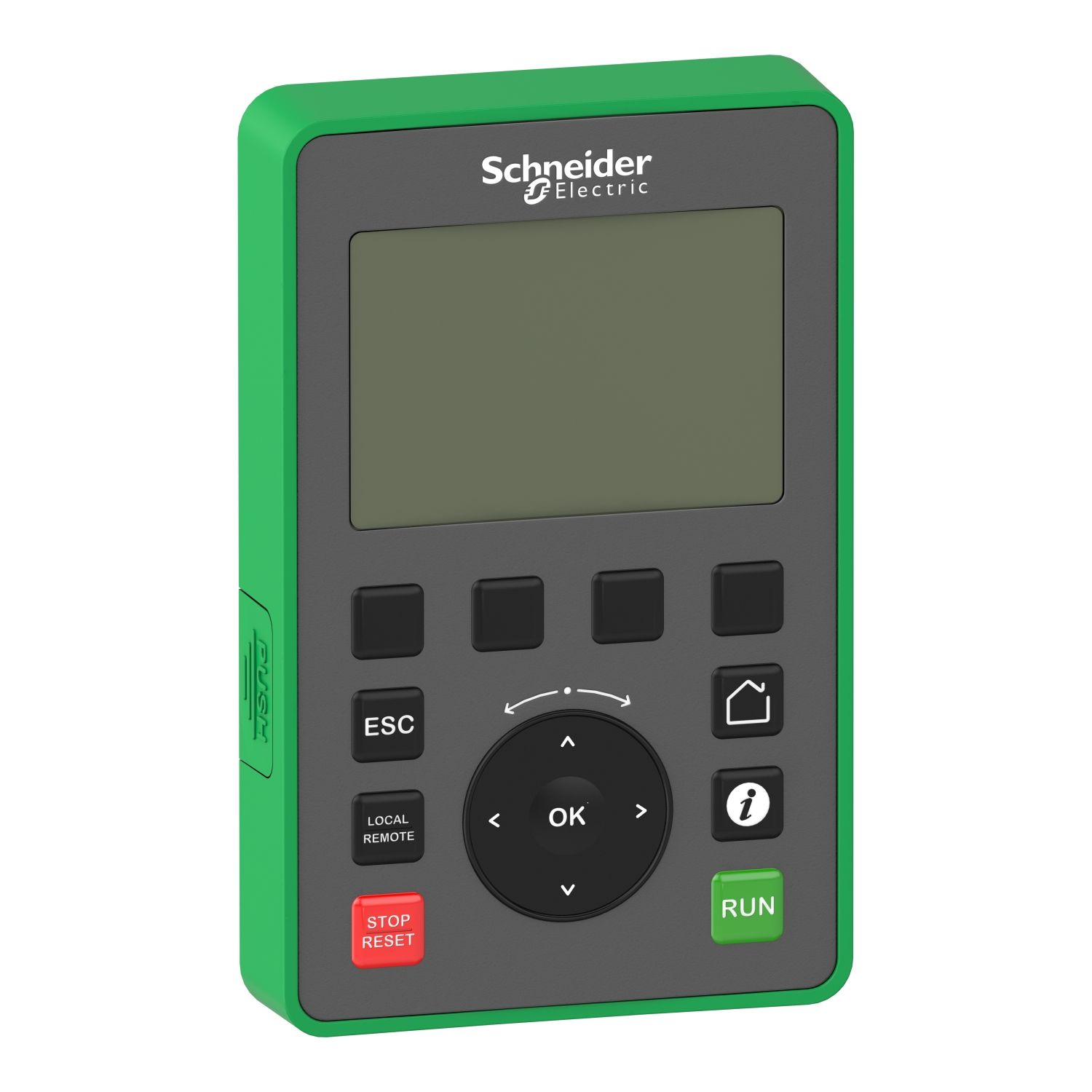

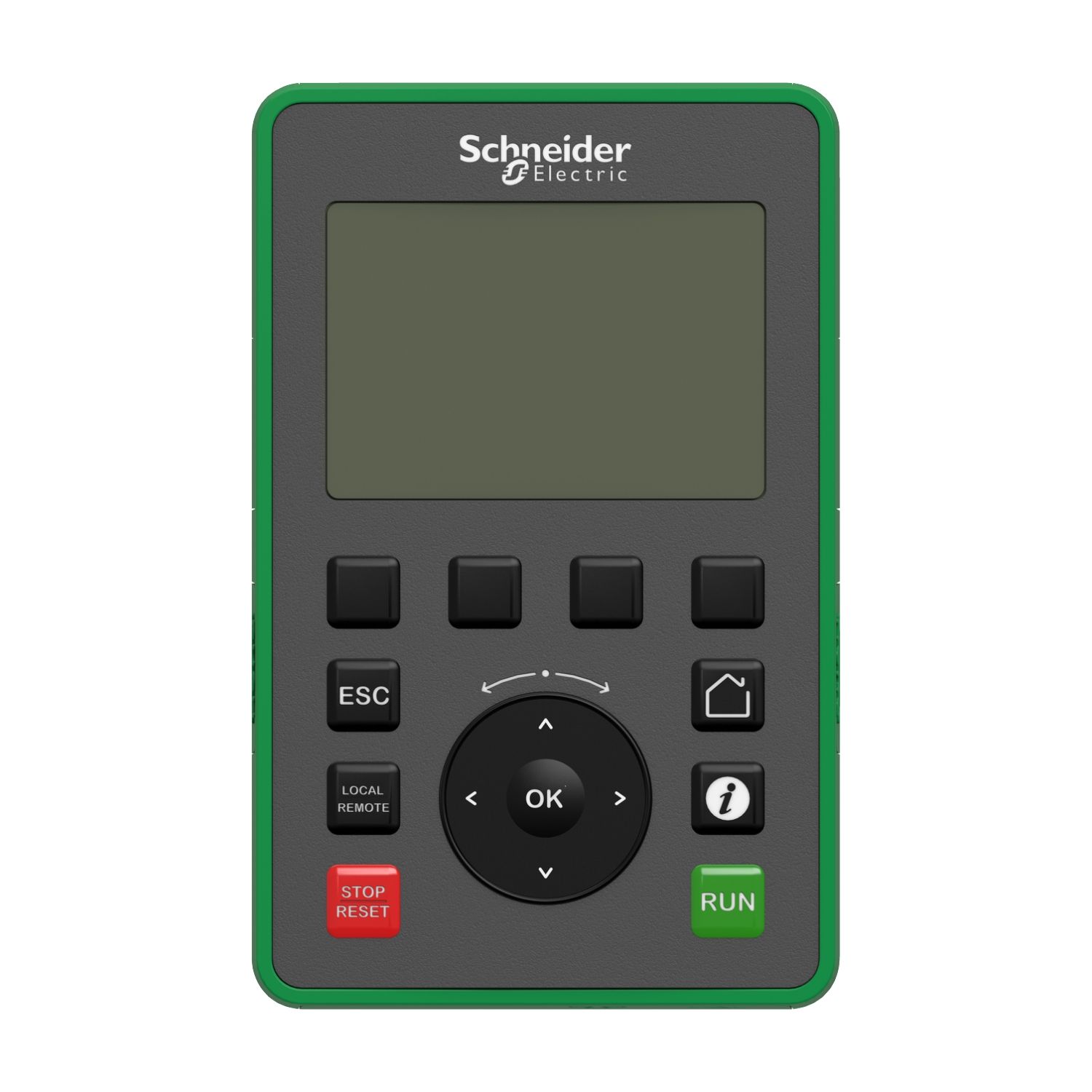

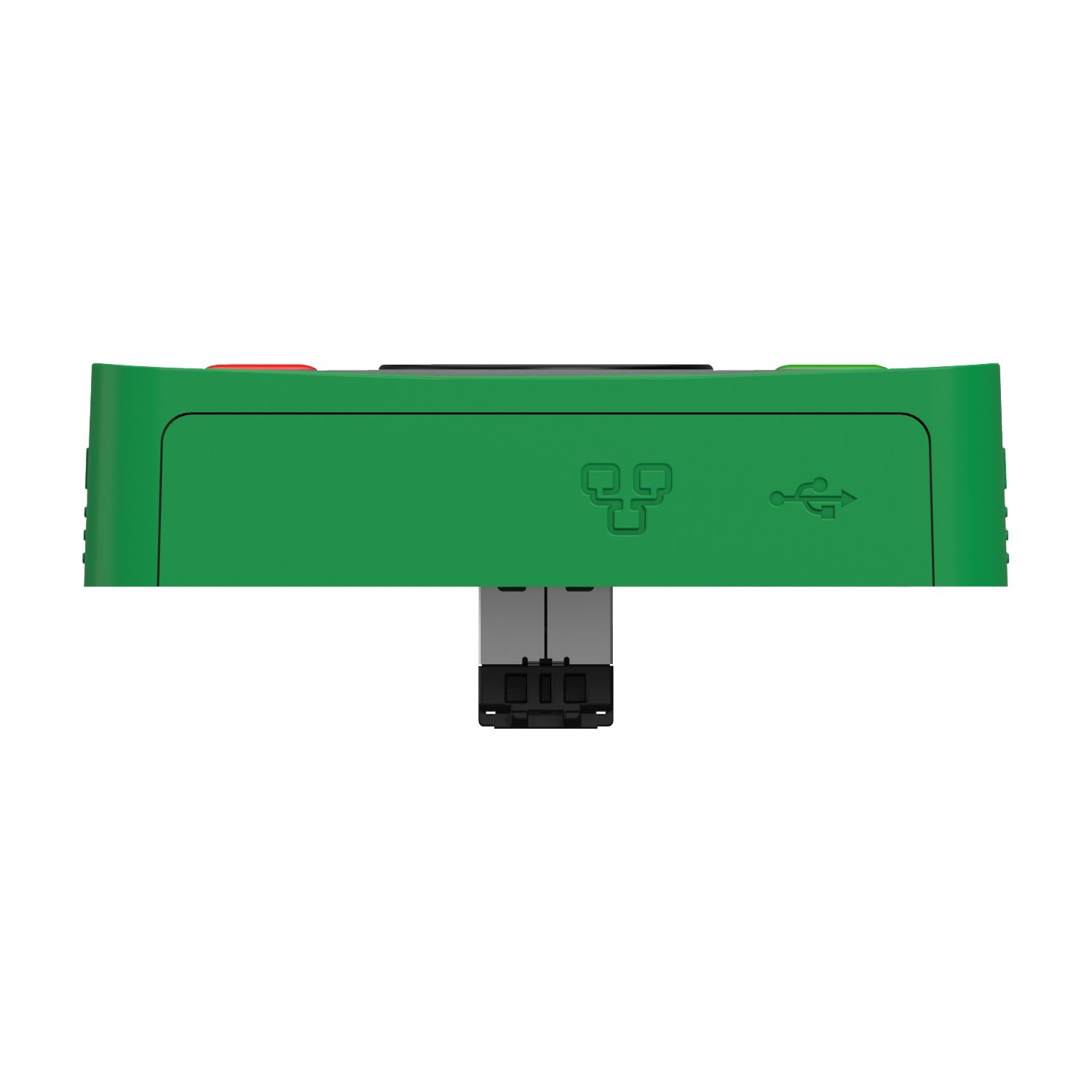

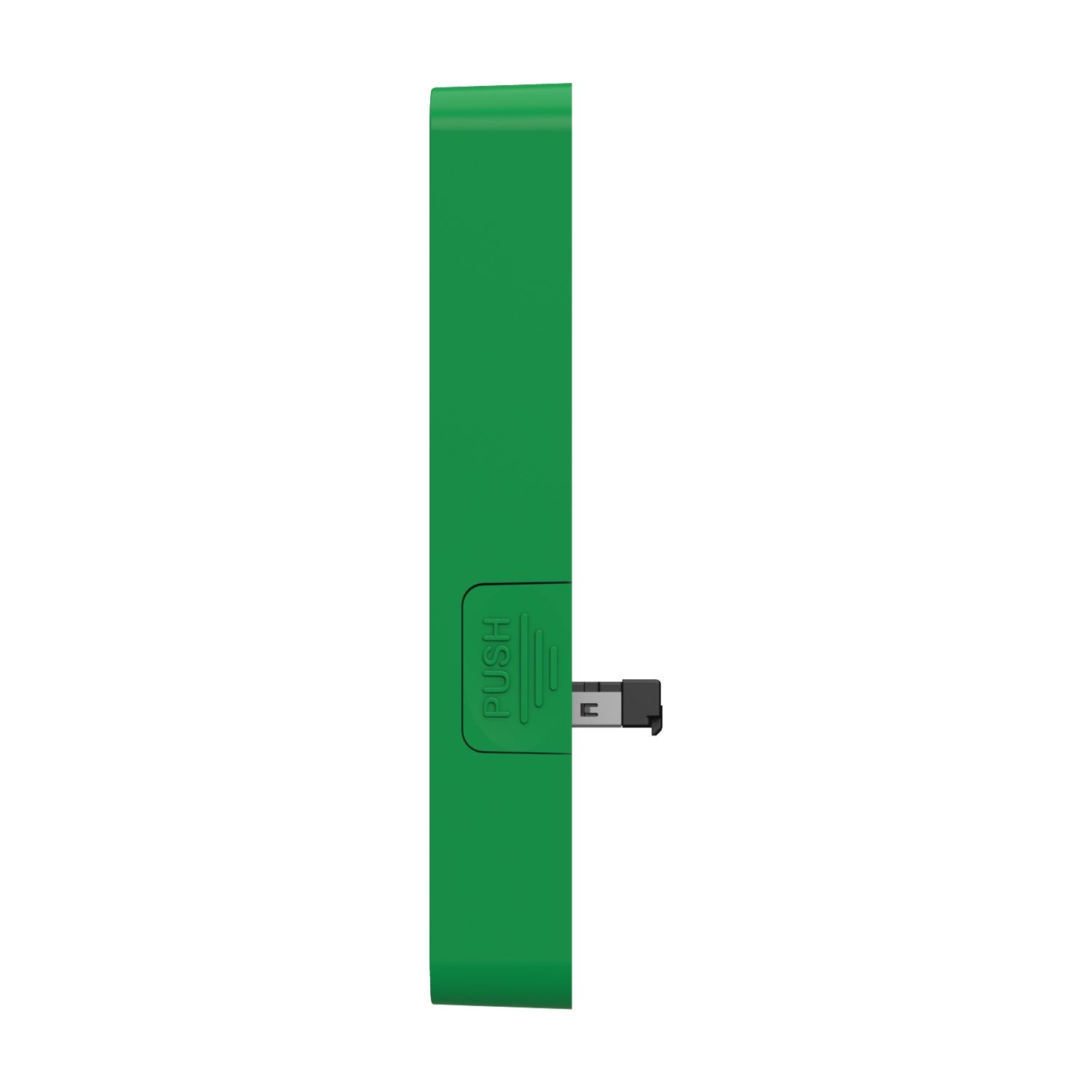

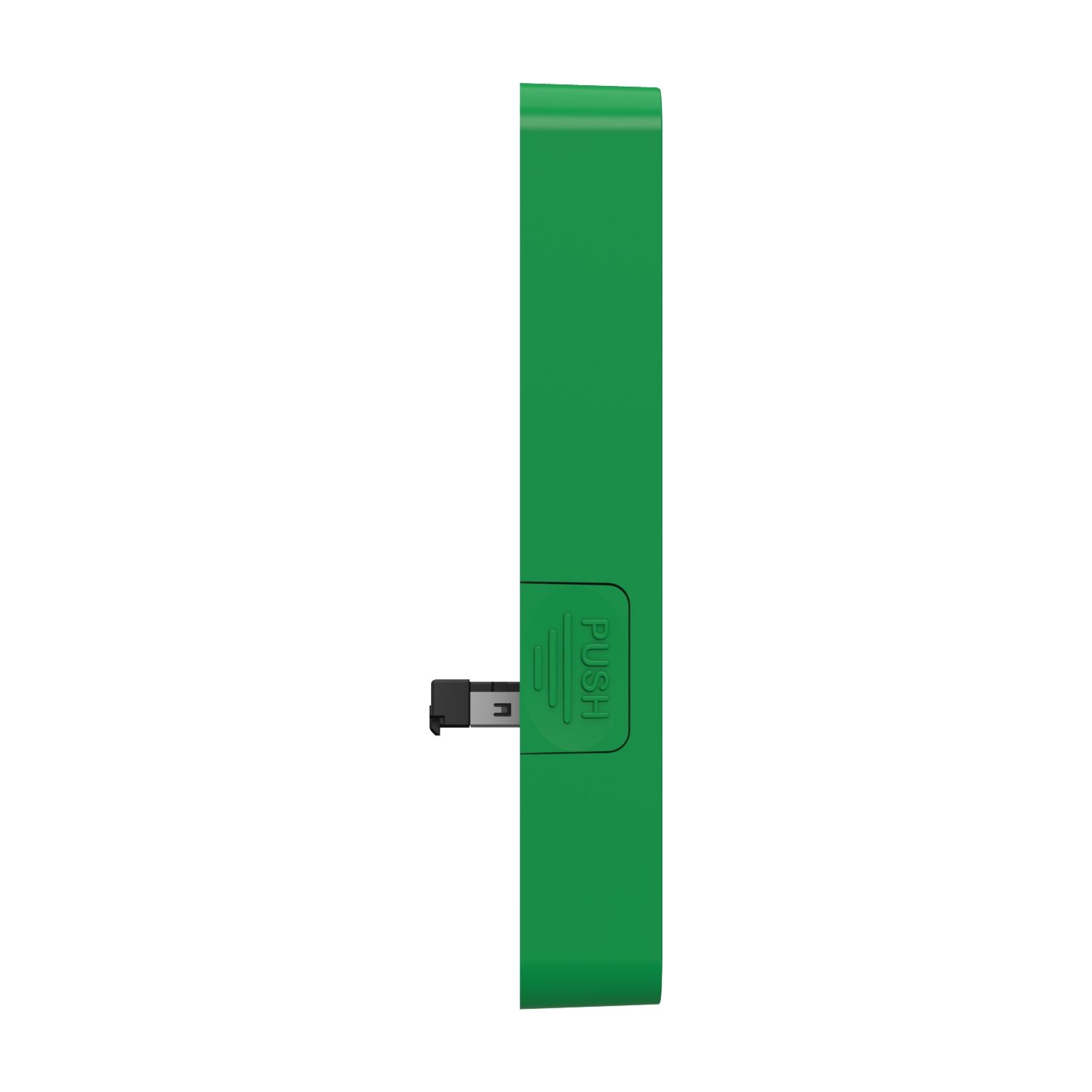

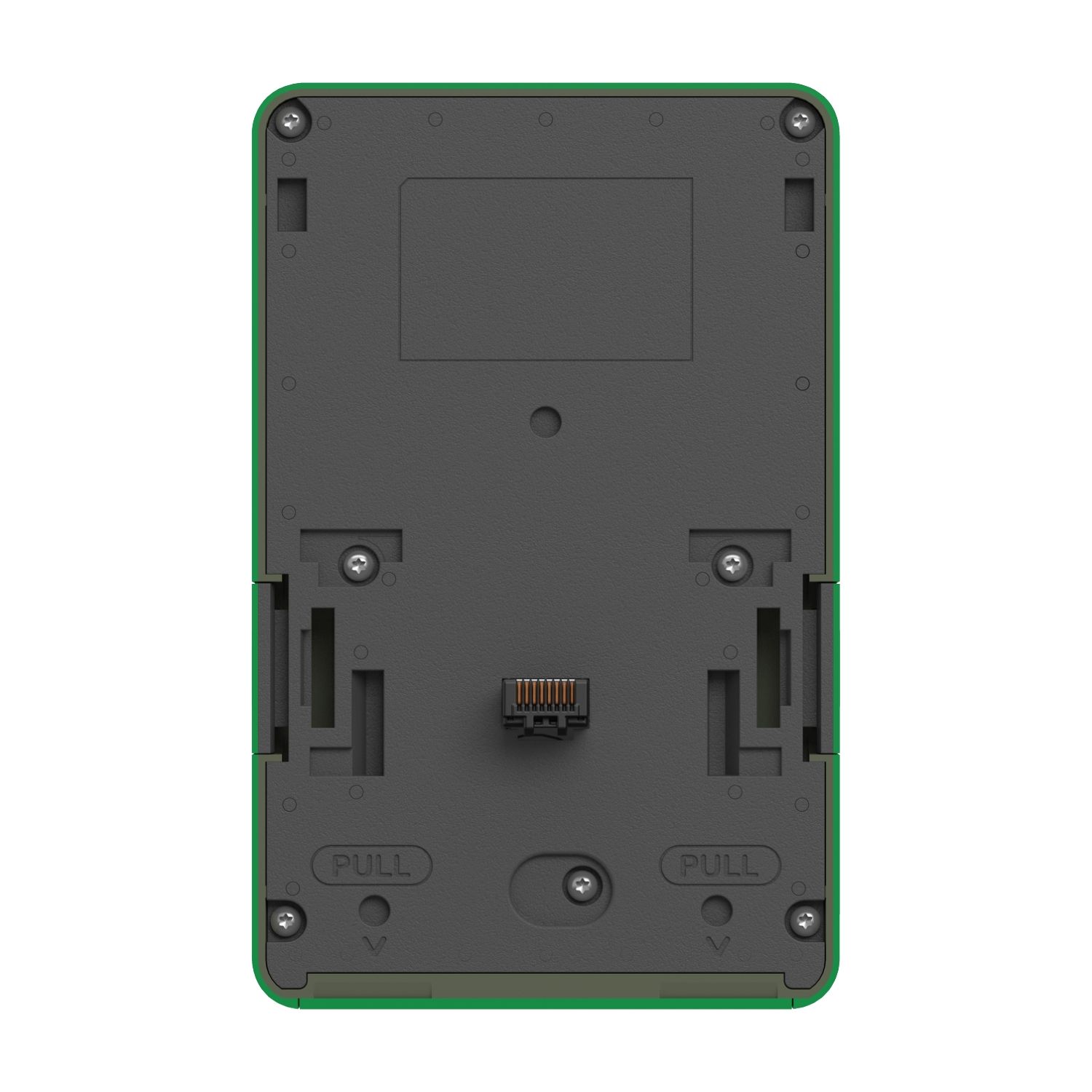

graphic display terminal, Altivar, 240 x 160pixels, IP65

$338.20
Product Selector
graphic display terminal, Altivar, 240 x 160pixels, IP65
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Image of product
Image of product
Image of product
End of life manual
Image of product
Product environmental
Image of product
Image of product
Catalogue
Product Page Link
Product Data Sheet
This graphic terminal is an option for variable speed drives of Altivar range. It is a dialogue option for the variable speed drive. Its protection index is IP65. This terminal can be connected and mounted on the front of the drive or on an enclosure door using a remote mounting accessory, it also can be connected to a PC to exchange files or to several drives in multidrop mode. Its maximum operating temperature is 50 °C. It provides a pixel resolution of 240 x 160 pixels and 8 lines of display. It weighs 200g. It provides 24 integrated languages (complete alphabets) covering the majority of countries around the world (other languages can be added). It is used to control, adjust and configure the drive, display the current values (motor, input/output values, etc.), save and download configurations (several configurations can be saved in the 16MB memory). A remote mounting kit for mounting on enclosure door with IP65 degree of protection is available as accessory, to be ordered separately.

Products specifications

Attribute nameAttribute value
Main
Accessory / separate part destinationvariable speed drive
IP degree of protectionIP65
Accessory / separate part categorydisplay and signalling accessories
Range of productAltivar
Accessory / separate part typedisplay terminal
Range compatibilityAltivar Machine ATV340, Altivar Process ATV600, Altivar Process ATV900
Product specific applicationto display the current values, to save and download configurations, to control, adjust and configure the drive
Complementary
Display typebacklit LCD screen white and red
Realtime clockbuilt-in
Battery life10 year(s)
User languageUkrainian, Italian, Dutch, Taiwanese, Slovak, Czech, Finnish, Portuguese, Korean, German, Brazilian, French, Lituanien, Norwegian, Chinese, Hungarian, Danish, Greek, Russian, English, Bulgarian, Estonian, Swedish, Polish, Turkish, Romanian, Spanish
Messages display capacity8 lines
Battery sizeCR2032
Net weight0.2 kg
Pixel resolution240 x 160
Environment
Ambient air temperature for operation-15-50 °C
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height5.7 cm
Package 1 Width13.7 cm
Package 1 Length18.6 cm
Package 1 Weight264.0 g
Unit Type of Package 22
Number of Units in Package 220
Package 2 Height30.0 cm
Package 2 Width30.0 cm
Package 2 Length40.0 cm
Package 2 Weight6.069 kg
Unit Type of Package 33
Number of Units in Package 380
Package 3 Height45.0 cm
Package 3 Width60.0 cm
Package 3 Length80.0 cm
Package 3 Weight32.776 kg
