SKU:

VW3A1114

basic keypad door mounting kit, Altivar, IP20

$129.36
Available for Shipping : 14-Nov-2024
basic keypad door mounting kit, Altivar, IP20
Manufacturer: Schneider Electric

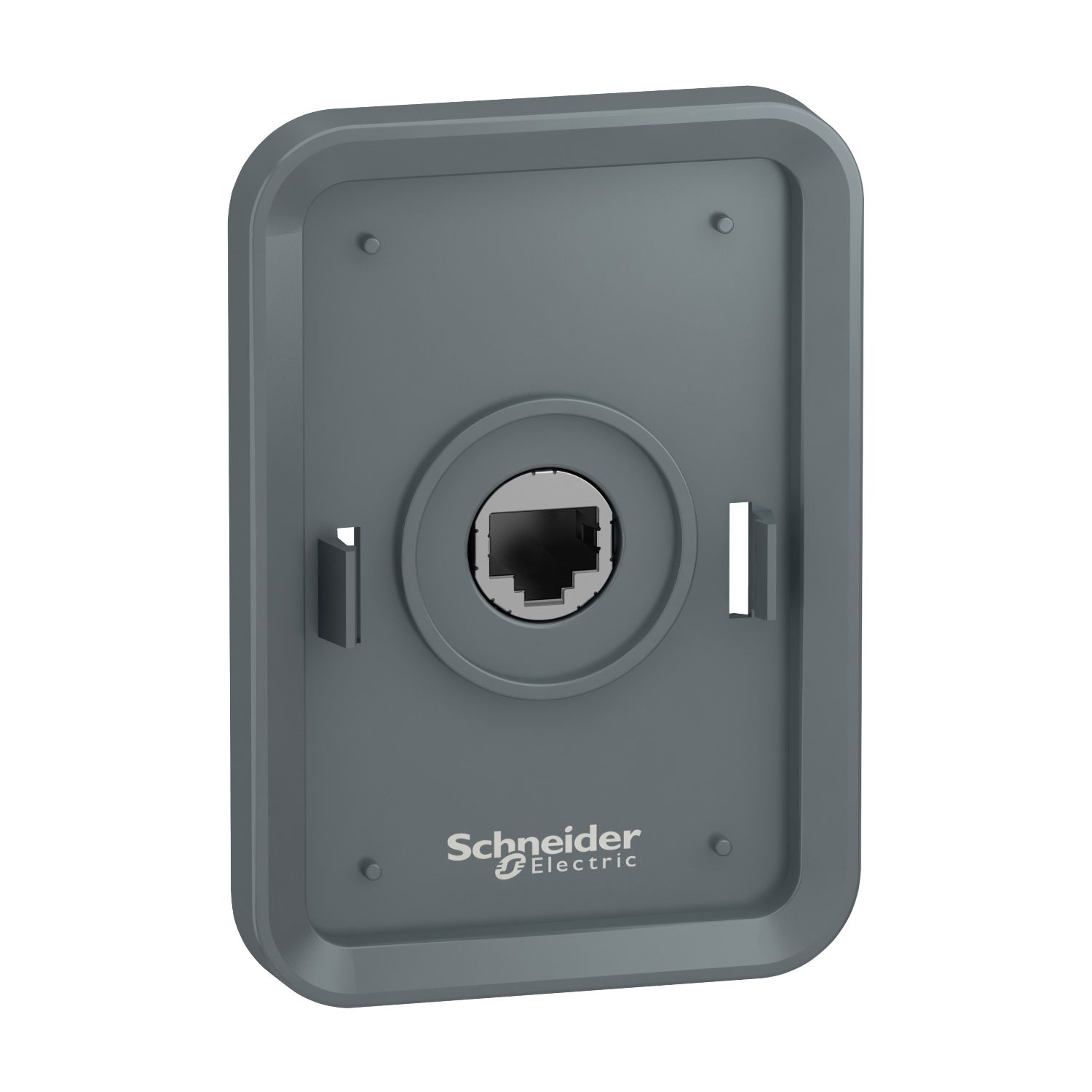

This basic keypad door mounting kit is an accessory for variable speed drives of Altivar range. It is designed for mounting the graphic display VW3A1113 on an enclosure door with IP 43 degree of protection as standard. The kit comprises, a tightening tool, a mounting plate, RJ45 port for the plain text display terminal, seal, fixing nut, RJ45 port for connecting the remote-mounting cordset, cordsets should be ordered separately. A remote-mounting cordset VW3A1104Rxx has to be ordered separately.

Products specifications

Attribute name Attribute value
Main
Accessory / separate part destination variable speed drive
IP degree of protection IP20
Accessory / separate part type mounting kit
Range compatibility Altivar Machine ATV340, Easy Altivar 610
Accessory / separate part category mounting and fixing accessory
Range of product Altivar
Complementary
Kit composition connector, fixing nut, mounting kit
Net weight 0.04 kg
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.0 cm
Package 1 Width 7.0 cm
Package 1 Length 9.0 cm
Package 1 Weight 66.0 g
