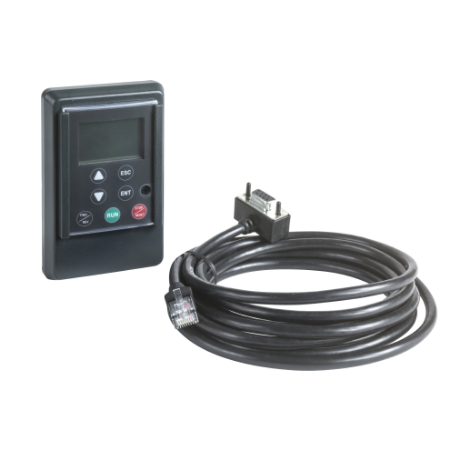

Picture of remote terminal - for stepper motor drive, variable speed drive
SKU:

VW3A31101

remote terminal - for stepper motor drive, variable speed drive

$491.39
Available for Shipping : 10-Dec-2024
remote terminal - for stepper motor drive, variable speed drive
Be the first to review this product
Manufacturer: Schneider Electric
User guide
Catalogue
Product Page Link
Product Data Sheet
This 4-digit display terminal is an option for variable speed drives of Altivar range and servo drives of Lexium range. It is a dialogue option for the variable speed drive or servo drive. Its protection index is IP65. This terminal can be mounted on an enclosure door. It is supplied with a cordset equipped with 2 connectors, a seal and screws. It weighs 380g. It is used to show the drive states, faults and parameter values of the drive. The navigation buttons are used to navigate through the menus, modify values and enter the main settings.

Products specifications

Attribute name Attribute value
Main
Accessory / separate part destination stepper motor drive, variable speed drive
Accessory / separate part type terminal
Product compatibility LXM05
Accessory / separate part category display and signalling accessories
Accessory / separate part designation remote terminal
Range of product Altivar 31
Complementary
Kit composition cable fitted with 2 connectors, terminal, seal and screws for IP65 mounting on an enclosure door
Net weight 0.38 kg
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.300 cm
Package 1 Width 23.500 cm
Package 1 Length 17.000 cm
Package 1 Weight 344.000 g
Unit Type of Package 2 2
Number of Units in Package 2 7
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.950 kg
Unit Type of Package 3 3
Number of Units in Package 3 56
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 34.140 kg
