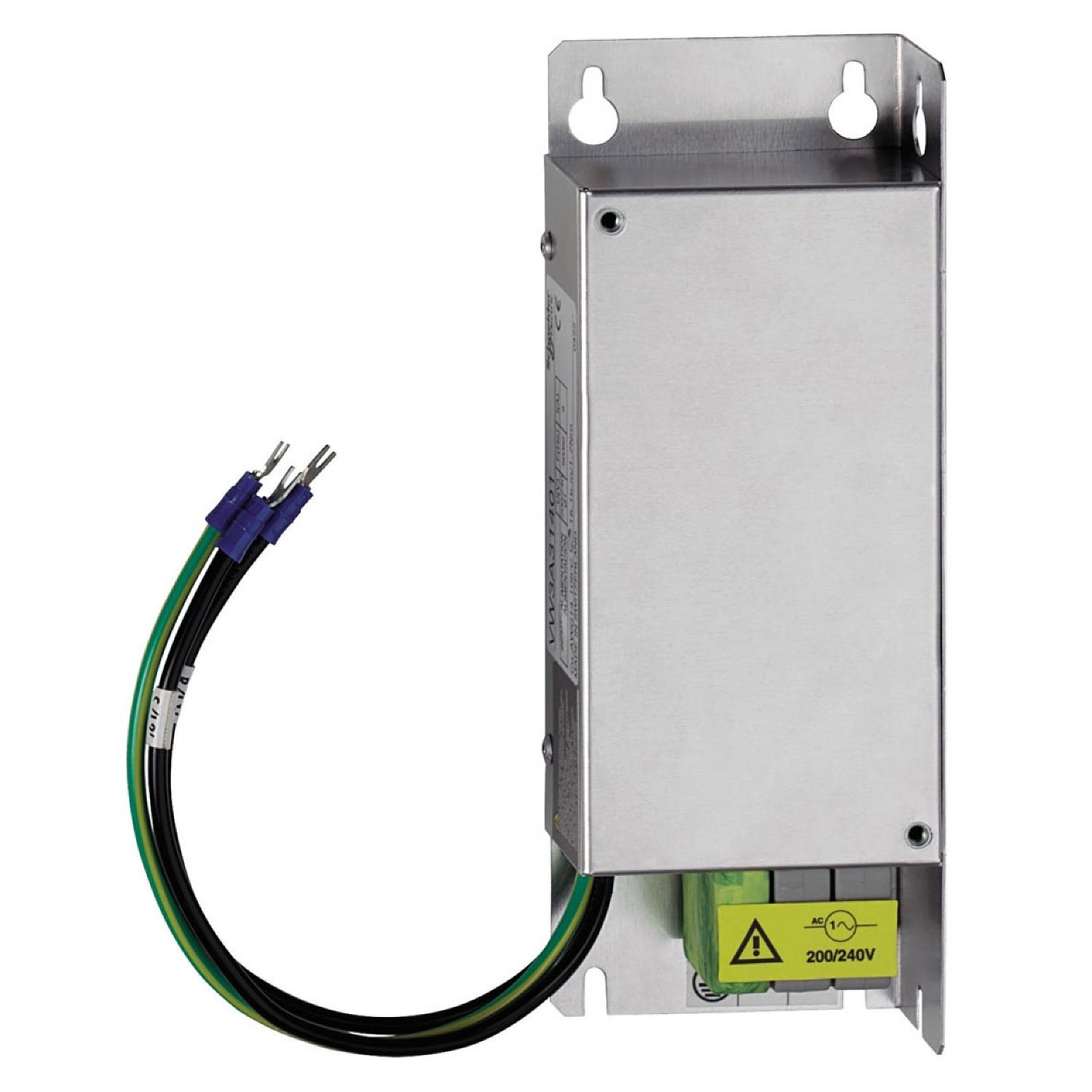

Picture of additionnal EMC filter S3 S4 M2 - 1-phase supply - 9 A
SKU:

VW3A31401

additionnal EMC filter S3 S4 M2 - 1-phase supply - 9 A

$245.69
Available for Shipping : 03-Dec-2024
Product Selector
additionnal EMC filter S3 S4 M2 - 1-phase supply - 9 A
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Declaration of conformity
Product Page Link
Product Data Sheet
This EMC filter is an option for variable speed drives of the Altivar range and servo drives of the Lexium range. The additional EMC input filters enable the drives to meet more stringent requirements. Its rated current is equal to 9A. It is used to reduce conducted emissions on the line supply below the limits of standards IEC/EN 61800-3 category C1 or C2 and enlarge the maximum motor cable length for category C3. Its protection index is IP20. It weighs 0.6kg. This additional EMC filter can only be used on TN (neutral connection) and TT (earthed neutral) type systems. It can be mounted beside or under the drive. The drive's power supply is then connected directly via the filter output cable.

Products specifications

Attribute name Attribute value
Main
Thermal losses 3.7 W for ATV31C018M2
Range compatibility Lexium 05, Altivar 31C, Altivar 312, Altivar Machine ATV320, Lexium 23 Plus, Altivar 312 Solar, Lexium SD3
[In] rated current 9 A
Product specific application radio interference input filter
Network number of phases single phase
Product or component type EMC input filter
Product compatibility variable speed drive ATV320...W/ATV320...WS motor: 0.75 kW, 200...240 V single phase, variable speed drive ATV320...W/ATV320...WS motor: 0.55 kW, 200...240 V single phase, variable speed drive ATV320...W/ATV320...WS motor: 0.37 kW, 200...240 V single phase, variable speed drive ATV320...W/ATV320...WS motor: 0.18 kW, 200...240 V single phase, variable speed drive ATV320...C motor: 0.75 kW, 200...240 V single phase, variable speed drive ATV320...C motor: 0.55 kW, 200...240 V single phase, variable speed drive ATV320...C motor: 0.37 kW, 200...240 V single phase, variable speed drive ATV320...C motor: 0.18 kW, 200...240 V single phase, LXM05CD10M2, LXM05BD10M2, LXM05BD10F1, LXM05AD10M2, LXM05AD10F1, ATV31C075M2, ATV31C055M2, ATV31C037M2, ATV31C018M2, ATV312H075M2, ATV312H055M2, ATV312H037M2, ATV312H018M2, servo drive LXM23 motor: 0.4 kW, servo drive LXM23 motor: 0.2 kW, servo drive LXM23 motor: 0.1 kW
Range of product Altivar
Complementary
Compatibility code LXM23
Network rated voltage 200-240 V
Earth leakage current 100 mA 50 Hz
Net weight 0.6 kg
Tolerance 10 %
Environment
Operating altitude 1000...3000 m with current derating 1 % per 100 m, <= 1000 m without current derating
IP degree of protection IP41 (upper part), IP20
Relative humidity 0-93 % conforming to IEC 68-2-3
Ambient air temperature for storage -25-70 °C
Vibration resistance 1.5 mm peak to peak (f= 3-13 Hz) conforming to IEC 60068-2-6, 1 gn (f= 13-150 Hz) conforming to IEC 60068-2-6
Shock resistance 15 gn for 11 ms conforming to IEC 60068-2-27
Ambient air temperature for operation -10-50 °C
Standards IEC 61800-3
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.000 cm
Package 1 Width 18.700 cm
Package 1 Length 24.000 cm
Package 1 Weight 499.000 g
Unit Type of Package 2 2
Number of Units in Package 2 7
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 3.891 kg
Unit Type of Package 3 3
Number of Units in Package 3 56
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 42.148 kg
