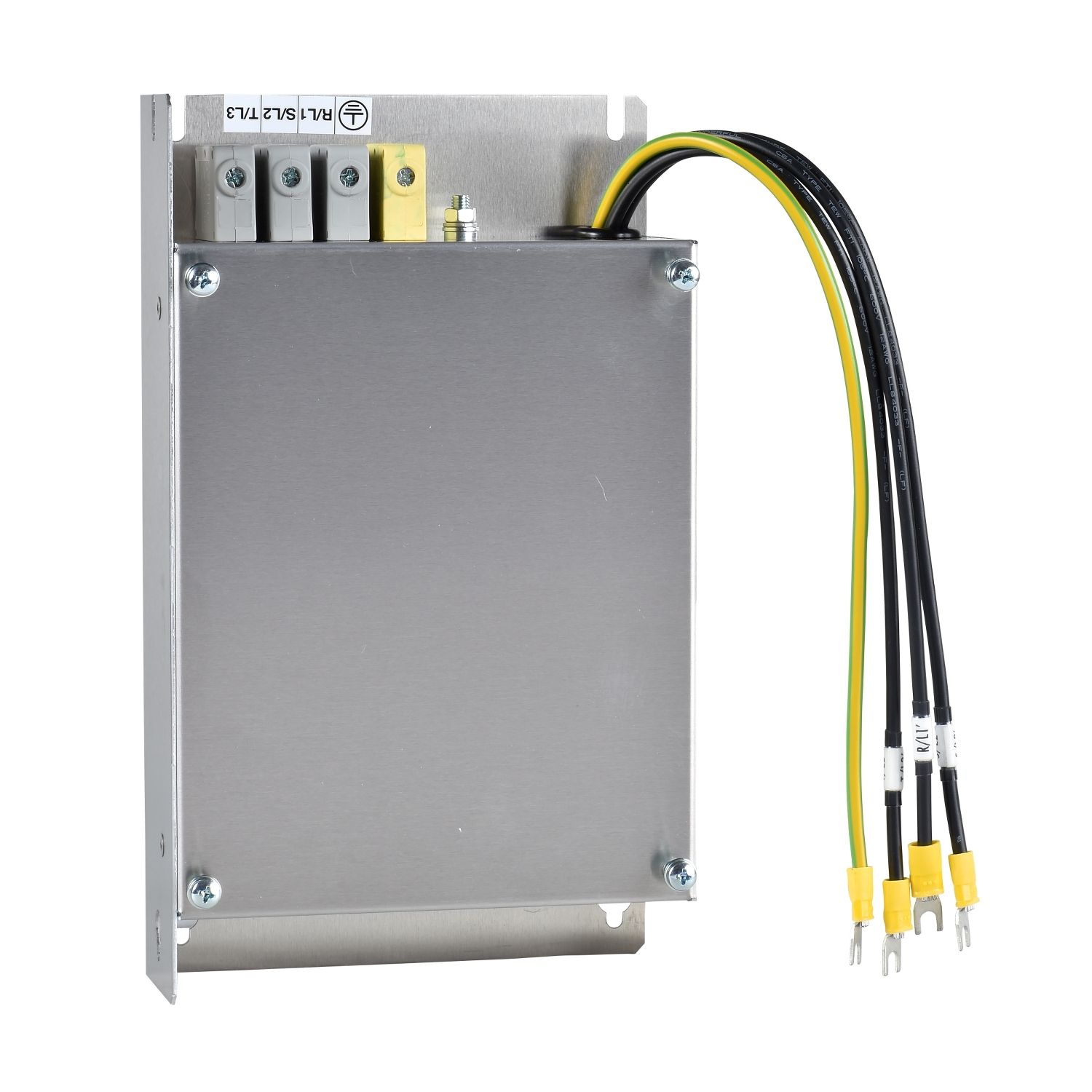

Picture of Altivar 31, Additionnal EMC input filter, 3-phase supply, 25 A
SKU:

VW3A31406

Altivar 31, Additionnal EMC input filter, 3-phase supply, 25 A

$687.43 INC GST
Available for Shipping : 22-May-2025
Product Selector
Altivar 31, Additionnal EMC input filter, 3-phase supply, 25 A
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Catalogue
Product Page Link
Product Data Sheet
This EMC filter is an option for variable speed drives of Altivar range and servo drives of Lexium range. Its rated current is equal to 25A. It is used to reduce conducted emissions on the line supply below the limits of standards EN 55011 group 1, class A or B, and IEC/EN 61800-3 category C1, C2 or C3. Its protection index is IP20. It weighs 1.650kg. This additional EMC filter can only be used on TN (neutral connection) and TT (earthed neutral) type systems. It can be mounted beside or under the drive. The drive's power supply is then connected directly via the filter output cable.

Products specifications

Attribute name Attribute value
Main
Thermal losses 6.2 W for ATV21HU40M3X, 3.6 W for ATV21HU30M3X, 15.8 W for ATV31CU22N4, 1.6 W for ATV21HU40N4, 3 W for ATV21HU55N4, 1 W for ATV21HU30N4
Range compatibility Altivar 312 Solar, Altivar 312, Lexium 05, Altivar 31C, Altivar 212, Lexium 23 Plus, Altivar Machine ATV320
[In] rated current 25 A
Product specific application radio interference input filter
Network number of phases three phase
Product or component type EMC input filter
Product compatibility variable speed drive ATV320...W/ATV320...WS motor: 4 kW, 380...500 V three phase, variable speed drive ATV320...W/ATV320...WS motor: 3 kW, 380...500 V three phase, variable speed drive ATV320...W/ATV320...WS motor: 2.2 kW, 380...500 V three phase, variable speed drive ATV320...C motor: 4 kW, 200...240 V three phase, variable speed drive ATV320...C motor: 3 kW, 200...240 V three phase, variable speed drive ATV320...C motor: 4 kW, 380...500 V three phase, variable speed drive ATV320...C motor: 3 kW, 380...500 V three phase, variable speed drive ATV320...C motor: 2.2 kW, 380...500 V three phase, ATV312HU40M3, ATV312HU30M3, ATV312HU40N4, ATV312HU30N4, ATV312HU22N4, LXM05CD34N4, LXM05CD22N4, LXM05BD42M3X, LXM05BD34N4, LXM05BD22N4, LXM05AD42M3X, LXM05AD34N4, LXM05AD22N4, ATV31CU40N4, ATV31CU30N4, ATV31CU22N4, ATV212HU55N4, ATV212HU40N4, ATV212HU40M3X, ATV212HU30N4, ATV212HU30M3X, servo drive LXM23 motor: 5.5 kW, servo drive LXM23 motor: 4.5 kW
Range of product Altivar
Complementary
Electrical connection terminal 10 mm² AWG 6
Compatibility code LXM23
Tightening torque 1.8 N.m
Network rated voltage 200-240 V, 380-500 V
Earth leakage current 17.8 mA at 480 V 60 Hz, 37 mA at 480 V 60 Hz, 35 mA 50 Hz
Net weight 1.35 kg, 1.65 kg
Tolerance 10 %
Environment
Operating altitude 1000...3000 m with current derating 1 % per 100 m, <= 1000 m without current derating
IP degree of protection IP41 (upper part), IP20
Relative humidity 0-93 % conforming to IEC 68-2-3
Ambient air temperature for storage -25-70 °C
Vibration resistance 1.5 mm peak to peak (f= 3-13 Hz) conforming to IEC 60068-2-6, 1 gn (f= 13-150 Hz) conforming to IEC 60068-2-6
Shock resistance 15 gn for 11 ms conforming to IEC 60068-2-27
Ambient air temperature for operation -10-50 °C
Standards IEC 61800-3
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.800 cm
Package 1 Width 23.500 cm
Package 1 Length 28.200 cm
Package 1 Weight 1.487 kg
Unit Type of Package 2 2
Number of Units in Package 2 11
Package 2 Height 30 cm
Package 2 Width 40 cm
Package 2 Length 60 cm
Package 2 Weight 17.142 kg
Unit Type of Package 3 3
Number of Units in Package 3 44
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 77.308 kg

Related products

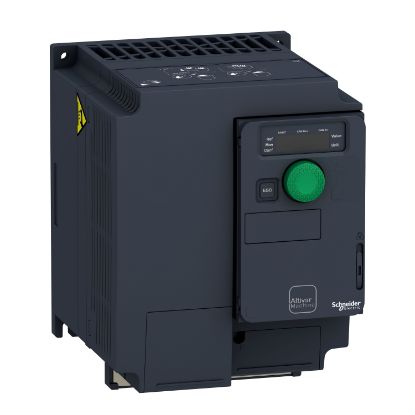

Picture of variable speed drive, Altivar Machine ATV320, 3kW, 200 to 240V, 3 phases, compact
