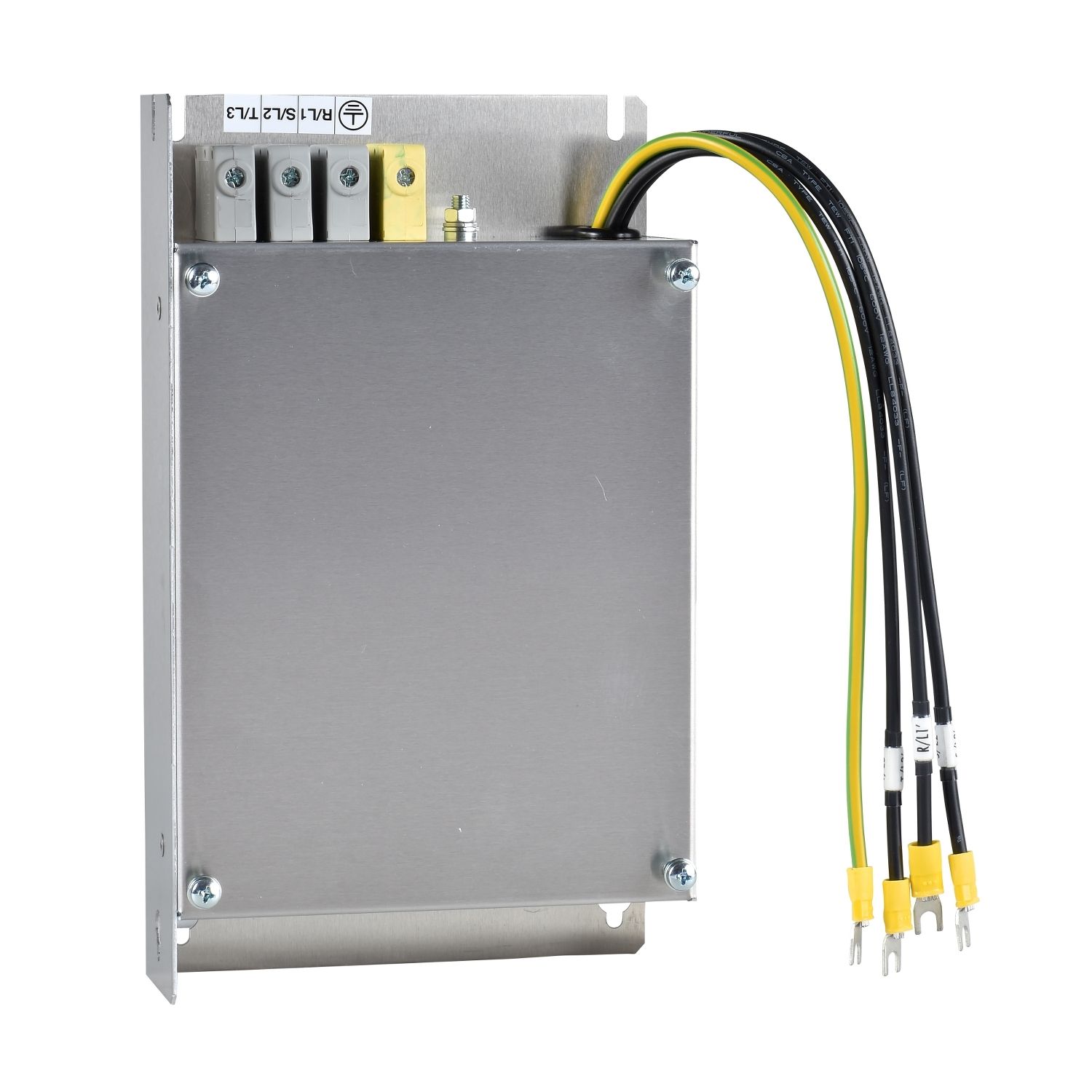

Picture of Altivar 31, Additionnal EMC input filter, 3-phase supply, 47 A
SKU:

VW3A31407

Altivar 31, Additionnal EMC input filter, 3-phase supply, 47 A

$804.70
Available for Shipping : 10-Dec-2024
Product Selector
Altivar 31, Additionnal EMC input filter, 3-phase supply, 47 A
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Declaration of conformity
Product Page Link
Product Data Sheet
This EMC filter is an option for variable speed drives of the Altivar range and servo drives of the Lexium range. The additional EMC input filters enable the drives to meet more stringent requirements. Its rated current is equal to 47A. It is used to reduce conducted emissions on the line supply below the limits of standards IEC/EN 61800-3 category C1 or C2 and enlarge the maximum motor cable length for category C3. Its protection index is IP20. It weighs 3.15kg. This additional EMC filter can only be used on TN (neutral connection) and TT (earthed neutral) type systems. It can be mounted beside or under the drive. The drive's power supply is then connected directly via the filter output cable.

Products specifications

Attribute name Attribute value
Main
Thermal losses 6.8 W for ATV21HU75M3X, 3.9 W for ATV21HD11N4, 3.7 W for ATV21HU55M3X, 19.3 W for ATV31CU55N4, 1.9 W for ATV21HU75N4
Range compatibility Altivar 312 Solar, Altivar 31C, Altivar 312, Altivar 212, Altivar Machine ATV320, Lexium 23 Plus, Lexium 05
[In] rated current 47 A
Product specific application radio interference input filter
Network number of phases three phase
Product or component type EMC input filter
Product compatibility variable speed drive ATV320...C motor: 7.5 kW, 200...240 V three phase, variable speed drive ATV320...C motor: 5.5 kW, 200...240 V three phase, ATV312HU75N4, ATV312HU55N4, ATV312HU75M3, ATV312HU55M3, LXM05CD57N4, LXM05BD57N4, LXM05AD57N4, ATV31CU75N4, ATV31CU55N4, ATV212HU75N4, ATV212HU75M3X, ATV212HU55M3X, ATV212HD11N4, servo drive LXM23 motor: 7.5 kW
Range of product Altivar
Complementary
Electrical connection terminal 25 mm² AWG 2
Compatibility code LXM23
Tightening torque 4.5 N.m
Network rated voltage 380-500 V, 200-240 V
Earth leakage current 42.8 mA at 480 V 60 Hz, 20.6 mA at 480 V 60 Hz, 45 mA 50 Hz
Net weight 3.15 kg
Tolerance 10 %
Environment
Operating altitude 1000...3000 m with current derating 1 % per 100 m, <= 1000 m without derating, <= 1000 m without current derating
IP degree of protection IP41 (upper part), IP20
Relative humidity 0-93 % conforming to IEC 68-2-3
Ambient air temperature for storage -25-70 °C
Vibration resistance 1.5 mm peak to peak (f= 3-13 Hz) conforming to IEC 60068-2-6, 1 gn (f= 13-150 Hz) conforming to IEC 60068-2-6
Shock resistance 15 gn for 11 ms conforming to IEC 60068-2-27
Ambient air temperature for operation -10-50 °C
Standards IEC 61800-3
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.0 cm
Package 1 Width 23.5 cm
Package 1 Length 47.0 cm
Package 1 Weight 3.001 kg
Unit Type of Package 2 2
Number of Units in Package 2 22
Package 2 Height 75.0 cm
Package 2 Width 80.0 cm
Package 2 Length 60.0 cm
Package 2 Weight 76.022 kg

Related products

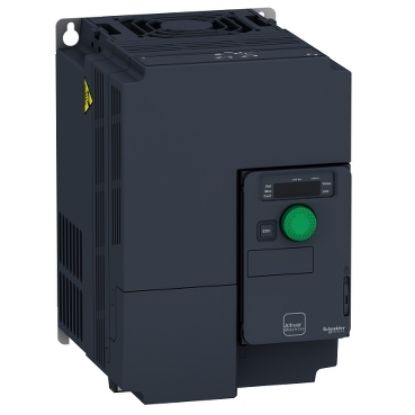

Picture of variable speed drive, Altivar Machine ATV320, 5.5kW, 200 to 240V, 3 phases, compact
