Picture of additional Input Output module, Altivar, 24V DC, 1 removable spring connector
SKU:

VW3A3203

additional Input Output module, Altivar, 24V DC, 1 removable spring connector

$226.37
Available for Shipping : 13-Jan-2025
Product Selector
additional Input Output module, Altivar, 24V DC, 1 removable spring connector
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Product environmental
Declaration of conformity
Product Page Link
Product Data Sheet

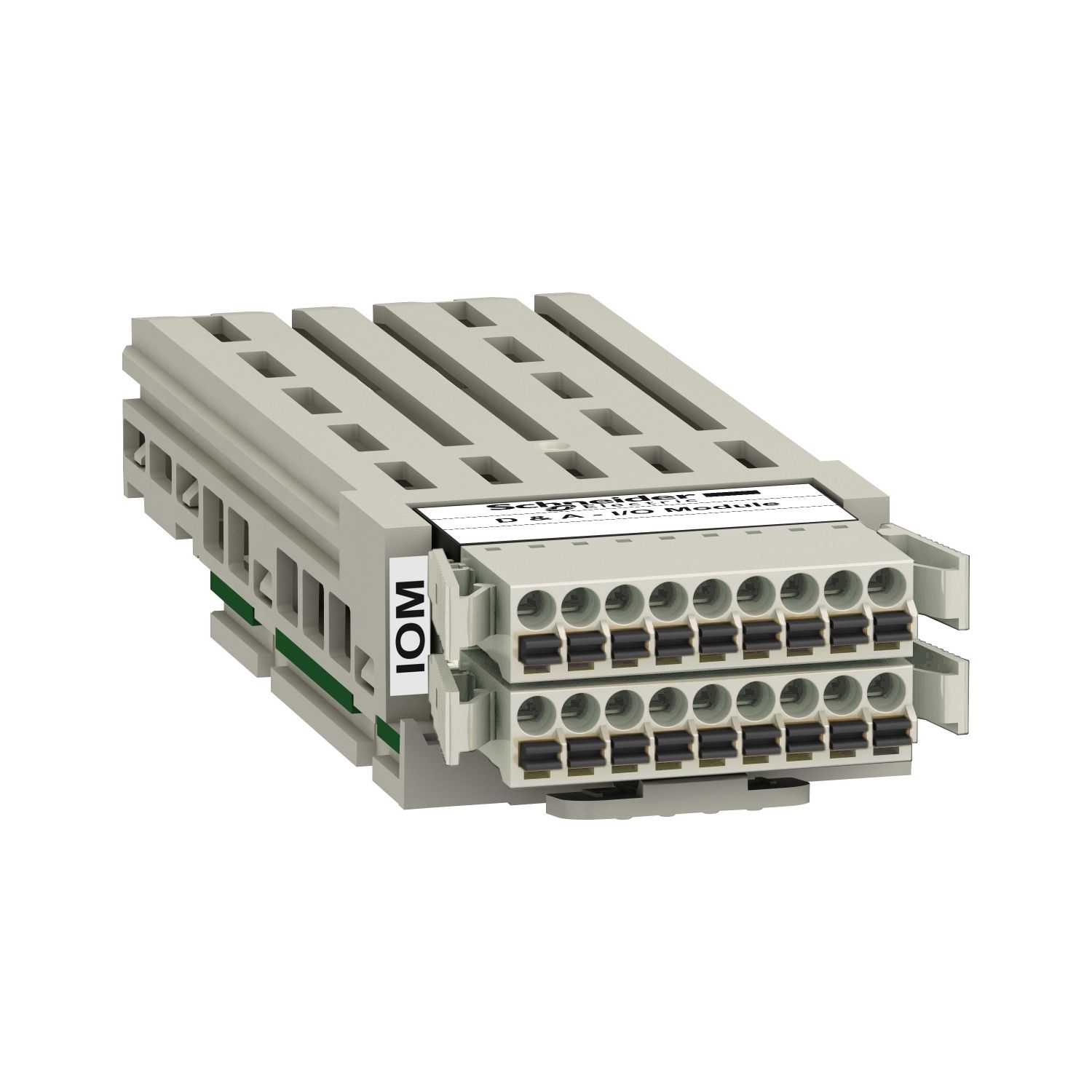

This I/O expansion module enables your drive to meet the needs of application that manage additional or specific sensors. It is simple to install and remove from Altivar drives thanks to its modular withdrawable design. It is compatible with Altivar Process ATV600, Altivar Process ATV900 and Altivar Machine ATV340. It is also compatible with Altivar Easy 610. It has one removable spring terminal block 1.5 mm² / AWG 16.

Products specifications

Attribute name Attribute value
Main
Discrete input type (DI11...DI16) programmable, impedance: 250 Ohm, sampling time: 1-1 ms
Input/output type 2 discrete output, 6 discrete input, 2 analog input configurable voltage, current or probe
Analogue input type AI4, AI5 configurable PTC, Pt 100, Pt 1000, sampling time: 0-1 ms, resolution: 14 bits, AI4, AI5 configurable voltage: - 10...10 V DC, 24 V max, impedance: 20 kOhm, sampling time: 0-1 ms, resolution: 14 bits, AI4, AI5 configurable current: 0...20 mA/4...20 mA, sampling time: 0-1 ms, resolution: 14 bits
Range compatibility Easy Altivar 610, Altivar Process ATV900, Altivar Machine ATV340, Altivar Process ATV600
Discrete input number 6
Discrete output logic (DQ11, DQ12) positive,  (DQ11, DQ12) negative
Discrete output number 2
Analogue input number 2
Product or component type additional I/O module
Discrete input current 2.5 mA
Discrete output type (DQ11, DQ12) assignable logic, sampling time: 1-1 ms
Discrete input logic positive (DI11...DI16), negative (DI11...DI16)
Complementary
Protection type short-circuit protection: output, reverse polarity protection: digital input
Electrical connection removable spring terminal block, 1.5 mm² / AWG 16
Maximum output current 100 mA, assignable logic
Discrete output voltage 24 V DC (voltage limits: <= 30 V) assignable logic
Discrete input voltage 24 V DC (voltage limits: <= 30 V) for programmable
Net weight 0.5 kg
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.5 cm
Package 1 Width 13.0 cm
Package 1 Length 19.0 cm
Package 1 Weight 165.0 g
Unit Type of Package 2 2
Number of Units in Package 2 16
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 3.368 kg

Related products

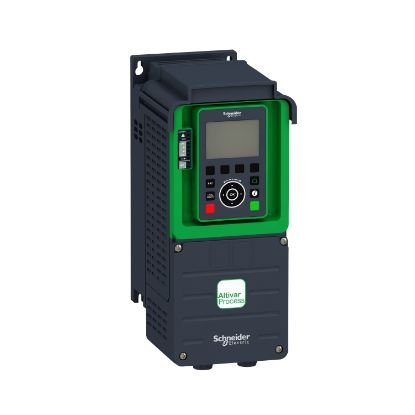

variable speed drive, Altivar Process ATV900, ATV930, 1.5kW, 400 to 480V, with braking unit, IP21
