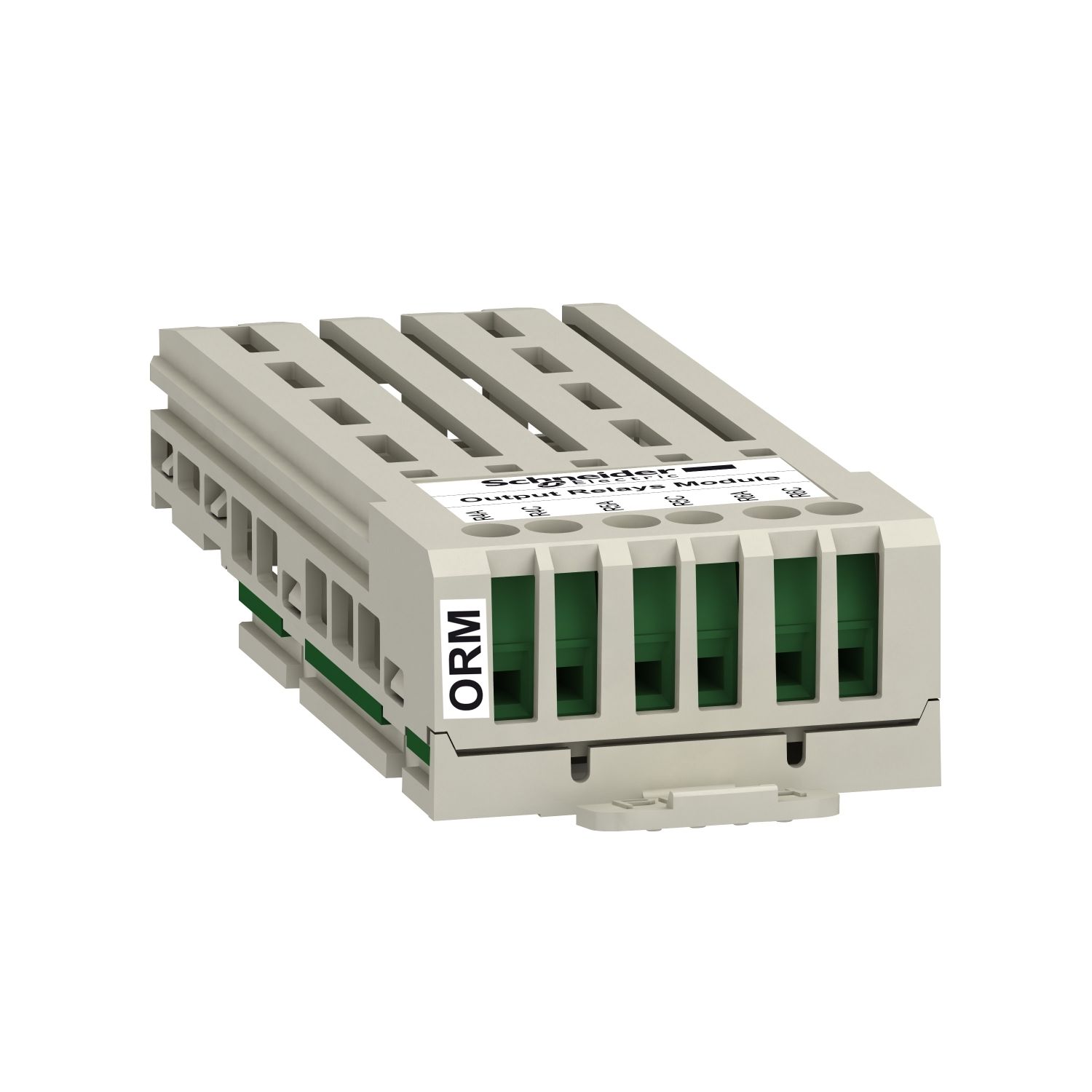

Picture of additional output module, Altivar, relay output, 24 to 30V DC, 1 screw terminal
SKU:

VW3A3204

additional output module, Altivar, relay output, 24 to 30V DC, 1 screw terminal

$120.96
Available for Shipping : 16-Dec-2024
Product Selector
additional output module, Altivar, relay output, 24 to 30V DC, 1 screw terminal
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Catalogue
Product environmental
Instruction sheet
Product Page Link
Product Data Sheet

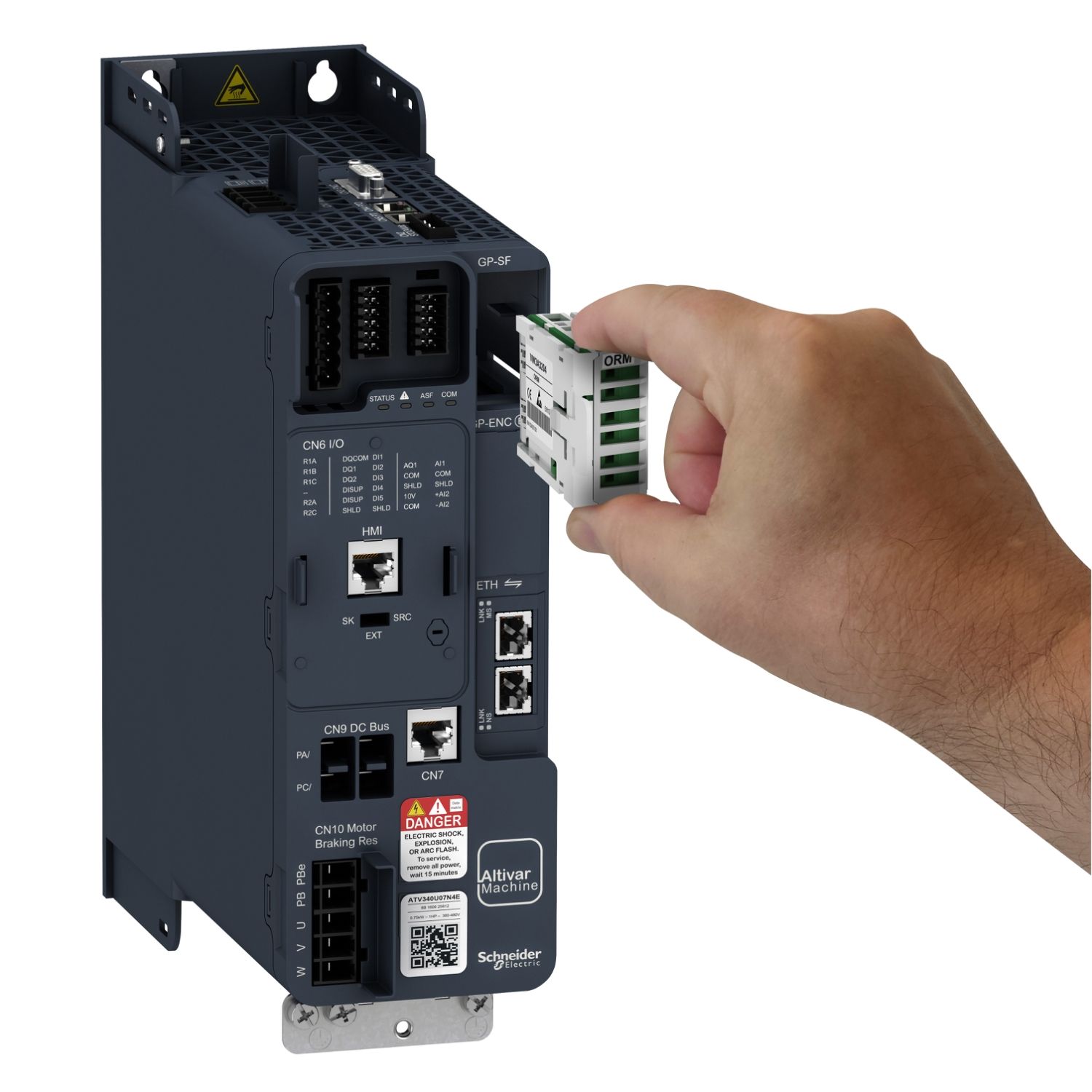

This extended module enables your drive to meet the needs of application that manage additional or specific sensors. It is simple to install and remove from Altivar drives thanks to its modular withdrawable design. It is compatible with Altivar Process ATV600, Altivar Process ATV900 and Altivar Machine ATV340. It is also compatible with Altivar Easy 610. It has one screw terminal block 1.5 mm² / AWG 16.

Products specifications

Attribute name Attribute value
Main
Range compatibility Altivar Process ATV600, Altivar Process ATV900, Easy Altivar 610, Altivar Machine ATV340
Discrete output number 3
Input/output type 3 relay output
Product or component type additional output module
Discrete output type (R4, R5, R6) relay normally open, sampling time: 1-1 ms
Complementary
Electrical connection screw terminal block, 1.5 mm² / AWG 16, 0.5 N.m
Minimum switching current 5 mA at 24 V DC
Net weight 0.4 kg
Maximum switching current 5 A at 30 V DC on resistive load, cos phi = 1 and L/R = 5 ms,  5 A at 250 V AC on resistive load, cos phi = 1 and L/R = 5 ms,  2 A at 30 V DC on inductive load, cos phi = 0.4 and L/R = 5 ms,  2 A at 250 V AC on inductive load, cos phi = 0.4 and L/R = 5 ms
Electrical durability 100000 cycles
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.5 cm
Package 1 Width 13.0 cm
Package 1 Length 19.0 cm
Package 1 Weight 152.0 g
Unit Type of Package 2 2
Number of Units in Package 2 16
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 3.114 kg

Related products

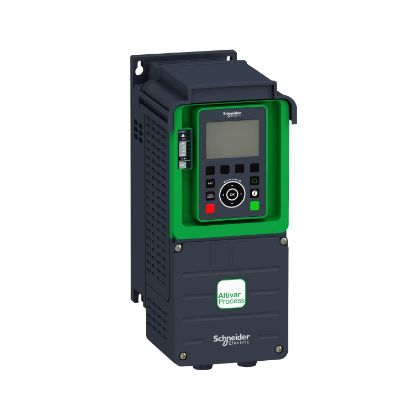

variable speed drive, Altivar Process ATV900, ATV930, 1.5kW, 400 to 480V, with braking unit, IP21
