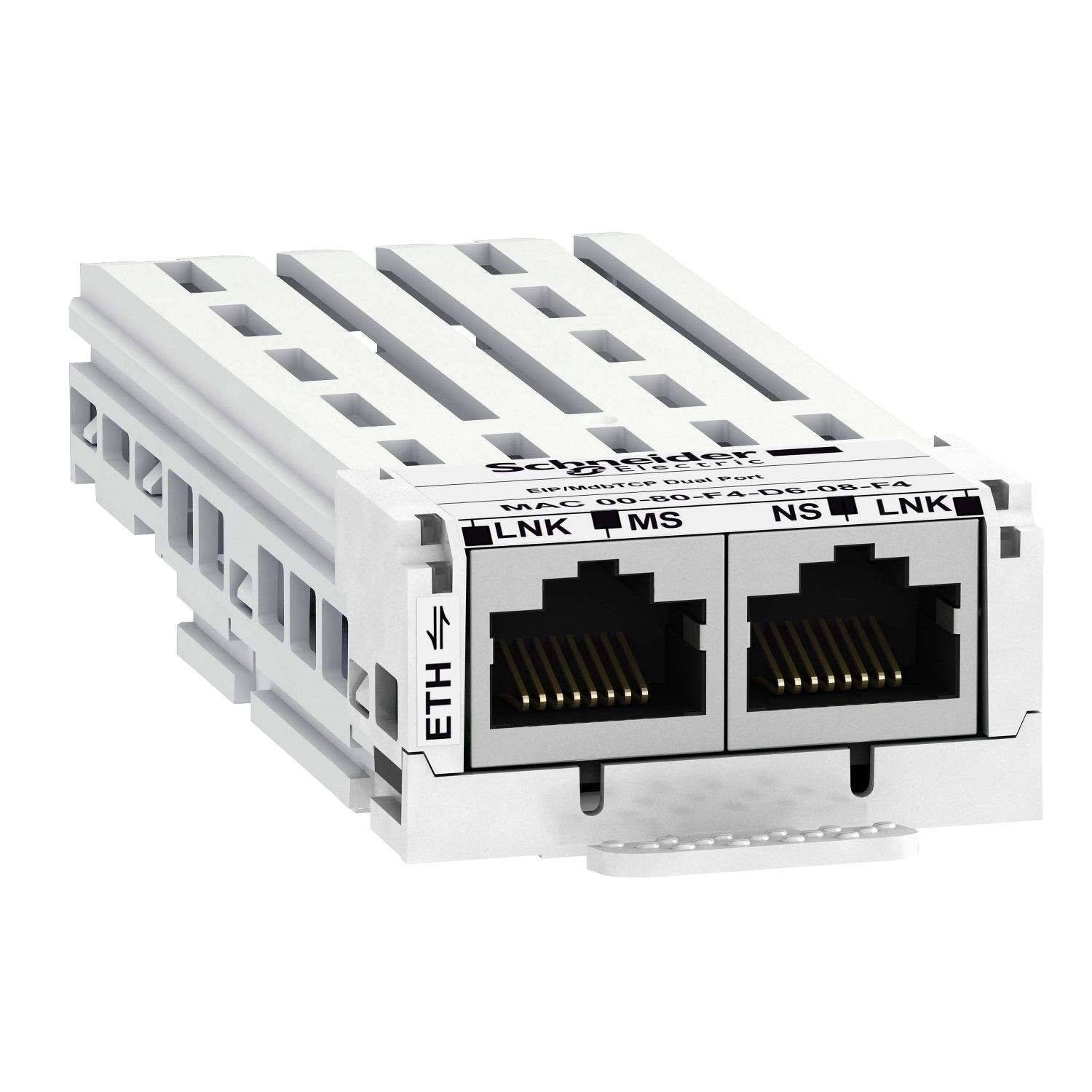

Picture of communication module EtherNet IP Modbus TCP, 10 or 100Mbps, 2 x RJ45 connectors
SKU:

VW3A3720

communication module EtherNet IP Modbus TCP, 10 or 100Mbps, 2 x RJ45 connectors

$377.56
Available for Shipping : 24-Nov-2024
Product Selector
communication module EtherNet IP Modbus TCP, 10 or 100Mbps, 2 x RJ45 connectors
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Product environmental
Instruction sheet
Catalogue
User guide
Product Page Link
Product Data Sheet
This Ethernet/IP, ModbusTCP communication module enables integration of your drive in your process control network. It is simple to install and remove from Altivar drives thanks to its modular withdrawable design. It is compatible with Altivar Process ATV600 and Altivar process Modular. It has 2 x RJ45 connector.

Products specifications

Attribute name Attribute value
Main
Range of product Altivar
Product or component type communication module
Complementary
Web server embedded HTTP server
Range compatibility Altivar Process Modular, Altivar Process ATV600
Web services Ethernet setting and diagnostic, pump function setting and monitoring, drive monitor, customizable home page, upgrade drive firmware, widgets (ID, control, data table, diagnostic, charts), energy monitoring, drive setting and diagnostic, save/restore drive configuration
Display type 1 LED for TX/RX (Transmit/Receive port 2), 1 LED for TX/RX (Transmit/Receive port 1), 1 LED for NS (Network Status), 1 LED for MS (Module Status)
Topology daisy chain
Exchange mode half duplex and full duplex
Transmission rate 10/100 Mbps
Time synchronisation protocol SNTP
Communication port protocol EtherNet/IP, Modbus TCP
Communication service FDR for Ethernet IP/Modbus TCP, 32 parameters IN - 32 parameters OUT implicit messaging for Ethernet IP/Modbus TCP, auto-MDIX for Ethernet IP/Modbus TCP, ODVA AC drive and CiA 402 profile for Ethernet IP/Modbus TCP, FTP for Ethernet IP, RSTP support for Ethernet IP, Ethernet/IP adapter for Ethernet IP, Modbus TCP server for Ethernet IP/Modbus TCP, SNMP agent for Ethernet IP
Net weight 0.2 kg
Electrical connection 2 connectors RJ45, Ethernet IP/Modbus TCP
Bus profile CiA 402, CIP AC Drive
Communication network type IPv6 (internet protocol)
Environment
Product certifications Achilles: level 2, ODVA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.700 cm
Package 1 Width 13.000 cm
Package 1 Length 18.800 cm
Package 1 Weight 156.000 g
Unit Type of Package 2 2
Number of Units in Package 2 16
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.290 kg
