Picture of additionnal EMC input filter - 3-phase supply - 92 A
SKU:

VW3A4407

additionnal EMC input filter - 3-phase supply - 92 A

$1,936.74
Available for Shipping : 10-Dec-2024
Product Selector
additionnal EMC input filter - 3-phase supply - 92 A
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Catalogue
Product Page Link
Product Data Sheet

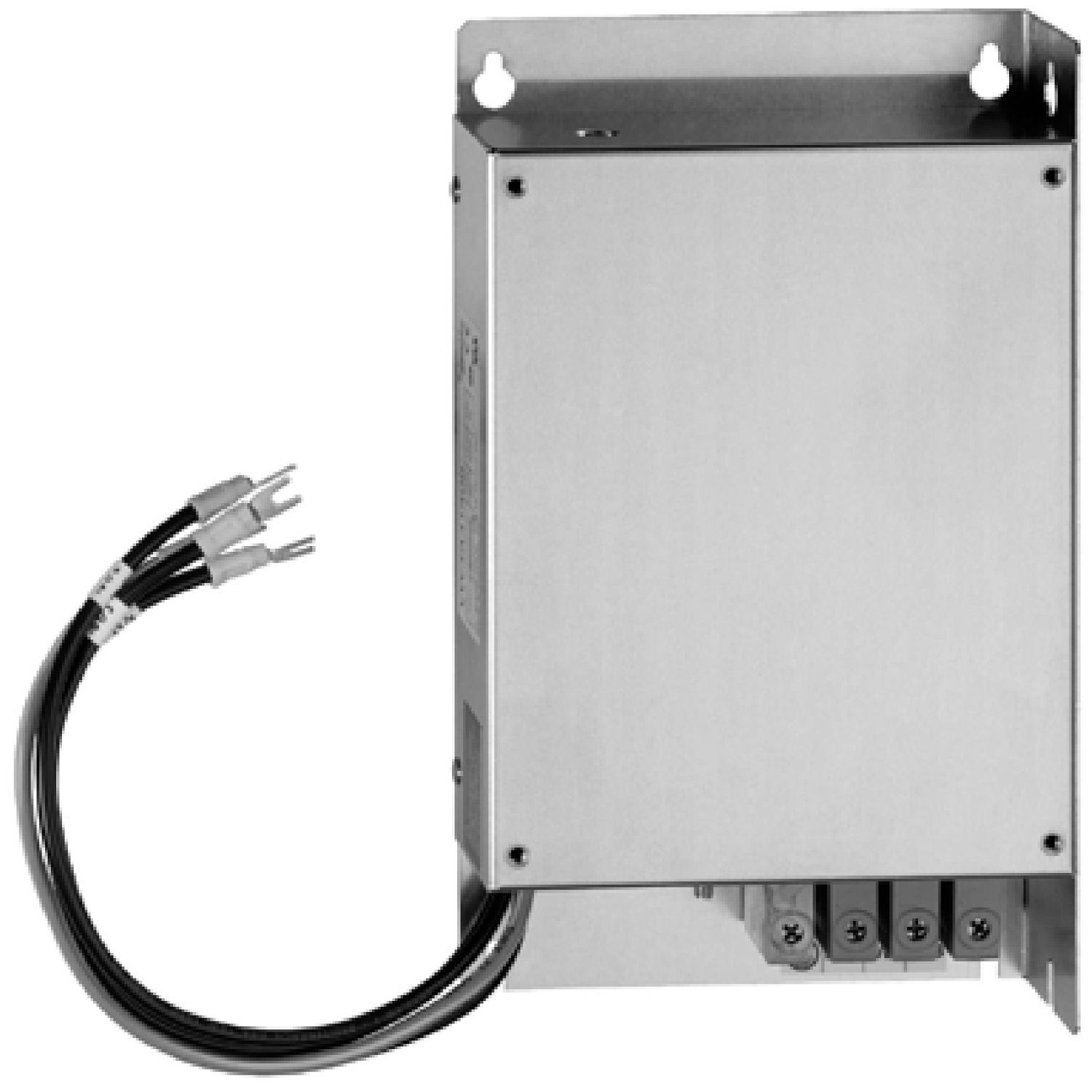

This EMC filter is an option for variable speed drives of Altivar range and servo drives of Lexium range. Its rated current is equal to 92A. It is used to reduce conducted emissions on the line supply below the limits of standards EN 55011 group 1, class A or B, and IEC/EN 61800-3 category C1, C2. Its protection index is IP20. It weighs 17kg. This additional EMC filter can only be used on TN (neutral connection) and TT (earthed neutral) type systems.

Products specifications

Attribute name Attribute value
Main
Thermal losses 30 W, 23 W for ATV21HD45N4, 16 W for ATV21HD37N4
Range compatibility Altivar 212, Altivar 71, Altivar 61
[In] rated current 92 A
Product specific application radio interference input filter
Network number of phases three phase
Product or component type EMC input filter
Product compatibility ATV71WD37N4, ATV71WD30N4, ATV71HD37N4, ATV71HD30N4, ATV61HD37N4, ATV61HD30N4, ATV21HD45N4, ATV21HD37N4, ATV212HD45N4, ATV212HD37N4
Range of product Altivar
Complementary
Electrical connection terminal 50 mm² AWG 0
Tightening torque 6 N.m
Network rated voltage 380-500 V, 200-240 V
Earth leakage current 106 mA at 480 V 60 Hz, 60 mA at 400 V 50 Hz
Net weight 17 kg
Tolerance 10 %
Environment
Operating altitude 1000...3000 m with current derating 1 % per 100 m, <= 1000 m without derating, <= 1000 m without current derating
IP degree of protection IP41 (upper part), IP20
Relative humidity 0-93 % conforming to IEC 68-2-3
Ambient air temperature for storage -40-65 °C
Vibration resistance 1.5 mm peak to peak (f= 3-13 Hz) conforming to IEC 60068-2-6, 1 gn (f= 13-150 Hz) conforming to IEC 60068-2-6
Shock resistance 15 gn for 11 ms conforming to EN/IEC 60068-2-27
Ambient air temperature for operation -10-50 °C
Standards EN 133200
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 20.000 cm
Package 1 Width 91.000 cm
Package 1 Length 48.000 cm
Package 1 Weight 15.166 kg
Unit Type of Package 2 2
Number of Units in Package 2 3
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 54.000 kg
