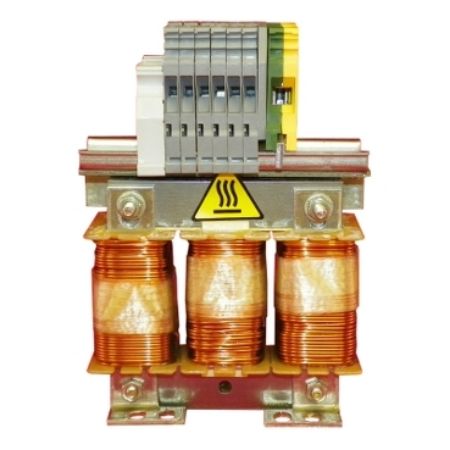

Picture of Altivar 31, Line/motor choke, 2 mH, 17 A, 3 phases, 75 W, for variable speed drive
SKU:

VW3A4553

Altivar 31, Line/motor choke, 2 mH, 17 A, 3 phases, 75 W, for variable speed drive

$908.84
Available for Shipping : 10-Dec-2024
Product Selector
Altivar 31, Line/motor choke, 2 mH, 17 A, 3 phases, 75 W, for variable speed drive
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Instruction sheet
Declaration of conformity
Product Page Link
Product Data Sheet
This line choke is an option for variable speed drives of Altivar range. Its rated current is equal to 17A. It provides improved protection against overvoltages on the line supply and contributes to reduce harmonic distortion of the current produced by the drive. Its protection index is IP00. It has an inductance value of 2mH. It weighs 3.5kg and its dimensions are, 130mm wide, 155mm high, 90mm deep. Its use is particularly recommended in case of close connection of several drives in parallel, line supply with significant disturbance from other equipment (interference, overvoltages), line supply with voltage imbalance between phases.

Products specifications

Attribute name Attribute value
Main
Device application reduction of overvoltages at motor terminals, reduction of current harmonics
Range compatibility Easy Altivar 310L, Altivar Machine ATV340, Altivar Machine ATV320, Lexium 32, Altivar 312, Lexium 52, Altivar 31C, Altivar 12, Easy Altivar 310, Lexium 62, Altivar 71, Altivar 32, Altivar Process ATV600, Altivar 312 Solar, Lexium 05, Altivar Process ATV900, Altivar 61
[In] rated current 17 A
Electrical connection terminal 6 mm² / AWG 8, 0.8-1 N.m
Product compatibility variable speed drive ATV310L motor: 5.5 kW, variable speed drive ATV310L motor: 4.0 kW, variable speed drive ATV310L motor: 3.0 kW, variable speed drive ATV310L motor: 2.2 kW, variable speed drive ATV310L motor: 1.5 kW, variable speed drive ATV310L motor: 0.75 kW, variable speed drive ATV930 motor: 600 V - three phase - line choke - 15 hp - 1 per drive, variable speed drive ATV930 motor: 600 V - three phase - line choke - 10 hp - 1 per drive, variable speed drive ATV630 motor: 600 V - three phase - line choke - 15 hp - 1 per drive, variable speed drive ATV630 motor: 600 V - three phase - line choke - 10 hp - 1 per drive, variable speed drive ATV930 motor: 15 kW 500...690 V - three phase - line choke - 1 per drive, variable speed drive ATV930 motor: 11 kW 500...690 V - three phase - line choke - 1 per drive, variable speed drive ATV630 motor: 15 kW 500...690 V - three phase - line choke - 1 per drive, variable speed drive ATV630 motor: 11 kW 500...690 V - three phase - line choke - 1 per drive, variable speed drive ATV320 motor: 7.5 kW 525...600 V - three phase - motor choke - 1 per drive, variable speed drive ATV320 motor: 7.5 kW 525...600 V - three phase - line choke - 1 per drive, variable speed drive ATV320 motor: 5.5 kW 525...600 V - three phase - line choke - 1 per drive, variable speed drive ATV320 motor: 3 kW 200...240 V - three phase - motor choke - 1 per drive, variable speed drive ATV320 motor: 2.2 kW 200...240 V - three phase - motor choke - 1 per drive, variable speed drive ATV320 motor: 3 kW 200...240 V - three phase - line choke - 1 per drive, variable speed drive ATV320 motor: 2.2 kW 200...240 V - three phase - line choke - 1 per drive, variable speed drive ATV320 motor: 5.5 kW 380...500 V - three phase - motor choke - 1 per drive, variable speed drive ATV320 motor: 2.2 kW 200...240 V - single phase - motor choke - 1 per drive, variable speed drive ATV320 motor: 7.5 kW 380...500 V - three phase - line choke - 1 per drive, variable speed drive ATV320 motor: 5.5 kW 380...500 V - three phase - line choke - 1 per drive, variable speed drive ATV340 motor: 7.5 kW 380...480 V - line choke - 1 per drive, variable speed drive ATV340 motor: 5.5 kW 380...480 V - line choke - 1 per drive, variable speed drive ATV310 motor: 5.5 kW - motor choke - 1 per drive, variable speed drive ATV310 motor: 5.5 kW - line choke - 1 per drive, variable speed drive ATV310 motor: 4 kW - line choke - 1 per drive, LXM32.U60N4 - line choke - 1 per drive, LXM32.D12N4 - line choke - 1 per drive, ATV32HU55N4 - motor choke - 1 per drive, ATV32HU22M2 - motor choke - 1 per drive, ATV32HU75N4 - line choke - 1 per drive, ATV32HU55N4 - line choke - 1 per drive, ATV61HU75S6X - line choke - 1 per drive, ATV12PU30M3 - motor choke - 1 per drive, ATV12PU22M3 - motor choke - 1 per drive, ATV12HU30M3 - motor choke - 1 per drive, ATV312HU22M2 - motor choke - 1 per drive, ATV312HU75S6 - motor choke - 1 per drive, ATV312HU55N4 - motor choke - 1 per drive, ATV312HU30M3 - motor choke - 1 per drive, ATV312HU22M3 - motor choke - 1 per drive, ATV71HU75S6X - line choke - 1 per drive, ATV312HU75S6 - line choke - 1 per drive, ATV312HU75N4 - line choke - 1 per drive, ATV312HU55N4 - line choke - 1 per drive, ATV312HU30M3 - line choke - 1 per drive, ATV312HU22M3 - line choke - 1 per drive, ATV312HD11S6 - line choke - 1 per drive, ATV12HU22M3 - motor choke - 1 per drive, ATV12HU22M2 - motor choke - 1 per drive, LXM05D42M3X - line choke - 1 per drive, ATV71WU75N4 - line choke - 1 per drive, ATV71WU55N4 - line choke - 1 per drive, ATV71PU75N4Z - line choke - 1 per drive, ATV71PU55N4Z - line choke - 1 per drive, ATV71HU75N4 - line choke - 1 per drive, ATV71HU55N4 - line choke - 1 per drive, ATV71HU30M3 - line choke - 1 per drive, ATV71HD15Y - line choke - 1 per drive, ATV71HD11Y - line choke - 1 per drive, ATV61WU75N4C - line choke - 1 per drive, ATV61WU75N4 - line choke - 1 per drive, ATV61WU55N4C - line choke - 1 per drive, ATV61WU55N4 - line choke - 1 per drive, ATV61HU75N4 - line choke - 1 per drive, ATV61HU55N4 - line choke - 1 per drive, ATV61HU30M3 - line choke - 1 per drive, ATV61HD15Y - line choke - 1 per drive, ATV61HD11Y - line choke - 1 per drive, ATV31CU75N4 - line choke - 1 per drive, ATV31CU55N4 - motor choke - 1 per drive, ATV31CU55N4 - line choke - 1 per drive, ATV31CU22M2 - motor choke - 1 per drive, variable speed drive ATV340 motor: 4 kW 380...480 V - line choke - 1 per drive
Value of inductance 2 mH
Network number of phases three phase
Product or component type line/motor choke
Range of product Altivar
Thermal losses 75 W
Complementary
Supply frequency 50...60 Hz
Maximum voltage drop at rated load 5 %
Depth 90 mm
Width 130 mm
Max current 1.65 x nominal current (duration = 60 s)
Minimum clearance distance 5.5 mm IEC 60664
Electrical insulation class class F
Leakage distance 11.5 mm conforming to IEC 60664
Net weight 3.5 kg
Height 155 mm
Environment
Operating altitude 1000...3000 m with current derating 1 % per 100 m, <= 1000 m without current derating
IP degree of protection terminals: IP20, choke: IP00
Ambient air temperature for storage -25-70 °C
Pollution degree 2 conforming to EN 50178
Relative humidity 0-95 %
Vibration resistance 1.5 mm peak to peak (f= 3-13 Hz) conforming to IEC 60068-2-6, 1 gn (f= 13-200 Hz) conforming to IEC 60068-2-6
Environmental characteristic 3S1 conforming to IEC 721-3-3, 3C2 conforming to IEC 721-3-3, 3B1 conforming to IEC 721-3-3
Shock resistance 15 gn for 11 ms conforming to IEC 60068-2-27
Ambient air temperature for operation 0-45 °C (without current derating), 45-55 °C (with current derating of 2 % per °C)
Standards IEC 60076 (with HD398), EN 50178, VDE 0160 level 1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 19.000 cm
Package 1 Width 24.000 cm
Package 1 Length 25.000 cm
Package 1 Weight 3.935 kg
Unit Type of Package 2 2
Number of Units in Package 2 18
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 83.830 kg
