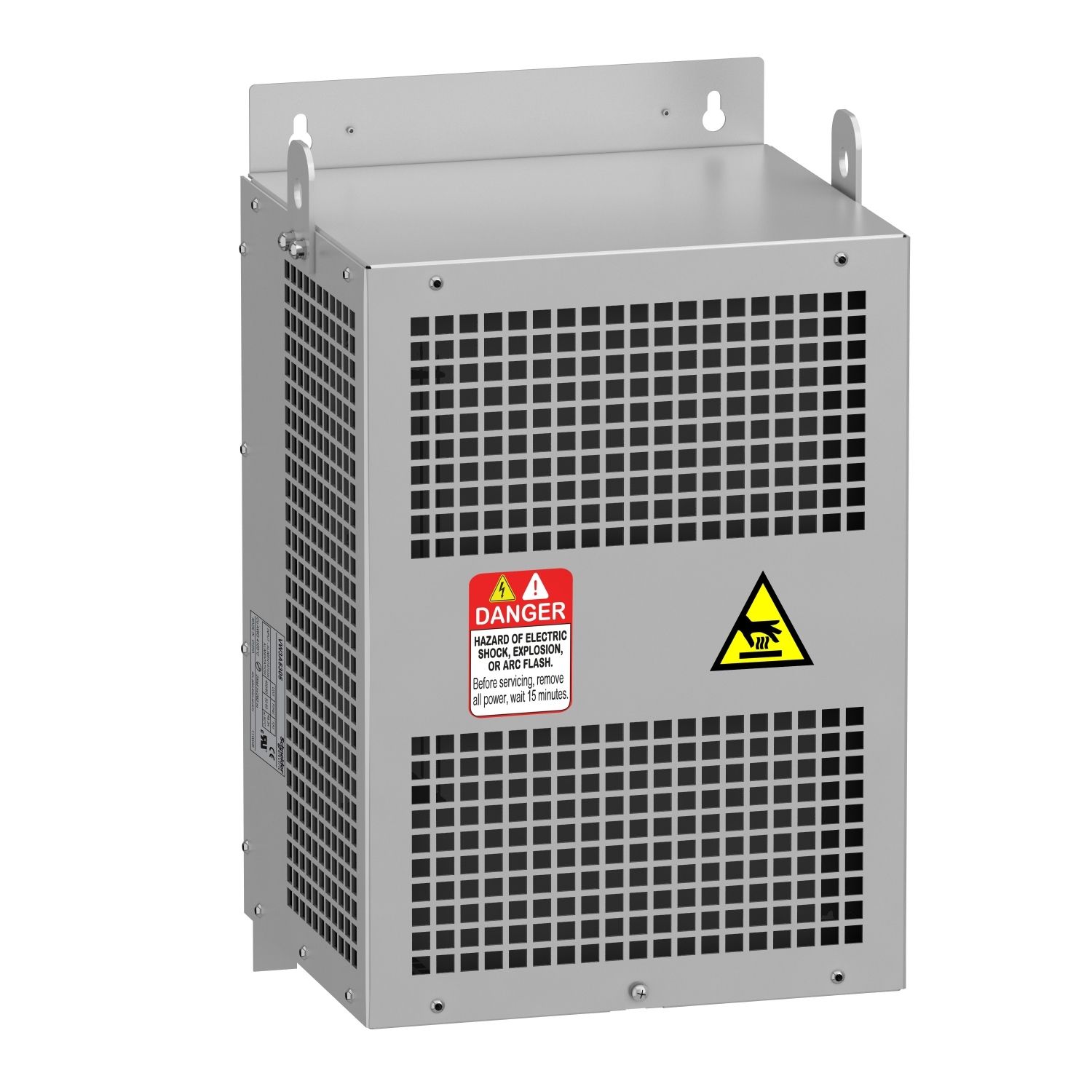

Picture of output dv dt filter, Altivar, for variable speed drive, 15 to 45kW, 95A, IP20
SKU:

VW3A5305

output dv dt filter, Altivar, for variable speed drive, 15 to 45kW, 95A, IP20

$1,686.66
Available for Shipping : 25-Nov-2024
Product Selector
output dv dt filter, Altivar, for variable speed drive, 15 to 45kW, 95A, IP20
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Product Page Link
Product Data Sheet
This dv/dt filter is an option for variable speed drives of Altivar Process ATV600 / ATV900 range. Its rated current is equal to 95A. It is used as an output filter (between drive output and motor) and enables your variable speed drive to run with motor cables longer than the maximum permitted lengths. Its protection index is IP20. It weighs 19kg. It is used to limit overvoltages at the motor terminals, filter interference and reduce motor earth leakage current.

Products specifications

Attribute name Attribute value
Main
Range compatibility Altivar Machine ATV340, Altivar Process ATV600, Altivar Process ATV900, Easy Altivar 610
[In] rated current 95 A
Product specific application output filter
Product compatibility ATV950 variable speed drive wall mount - 45 kW, 380...480 V, ATV950 variable speed drive wall mount - 37 kW, 380...480 V, ATV950 variable speed drive wall mount - 30 kW, 380...480 V, ATV930 variable speed drive wall mount - 45 kW, 380...480 V, ATV930 variable speed drive wall mount - 37 kW, 380...480 V, ATV930 variable speed drive wall mount - 30 kW, 380...480 V, ATV930 variable speed drive wall mount - 22 kW, 200...240 V, ATV930 variable speed drive wall mount - 18.5 kW, 200...240 V, ATV930 variable speed drive wall mount - 15 kW, 200...240 V, ATV610 variable speed drive - 45 kW, 380...415 V, ATV610 variable speed drive - 37 kW, 380...415 V, ATV610 variable speed drive - 30 kW, 380...415 V, ATV650 variable speed drive wall mount - 45 kW, 380...480 V, ATV650 variable speed drive wall mount - 37 kW, 380...480 V, ATV650 variable speed drive wall mount - 30 kW, 380...480 V, ATV630 variable speed drive wall mount - 45 kW, 380...480 V, ATV630 variable speed drive wall mount - 37 kW, 380...480 V, ATV630 variable speed drive wall mount - 30 kW, 380...480 V, ATV630 variable speed drive wall mount - 22 kW, 200...240 V, ATV630 variable speed drive wall mount - 18.5 kW, 200...240 V, ATV630 variable speed drive wall mount - 15 kW, 200...240 V
Sale per indivisible quantity 1
Product or component type dv/dt filter
Electrical connection terminal block, connection capacity: 50 mm² / AWG 1
Complementary
Depth 245 mm
Width 300 mm
Thermal losses 92 W at 4 kHz
Operating altitude 1000...4000 m with current derating 1 % per 100 m, 0...1000 m without current derating
DV/dt 3000 V/µs max at 380...480 V, 3000 V/µs max at 200...240 V
Net weight 19 kg
Ambient air temperature for operation 50-60 °C (with current derating 1.5 % per °C), -10-50 °C (without current derating)
Maximum motor cable length 300 m shielded cable, 500 m unshielded cable
Height 610 mm
Maximum output frequency 100 Hz
Environment
Ambient air temperature for storage -40-70 °C
IP degree of protection IP21 (with kit VW3A53905), IP20
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 40.000 cm
Package 1 Width 40.000 cm
Package 1 Length 75.000 cm
Package 1 Weight 24.000 kg

Related products

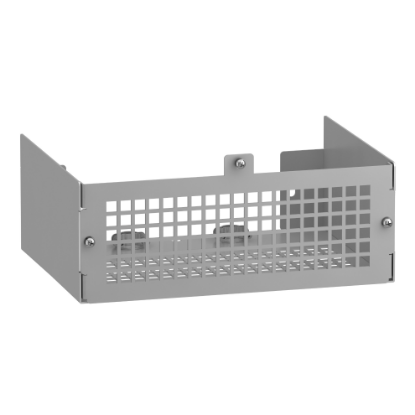

Picture of metal kit IP21, Altivar, for output filter IP20, 2.7kg
