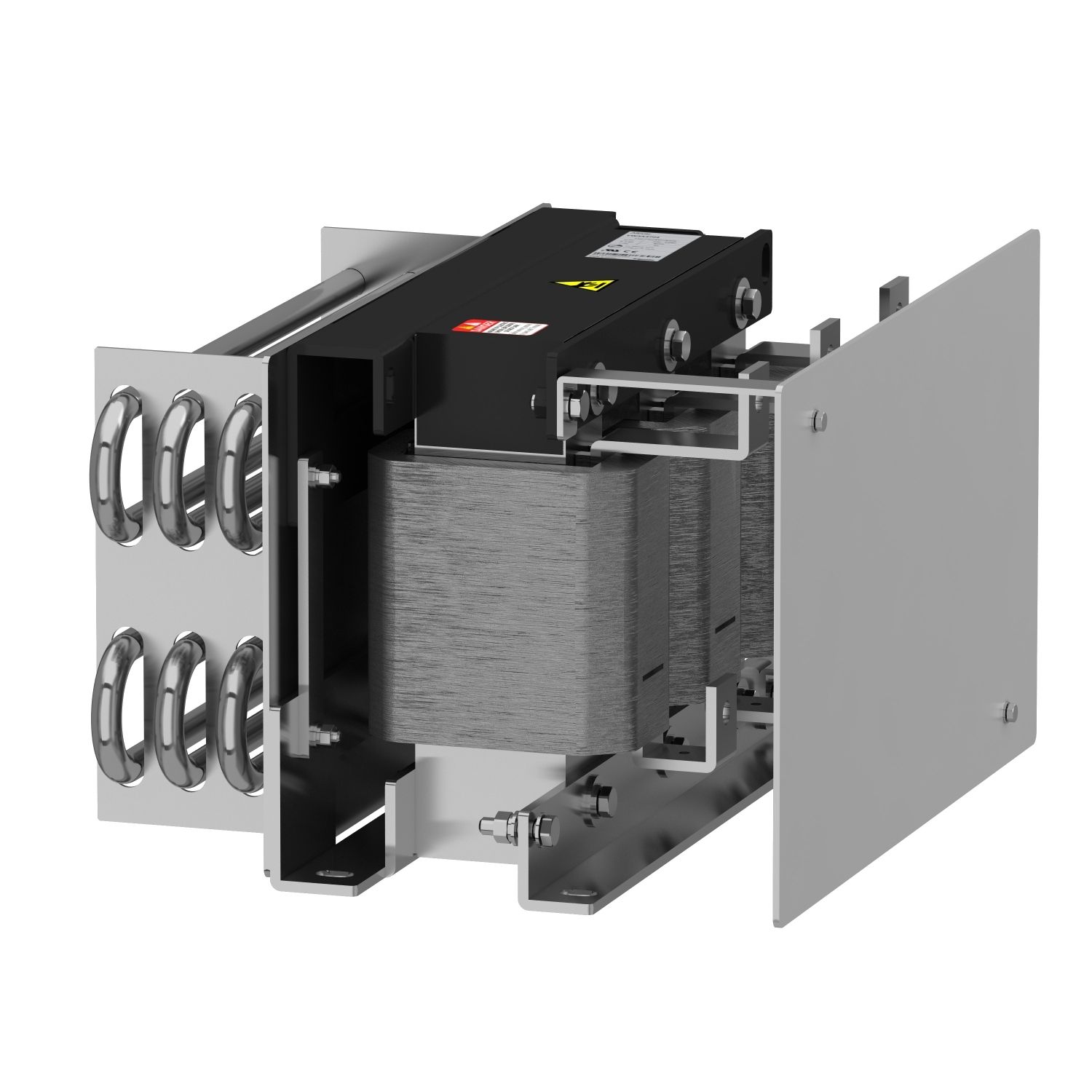

Picture of output dv dt filter, Altivar, for variable speed drive, 55 to 160kW, 305A, IP00
SKU:

VW3A5307

output dv dt filter, Altivar, for variable speed drive, 55 to 160kW, 305A, IP00

$2,185.43
Available for Shipping : 29-Oct-2024
Product Selector
output dv dt filter, Altivar, for variable speed drive, 55 to 160kW, 305A, IP00
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Product Page Link
Product Data Sheet
This dv/dt filter is an option for variable speed drives of Altivar Process ATV600 / ATV900 range. Its rated current is equal to 305A. It is used as an output filter (between drive output and motor) and enables your variable speed drive to run with motor cables longer than the maximum permitted lengths. Its protection index is IP00. It weighs 40kg. It is used to limit overvoltages at the motor terminals, filter interference and reduce motor earth leakage current.

Products specifications

Attribute name Attribute value
Main
Range compatibility Altivar Process ATV600, Altivar Process ATV900, Easy Altivar 610
[In] rated current 305 A
Product specific application output filter
Product compatibility ATV930 variable speed drive wall mount - 75 kW, 200...240 V, ATV930 variable speed drive wall mount - 55 kW, 200...240 V, ATV930 variable speed drive wall mount - 160 kW, 380...480 V, ATV930 variable speed drive wall mount - 132 kW, 380...480 V, ATV930 variable speed drive wall mount - 110 kW, 380...480 V, ATV610 variable speed drive - 160 kW, 380...415 V, ATV610 variable speed drive - 132 kW, 380...415 V, ATV610 variable speed drive - 110 kW, 380...415 V, ATV630 variable speed drive wall mount - 75 kW, 200...240 V, ATV630 variable speed drive wall mount - 55 kW, 200...240 V, ATV630 variable speed drive wall mount - 160 kW, 380...480 V, ATV630 variable speed drive wall mount - 132 kW, 380...480 V, ATV630 variable speed drive wall mount - 110 kW, 380...480 V
Sale per indivisible quantity 1
Product or component type dv/dt filter
Electrical connection copper bar M10, connection capacity: 300 mm² / 500 kcmil
Complementary
Depth 270 mm
Width 420 mm
Thermal losses 287 W at 4 kHz
Operating altitude 1000...4000 m with current derating 1 % per 100 m, 0...1000 m without current derating
DV/dt 6000 V/µs max at 380...480 V, 6000 V/µs max at 200...240 V
Net weight 40 kg
Ambient air temperature for operation 50-60 °C (with current derating 1.5 % per °C), -10-50 °C (without current derating)
Maximum motor cable length 300 m shielded cable, 500 m unshielded cable
Height 360 mm
Maximum output frequency 100 Hz
Environment
Ambient air temperature for storage -40-70 °C
IP degree of protection IP00
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 43.500 cm
Package 1 Width 45.000 cm
Package 1 Length 79.000 cm
Package 1 Weight 53.000 kg

Related products

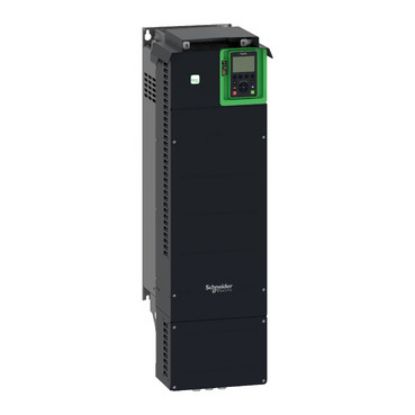

variable speed drive, Altivar Process ATV600, ATV630, 55kW, 75hp, 380 to 480V, IP21, UL type 1
