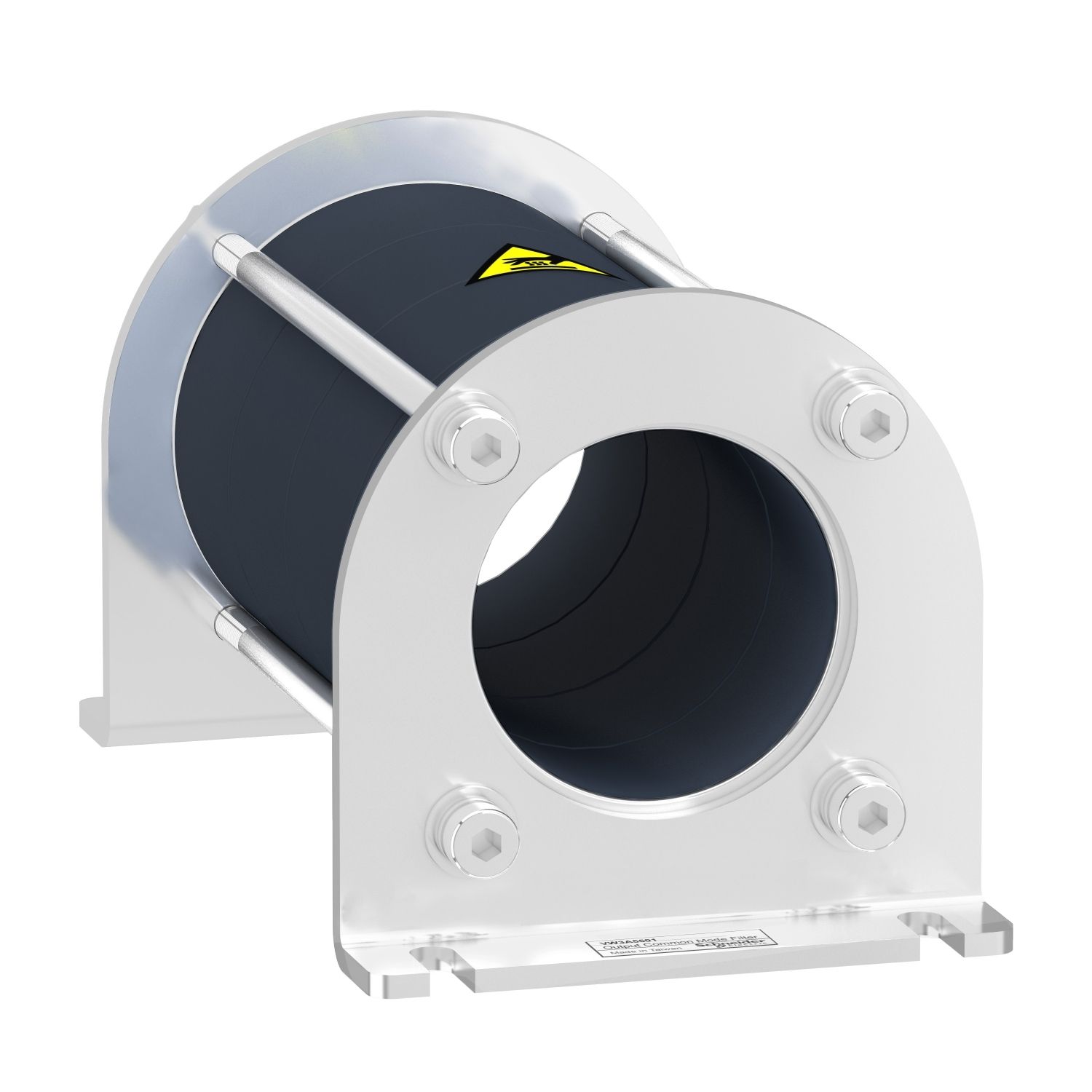

Picture of common mode filter for bearing current reduction - 146.4 µH
SKU:

VW3A5501

common mode filter for bearing current reduction - 146.4 µH

$398.15
Available for Shipping : 10-Dec-2024
common mode filter for bearing current reduction - 146.4 µH
Be the first to review this product
Manufacturer: Schneider Electric
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Range compatibility Altivar Process ATV600, Altivar Process ATV900
Product compatibility variable speed drive ATV930 wall mount, 0.75-5.5 kW, 200...240 V, variable speed drive ATV630 wall mount, 0.75-5.5 kW, 200...240 V, variable speed drive ATV950 wall mount, 0.75-11 kW, 380...480 V, variable speed drive ATV930 wall mount, 0.75-11 kW, 380...480 V, variable speed drive ATV650 wall mount, 0.75-11 kW, 380...480 V, variable speed drive ATV630 wall mount, 0.75-11 kW, 380...480 V
Value of inductance 146.4 µH
Product or component type common mode output filter
Complementary
Diameter 37.1 mm for PE cable outside, 37.1 mm for 3-phase cable inside
Depth 66 mm
Width 66 mm
Saturation current 1.1 A
Electrical insulation class class I
Net weight 0.44 kg
Maximum motor cable length 150 m(shielded cable) motor: 0.75-4 kW 200...240 V, with 1 filter, 150 m(unshielded cable) motor: 0.75-5.5 kW 200...240 V, with 1 filter, 1000 m(unshielded cable) motor: 0.75-5.5 kW 380...480 V, with 1 filter + VW3A5502, 500 m(shielded cable) motor: 0.75-4 kW 380...480 V, with 2 filter, 500 m(unshielded cable) motor: 5.5-11 kW 380...480 V, with 1 filter + VW3A5502, 500 m(unshielded cable) motor: 0.75-4 kW 380...480 V, with 2 filter, 300 m(shielded cable) motor: 5.5-11 kW 380...480 V, with 2 filter, 150 m(shielded cable) motor: 0.75-4 kW 380...480 V, with 1 filter, 1000 m(unshielded cable) motor: 0.75-4 kW 200...240 V, with 1 filter + VW3A5502, 500 m(shielded cable) motor: 0.75-4 kW 200...240 V, with 2 filter, 500 m(unshielded cable) motor: 5.5-5.5 kW 200...240 V, with 1 filter + VW3A5502, 500 m(unshielded cable) motor: 0.75-4 kW 200...240 V, with 2 filter, 300 m(shielded cable) motor: 5.5-5.5 kW 200...240 V, with 2 filter, 150 m(unshielded cable) motor: 0.75-11 kW 380...480 V, with 1 filter
Switching frequency <= 10 kHz
Height 119.2 mm
Maximum output frequency 100 Hz
Mechanical robustness vibrations class 3M4 conforming to IEC 60721-3-3, shocks class 3M4 conforming to IEC 60721-3-3
Environment
Relative humidity 5-95 % without condensation
Ambient air temperature for storage -40-70 °C
Ambient air temperature for operation -15-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 10.000 cm
Package 1 Width 22.000 cm
Package 1 Length 11.500 cm
Package 1 Weight 648.000 g
Unit Type of Package 2 2
Number of Units in Package 2 75
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 59.656 kg
