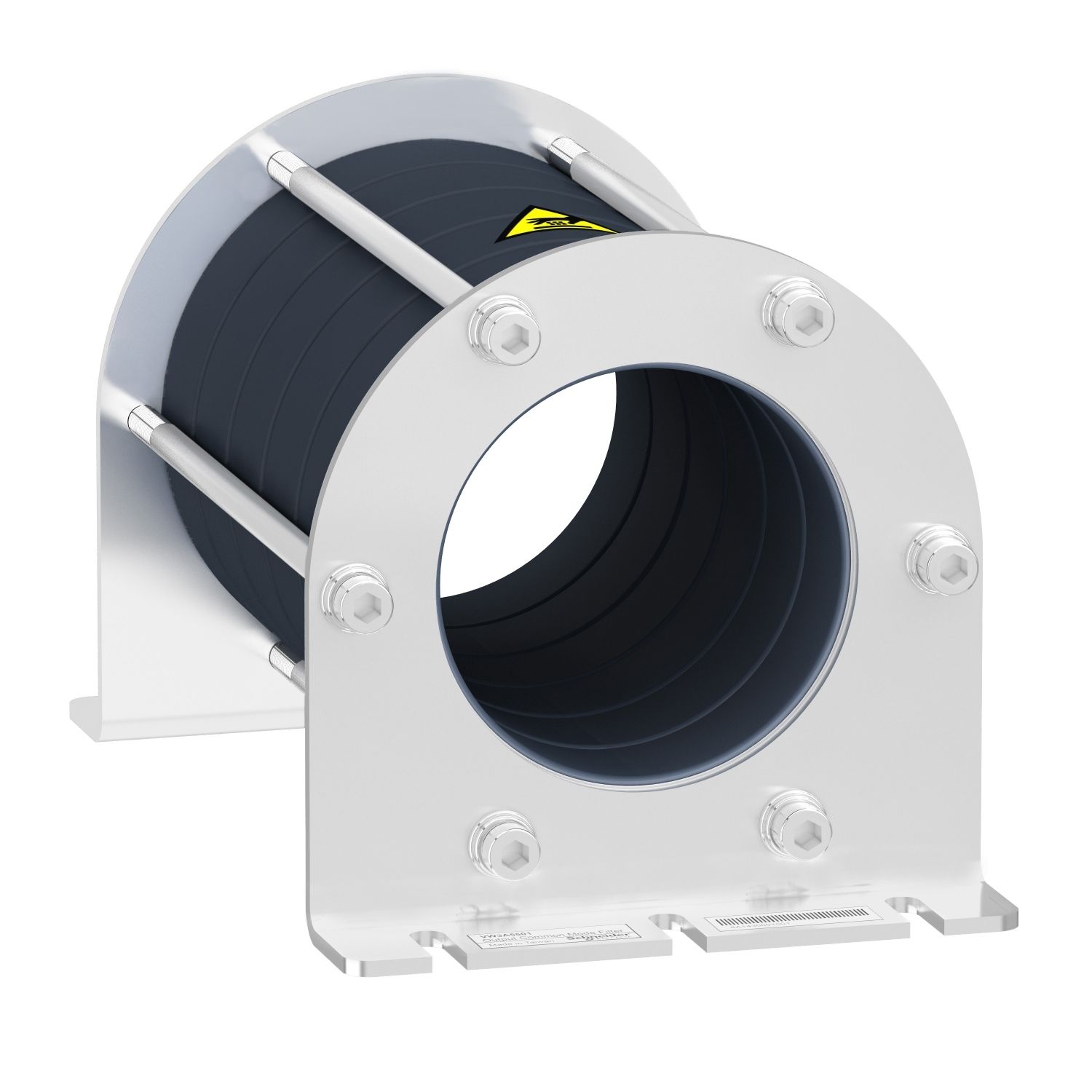

Picture of common mode filter for bearing current reduction, 180µH
SKU:

VW3A5504

common mode filter for bearing current reduction, 180µH

$1,728.66
Available for Shipping : 10-Dec-2024
Product Selector
common mode filter for bearing current reduction, 180µH
Be the first to review this product
Manufacturer: Schneider Electric
Product Page Link
Product Data Sheet
This common mode filter is an option for variable speed drives of the Altivar range. It is possible to use the common mode filter at the output terminals of the drive, the dv/dt filter, or the sinus filter. Its inductance value is equal to 180µH. It is used as an output filter to obtain bearing current reduction. This filter reduces the RFI (radio frequency interference) of the motor cable and improvement of the effectiveness of the EMC filter for conducted emissions. It reduces the high frequency currents circulating in the motor bearings to help to prevent them from being damaged. It weighs 2.96kg, and its dimensions are 127.5mm wide, 210mm high, and 127.5mm deep. It is designed to improve drive installations. It conforms to IEC 60721-3-3 shocks and vibration class 3M4.

Products specifications

Attribute name Attribute value
Main
Range compatibility Altivar Process ATV900, Altivar Process ATV600
Product compatibility variable speed drive ATV930 wall mount, 7.5-45 kW, 200...240 V, variable speed drive ATV630 wall mount, 7.5-45 kW, 200...240 V, variable speed drive ATV950 wall mount, 15-90 kW, 380...480 V, variable speed drive ATV930 wall mount, 15-90 kW, 380...480 V, variable speed drive ATV650 wall mount, 15-90 kW, 380...480 V, variable speed drive ATV630 wall mount, 15-90 kW, 380...480 V
Value of inductance 180 µH
Product or component type common mode output filter
Complementary
Diameter 76 mm for PE cable outside, 76 mm for 3-phase cable inside
Depth 127.5 mm
Width 127.5 mm
Saturation current 2.2 A
Electrical insulation class class I
Net weight 2.96 kg
Maximum motor cable length 150 m(shielded cable) motor: 15-45 kW 200...240 V, with 1 filter, 1000 m(unshielded cable) motor: 30-90 kW 380...480 V, with 2 filter, 1000 m(unshielded cable) motor: 15-22 kW 380...480 V, with 1 filter + VW3A5503, 500 m(shielded cable) motor: 30-90 kW 380...480 V, with 2 filter, 500 m(shielded cable) motor: 15-22 kW 380...480 V, with 1 filter + VW3A5503, 500 m(unshielded cable) motor: 30-90 kW 380...480 V, with 1 filter + VW3A5503, 300 m(shielded cable) motor: 30-90 kW 380...480 V, with 1 filter + VW3A5503, 300 m(unshielded cable) motor: 15-90 kW 380...480 V, with 1 filter, 1000 m(unshielded cable) motor: 15-45 kW 200...240 V, with 2 filter, 1000 m(unshielded cable) motor: 7.5-11 kW 200...240 V, with 1 filter + VW3A5503, 500 m(shielded cable) motor: 15-45 kW 200...240 V, with 2 filter, 500 m(shielded cable) motor: 7.5-11 kW 200...240 V, with 1 filter + VW3A5503, 500 m(unshielded cable) motor: 15-45 kW 200...240 V, with 1 filter + VW3A5503, 300 m(shielded cable) motor: 15-45 kW 200...240 V, with 1 filter + VW3A5503, 300 m(unshielded cable) motor: 7.5-45 kW 200...240 V, with 1 filter, 150 m(shielded cable) motor: 30-90 kW 380...480 V, with 1 filter
Switching frequency <= 10 kHz
Height 210 mm
Maximum output frequency 100 Hz
Mechanical robustness vibrations class 3M4 conforming to IEC 60721-3-3, shocks class 3M4 conforming to IEC 60721-3-3
Environment
Relative humidity 5-95 % without condensation
Ambient air temperature for storage -40-70 °C
Ambient air temperature for operation -15-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 17.000 cm
Package 1 Width 27.700 cm
Package 1 Length 18.200 cm
Package 1 Weight 3.328 kg
Unit Type of Package 2 2
Number of Units in Package 2 24
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 92.872 kg
