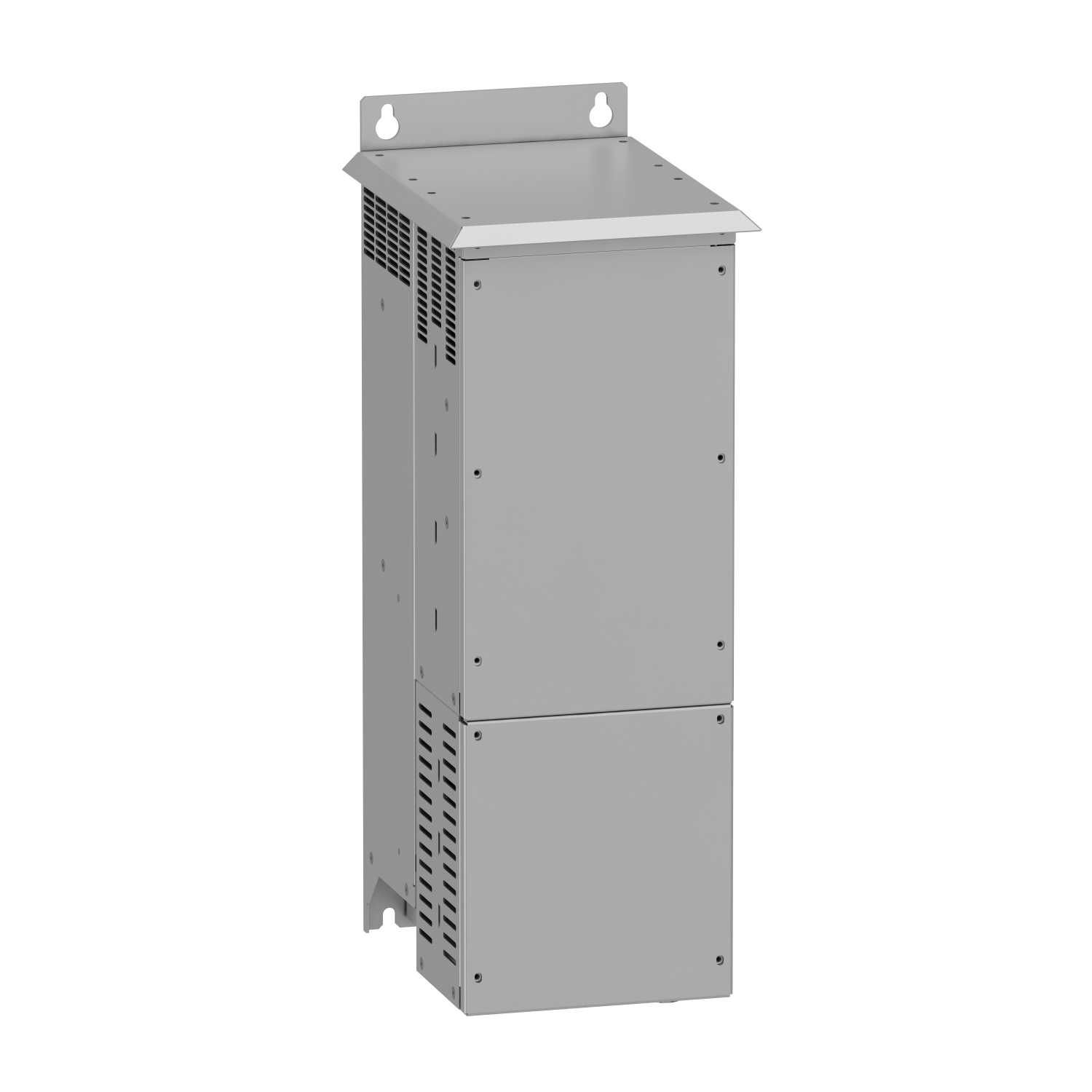

Picture of braking unit, Altivar, 100kW, 400/480V, for variable speed drive
SKU:

VW3A7105

braking unit, Altivar, 100kW, 400/480V, for variable speed drive

$6,828.96
Available for Shipping : 07-Nov-2024
braking unit, Altivar, 100kW, 400/480V, for variable speed drive
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Product Page Link
Product Data Sheet
This braking unit is an option for variable speed drives of Altivar range. The minimum resistor value to associate is 2.5Ohm. This braking unit allows Altivar 71 drives to operate while braking to a standstill or during “generator” operation, by dissipating the energy in the braking resistor. Its protection index is IP20. Thermal protection is provided by an integrated temperature probe. It weighs 28kg.

Products specifications

Attribute name Attribute value
Main
Protection type integrated thermal protection by thermal probe
Range compatibility Altivar Process ATV900
Product compatibility variable speed drive ATV930 without braking chopper 160 kW 380...480 V, variable speed drive ATV930 without braking chopper 130 kW 380...480 V, variable speed drive ATV930 without braking chopper 110 kW 380...480 V
Minimum resistor value to associate 2.5 Ohm
Thermal losses 400 W
Complementary
Depth 303 mm
Width 216 mm
Activation threshold 780 V DC +/- 1 %
Operating position vertical +/- 10 degree
Load factor 1 for 160 kW at constant power and at engage threshold, 0.5 for 200 kW at constant power and at engage threshold, 0.15 for 250 kW at constant power and at engage threshold, 0.05 for 320 kW at constant power and at engage threshold
Maximum braking power 160 kW
Maximum DC bus voltage 850 V
Net weight 17 kg
Permanent braking power 100 kW (at constant power and at engage threshold)
Volume of cooling air 166 m3/h
Height 658 mm
Mechanical robustness vibrations class 3M4 conforming to IEC 60721-3-3
Environment
Operating altitude 1000...4000 m with current derating 1 % per 100 m, <= 1000 m without derating
Ambient air temperature for storage -40-70 °C
IP degree of protection IP21 (on top), IP20
Ambient air temperature for operation -10-50 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 25.500 cm
Package 1 Width 47.000 cm
Package 1 Length 71.000 cm
Package 1 Weight 27.000 kg
