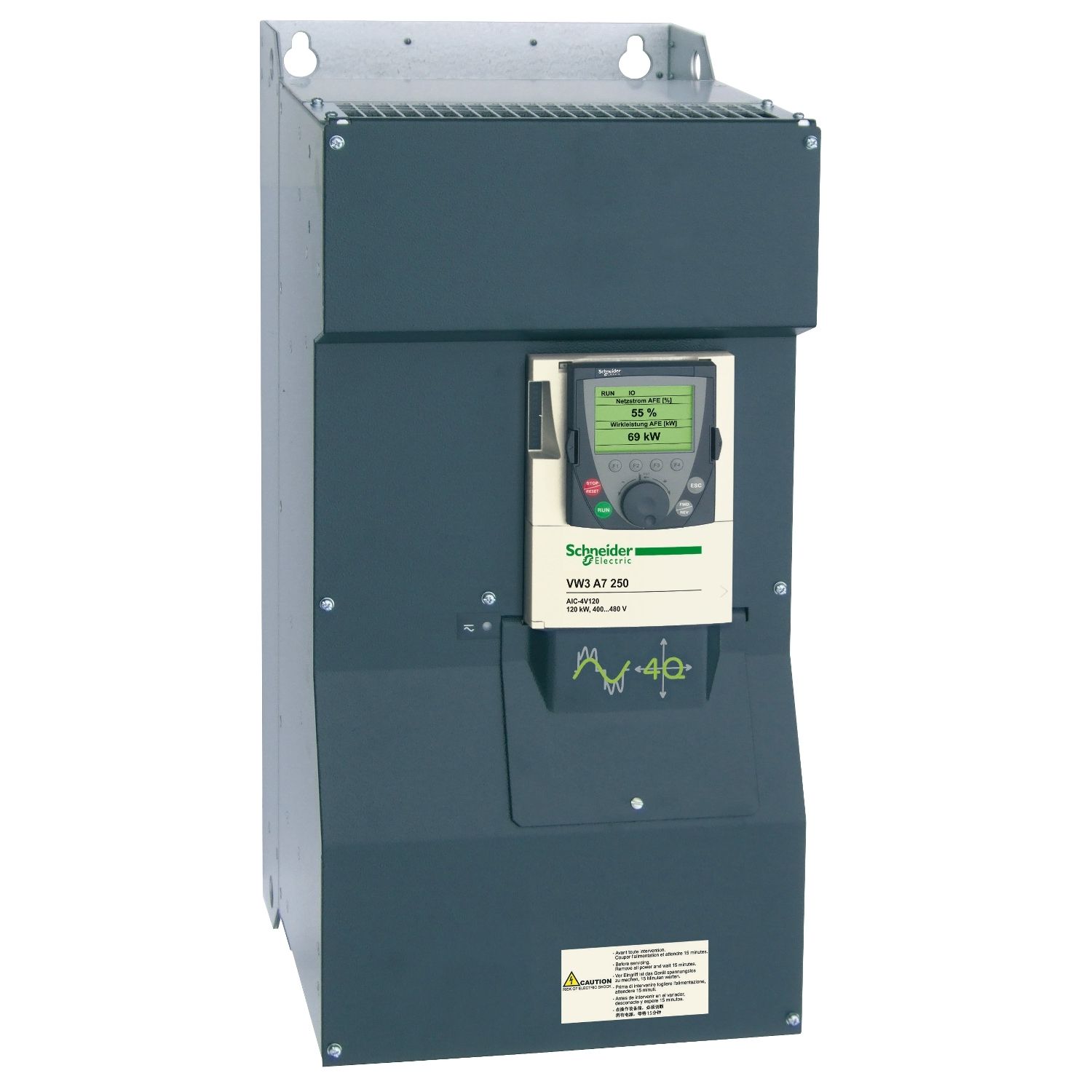

Picture of active infeed converter - 120 kW - 380...480 V
SKU:

VW3A7250

active infeed converter - 120 kW - 380...480 V

Please Contact Sales to buy this Product. click here
active infeed converter - 120 kW - 380...480 V
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 08-Feb-2025
End of life manual
Catalogue
Product Page Link
Product Data Sheet

Products specifications

Attribute nameAttribute value
Main
Device short nameAIC
Range compatibilityAltivar 71, Altivar 61
Assembly stylebuilt-in unit
Product specific applicationcomponent of the Active Front End, energy regeneration, low harmonics
Rated power in W120 kW
Type of coolingforced convection
Product compatibilityATV71H075N4...C20N4D DC with several variable speed drive on a common DC bus, ATV61H075N4...C25N4D DC with several variable speed drive on a common DC bus, ATV71HD90N4D 480 V AC with one variable speed drive, ATV61HC11N4D 480 V AC with one variable speed drive, ATV71HD90N4D 380...440 V AC with one variable speed drive, ATV61HC11N4D 380...440 V AC with one variable speed drive
Network number of phases3 phases
[Us] rated supply voltage380...480 V +/- 10 %
Network frequency50/60 Hz
Complementary
Continuous output current163 A at 480 V, 185 A at 400 V
Depth377 mm
Width310 mm
Operating positionvertical +/- 10 degree
Max current1.35 x nominal current (duration = 2 s), 1.20 x nominal current (duration = 60 s)
Compatibility codeAIC
Maximum voltage drop at rated load<40 % at 480 V, <= 60 s,  <40 % at 440 V, <= 60 s,  <30 % at 380...400 V, <= 60 s
Communication port protocolModbus, CANopen
Line current160 A at 480 V, 177 A at 400 V
Input power133 kW at 480 V, 123 kW at 400 V
Connector typemale SUB-D 9 on RJ45 for CANopen, 1 RJ45 for Modbus
Net weight60 kg
Option cardcommunication bridge
Output voltage770 V DC - supply: 480 V AC, 720 V DC - supply: 440 V AC, 650 V DC - supply: 380...400 V AC
Thermal losses2250 W
Height680 mm
Environment
Operating altitude1000...3000 m with current derating 1 % per 100 m, <= 1000 m without derating
IP degree of protectionIP00
Ambient air temperature for storage-25-70 °C
Pollution degree2 conforming to EN 61800-5-1
Relative humidity0-95 %
Volume of cooling air115 m3/h for control circuit, 400 m3/h for power circuit
Vibration resistance0.6 gn (f= 10-200 Hz) conforming to EN/IEC 60068-2-6, 1.5 mm (f= 3-10 Hz) conforming to EN/IEC 60068-2-6
Environmental characteristic3S2 conforming to EN 60721-3-3, 3C2 conforming to EN 60721-3-3, 3K3 conforming to EN/IEC 60721-3-3
Shock resistance7 gn for 11 ms conforming to EN/IEC 60721-3-3
Ambient air temperature for operation-10-45 °C, 45-60 °C (with current derating of 2 % per °C)
StandardsEN/IEC 61800-5-1
Air flow surface500 cm²
Product certificationsCSA (pending), UL (pending), CE
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height42.0 cm
Package 1 Width53.0 cm
Package 1 Length123.0 cm
Package 1 Weight80.0 kg
