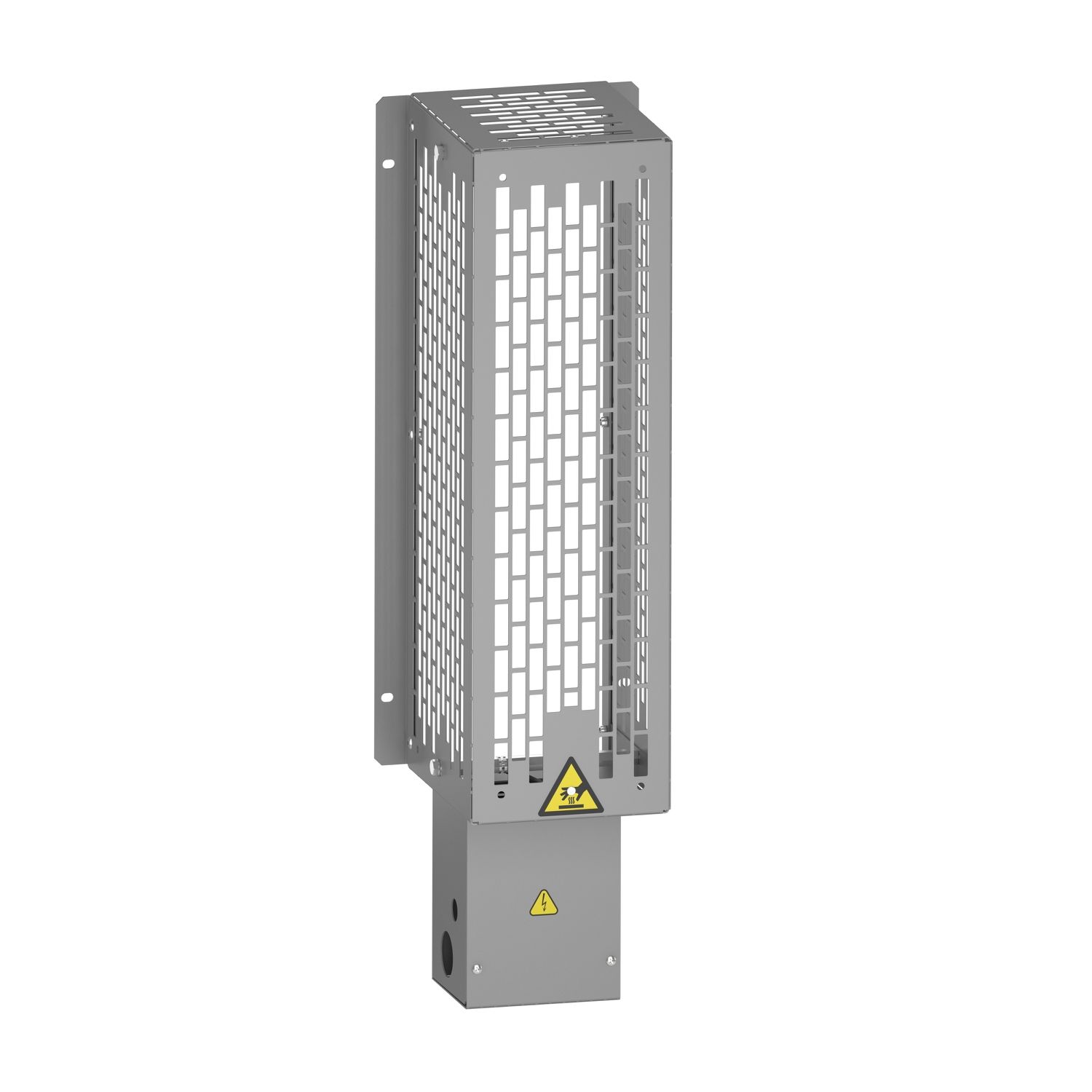

Picture of braking resistor, Altivar, 8Ohms, 1.1kW, IP20
SKU:

VW3A7735

braking resistor, Altivar, 8Ohms, 1.1kW, IP20

$1,349.98
Available for Shipping : 10-Dec-2024
Product Selector
braking resistor, Altivar, 8Ohms, 1.1kW, IP20
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Product Page Link
Product Data Sheet
This braking resistor is an option for variable speed drives of the Altivar range. It has an Ohmic value of 8Ohms at 20°C. This braking resistor allows your variable speed drive to operate while braking to a standstill by dissipating the braking energy and enabling maximum transient braking torque. Its protection index is IP20. It weighs 4.5kg. This resistor is designed to be mounted on the outside of the enclosure but should not inhibit natural cooling; air inlets and outlets must not be obstructed in any way.

Products specifications

Attribute name Attribute value
Main
Range compatibility Altivar Machine ATV320, Altivar Machine ATV340, Altivar Process ATV900
Product or component type braking resistor
[Ue] rated operational voltage 250 V AC, 24 V DC
Ohmic value 8 Ohm
Complementary
Average power available 1.1 kW at 50 °C
Depth 180 mm
Width 190 mm
Duty cycle medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s cycle , medium cycle (normal duty) <4 s braking with 135 % braking torque for a 40 s cycle , light cycle (normal duty) <0.8 s braking with 120 % braking torque for a 40 s cycle , light cycle (heavy duty) <0.8 s braking with 150 % braking torque for a 40 s cycle
Product compatibility variable speed drive ATV320 11 kW 200...240 V, variable speed drive ATV340 45 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 15 kW 200...240 V medium cycle, variable speed drive ATV950 wall mount 55 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 15 kW 200...240 V light cycle, variable speed drive ATV930 wall mount 55 kW 380...480 V light cycle
Electrical connection terminal, connection capacity: <= 4 mm² / AWG 10 for temperature control switch,  terminal, connection capacity: <= 35 mm² / AWG 3 for drive
Net weight 4.5 kg
Protection type thermal protection via drive or temperature control switch at 120 °C
Height 640 mm
Environment
IP degree of protection IP20
Ambient air temperature for storage -25-70 °C
Ambient air temperature for operation 0-50 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 25.000 cm
Package 1 Width 20.000 cm
Package 1 Length 65.000 cm
Package 1 Weight 5.342 kg
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 40.552 kg

Related products

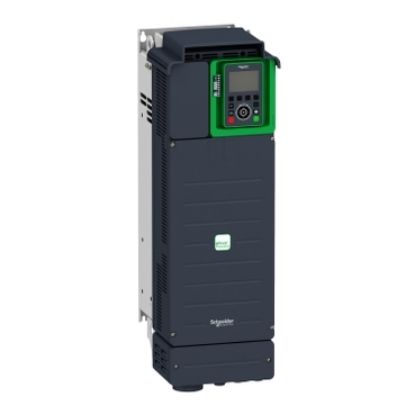

variable speed drive, Altivar Process ATV900, ATV930, 15kW, 200 to 240V, with braking unit, IP21
