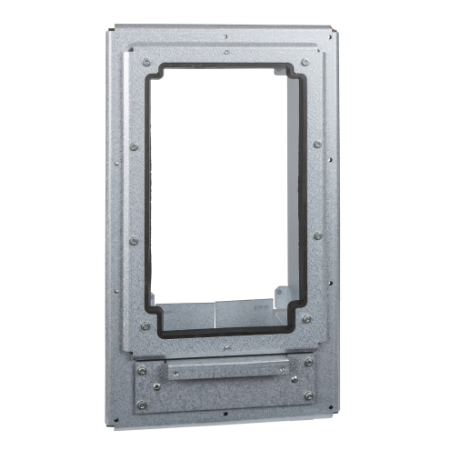

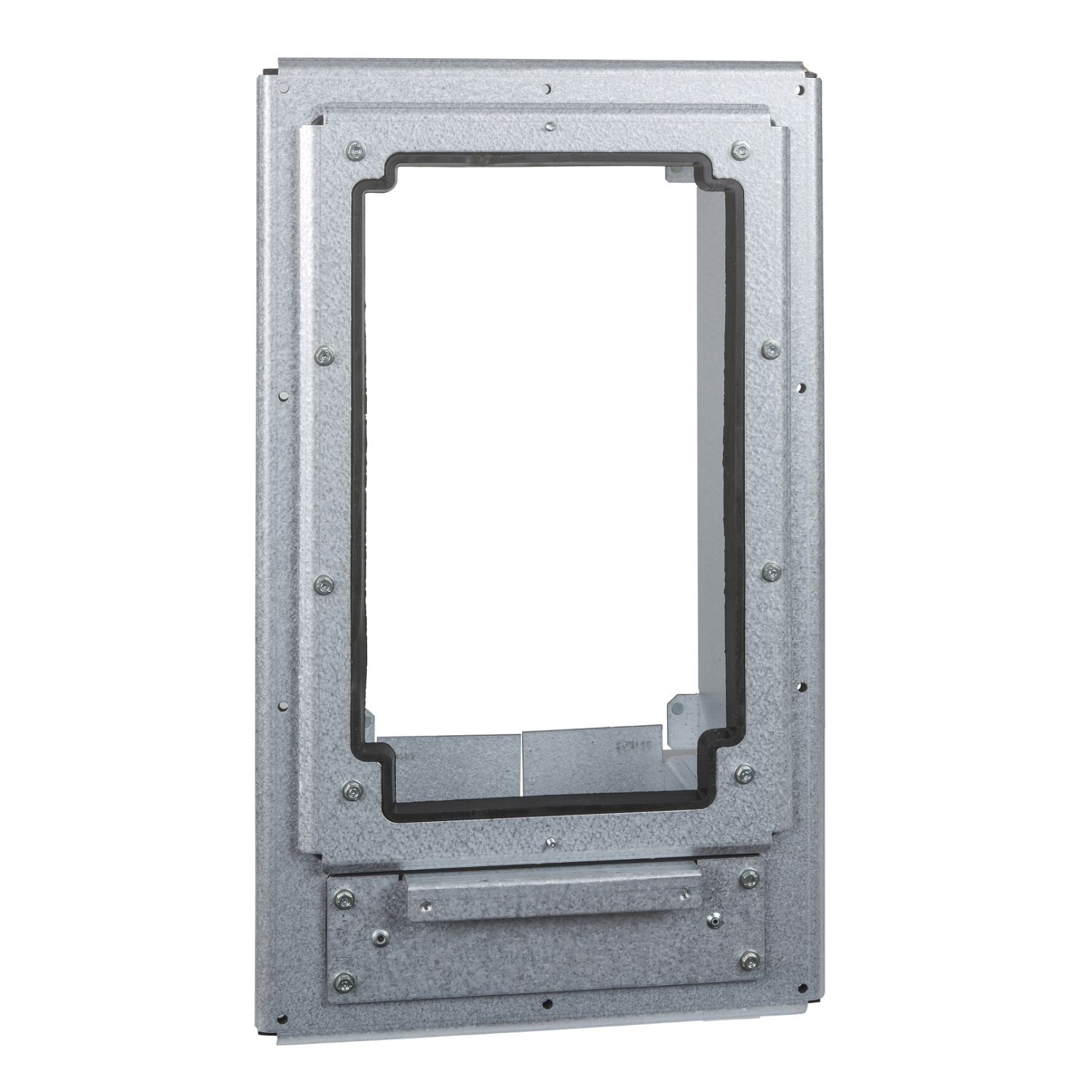

Picture of kit for flush-mounting in a dust and damp proof enclosure - ATV61/ATV71
SKU:

VW3A9514

kit for flush-mounting in a dust and damp proof enclosure - ATV61/ATV71

$1,354.03 INC GST
Availability: Please contact our sales team on 1300 724 622.
kit for flush-mounting in a dust and damp proof enclosure - ATV61/ATV71
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Instruction sheet
Product Page Link
Product Data Sheet
This kit can be used to mount the power section of your variable speed drive outside the enclosure. This solution considerably reduces dissipated losses in the enclosure. With this type of mounting, the maximum internal temperature in the enclosure can then reach 60°C without derating. The back of the enclosure must be drilled and cut out for this type of mounting.

Products specifications

Attribute name Attribute value
Main
Accessory / separate part destination variable speed drive without braking unit
Accessory / separate part type mounting kit
Range compatibility Altivar Process ATV900, Altivar 71, Altivar Process ATV600, Altivar 61
Product specific application for mounting the drive power section outside the enclosure
Product compatibility variable speed drive ATV900 motor at 315 kW, 380...480 V, variable speed drive ATV900 motor at 250 kW, 380...480 V, variable speed drive ATV600 motor at 315 kW, 380...480 V, variable speed drive ATV600 motor at 250 kW, 380...480 V, ATV61HC25N4, ATV71HC31Y without braking unit, ATV71HC28N4D without braking unit, ATV71HC28N4 without braking unit, ATV71HC25Y without braking unit, ATV71HC25N4D without braking unit, ATV71HC25N4 without braking unit, ATV71HC20Y without braking unit, ATV71HC20N4D without braking unit, ATV71HC20N4 without braking unit, ATV61HC40Y without braking unit, ATV61HC31Y without braking unit, ATV61HC31N4D without braking unit, ATV61HC31N4 without braking unit, ATV61HC25Y without braking unit, ATV61HC25N4D without braking unit
Accessory / separate part category mounting and fixing accessory
Range of product Altivar
Complementary
Kit composition seals, fixing accessories,  corner pieces, 1 metal frame of the right size for drive rating, 1 user manual, 1 fan support, 1 cutting and drilling template
Net weight 4.7 kg
Environment
Environmental characteristic dust and damp proof
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 10.000 cm
Package 1 Width 93.000 cm
Package 1 Length 60.000 cm
Package 1 Weight 8.000 kg
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 75.000 cm
Package 2 Width 80.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 111.000 kg
