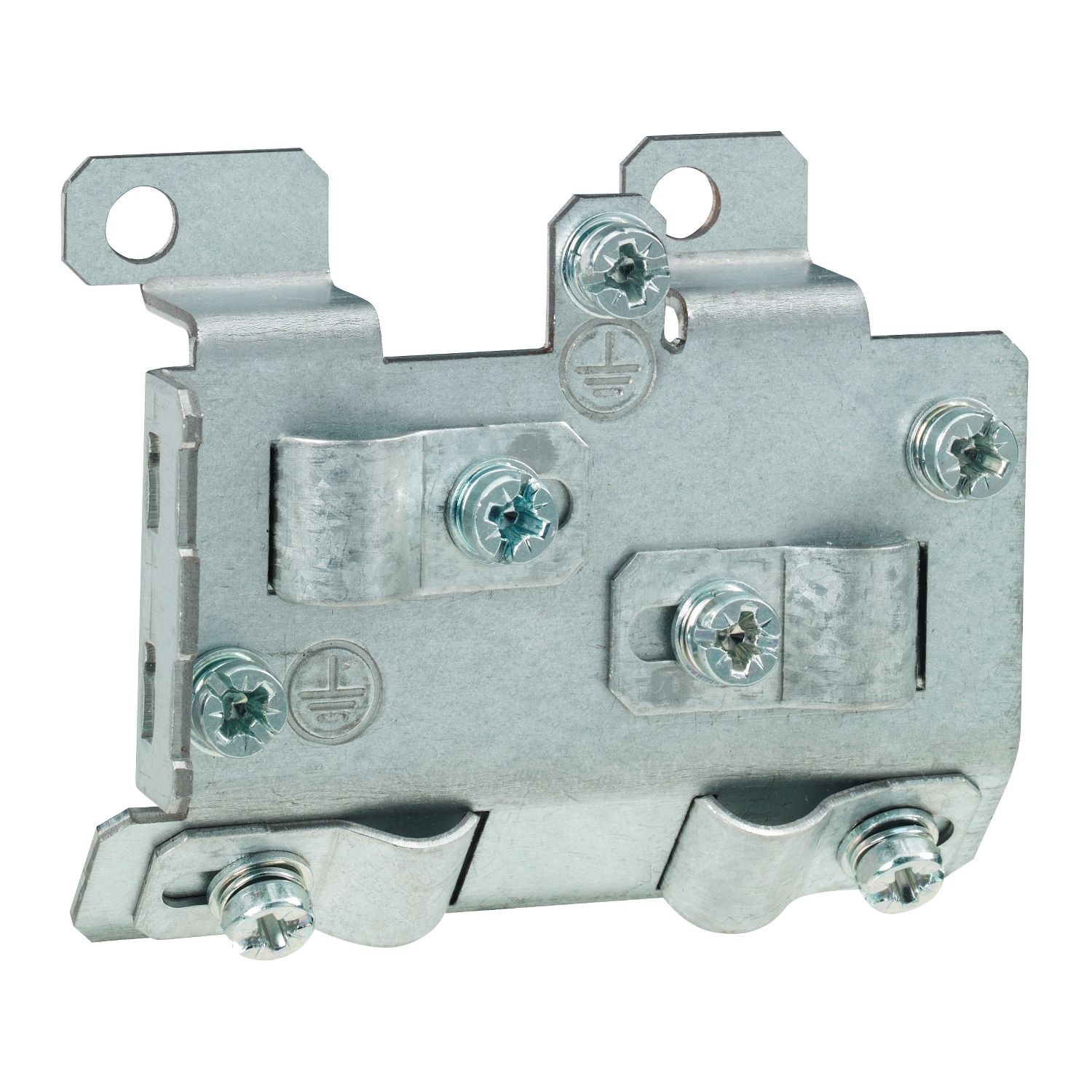

Picture of EMC conformity kits, Altivar Machine ATV320, Altivar 12, for variable speed drive size 1
SKU:

VW3A9523

EMC conformity kits, Altivar Machine ATV320, Altivar 12, for variable speed drive size 1

$45.94
Available for Shipping : 03-Dec-2024
EMC conformity kits, Altivar Machine ATV320, Altivar 12, for variable speed drive size 1
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Product Page Link
Product Data Sheet
This EMC conformity kit is part of the Altivar Machine ATV12 and ATV320 ranges, an offer of variable speed drives for commercial equipment and simple machines. The metal plate makes the speed drive meet electromagnetic compatibility (EMC) requirements and must be ordered separately. This plate is size 1 (72x46.5mm). It helps organizing cable layout. It weighs 0.17kg. This kit is an accessory for power cables and motor cables. This product is certified by EMC, CE, and UL. This kit is compabible with ATV12H018F1, ATV12H037F1, ATV12P037F1, ATV12H018M2, ATV12*0**M2, and ATV12*0*M3 drives. The kit includes one EMC metal plate, clamps and fixing accessories. The metal plate is to be installed under speed drives. The ATV12 range meets basic machine requirements united with simplicity.

Products specifications

Attribute name Attribute value
Main
Accessory / separate part destination variable speed drive
Accessory / separate part type EMC conformity kits
Product compatibility ATV320...C variable speed drive 0.75 kW motor, 200...240 V three phase, ATV320...C variable speed drive 0.55 kW motor, 200...240 V three phase, ATV320...C variable speed drive 0.37 kW motor, 200...240 V three phase, ATV320...C variable speed drive 0.18 kW motor, 200...240 V three phase, ATV12P075M3, ATV12P075M2, ATV12P055M2, ATV12P037M3, ATV12P037M2, ATV12P037F1, ATV12H075M3, ATV12H075M2, ATV12H055M2, ATV12H037M3, ATV12H037M2, ATV12H037F1, ATV12H018M3, ATV12H018M2, ATV12H018F1
Accessory / separate part category mounting and fixing accessory
Range of product Altivar 12, Altivar Machine ATV320
Complementary
Kit composition screws,  EMC plate,  fixing collars
Net weight 0.17 kg
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 17.000 cm
Package 1 Width 17.000 cm
Package 1 Length 23.000 cm
Package 1 Weight 219.000 g
Unit Type of Package 2 2
Number of Units in Package 2 50
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 22.000 kg
