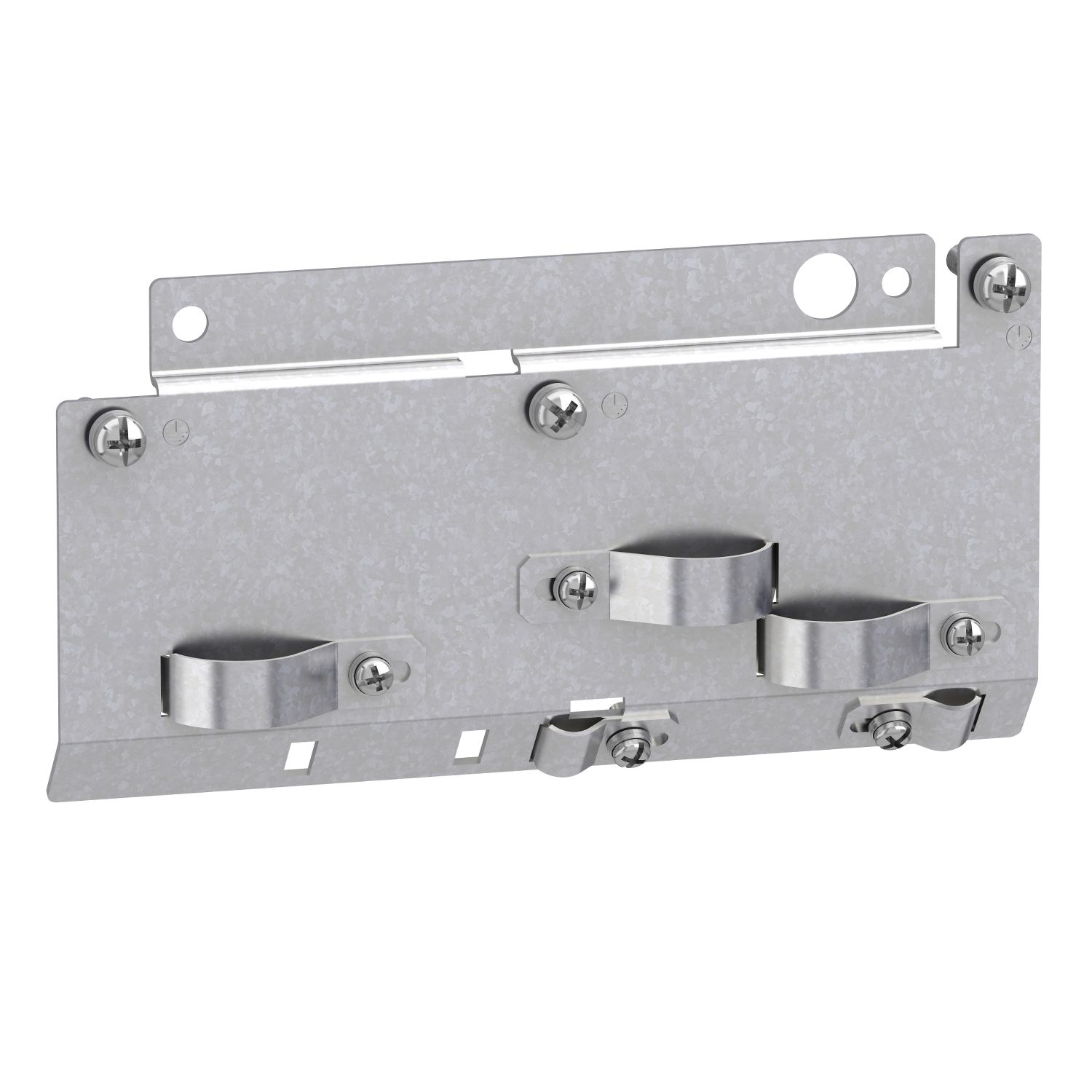

Picture of EMC conformity kits, Altivar Machine ATV320, Altivar 12, for variable speed drive size 5
SKU:

VW3A9533

EMC conformity kits, Altivar Machine ATV320, Altivar 12, for variable speed drive size 5

Please Contact Sales to buy this Product. click here
EMC conformity kits, Altivar Machine ATV320, Altivar 12, for variable speed drive size 5
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 07-Nov-2024
Catalogue
Product Page Link
Product Data Sheet
This EMC conformity kit is part of the Altivar Machine ATV12 and ATV320 ranges, an offer of variable speed drives for commercial equipment and simple machines. The metal plate makes the speed drive meet electromagnetic compatibility (EMC) requirements and must be ordered separately. This plate is size 5 (187mm (7in) x 93mm (3.66in). It helps organizing cable layout. It weighs 0.26kg. This kit is an accessory for power cables and motor cables. This product is certified by EMC, CE, and UL. This kit is compabible with ATV320D11M3C to ATV320D15M3C, ATV320D11N4C to ATV320D15N4C, and ATV320D11S6C to ATV320D15S6C speed drives. The kit includes one EMC metal plate, clamps and fixing accessories. The metal plate is to be installed under the speed drive. The Altivar Machine ATV320 series focus on easy integration for simple and advanced machine requirements with proven motor control and connectivity. ATV320 drives are specifically designed for material handling, packaging, textiles, hoisting, mechanical actuators, and material working.

Products specifications

Attribute nameAttribute value
Main
Accessory / separate part typeEMC conformity kits
Product compatibilityATV320...C variable speed drive 15 kW motor, 525...600 V three phase, ATV320...C variable speed drive 11 kW motor, 525...600 V three phase, ATV320...C variable speed drive 15 kW motor, 200...240 V three phase, ATV320...C variable speed drive 11 kW motor, 200...240 V three phase
Accessory / separate part categorymounting and fixing accessory
Range of productAltivar Machine ATV320
Complementary
Kit compositionscrews,  EMC plate,  fixing collars
Net weight0.26 kg
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height7.000 cm
Package 1 Width16.700 cm
Package 1 Length23.000 cm
Package 1 Weight395.000 g
Unit Type of Package 22
Number of Units in Package 27
Package 2 Height30.000 cm
Package 2 Width30.000 cm
Package 2 Length40.000 cm
Package 2 Weight3.410 kg
