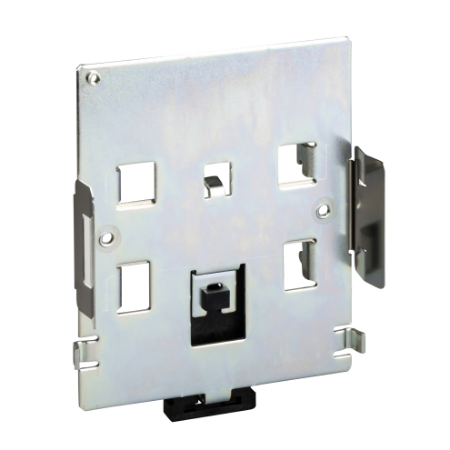

Picture of plate for mounting on symmetrical DIN rail, Altivar, for variable speed drive, size 2C and 2F
SKU:

VW3A9805

plate for mounting on symmetrical DIN rail, Altivar, for variable speed drive, size 2C and 2F

$148.34
Available for Shipping : 10-Dec-2024
plate for mounting on symmetrical DIN rail, Altivar, for variable speed drive, size 2C and 2F
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Product Page Link
Product Data Sheet
This rail DIN kit is an option for variable speed drives of Altivar 12 range. This plate enables the mounting of your variable speed drive on 35mm symmetrical DIN rail. Its dimensions are 105mm wide, 144mm high, and 40mm deep. It weighs 0.385kg. This plate enables the mounting of your variable speed drive on 35mm symmetrical DIN rail. It is compatible with Altivar 12, Altivar 312 and Altivar Machine AT320. The ATV12 range meets basic machine requirements united with simplicity.

Products specifications

Attribute name Attribute value
Main
Accessory / separate part destination variable speed drive
Accessory / separate part type mounting plate
Range compatibility Altivar Machine ATV320, Altivar 312 Solar, Altivar 12, Altivar 312
Accessory / separate part category mounting and fixing accessories
Product compatibility ATV312H075S6, ATV312H075N4, ATV312H055N4, ATV312H037N4, ATV12HU22M3, ATV12HU22M2,  ATV12HU15M3, variable speed drive ATV320...C at 1.5 kW, 525...600 V, three phase, variable speed drive ATV320...C at 0.75 kW, 525...600 V, three phase, variable speed drive ATV320...C at 1.5 kW, 380...500 V, three phase, variable speed drive ATV320...C at 1.1 kW, 380...500 V, three phase, variable speed drive ATV320...C at 0.75 kW, 380...500 V, three phase, variable speed drive ATV320...C at 0.55 kW, 380...500 V, three phase, variable speed drive ATV320...C at 0.37 kW, 380...500 V, three phase, variable speed drive ATV320...C at 2.2 kW, 200...240 V, single phase, ATV12H075F1, variable speed drive ATV320...C at 1.5 kW, 200...240 V, single phase, variable speed drive ATV320...C at 1.1 kW, 200...240 V, single phase, ATV312HU22M3, ATV312HU15S6, ATV312HU15N4, ATV312HU15M3, ATV312HU15M2, ATV312HU11N4, ATV312HU11M3, ATV312HU11M2, ATV12HU15M2
Range of product Altivar
Complementary
Net weight 0.385 kg
Mounting support 35 mm symmetrical DIN rail
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.200 cm
Package 1 Width 17.400 cm
Package 1 Length 23.000 cm
Package 1 Weight 373.000 g
Unit Type of Package 2 2
Number of Units in Package 2 50
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 32.400 kg
