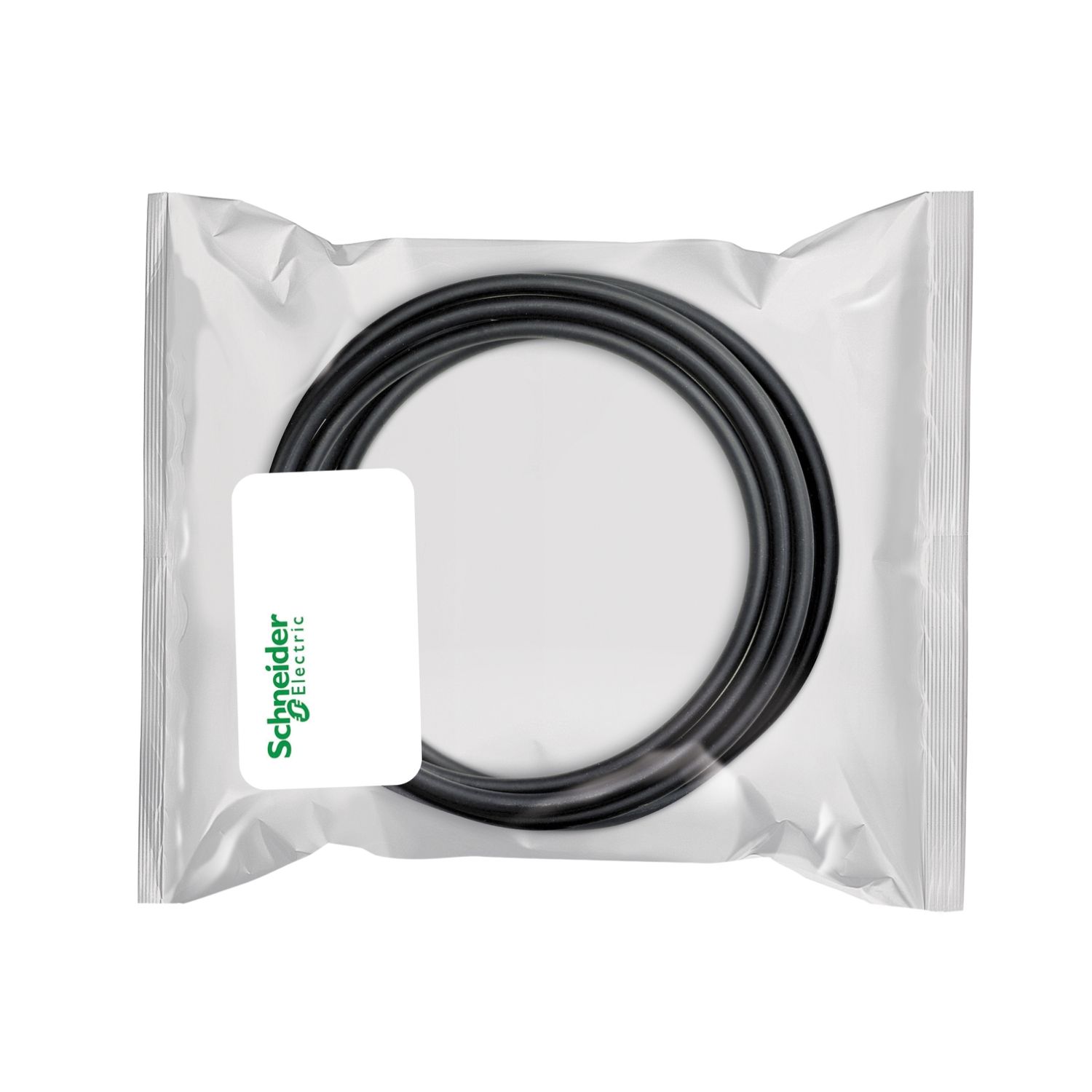

Picture of SinCos Hiperface encoder cable, 3 x (2 x 0.14 mm²) + (2 x 0.34 mm²), 1.5 m
SKU:

VW3M8102R15

SinCos Hiperface encoder cable, 3 x (2 x 0.14 mm²) + (2 x 0.34 mm²), 1.5 m

Please Contact Sales to buy this Product. click here
Product Selector
SinCos Hiperface encoder cable, 3 x (2 x 0.14 mm²) + (2 x 0.34 mm²), 1.5 m
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 18-Oct-2024
Product environmental
Catalogue
End of life manual
Product Page Link
Product Data Sheet
This product is part of the Lexium 32 range, an offer of motion servo drives and servo motors. This is a SinCos Hiperface encoder cordset for BMH servo motors. It is equipped with an M23 industrial connector (servo motor end) and an RJ45 connector with 8+2 contacts (servo drive end). It transmits signals between position sensors of servo motors and their control systems in industrial machines. The wire section is 3x (2x 0.14squaremm and 2x 0.34squaremm). It measures 1.5m long and weighs 0.4kg. It is a connection accessory to the BMH servo motors. It is compatible with servo motor types BMH1901P, BMH1902P, BMH1903P, BMH1904P. This is a preassembled power motor cable for BSH servo motors. It plugs into the encoder connector of BMH servo motors. The Lexium 32 range combines servo drives with motors to provide the right power, performance and functionality at the right price. Lexium 32 simplifies all aspects in the machine lifecycle from engineering to maintenance.

Products specifications

Attribute nameAttribute value
Main
Accessory / separate part destinationfrom servo motor to servo drive
Accessory / separate part typecontrol cable
Cable composition3 x (2 x 0.14 mm²) + (2 x 0.34 mm²)
Product or component typeSinCos Hiperface encoder cable
Accessory / separate part categoryconnection accessory
Range of productLexium
Complementary
Range compatibilityLexium 32
Electrical connection1 connector RJ45, 1 connector M23
Net weight0.4 kg
Cable length1.5 m
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height4.8 cm
Package 1 Width19.7 cm
Package 1 Length24.1 cm
Package 1 Weight177.0 g
Unit Type of Package 22
Number of Units in Package 218
Package 2 Height30.0 cm
Package 2 Width30.0 cm
Package 2 Length40.0 cm
Package 2 Weight3.68 kg
