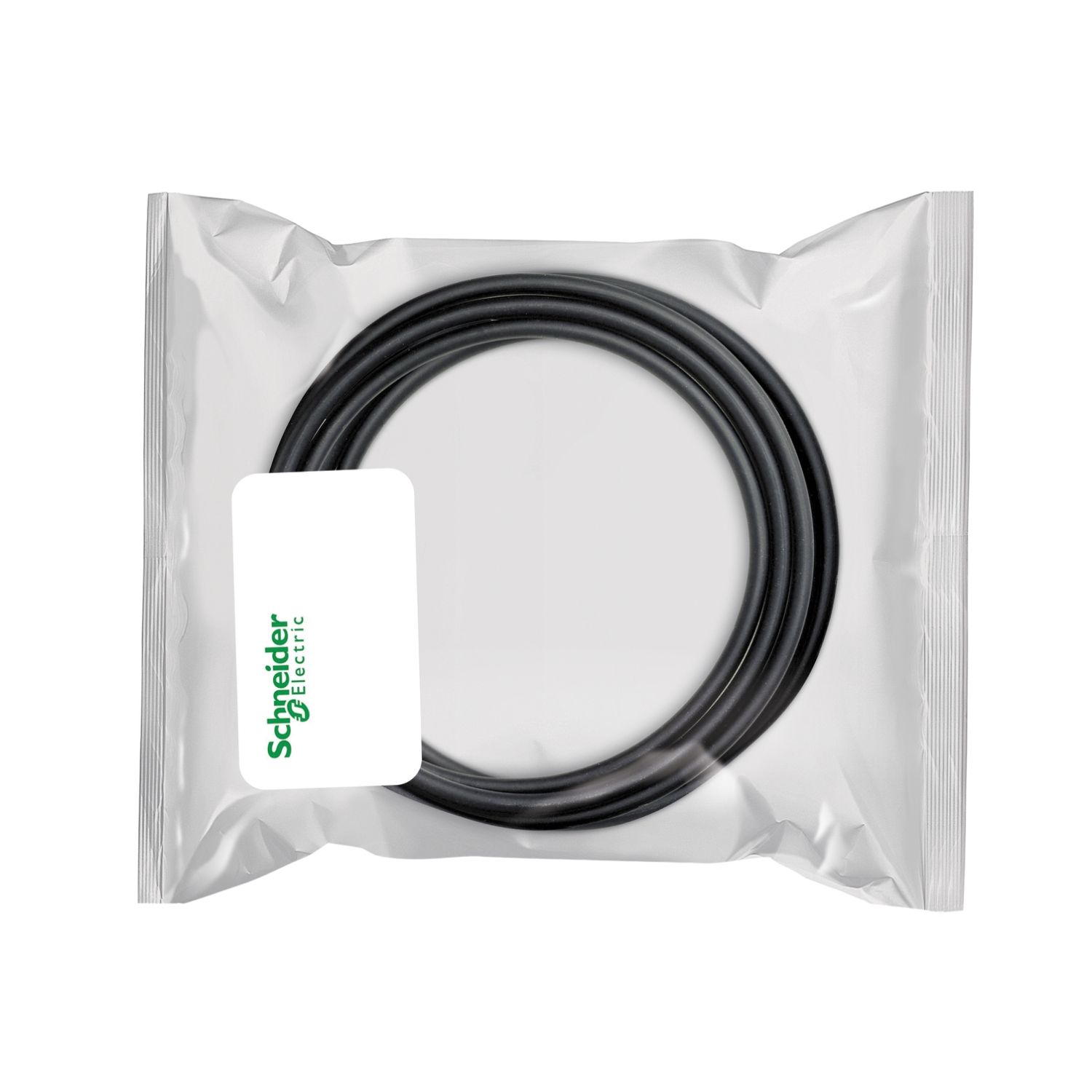

Picture of SinCos Hiperface encoder cable, Lexium, 3 x (2 x 0.14mm²) + (2 x 0.34mm²), 5m
SKU:

VW3M8102R50

SinCos Hiperface encoder cable, Lexium, 3 x (2 x 0.14mm²) + (2 x 0.34mm²), 5m

$434.40
Available for Shipping : 03-Dec-2024
Product Selector
SinCos Hiperface encoder cable, Lexium, 3 x (2 x 0.14mm²) + (2 x 0.34mm²), 5m
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Catalogue
End of life manual
Product Page Link
Product Data Sheet
This product is part of the Lexium range, an offer of motion servo drives and servo motors. This control cable is an accessory of encoder. The length of this cable is 5m. It is furnished with M23 connector, RJ45 connector for electrical connection. The cable composition is 3 x (2 x 0.14mm²) + (2 x 0.34mm²). It is used to connect from servo motor to servo drive. It weighs 0.6kg. This product is compatible with Lexium 32 SinCos Hiperface encoder.

Products specifications

Attribute name Attribute value
Main
Accessory / separate part destination from servo motor to servo drive
Accessory / separate part type control cable
Cable composition 3 x (2 x 0.14 mm²) + (2 x 0.34 mm²)
Product or component type SinCos Hiperface encoder cable
Accessory / separate part category connection accessory
Range of product Lexium
Complementary
Range compatibility Lexium 32
Electrical connection 1 connector RJ45, 1 connector M23
Net weight 0.6 kg
Cable length 5 m
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3 cm
Package 1 Width 20 cm
Package 1 Length 21 cm
Package 1 Weight 375 g
Unit Type of Package 2 2
Number of Units in Package 2 18
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 7.23 kg
Unit Type of Package 3 3
Number of Units in Package 3 144
Package 3 Height 75 cm
Package 3 Width 60 cm
Package 3 Length 80 cm
Package 3 Weight 66.464 kg
