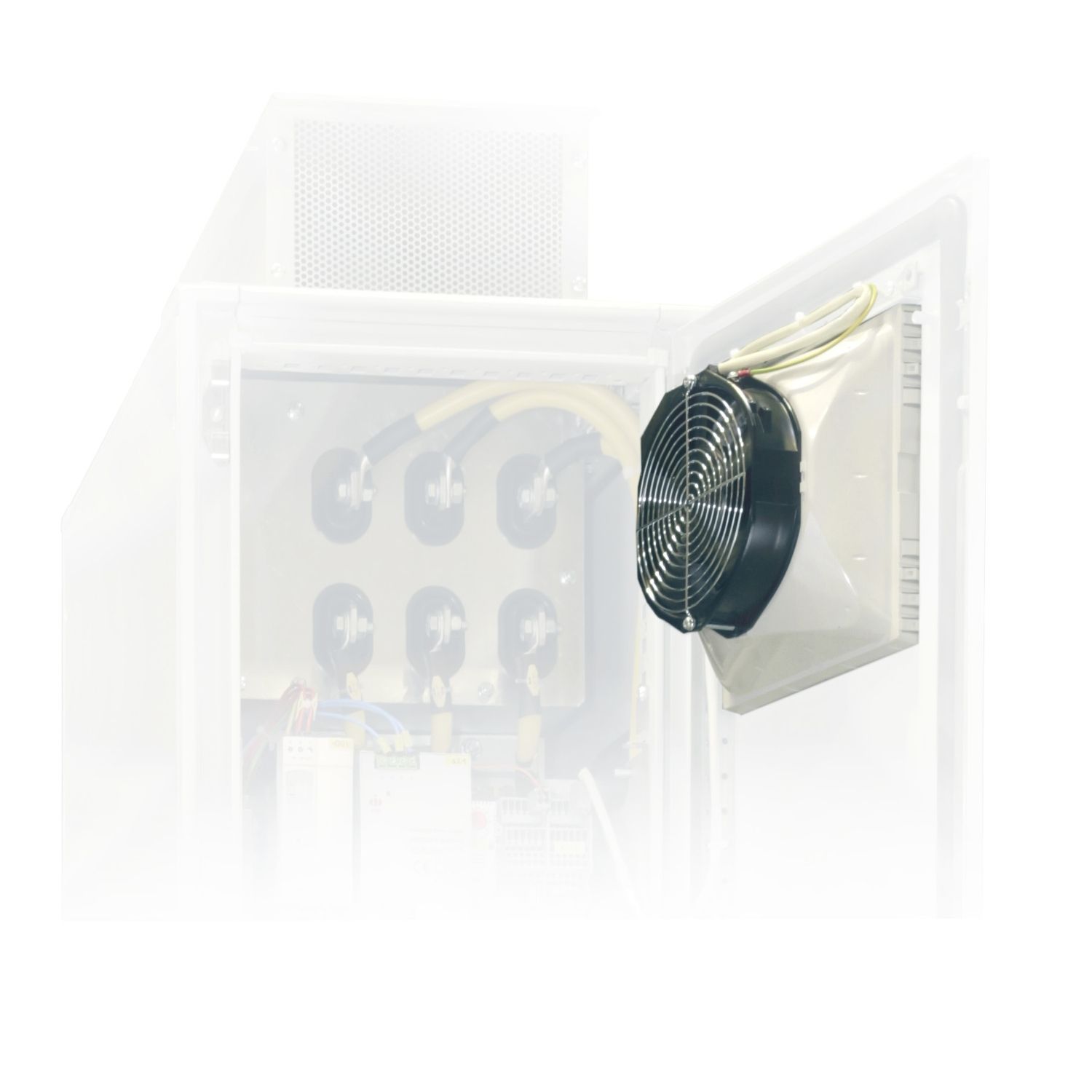

Picture of Wear part, enclosure door, fan for variable speed drive, Altivar Process 600 900, from 110 to 315kW, from 380 to 440V
SKU:

VX5VPM002

Wear part, enclosure door, fan for variable speed drive, Altivar Process 600 900, from 110 to 315kW, from 380 to 440V

$689.17 INC GST
Available for Shipping : 22-Feb-2026
Wear part, enclosure door, fan for variable speed drive, Altivar Process 600 900, from 110 to 315kW, from 380 to 440V
  • Original Schneider Electric wear part
  • High quality construction
  • Limited Noise
  • Higher efficiency
  • Increase Drive lifetime
  • Reduce drive downtime possibility
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 22-Feb-2026
Instruction sheet
Catalog
Product Page Link
Product Data Sheet
This product is a wear part for Drive Altivar Process 600 and Altivar Process 900. This Fan for variable speed drive is a cooling accessory. It works for variable speed drives from 110kw to 315kw and a rated voltage from 380V to 440V. This Fan increase the Drive life time. The quantity of Fan required depend on the drives ranges. Its dimensions are 30cm (width) x 30,5cm (Length) x 9,5cm (Height) and weighs 0.8kg. This power fan is compatible with ATV630C11N4F to C31N4F, ATV650C11N4F to C31N4F, ATV930C11N4F to C31N4F, ATV950C11N4F to C31N4F. This kit includes 1 door fan, 1 bracket, 1 instruction sheet. Variable Speed Drives for pumps, fans or compressors up to 2600 kW. Variable Speed Drive for conveyors, cranes or mills up to 2600 kW.

Products specifications

Attribute name Attribute value
Main
Accessory / separate part type enclosure door fan
Range compatibility Altivar Process 600/900
Product or component type fan
Accessory / separate part category cooling accessory
Complementary
Kit composition instruction sheet,  mounting bracket, fan
Product compatibility variable speed drive ATV950 floor-standing 315-315 kW 380...440 V, variable speed drive ATV950 floor-standing 250-250 kW 380...440 V, variable speed drive ATV950 floor-standing 200-200 kW 380...440 V, variable speed drive ATV950 floor-standing 160-160 kW 380...440 V, variable speed drive ATV950 floor-standing 132-132 kW 380...440 V, variable speed drive ATV950 floor-standing 110-110 kW 380...440 V, variable speed drive ATV930 floor-standing 315-315 kW 380...440 V, variable speed drive ATV930 floor-standing 250-250 kW 380...440 V, variable speed drive ATV930 floor-standing 200-200 kW 380...440 V, variable speed drive ATV930 floor-standing 160-160 kW 380...440 V, variable speed drive ATV930 floor-standing 132-132 kW 380...440 V, variable speed drive ATV930 floor-standing 110-110 kW 380...440 V, variable speed drive ATV650 floor-standing 315-315 kW 380...440 V, variable speed drive ATV650 floor-standing 250-250 kW 380...440 V, variable speed drive ATV650 floor-standing 200-200 kW 380...440 V, variable speed drive ATV650 floor-standing 160-160 kW 380...440 V, variable speed drive ATV650 floor-standing 132-132 kW 380...440 V, variable speed drive ATV650 floor-standing 110-110 kW 380...440 V, variable speed drive ATV630 floor-standing 315-315 kW 380...440 V, variable speed drive ATV630 floor-standing 250-250 kW 380...440 V, variable speed drive ATV630 floor-standing 200-200 kW 380...440 V, variable speed drive ATV630 floor-standing 160-160 kW 380...440 V, variable speed drive ATV630 floor-standing 132-132 kW 380...440 V, variable speed drive ATV630 floor-standing 110-110 kW 380...440 V
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.200 cm
Package 1 Width 30.500 cm
Package 1 Length 30.000 cm
Package 1 Weight 798.000 g
Unit Type of Package 2 2
Number of Units in Package 2 3
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 3.625 kg
