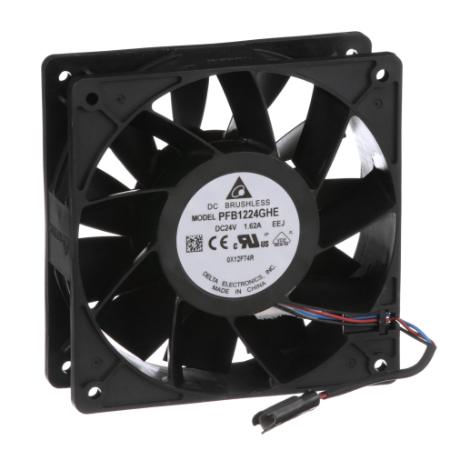

Picture of Wear part, enclosure door, fan for variable speed drive, Altivar 340, Altivar Process 600 900, from 15 to 45kW
SKU:

VX5VPS4001

Wear part, enclosure door, fan for variable speed drive, Altivar 340, Altivar Process 600 900, from 15 to 45kW

$337.13 INC GST
Available for Shipping : 18-Dec-2025
Wear part, enclosure door, fan for variable speed drive, Altivar 340, Altivar Process 600 900, from 15 to 45kW
  • Original Schneider Electric wear part
  • High quality construction
  • Limited Noise
  • Higher efficiency
  • Increase Drive lifetime
  • Reduce drive downtime possibility
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 18-Dec-2025
Catalog
Product Page Link
Product Data Sheet

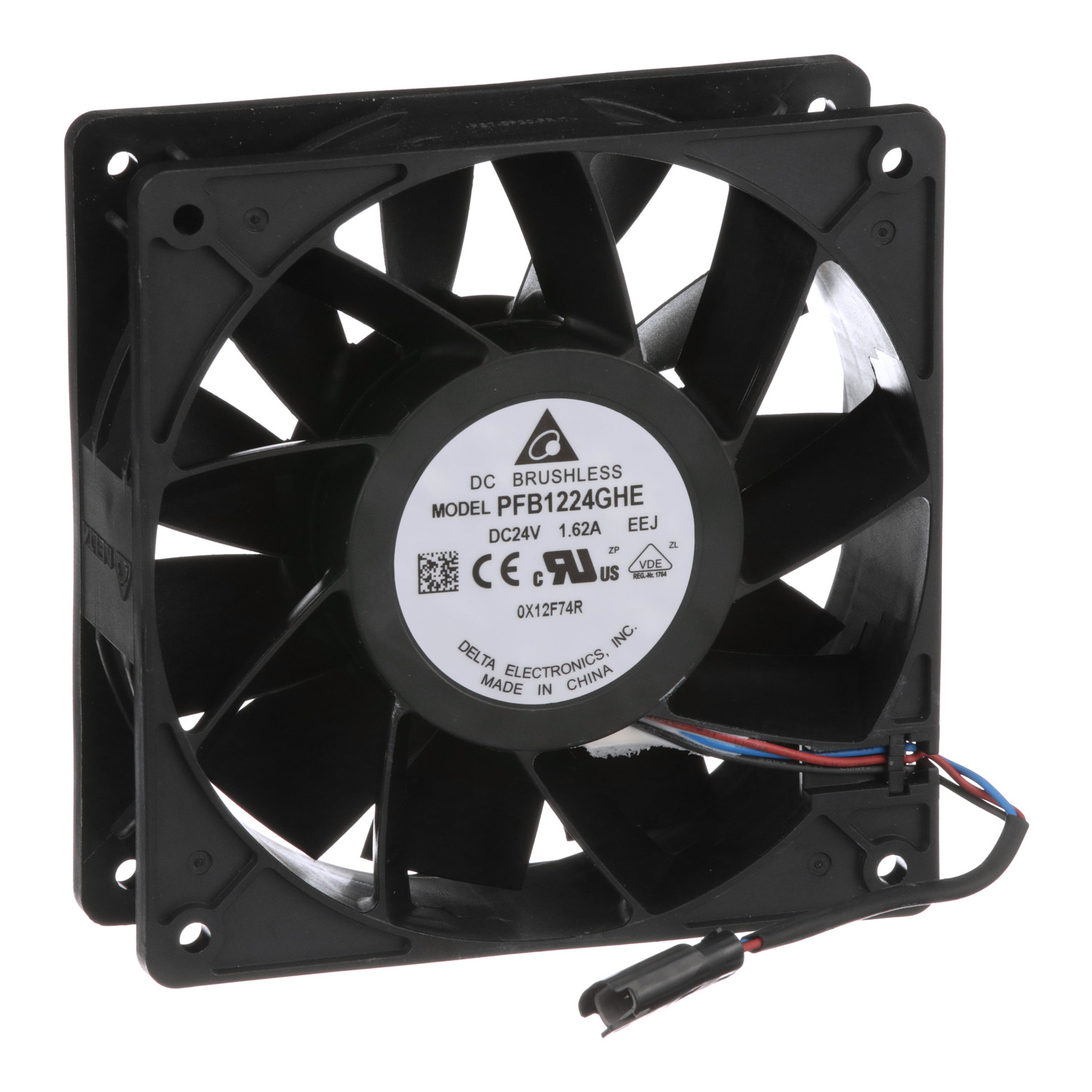

This product is a wear part for Drive Altivar 340, Altivar Process 600 and Altivar Process 900. This Fan for variable speed drive is a cooling accessory. It works for variable speed drives from 15kw to 45kw and a rated voltage from 200V to 480V. This Fan increase the Drive life time. 1 Fan required for all drive ranges. This fan has a fixed type body which is made of plastic. Its dimensions are 17.3cm (width) x 23.5cm (Length) x 7.1cm (Height) and weighs 572g. This power fan is compatible with ATV340D30N4E to D37N4E, ATV630D15M3 to D22M3, ATV630D30N4 to D45N4, ATV650D30N4 to D45N4, ATV650D30N4E to D45N4E, ATV930D15M3 to D22M3, ATV930D30N4 to D45N4, ATV950D30N4 to D45N4, ATV950D30N4E to D45N4E. This kit includes 1 power fan for IP21 and IP55 drives, 1 bracket, 1 instruction sheet. IoT-ready variable speed drives for safety and heavy duty applications from 0.75 to 75kW (1 to 100Hp). Variable Speed Drives for pumps, fans or compressors up to 2600 kW. Variable Speed Drive for conveyors, cranes or mills up to 2600 kW.

Products specifications

Attribute name Attribute value
Main
Accessory / separate part type fan kit
Range compatibility Altivar Process 600/900, Altivar 340
Product or component type fan
Accessory / separate part category cooling accessory
Complementary
Kit composition instruction sheet,  mounting bracket, fan
Product compatibility variable speed drive ATV340 37-37 kW 380...480 V, variable speed drive ATV340 30-30 kW 380...480 V, variable speed drive ATV930 wall mount 45-45 kW 380...480 V, variable speed drive ATV930 wall mount 37-37 kW 380...480 V, variable speed drive ATV930 wall mount 30-30 kW 380...480 V, variable speed drive ATV930 wall mount 22-22 kW 200...240 V, variable speed drive ATV930 wall mount 18-18 kW 200...240 V, variable speed drive ATV930 wall mount 15-15 kW 200...240 V, variable speed drive ATV630 wall mount 45-45 kW 380...480 V, variable speed drive ATV630 wall mount 37-37 kW 380...480 V, variable speed drive ATV630 wall mount 30-30 kW 380...480 V, variable speed drive ATV630 wall mount 22-22 kW 200...240 V, variable speed drive ATV630 wall mount 18-18 kW 200...240 V, variable speed drive ATV630 wall mount 15-15 kW 200...240 V
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.100 cm
Package 1 Width 17.300 cm
Package 1 Length 23.500 cm
Package 1 Weight 584.000 g
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.100 kg
