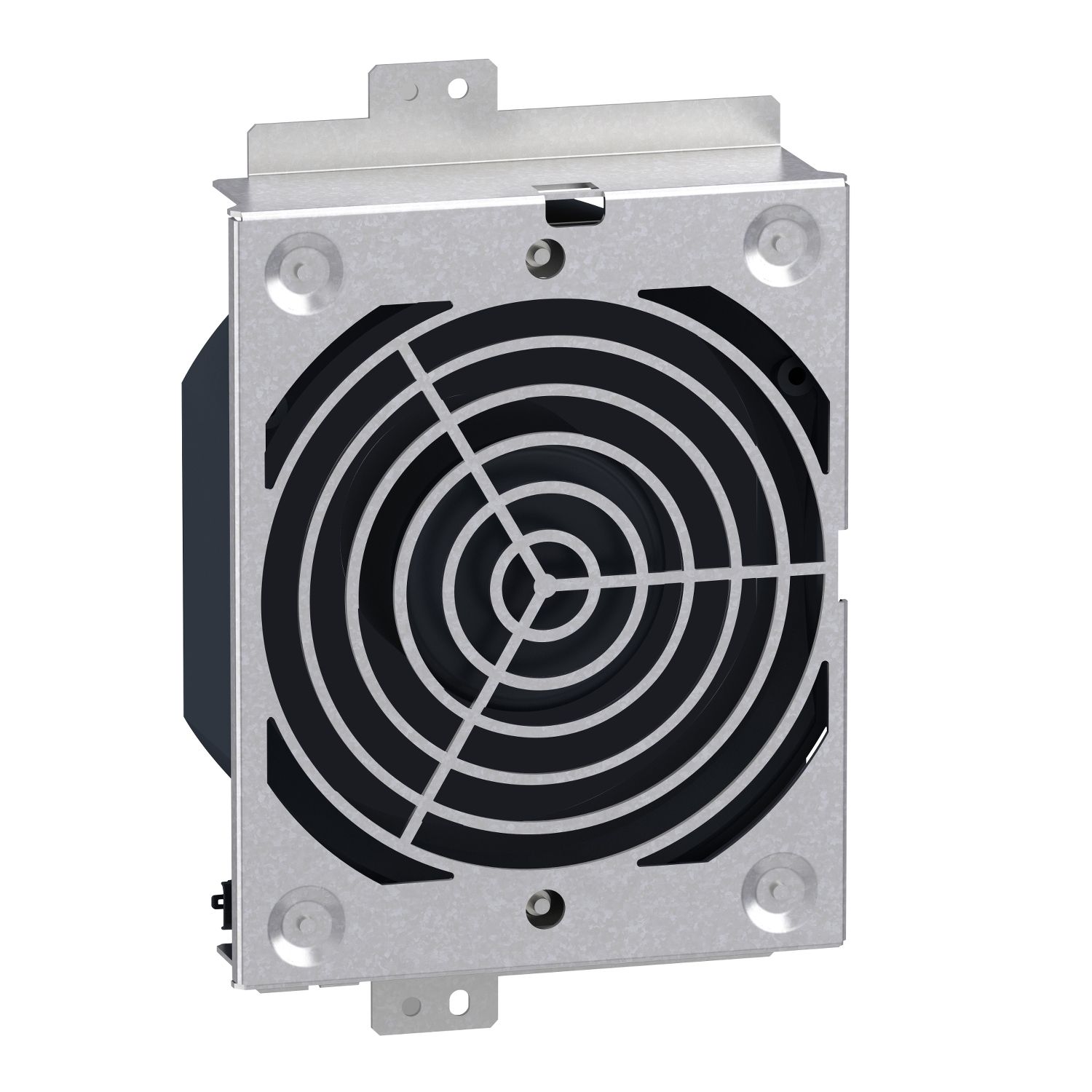

Picture of Wear part, enclosure door, fan for variable speed drive, Altivar Process 600 900, from 30 to 90kW
SKU:

VX5VPS5001

Wear part, enclosure door, fan for variable speed drive, Altivar Process 600 900, from 30 to 90kW

$536.84 INC GST
Available for Shipping : 08-Dec-2025
Wear part, enclosure door, fan for variable speed drive, Altivar Process 600 900, from 30 to 90kW
  • Original Schneider Electric wear part
  • High quality construction
  • Limited Noise
  • Higher efficiency
  • Increase Drive lifetime
  • Reduce drive downtime possibility
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 08-Dec-2025
Catalog
Product Page Link
Product Data Sheet
This product is a wear part for Drive Altivar 340, Altivar Process 600 and Altivar Process 900. This Fan for variable speed drive is a cooling accessory. It works for variable speed drives from 30kw to 90kw and a rated voltage from 200V to 480V. This Fan increase the Drive life time. 1 Fan required for all drive ranges. This fan has a fixed type body which is made of plastic. Its dimensions are 30.5cm (width) x 30.5cm (Length) x 9.5cm (Height) and weighs 1.14kg. This power fan is compatible with ATV340D45N4E to D75N4E, ATV*30D30M3 to D45M3, ATV*30D55N4 to D90N4, ATV*50D55N4 to D90N4, ATV650D55N4E to D90N4E and ATV930D30M3C to D45M3C. This kit includes 1 power fan for IP21 and IP55 drives, 1 bracket, 1 instruction sheet. IoT-ready variable speed drives for safety and heavy duty applications from 0.75 to 75kW (1 to 100Hp). Variable Speed Drives for pumps, fans or compressors up to 2600 kW. Variable Speed Drive for conveyors, cranes or mills up to 2600 kW.

Products specifications

Attribute name Attribute value
Main
Accessory / separate part type fan kit
Range compatibility Altivar Process 600/900
Product or component type fan
Accessory / separate part category cooling accessory
Complementary
Kit composition instruction sheet,  mounting bracket, fan
Product compatibility variable speed drive ATV340 75-75 kW 380...480 V, variable speed drive ATV340 55-55 kW 380...480 V, variable speed drive ATV340 45-45 kW 380...480 V, variable speed drive ATV930 wall mount 90-90 kW 380...480 V, variable speed drive ATV930 wall mount 75-75 kW 380...480 V, variable speed drive ATV930 wall mount 55-55 kW 380...480 V, variable speed drive ATV930 wall mount 45-45 kW 200...240 V, variable speed drive ATV930 wall mount 37-37 kW 200...240 V, variable speed drive ATV930 wall mount 30-30 kW 200...240 V, variable speed drive ATV630 wall mount 90-90 kW 380...480 V, variable speed drive ATV630 wall mount 75-75 kW 380...480 V, variable speed drive ATV630 wall mount 55-55 kW 380...480 V, variable speed drive ATV630 wall mount 45-45 kW 200...240 V, variable speed drive ATV630 wall mount 37-37 kW 200...240 V, variable speed drive ATV630 wall mount 30-30 kW 200...240 V
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.500 cm
Package 1 Width 30.500 cm
Package 1 Length 30.500 cm
Package 1 Weight 1.208 kg
Unit Type of Package 2 2
Number of Units in Package 2 3
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 4.850 kg
