SKU:

VZ12

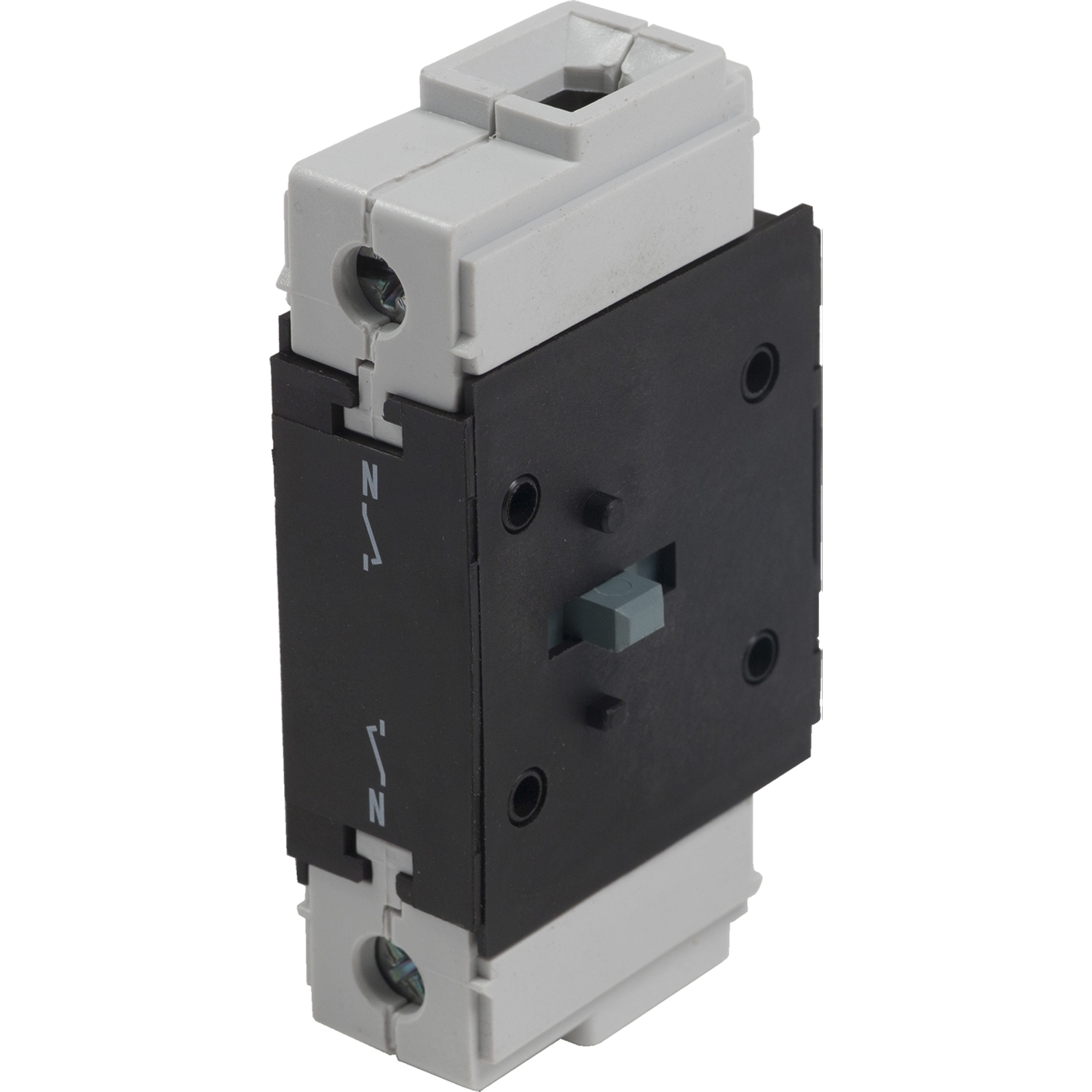

TeSys, TeSys VARIO - additional neutral block - 80 A - for V3 / V4

$101.42

Qty:

Available for Shipping : 14-Nov-2024

TeSys, TeSys VARIO - additional neutral block - 80 A - for V3 / V4

Good stability of contacts designed with early make and late break action

Compliance with multi standards and certified

Environmentally friendly product

Be the first to review this product

Manufacturer: Schneider Electric

Catalogue

Product environmental

Instruction sheet

Product Page Link

Product Data Sheet

TeSys Vario add-on module, neutral pole 63-80A 690V, for TeSys Vario switch-disconnector. To be used with V3 and V4 switch bodies. Contacts with early make and late break action. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name	Attribute value
Main
Device short name	VZ
Product compatibility	V4, V3
Poles description	1N
Contact operation	early make, late break
Contacts type and composition	1 NO
Range	TeSys
Performance level	high performance
Product or component type	additional neutral block
Range compatibility	TeSys TeSys VARIO switch disconnector
Network type	DC, AC
Network frequency	50/60 Hz
Complementary
Depth	46 mm
Tightening torque	4-4 N.m - on screw clamp terminals
Width	20 mm
Compatibility code	neutral pole module
Mechanical durability	30000 cycles
Electrical durability	30000 cycles AC-21, 30000 cycles DC-1...5
Connections - terminals	screw clamp terminals25-25 mm² - solid, screw clamp terminals16-16 mm² - flexible - with cable end
Mounting location	right, left
[Uimp] rated impulse withstand voltage	6 kV
Net weight	0.1 kg
[Ith] conventional free air thermal current	80 A
Height	83 mm
[Ue] rated operational voltage	690 V AC 50/60 Hz
Environment
Fire resistance	960 °C conforming to IEC 60695-2-1
Mechanical robustness	shocks 11 ms (15 gn) conforming to IEC 60068-2-27, vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6
Protective treatment	TC
IP degree of protection	IP20 conforming to IEC 60529
Standards	IEC 60947-3
Ambient air temperature for operation	-20-50 °C
Product certifications	UKCA, CSA, UL, GL
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	5.59 cm
Package 1 Width	3.81 cm
Package 1 Length	8.89 cm
Package 1 Weight	0.09 kg
Unit Type of Package 2	2
Number of Units in Package 2	69
Package 2 Height	15 cm
Package 2 Width	30 cm
Package 2 Length	40 cm
Package 2 Weight	6.28 kg
