SKU:

VZ4

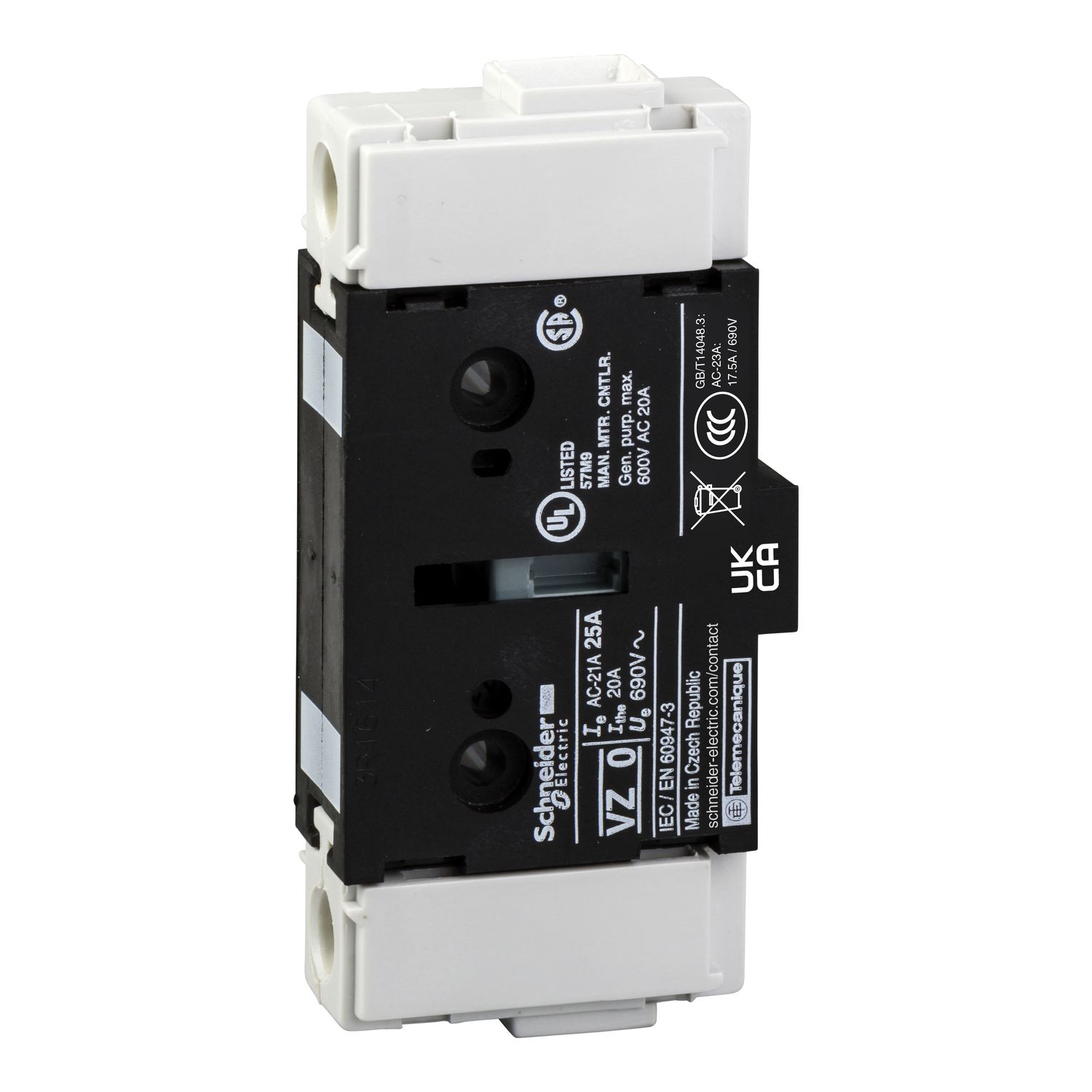

TeSys, TeSys VARIO - additional pole - 80 A - for V4

$91.93

Qty:

Available for Shipping : 10-Dec-2024

TeSys, TeSys VARIO - additional pole - 80 A - for V4

Compliance with multi standards and certified

Environmentally friendly product

Compact and modular design makes it possible to save maintainance time and cost

Be the first to review this product

Manufacturer: Schneider Electric

Catalogue

Product environmental

Instruction sheet

Product Page Link

Product Data Sheet

TeSys Vario add-on module, main pole 80A 690V, for Vario switch-disconnectors. To be used with V4 switch bodies. A maximum of 3 additional VZ4 modules can be attached to the switch body. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name	Attribute value
Main
Device short name	VZ
Product compatibility	V4
Poles description	1P
Suitability for isolation	yes
Contacts type and composition	1 NO
Range	TeSys
Performance level	high performance
Product or component type	additional pole
Range compatibility	TeSys TeSys VARIO switch disconnector
Network type	DC, AC
Network frequency	50/60 Hz
Complementary
Depth	46 mm
Tightening torque	power circuit: 4-4 N.m - on screw clamp terminals
Width	20 mm
Compatibility code	main pole module
Mechanical durability	30000 cycles
Electrical durability	30000 cycles DC-1...5, 100000 cycles AC-21
Connections - terminals	power circuit: screw clamp terminals25-25 mm² - solid, power circuit: screw clamp terminals16-16 mm² - flexible - with cable end
Mounting location	right, left
[Uimp] rated impulse withstand voltage	8 kV
Net weight	0.1 kg
[Ithe] conventional enclosed thermal current	63 A
[Ith] conventional free air thermal current	80 A
Height	83 mm
[Ue] rated operational voltage	690 V AC 50/60 Hz
Environment
Fire resistance	960 °C conforming to IEC 60695-2-1
Mechanical robustness	shocks 11 ms (30 Gn) conforming to IEC 60068-2-27, vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6
Protective treatment	TC
IP degree of protection	IP20 conforming to IEC 60529
Standards	IEC 60947-3
Ambient air temperature for operation	-20-50 °C
Product certifications	UKCA, CSA, UL, GL
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	5.5 cm
Package 1 Width	3.5 cm
Package 1 Length	9.0 cm
Package 1 Weight	84.0 g
Unit Type of Package 2	2
Number of Units in Package 2	58
Package 2 Height	15.0 cm
Package 2 Width	30.0 cm
Package 2 Length	40.0 cm
Package 2 Weight	5.22 kg
