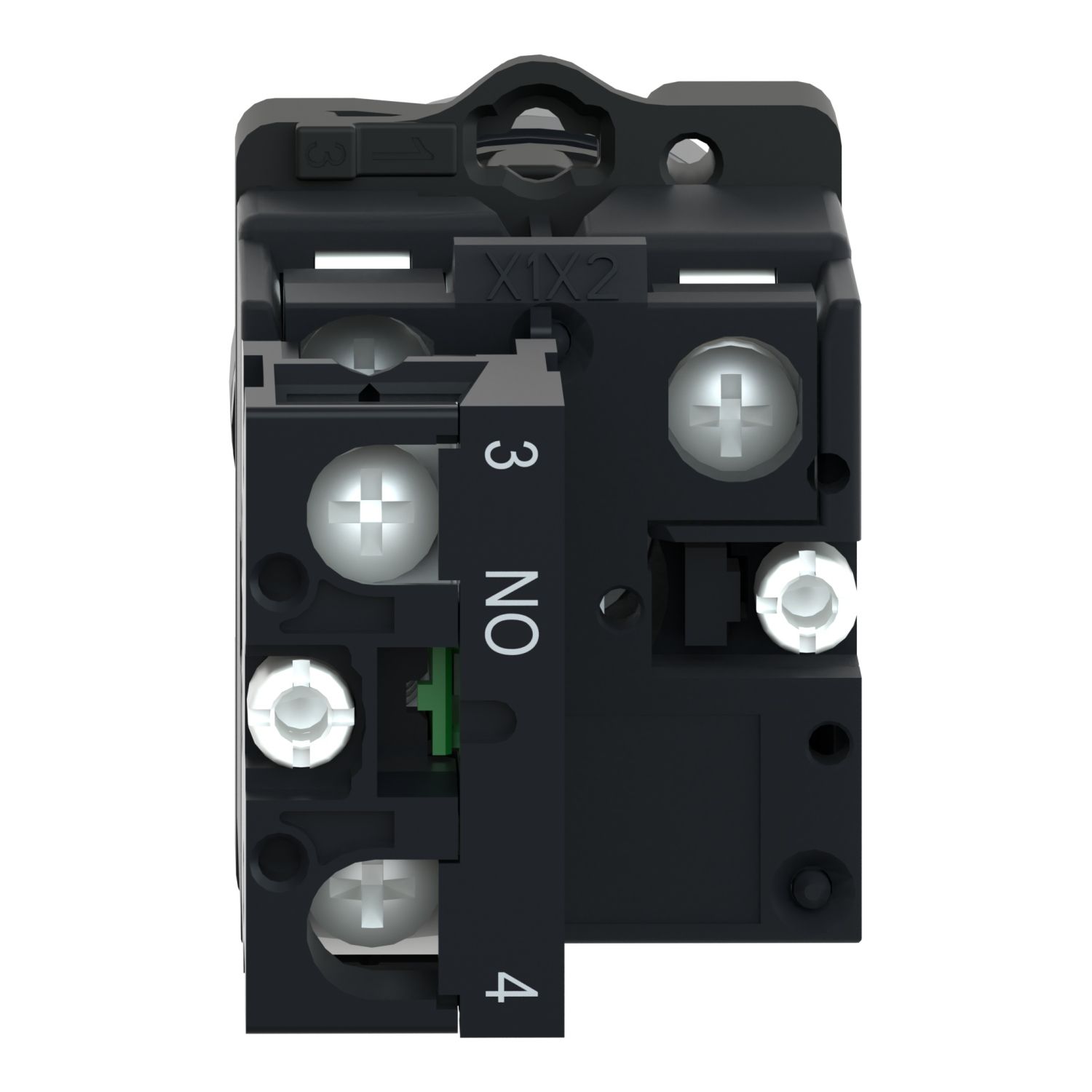

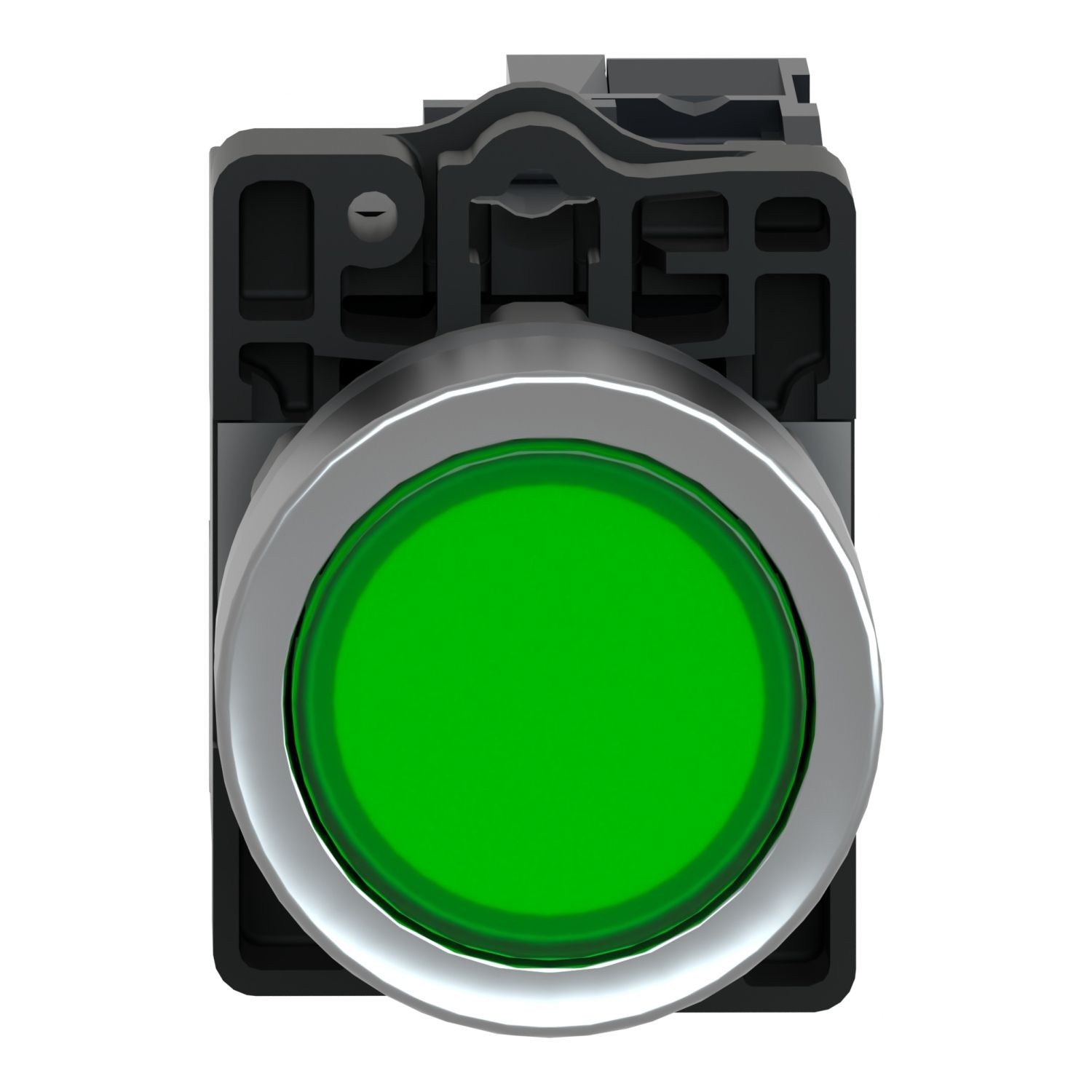

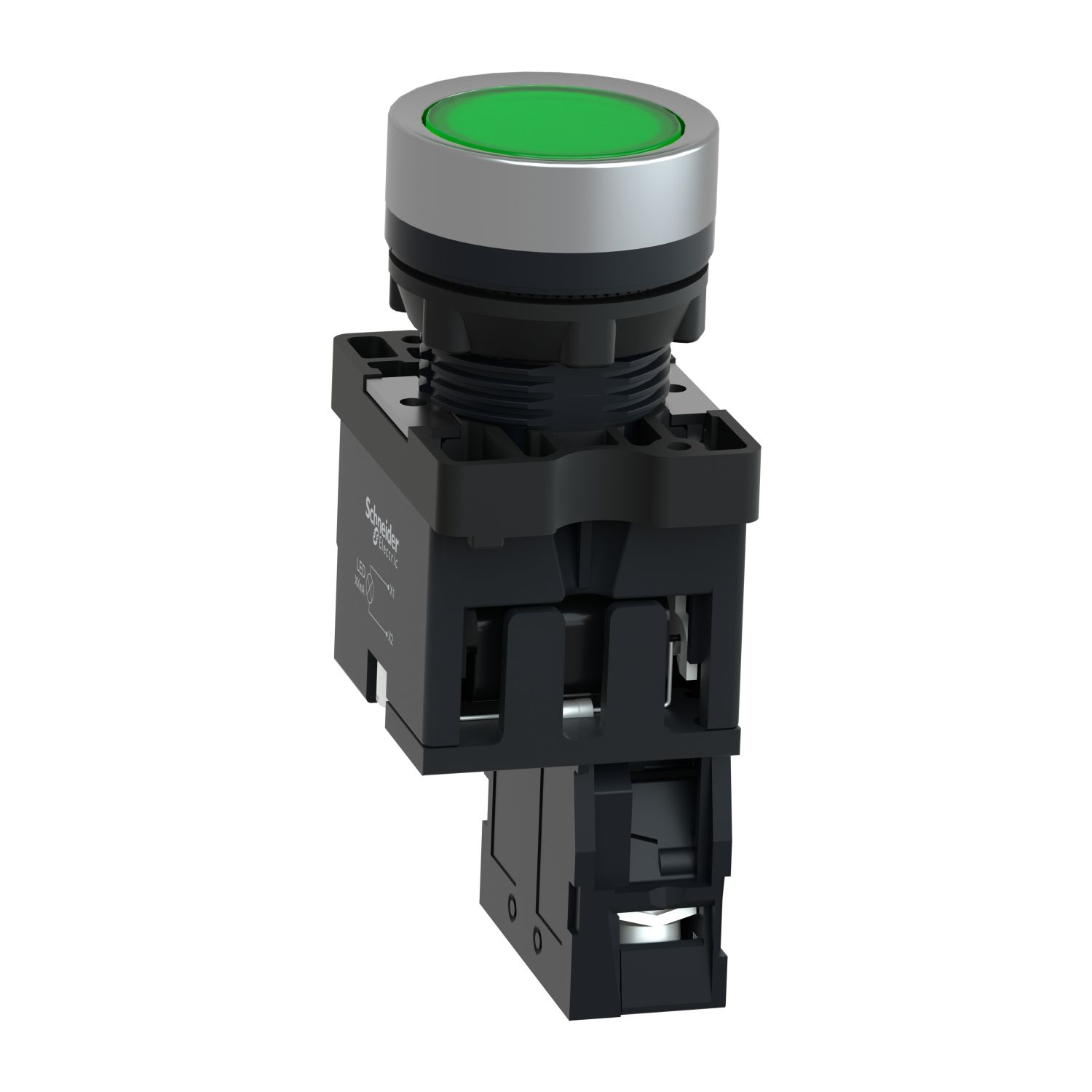

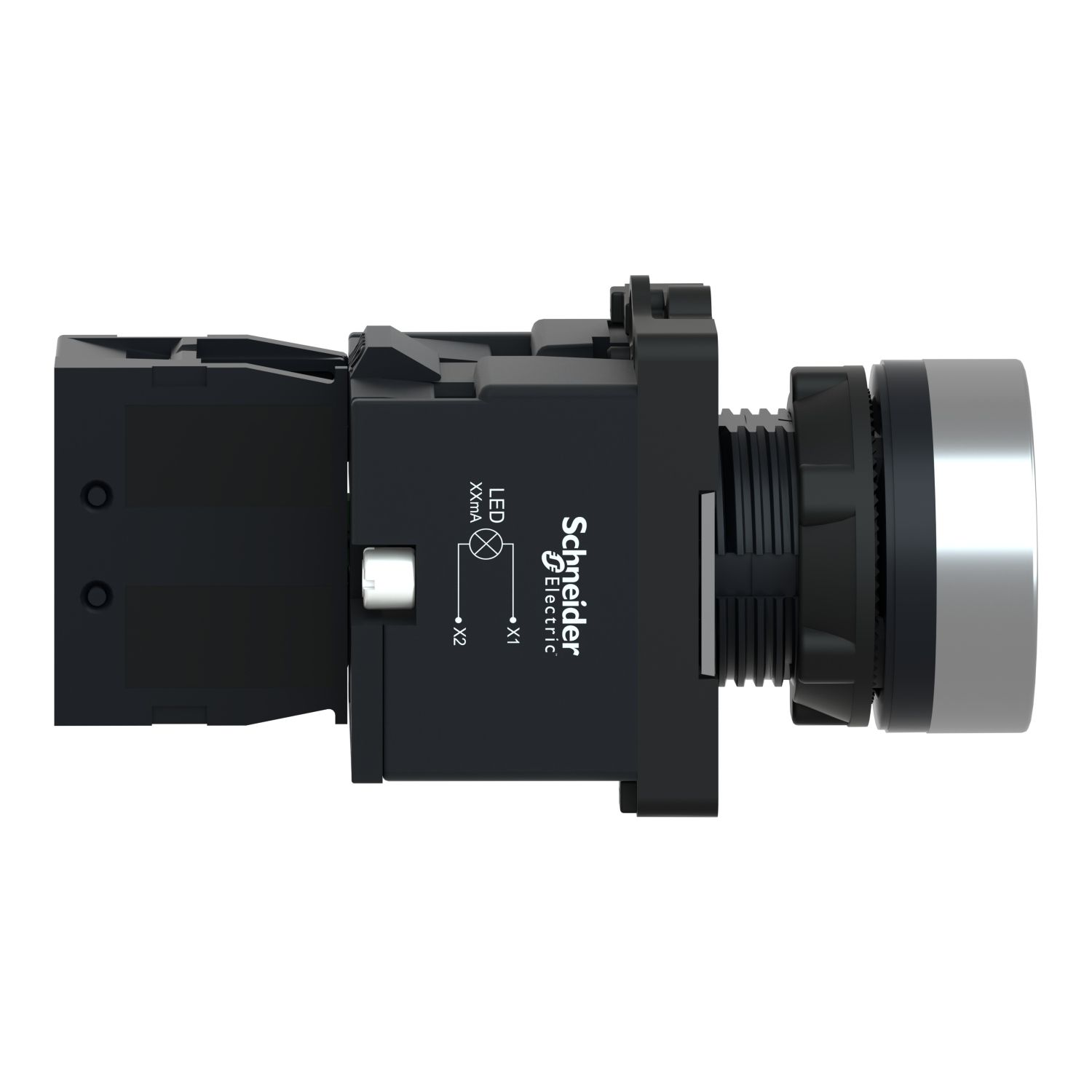

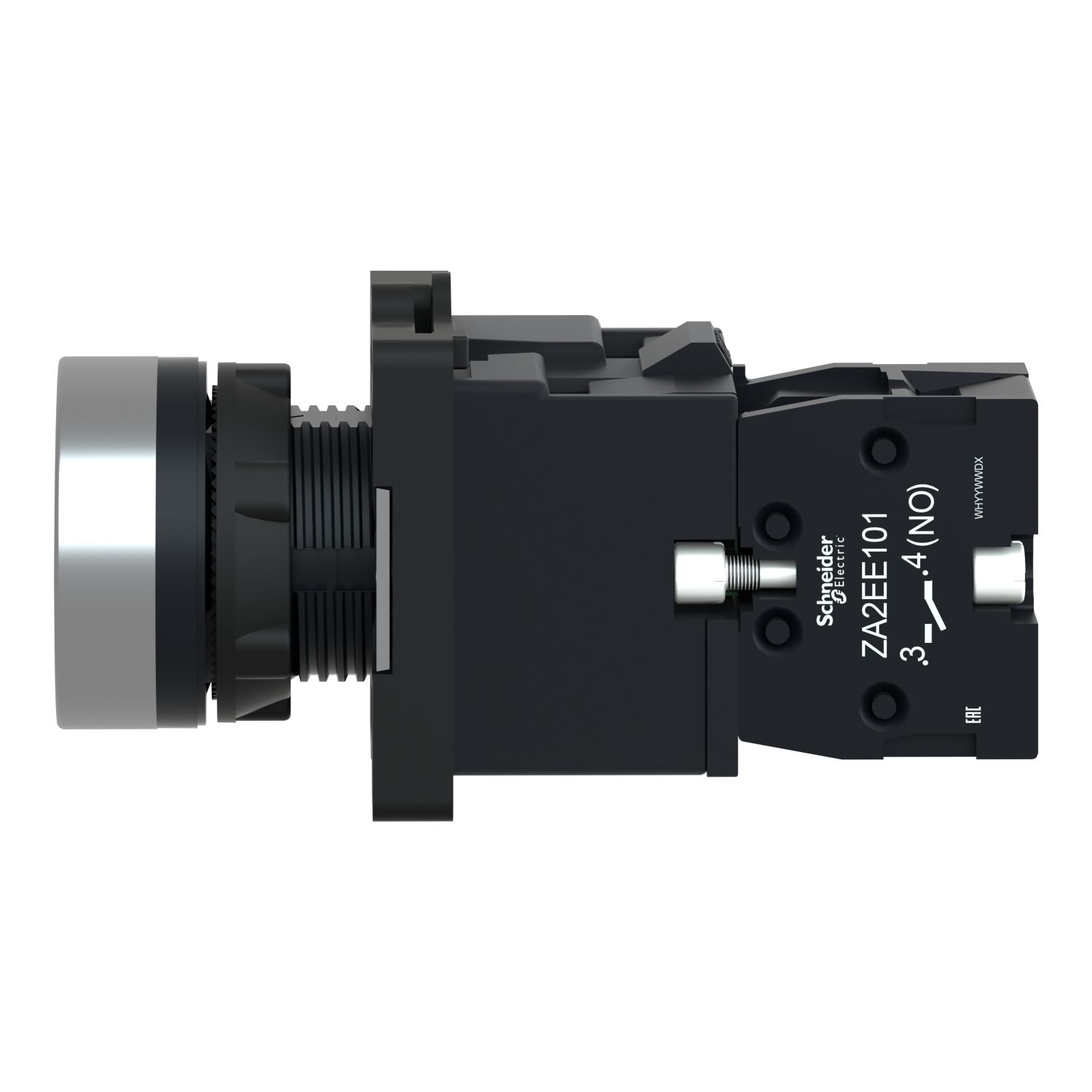

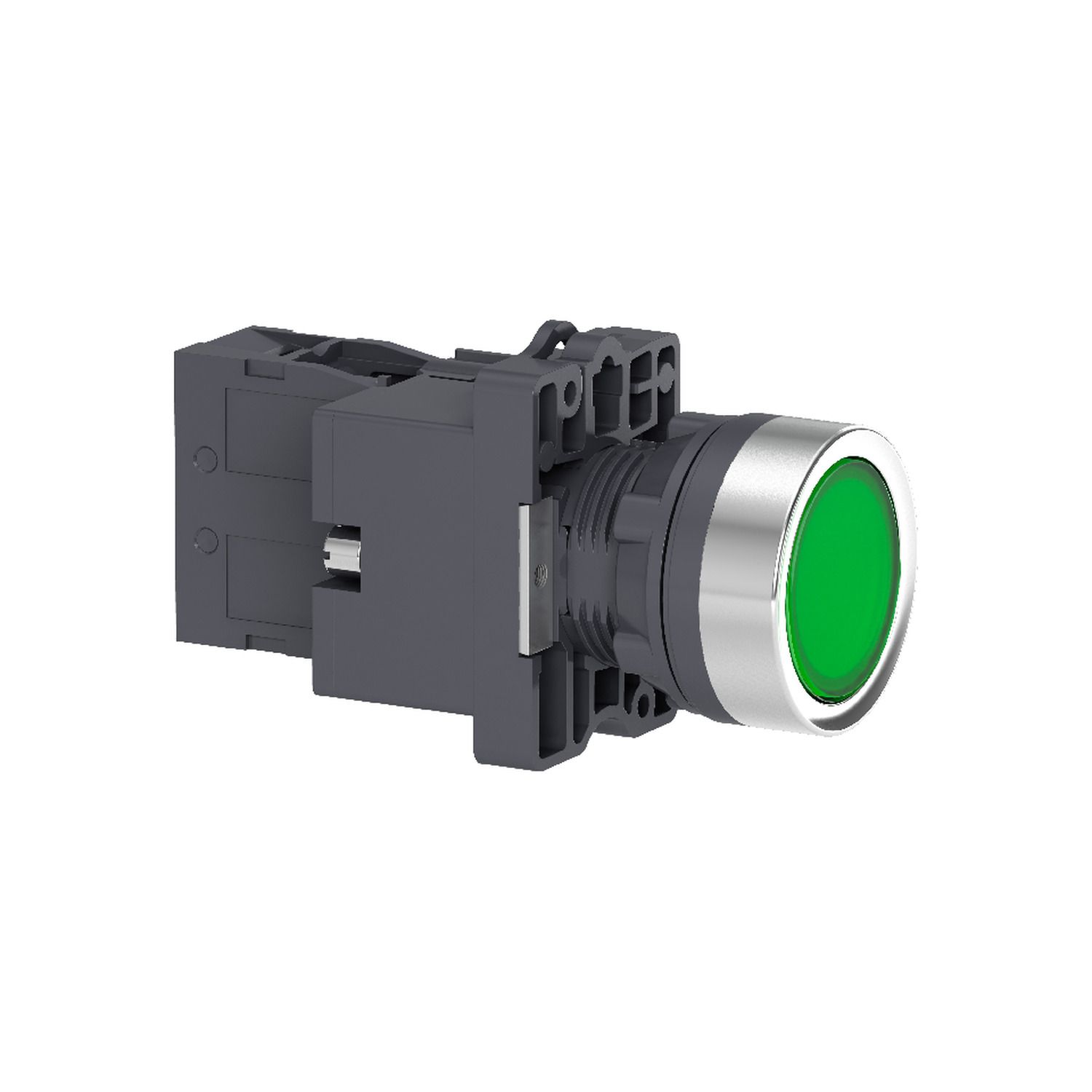

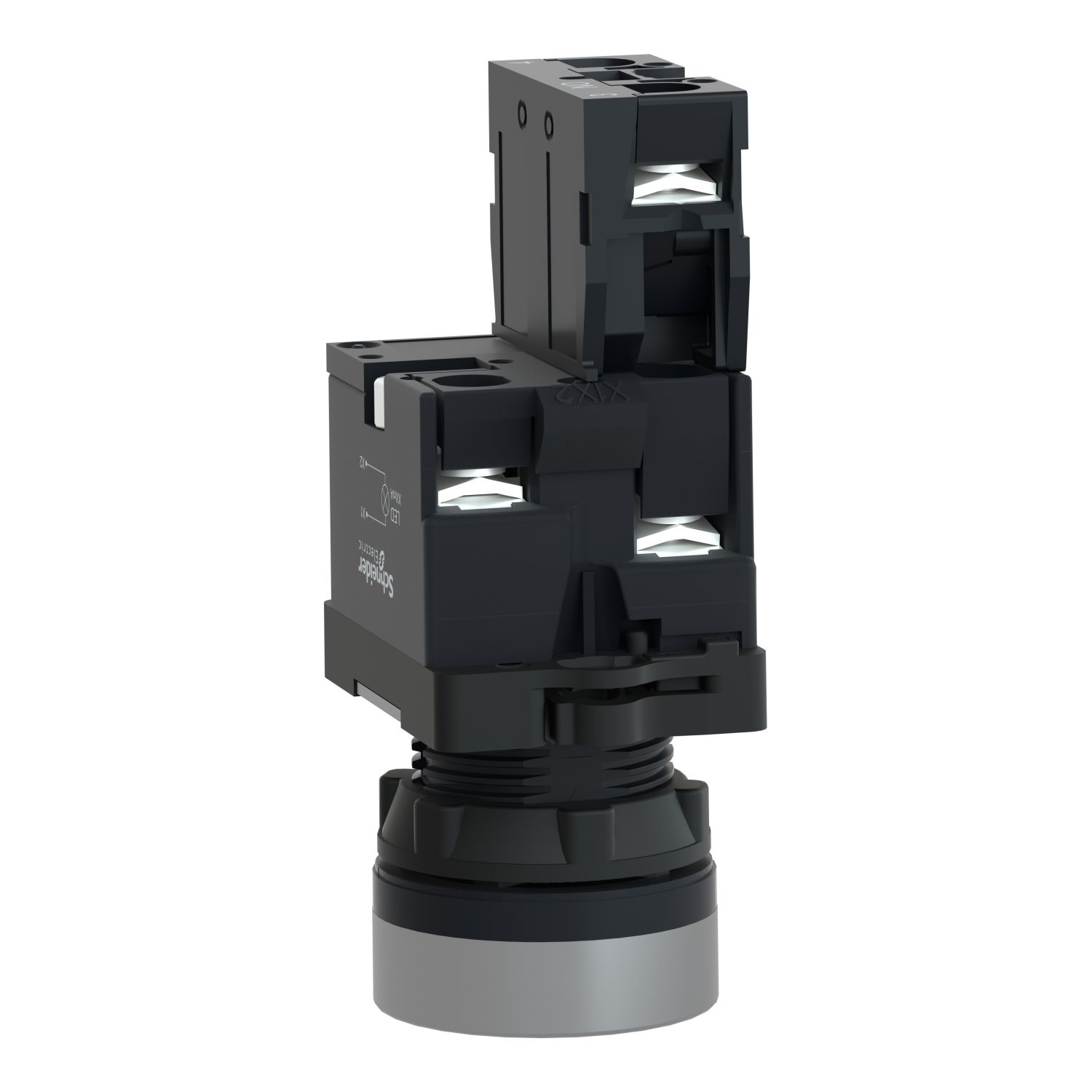

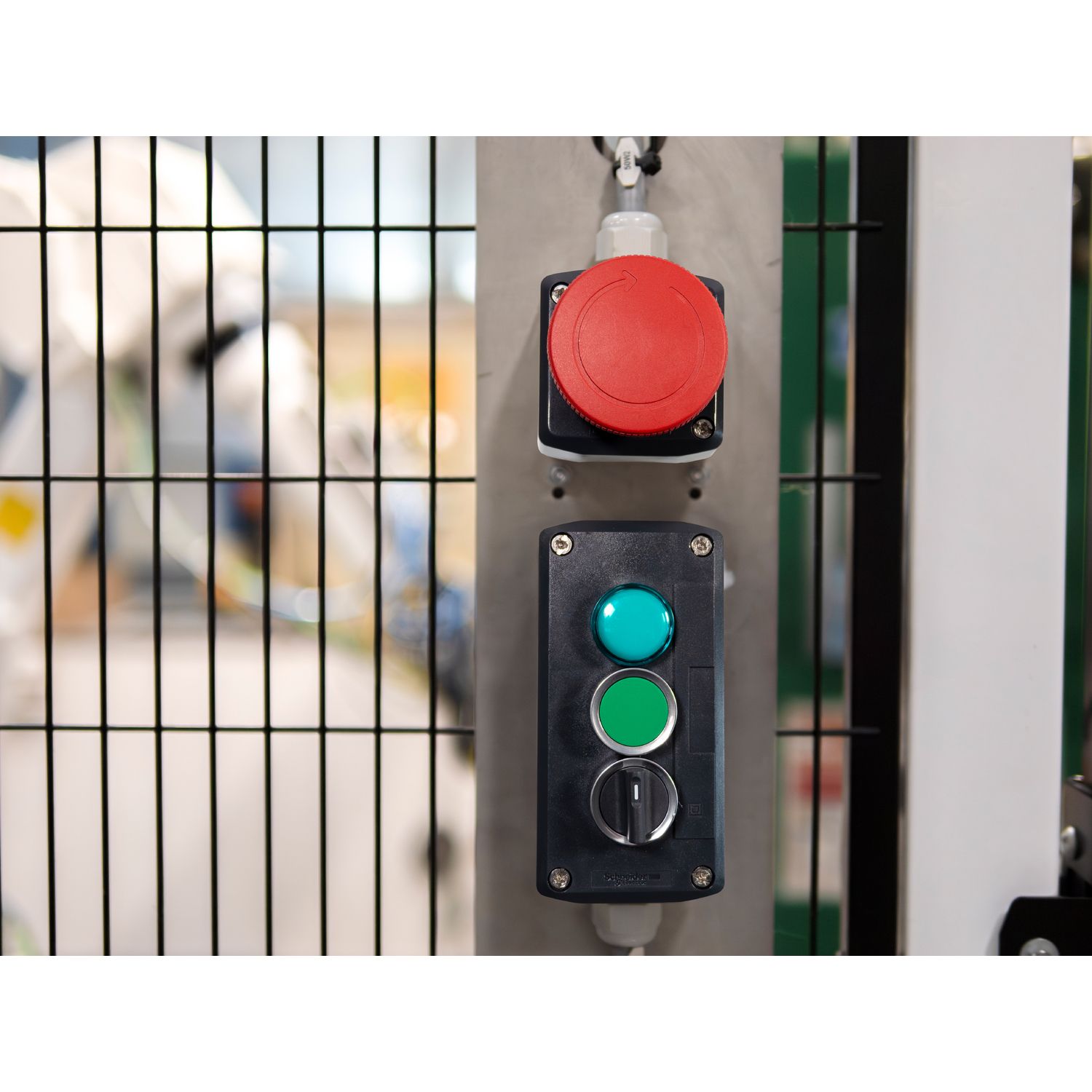

Picture of Complete illuminated push button, Easy Harmony XA2, plastic, flush, green, 22mm, spring return, 24V AC DC, 1NO
SKU:

XA2EW33B1

Complete illuminated push button, Easy Harmony XA2, plastic, flush, green, 22mm, spring return, 24V AC DC, 1NO

$124.08
This product has a minimum quantity of 10
Available for Shipping : 19-Nov-2024
Product Selector
Complete illuminated push button, Easy Harmony XA2, plastic, flush, green, 22mm, spring return, 24V AC DC, 1NO
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Declaration of conformity
Instruction sheet
End of life manual
Product environmental
Product Page Link
Product Data Sheet
This product is part of the Easy Harmony XA2 range, an offer of Ø 22mm plastic pushbuttons, switches and pilot lights. It is a modular illuminated flush green pushbutton. This pushbutton operates with a spring return / impulse mechanism. This illuminated pushbutton with integral LED provides an ergonomic and visual interface for controlling machines. It has 1 NO contact with slow-break operation. This pushbutton has a 24V AC/DC rating. This is a plastic pushbutton with a metallic-look ring design bezel. It is an IP65 rated product and comes with CE, CCC and EAC certification conforming to GB 14048.1, IEC 60947-1, GB 14048.5 and IEC 60947-5-1 standards . It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. It is clearly distinguishable visually at a distance due to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant making it suitable for operation in harsh environments.

Products specifications

Attribute name Attribute value
Main
Device short name XA2
Bezel material plastic
Product or component type complete illuminated push-button
Mounting diameter 22.5 mm
Range of product Easy Harmony XA2
Complementary
Bulb base BA 9s
Protective treatment TC
Tightening torque 0.8-0.8 N.m
Depth 74.5 mm
Width 30 mm
Operating position any position
Type of operator spring return
Compatibility code XA2E
Mechanical durability 1500000 cycles
Supply voltage limits 19-26 V AC/DC
Operator profile green flush
Contact operation slow-break
[Ie] rated operational current 3 A at 240 V, AC-15, A600, 0.27 A at 250 V, DC-13, Q600
Signalling type steady
[Ui] rated insulation voltage 600 V conforming to IEC 60947-4-1
Sale per indivisible quantity 1
Service life 10000 h
Contacts type and composition 1 NO
Electrical durability 500000 cycles, DC-13, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4, 500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4
Current consumption < 20 mA
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
Net weight 0.056 kg
Cap/operator or lens colour green
Shape of signaling unit head round
[Ith] conventional free air thermal current 10 A
Connections - terminals screw clamp terminals, clamping capacity: 1 x 0.5 mm², Faston terminals, connection size: 6.3 mm, screw clamp terminals, clamping capacity: 1 x 2.5 mm², screw clamp terminals, clamping capacity: 2 x 1.5 mm²
Light source LED
Fixing center >= 30 x 40 mm (panel) - thickness: 1-5 mm
Fixing mode fixing nut recommended torque: 2.2 N.m (Us +/- 10 %)
Short-circuit protection 10 A gL fuse conforming to IEC 60269-1
Height 42 mm
[Us] rated supply voltage 24 V AC/DC 50/60 Hz, 24 V
Environment
Overvoltage category class I conforming to IEC 536
Ambient air temperature for storage -40-70 °C
IP degree of protection IP65
Vibration resistance 10 gn (f= 40-500 Hz) conforming to IEC 60068-2-6
Shock resistance 70 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards IEC 60947-1, GB 14048.1, GB 14048.5, IEC 60947-5-1
Ambient air temperature for operation -25-55 °C
IK degree of protection IK03 conforming to IEC 60529
Product certifications CCC, CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.026 cm
Package 1 Width 4.2 cm
Package 1 Length 6.916 cm
Package 1 Weight 51 g
Unit Type of Package 2 2
Number of Units in Package 2 70
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 4.231 kg
Unit Type of Package 3 3
Number of Units in Package 3 1400
Package 3 Height 60 cm
Package 3 Width 80 cm
Package 3 Length 90 cm
Package 3 Weight 80.206 kg
