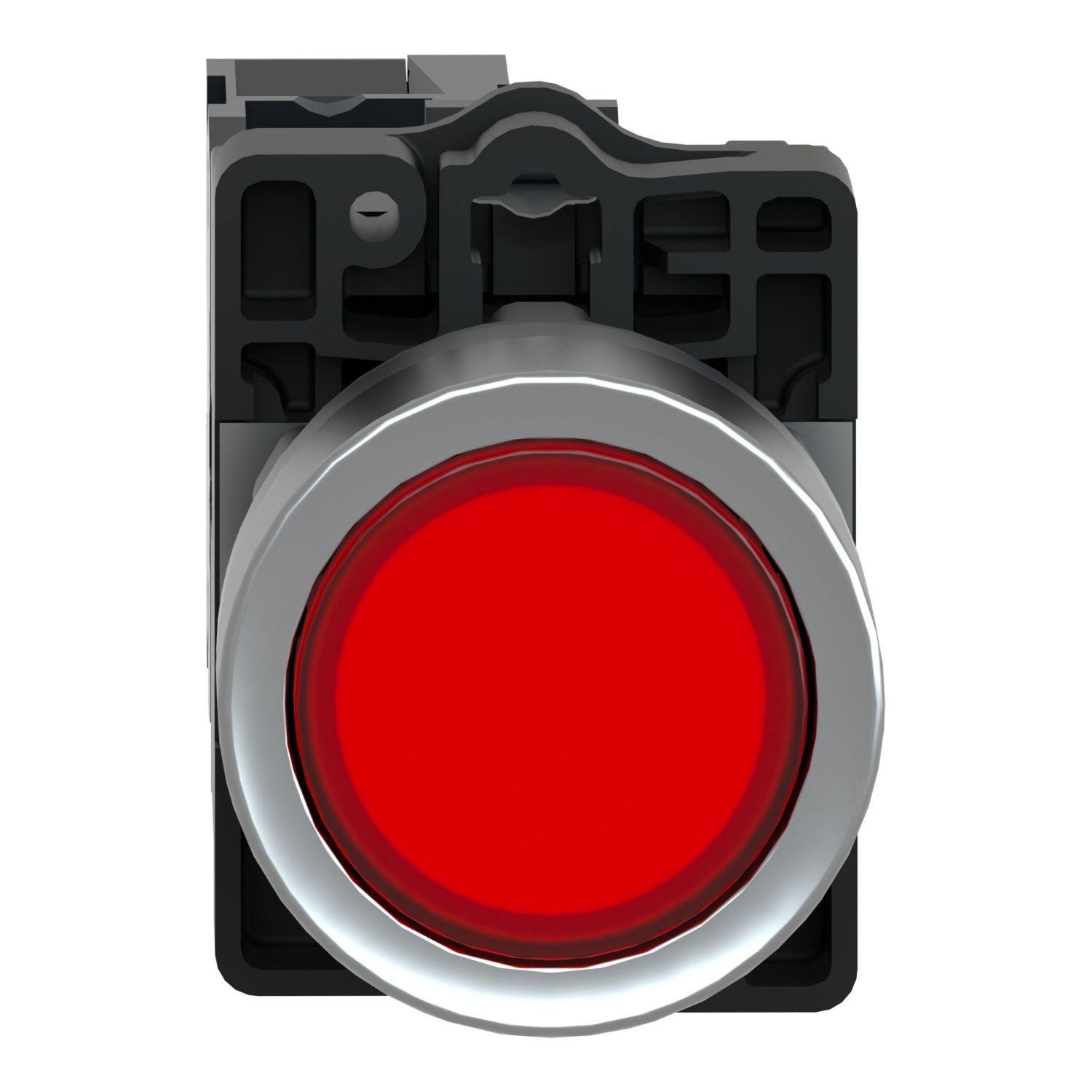

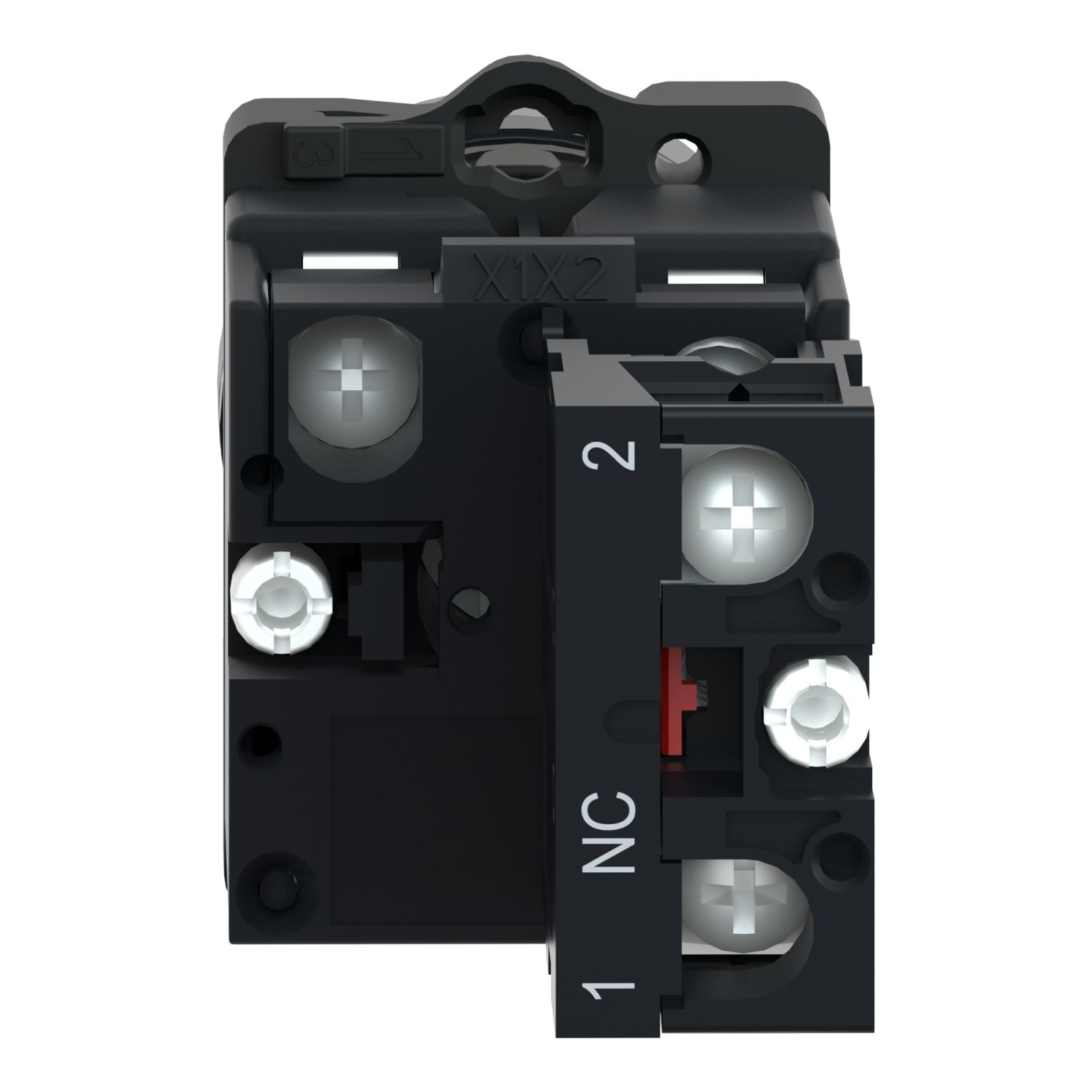

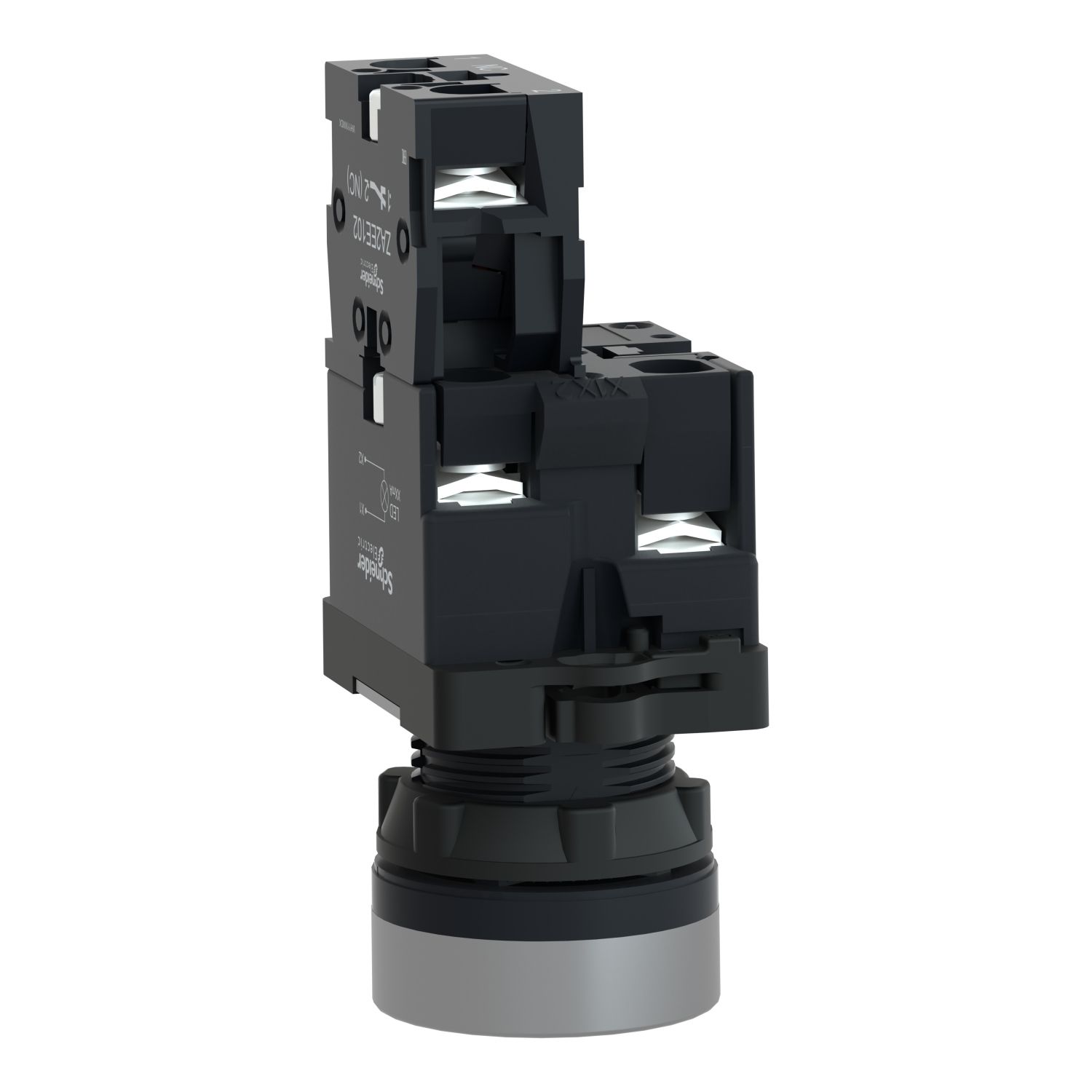

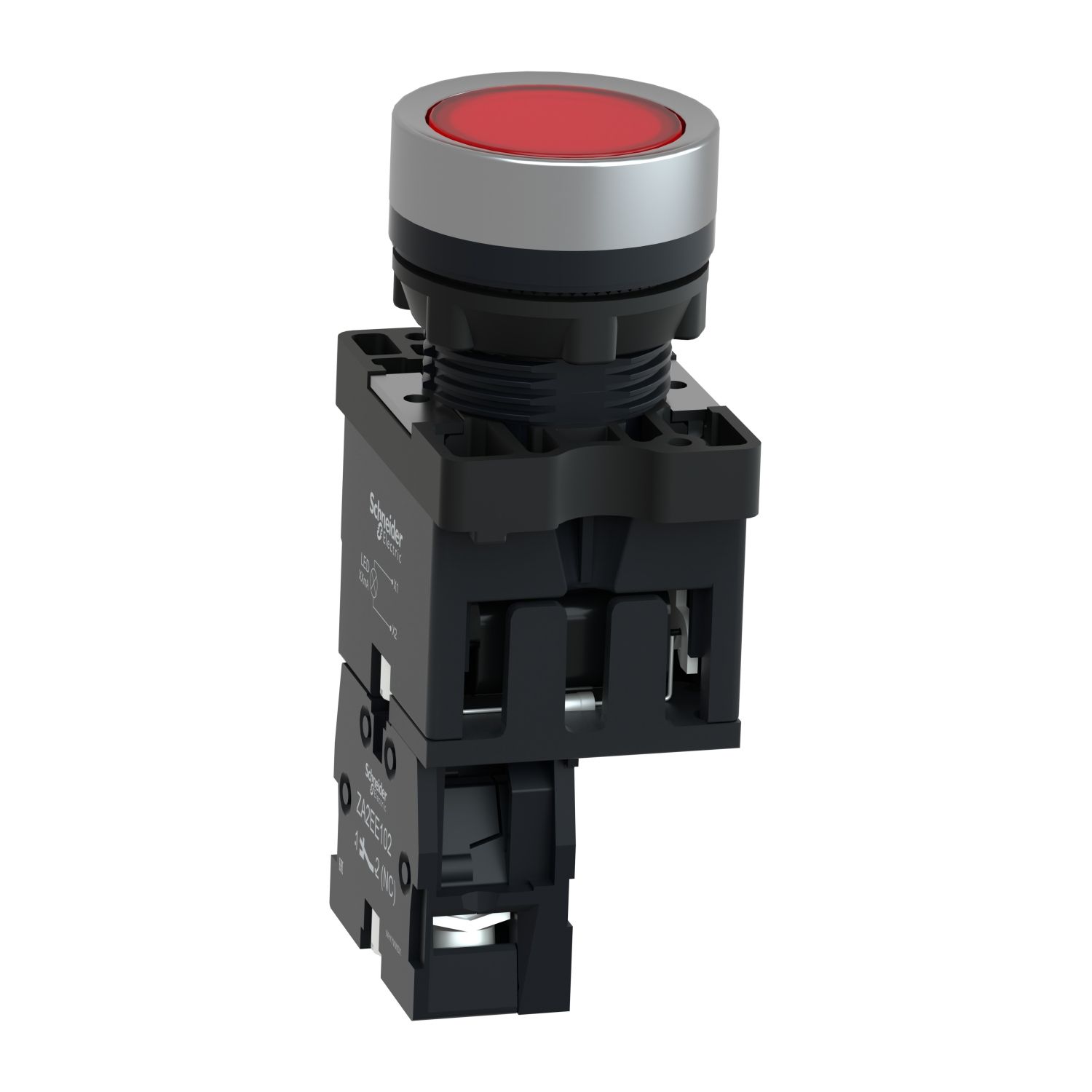

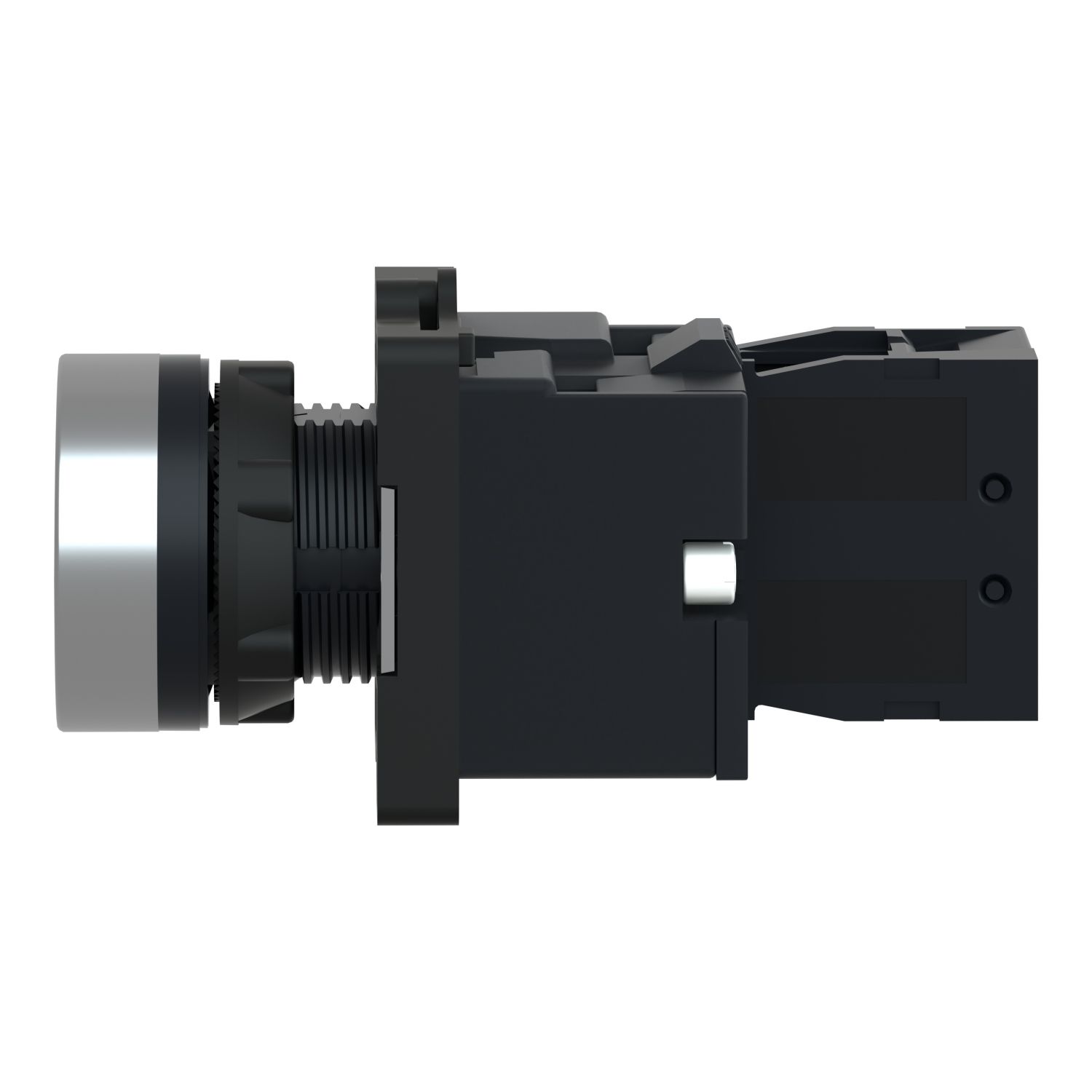

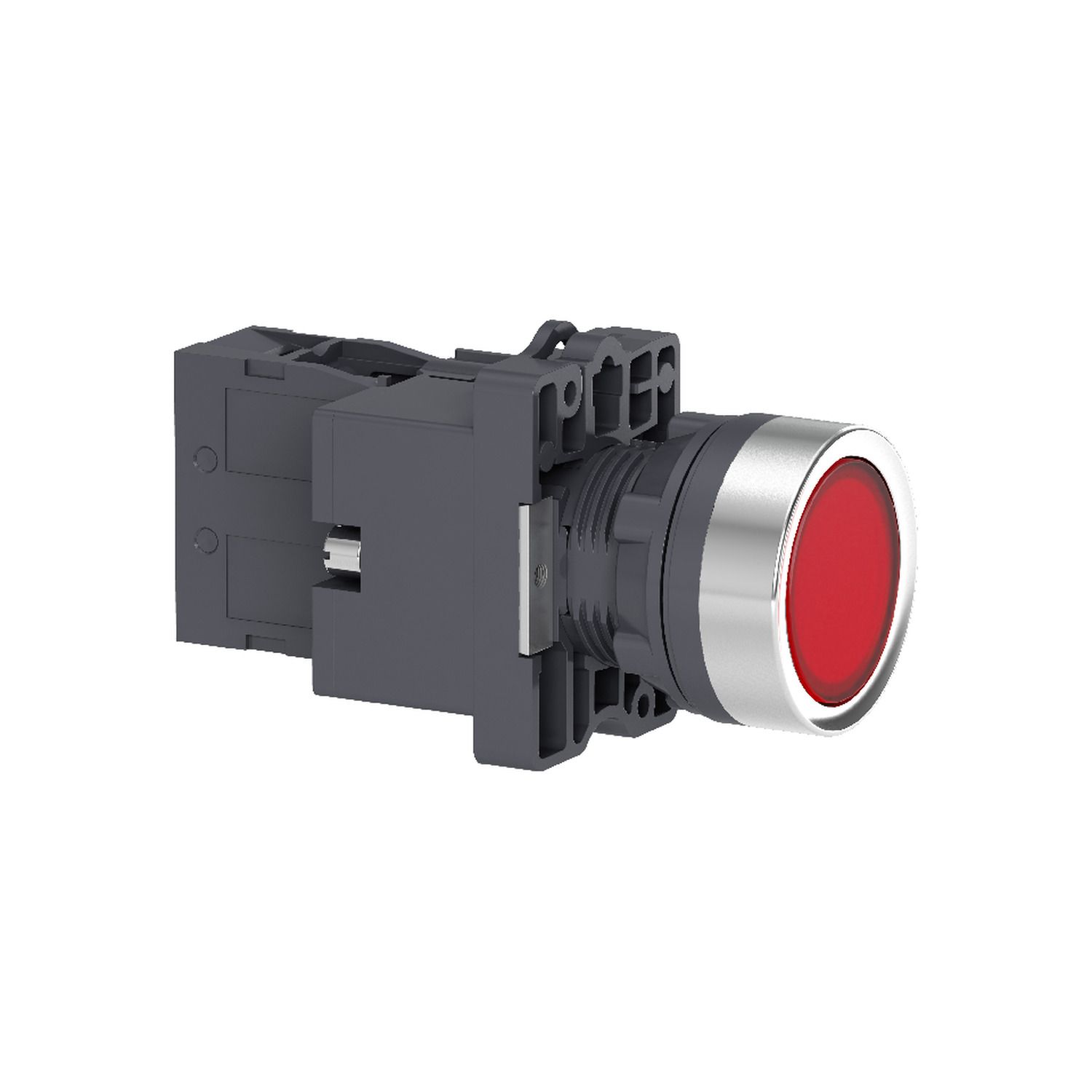

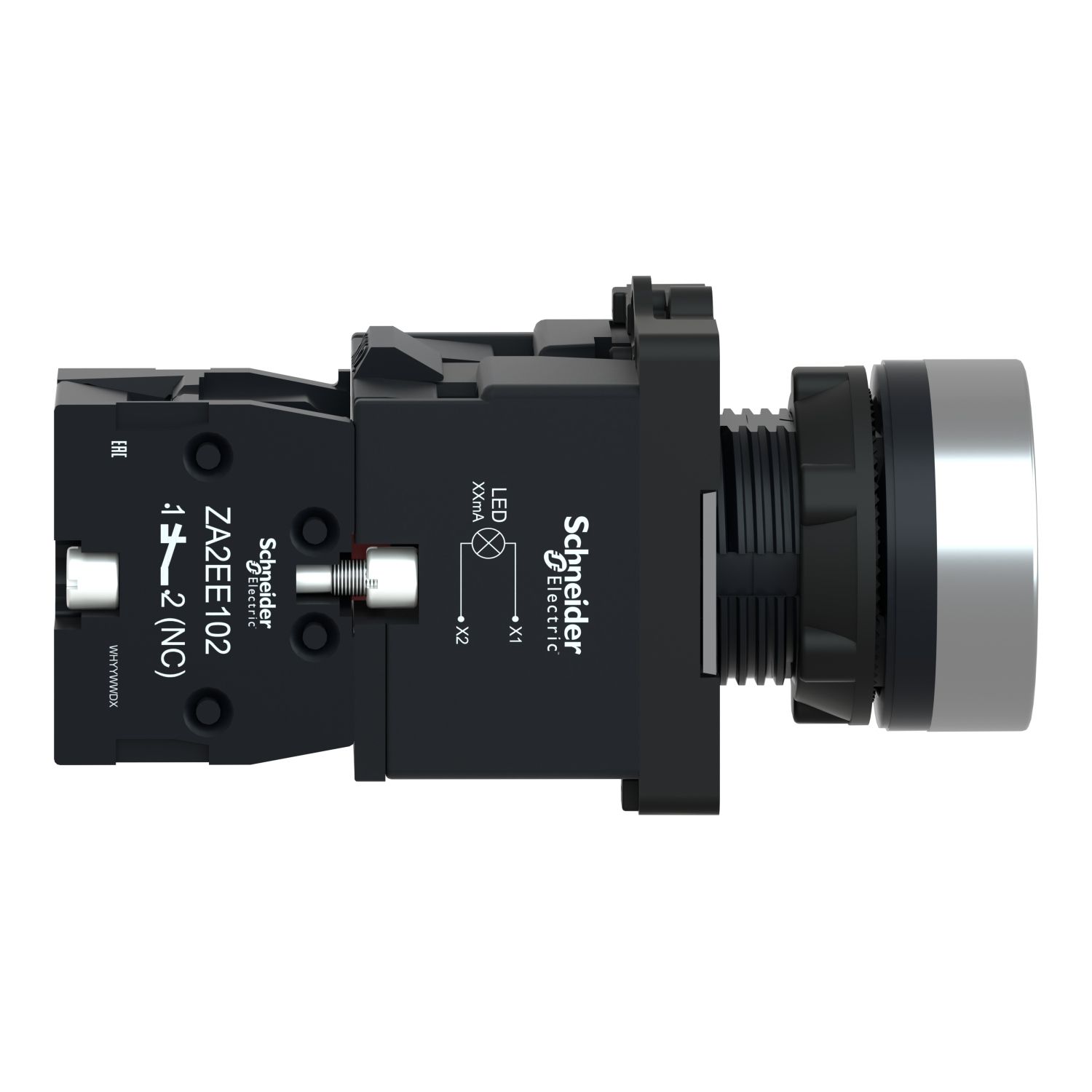

Picture of Complete illuminated push button, Easy Harmony XA2, plastic, flush, red, 22mm, spring return, 24V AC DC, 1NC
SKU:

XA2EW34B2

Complete illuminated push button, Easy Harmony XA2, plastic, flush, red, 22mm, spring return, 24V AC DC, 1NC

Please Contact Sales to buy this Product. click here
Product Selector
Complete illuminated push button, Easy Harmony XA2, plastic, flush, red, 22mm, spring return, 24V AC DC, 1NC
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 05-Oct-2024
Declaration of conformity
Instruction sheet
Catalogue
End of life manual
Product environmental
Product Page Link
Product Data Sheet
This product is part of the Easy Harmony XA2 range, an offer of Ø 22mm plastic pushbuttons, switches and pilot lights. It is a modular illuminated flush red pushbutton. This pushbutton operates with a spring return / impulse mechanism. This illuminated pushbutton with integral LED provides an ergonomic and visual interface for controlling machines. It has 1 NC contact with slow-break operation. This pushbutton has a 24V AC/DC rating. This is a plastic pushbutton with a metallic-look ring design bezel. It is an IP65 rated product and comes with CE, CCC and EAC certification conforming to GB 14048.1, IEC 60947-1, GB 14048.5 and IEC 60947-5-1 standards . It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. It is clearly distinguishable visually at a distance due to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant making it suitable for operation in harsh environments.

Products specifications

Attribute nameAttribute value
Main
Device short nameXA2
Bezel materialplastic
Product or component typecomplete illuminated push-button
Mounting diameter22.5 mm
Range of productEasy Harmony XA2
Complementary
Bulb baseBA 9s
Protective treatmentTC
Tightening torque0.8-0.8 N.m
Depth74.5 mm
Width30 mm
Operating positionany position
Type of operatorspring return
Compatibility codeXA2E
Mechanical durability1500000 cycles
Supply voltage limits0.8-1.1 V AC/DC
Operator profilered flush
Contact operationslow-break
[Ie] rated operational current0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1, 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1
Signalling typesteady
[Ui] rated insulation voltage600 V conforming to IEC 60947-4-1
Sale per indivisible quantity1
Service life10000 h
Contacts type and composition1 NC
Electrical durability500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 , 500000 cycles, AC-15, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1
Current consumption< 20 mA
[Uimp] rated impulse withstand voltage6 kV conforming to IEC 60947-1
Net weight0.056 kg
Cap/operator or lens colourred
Shape of signaling unit headround
[Ith] conventional free air thermal current10 A
Connections - terminalsscrew clamp terminals, clamping capacity: 1 x 0.5 mm², Faston terminals, connection size: 6.3 mm, screw clamp terminals, clamping capacity: 1 x 2.5 mm², screw clamp terminals, clamping capacity: 2 x 1.5 mm²
Light sourceLED
Fixing center>= 30 x 40 mm (panel) - thickness: 1-5 mm
Fixing modefixing nut recommended torque: 2.2 N.m (Us +/- 10 %)
Short-circuit protection10 A gL fuse conforming to IEC 60269-1
Height42 mm
[Us] rated supply voltage24 V AC/DC 50/60 Hz, 24 V
Environment
Overvoltage categoryclass I conforming to IEC 536
Ambient air temperature for storage-40-70 °C
IP degree of protectionIP65
Vibration resistance10 gn (f= 40-500 Hz) conforming to IEC 60068-2-6
MarkingCCC
Shock resistance70 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
StandardsIEC 60947-1, GB 14048.5, GB 14048.1, IEC 60947-5-1
Ambient air temperature for operation-25-55 °C
IK degree of protectionIK03 conforming to IEC 60529
Product certificationsCE, CCC
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height3 cm
Package 1 Width4 cm
Package 1 Length8 cm
Package 1 Weight60.12 g
Unit Type of Package 22
Number of Units in Package 270
Package 2 Height15 cm
Package 2 Width30 cm
Package 2 Length40 cm
Package 2 Weight4.258 kg
Unit Type of Package 33
Number of Units in Package 31400
Package 3 Height60 cm
Package 3 Width80 cm
Package 3 Length90 cm
Package 3 Weight84.368 kg
