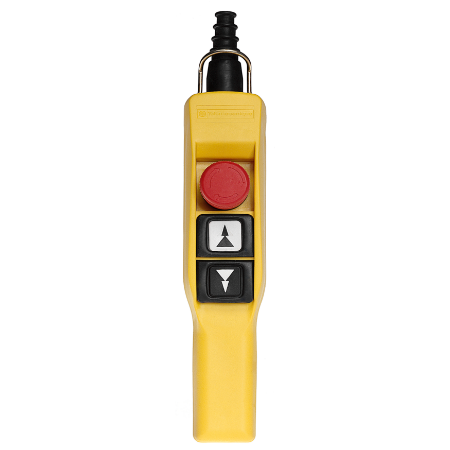

Picture of Harmony XAC, Pendant control station, plastic, yellow, pistol grip, 2 booted push buttons, 1 emergency stop
SKU:

XACA2174

Harmony XAC, Pendant control station, plastic, yellow, pistol grip, 2 booted push buttons, 1 emergency stop

$441.89
Availability: Please contact our sales team on 1300 724 622.
Harmony XAC, Pendant control station, plastic, yellow, pistol grip, 2 booted push buttons, 1 emergency stop
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Product environmental
Catalogue
Declaration of conformity
Product Page Link
Product Data Sheet
This Harmony XACA2174 is a pendant station pistol grip with 2 booted push buttons and Emergency stop for control circuit. This yellow control station is double insulated and its enclosure material polypropylene. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.

Products specifications

Attribute name Attribute value
Main
Device short name XACA pistol grip
Product or component type pendant control station
Range of product Harmony XAC
Complementary
Rated operational power in W 65 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 24 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C, 48 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 48 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C, 40 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C
Protective treatment TH
Contact code designation Q600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 60947-5-1 appendix A, Q600 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A, A600 AC-15, Ue = 600 V, Ie = 1.2 A conforming to IEC 60947-5-1 appendix A, A600 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix A
Enclosure material polypropylene
[Ithe] conventional enclosed thermal current 10 A
Electrical circuit type control circuit
Control button type second push-button 2 NO lower, slow-fast, first push-button 2 NO raise, slow-fast, emergency stop push-button Ø 30 mm 1 NC trigger action
Operating force 13-15 N
Mechanical durability 1000000 cycles
Control station colour yellow
Mechanical interlocking with mechanical interlocking
Contact operation slow-break, staggered
Overvoltage category class II conforming to IEC 61140
Control station composition 2 booted push-buttons + 1 emergency stop
Ambient air temperature for storage -40-70 °C
[Ui] rated insulation voltage 600 V (pollution degree 3) conforming to IEC 60947-1
Connections - terminals screw clamp terminals, 2 x 1.5 mm² with or without cable end, screw clamp terminals, 1 x 2.5 mm² with or without cable end
Control type intuitive
Control station type double insulated
IP degree of protection IP65 conforming to IEC 60529
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
Product compatibility ZB2BE101 + ZB2BE201 for each direction, ZB2BE102 for emergency stop
Net weight 0.36 kg
Vibration resistance 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Enclosure type complete ready for use
Shock resistance 100 gn conforming to IEC 60068-2-27
Cable entry rubber sleeve with stepped entry 7-15 mm
Short-circuit protection 10 A fuse protection by cartridge fuse type gG
Maximum resistance across terminals 25 MOhm
Standards UL 508, CSA C22.2 No 14, EN/IEC 60947-5-1, EN/IEC 60947-5-5, EN/IEC 60204-32, EN/ISO 13850: 2006
Terminals description ISO n°1 (23-24)NO_CL, (13-14)NO
Terminals description ISO n°2 (11-12)NC
Ambient air temperature for operation -25-70 °C
Terminal identifier (11-12)NC, (13-14)NO
IK degree of protection IK08 conforming to EN 50102
Control station application control of 2-speed hoist motor
Product certifications UL, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 11 cm
Package 1 Width 6 cm
Package 1 Length 30 cm
Package 1 Weight 375 g
