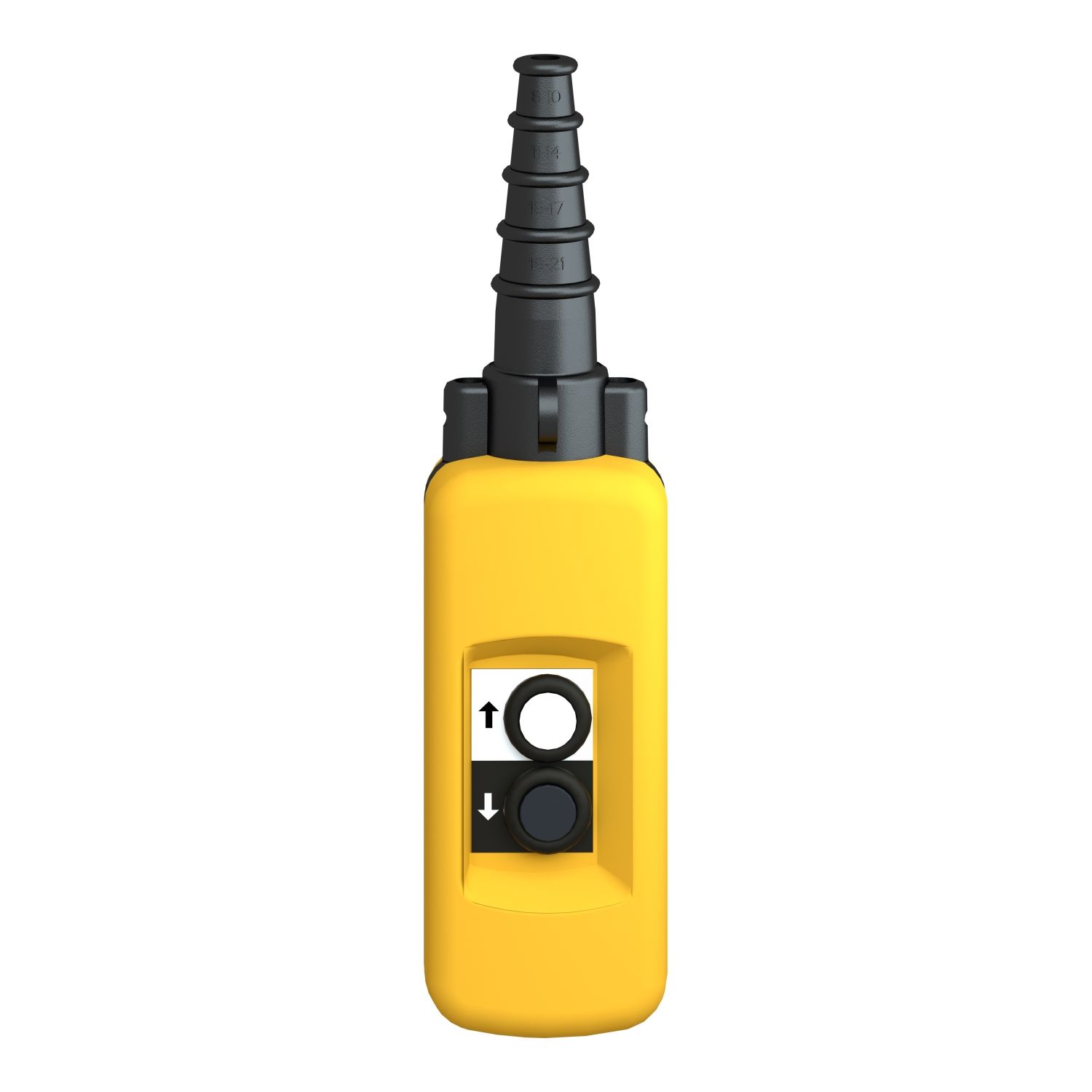

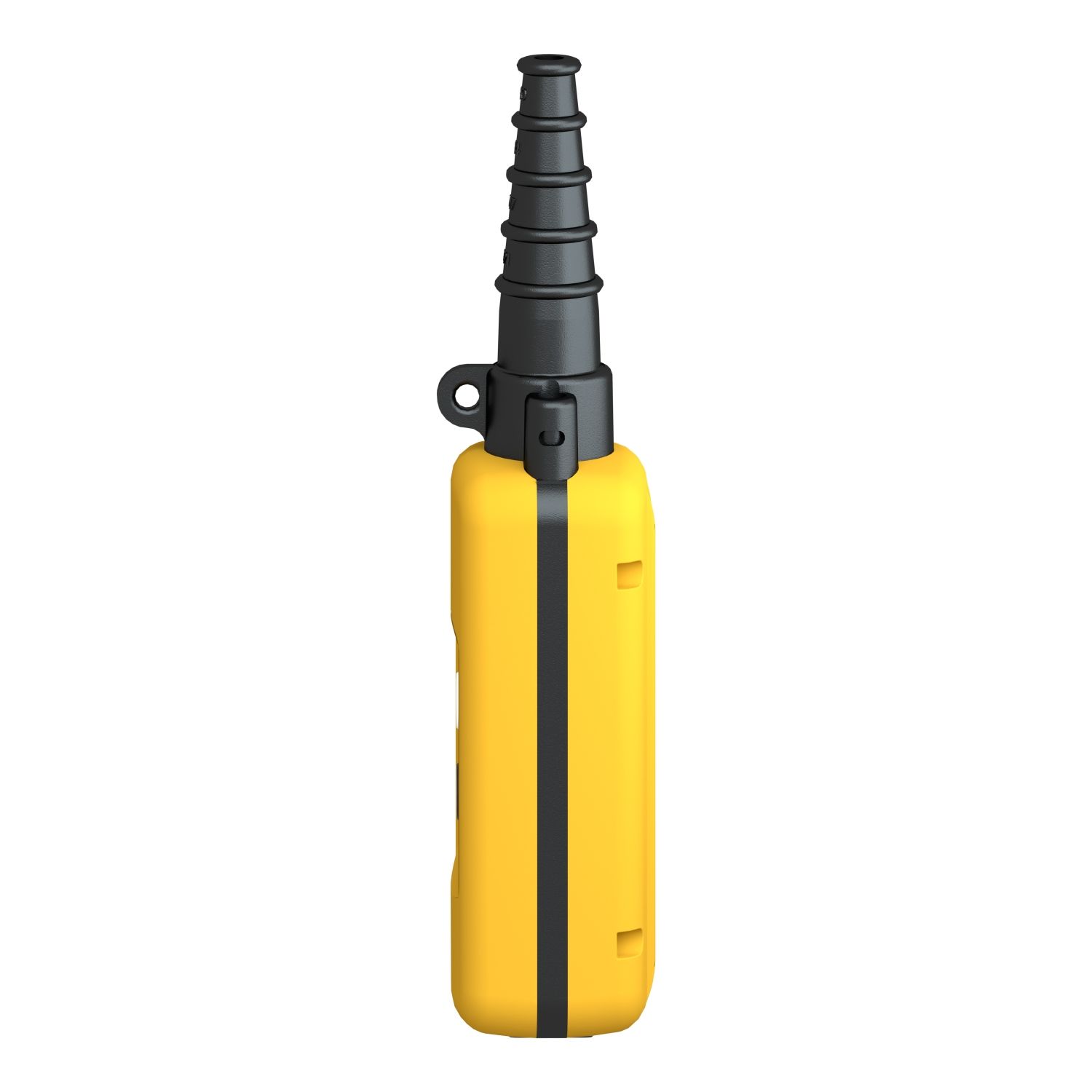

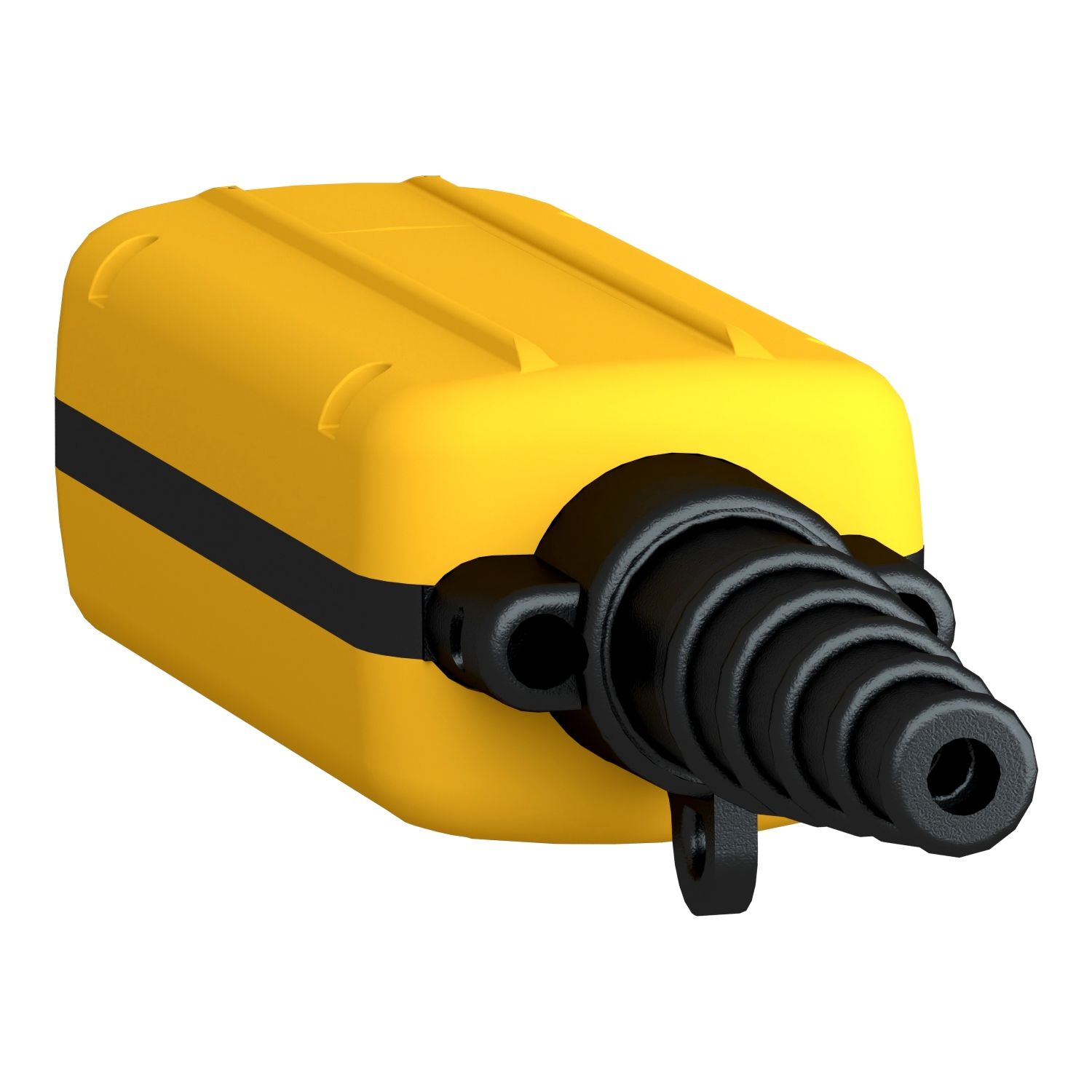

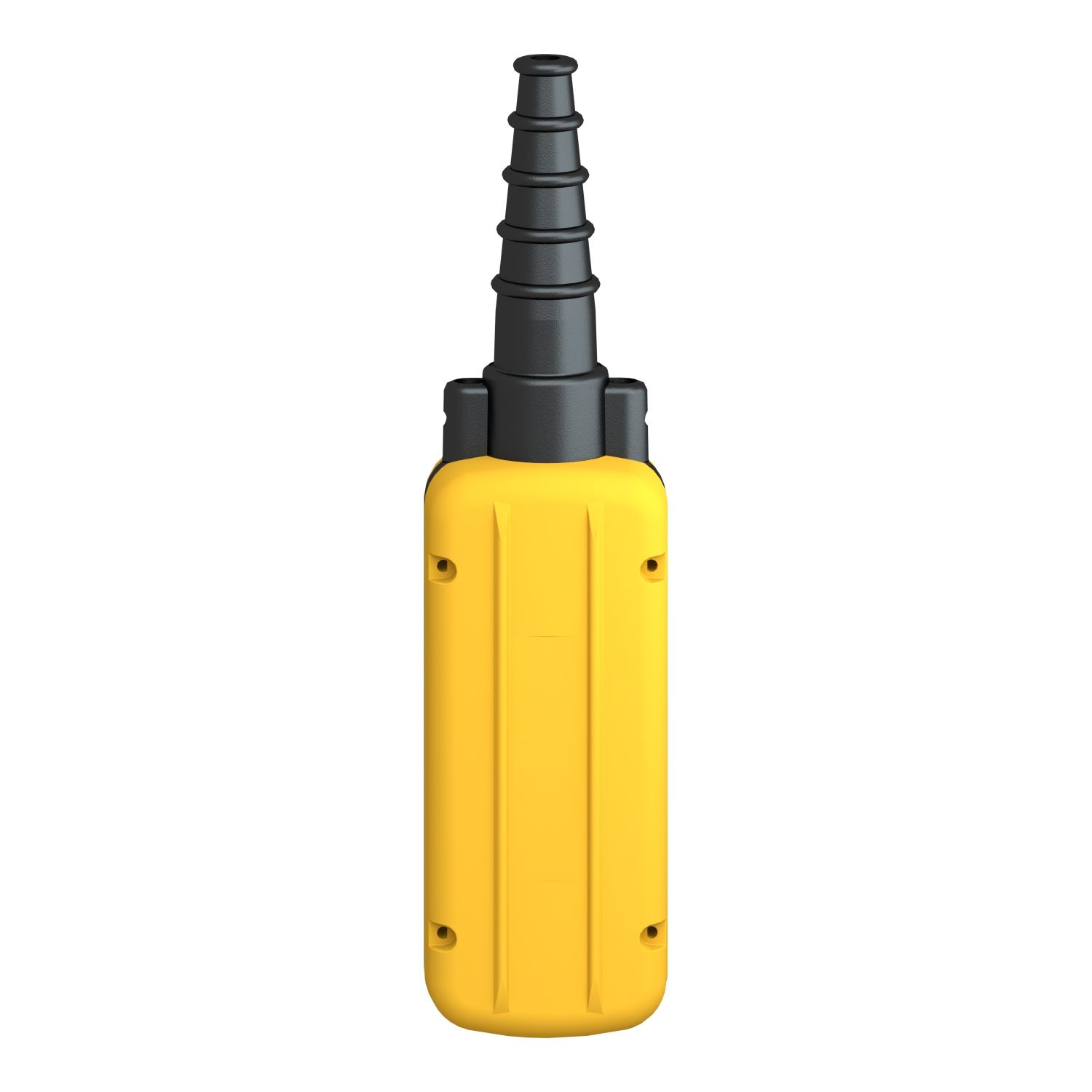

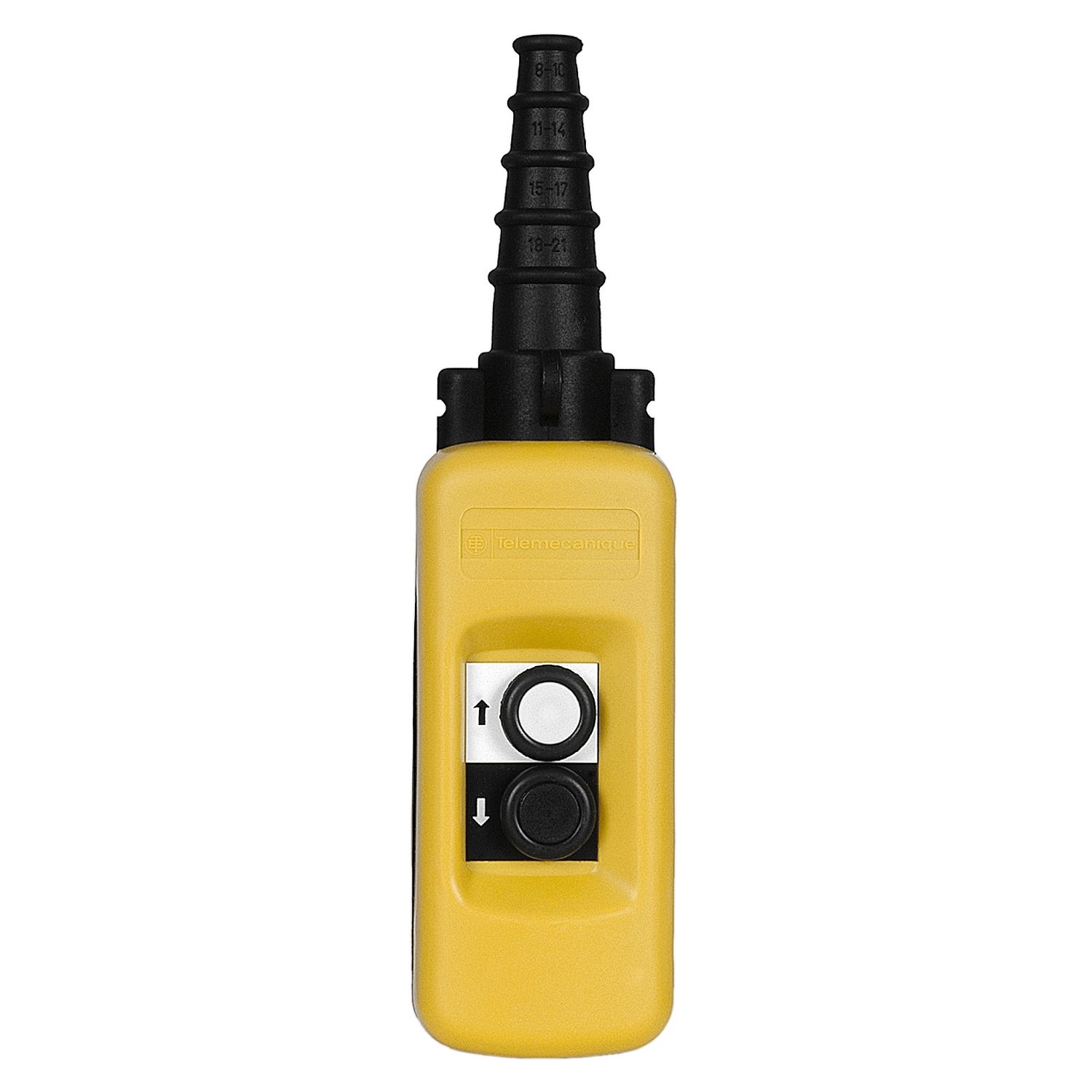

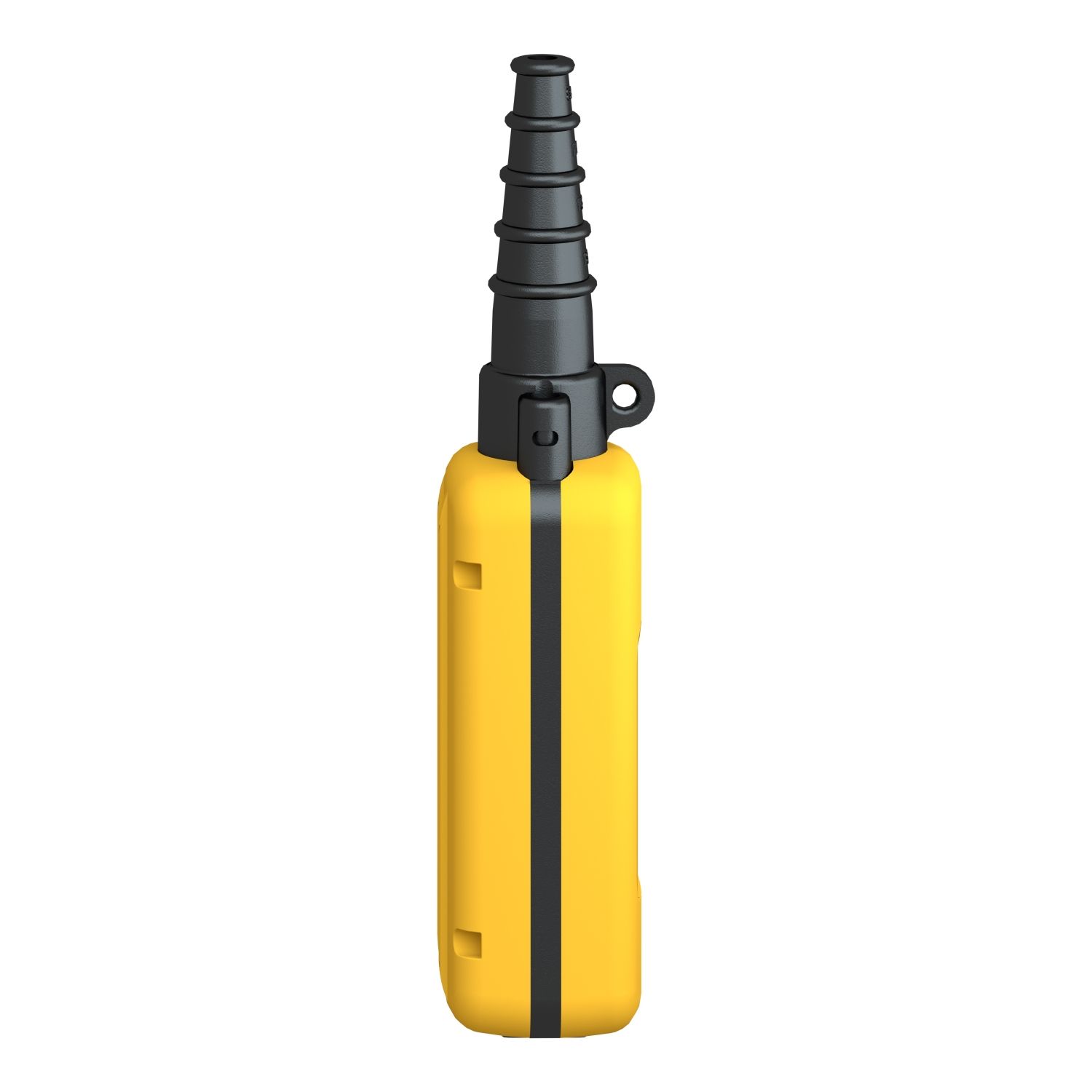

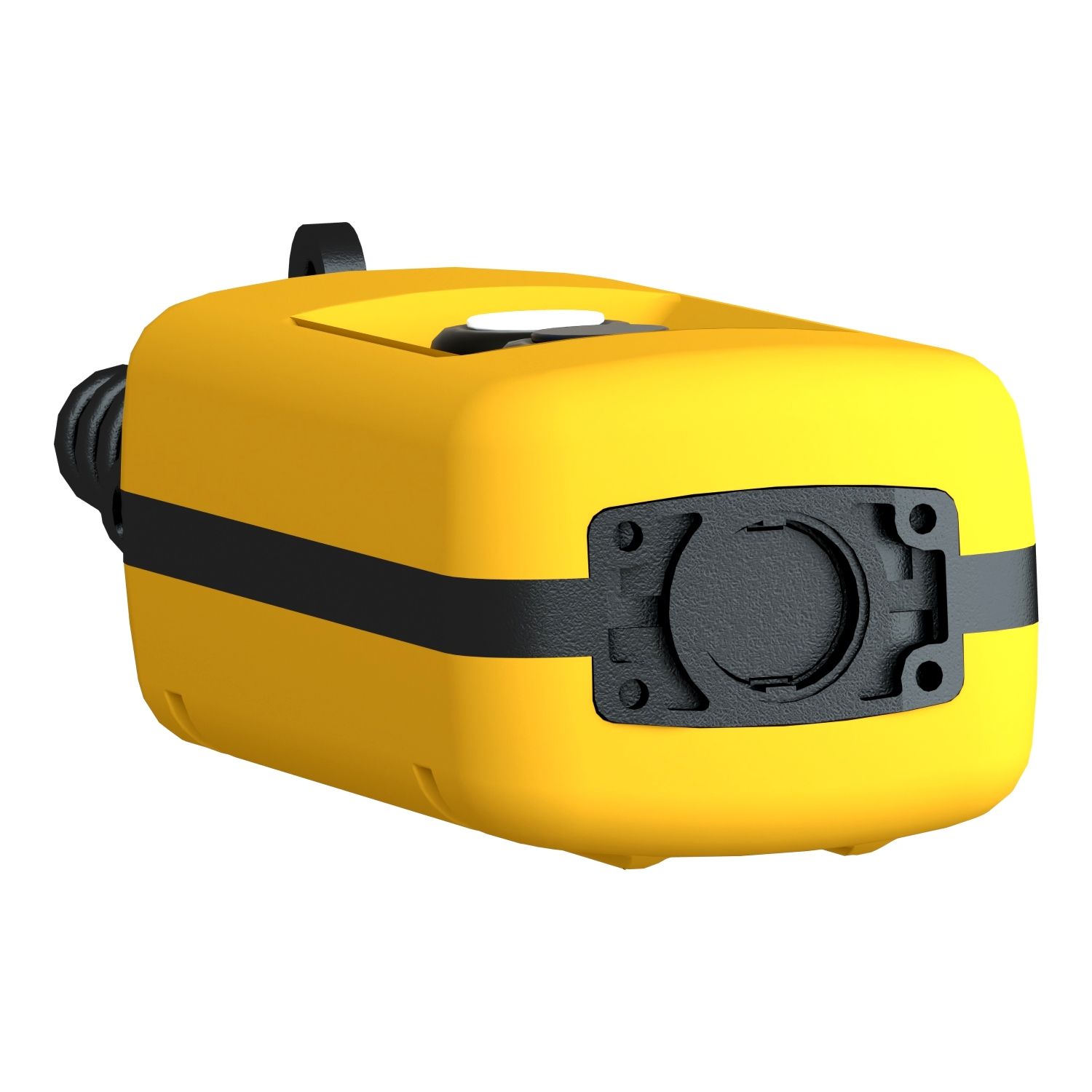

Picture of Pendant control station, Harmony XAC, plastic, yellow, 2 push buttons with NO+NC
SKU:

XACA281

Pendant control station, Harmony XAC, plastic, yellow, 2 push buttons with NO+NC

$313.99
Pendant control station, Harmony XAC, plastic, yellow, 2 push buttons with NO+NC
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 25-Oct-2024
Product environmental
Instruction sheet
Catalogue
Declaration of conformity
Product Page Link
Product Data Sheet
This Harmony XACA281 is a pendant control station with 2 push buttons for control circuit. This yellow control station is double insulated and its enclosure material polypropylene. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.

Products specifications

Attribute nameAttribute value
Main
Device short nameXACA
Product or component typependant control station
Range of productHarmony XAC
Complementary
Rated operational power in W65 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 24 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C, 48 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 48 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C, 40 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C
Protective treatmentTH
Contact code designationQ600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 60947-5-1 appendix A, Q600 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A, A600 AC-15, Ue = 600 V, Ie = 1.2 A conforming to IEC 60947-5-1 appendix A, A600 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix A
Enclosure materialpolypropylene
[Ithe] conventional enclosed thermal current10 A
Electrical circuit typecontrol circuit
Control button typesecond push-button 1 NC + 1 NO lower, slow, first push-button 1 NC + 1 NO raise, slow
Operating force13-13 N push-button
Mechanical durability1000000 cycles
Control station colouryellow
Mechanical interlockingwith mechanical interlocking
Contact operationslow-break
Overvoltage categoryclass II conforming to IEC 61140
Control station composition2 push-buttons
Ambient air temperature for storage-40-70 °C
[Ui] rated insulation voltage600 V (pollution degree 3)
Connections - terminalsscrew clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end, screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end
Control station typedouble insulated
IP degree of protectionIP65 conforming to IEC 60529
[Uimp] rated impulse withstand voltage6 kV conforming to IEC 60947-1
Product compatibilityZB2BE102 + ZB2BE101 for each direction
Net weight0.5 kg
Vibration resistance15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Enclosure typecomplete ready for use
Shock resistance100 gn conforming to IEC 60068-2-27
Cable entryrubber sleeve with stepped entry 8-26 mm
Short-circuit protection10 A fuse protection by cartridge fuse type gG
Maximum resistance across terminals25 MOhm
StandardsUL 508, CSA C22.2 No 14, IEC 60947-5-1, IEC 60204-32
Terminals description ISO n°1(11-12)NC, (13-14)NO
Ambient air temperature for operation-25-70 °C
Terminal identifier(13-14)NO, (11-12)NC
IK degree of protectionIK08 conforming to IEC 62262

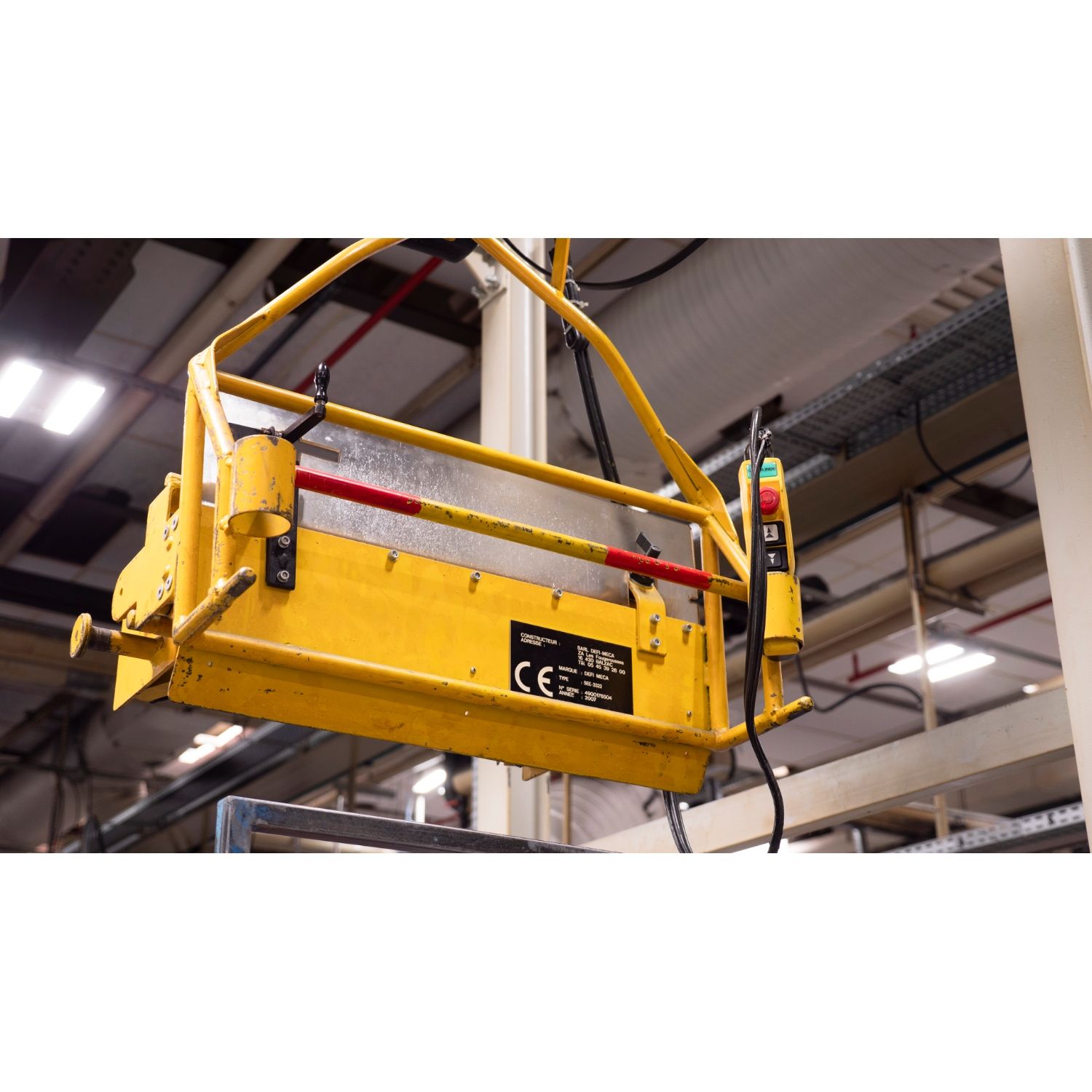

Control station applicationcontrol of single speed hoist motor
Product certificationsGOST, CCC
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height8.500 cm
Package 1 Width34.500 cm
Package 1 Length9.000 cm
Package 1 Weight530.000 g
Unit Type of Package 22
Number of Units in Package 260
Package 2 Height75.000 cm
Package 2 Width60.000 cm
Package 2 Length80.000 cm
Package 2 Weight45.400 kg
