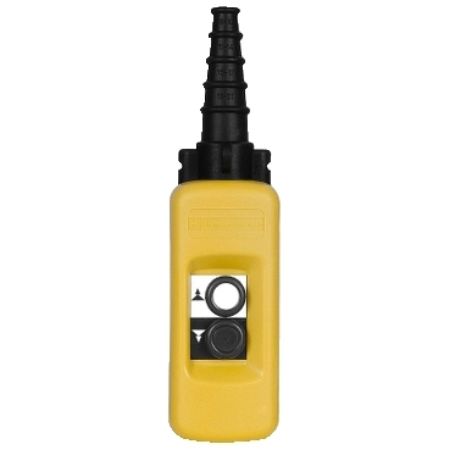

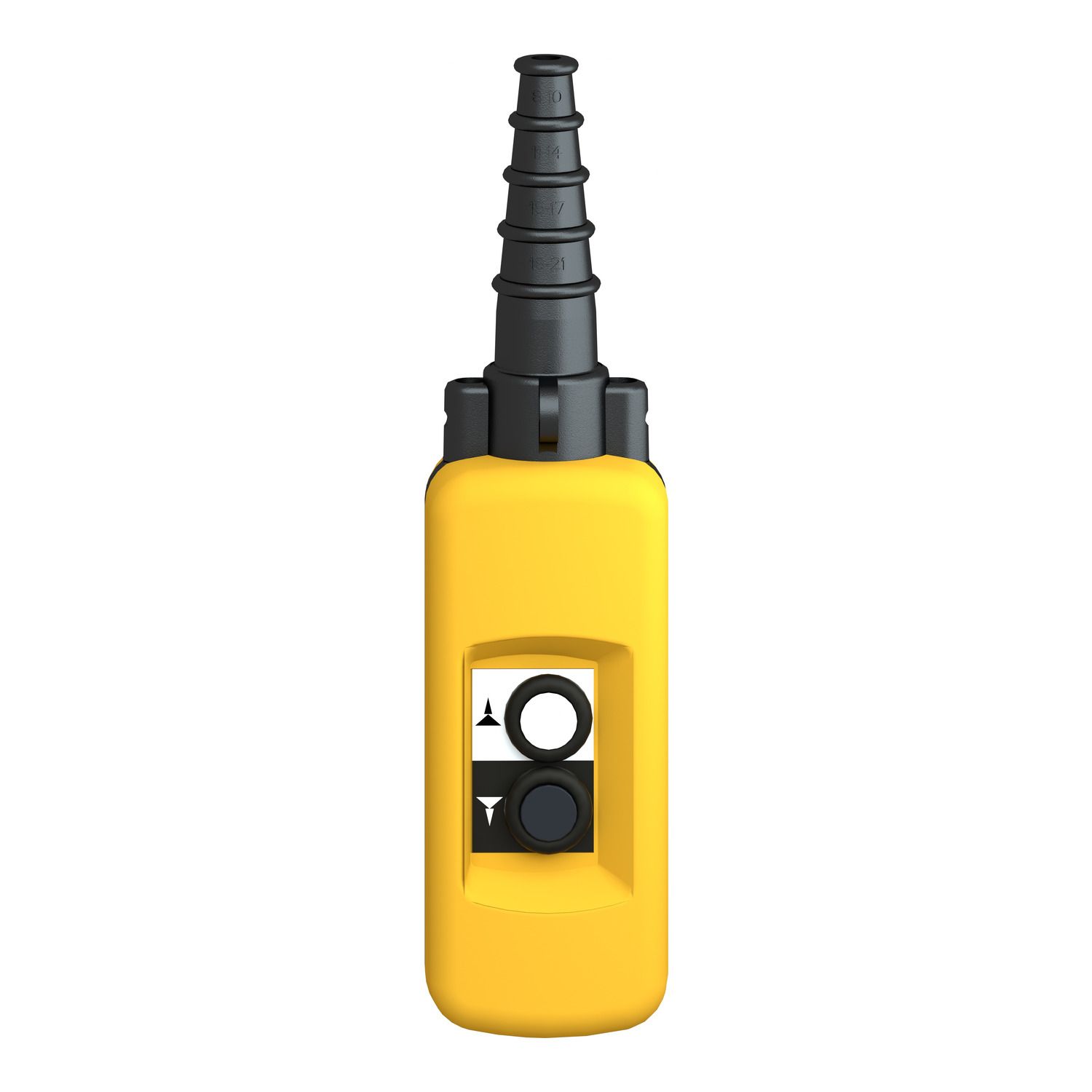

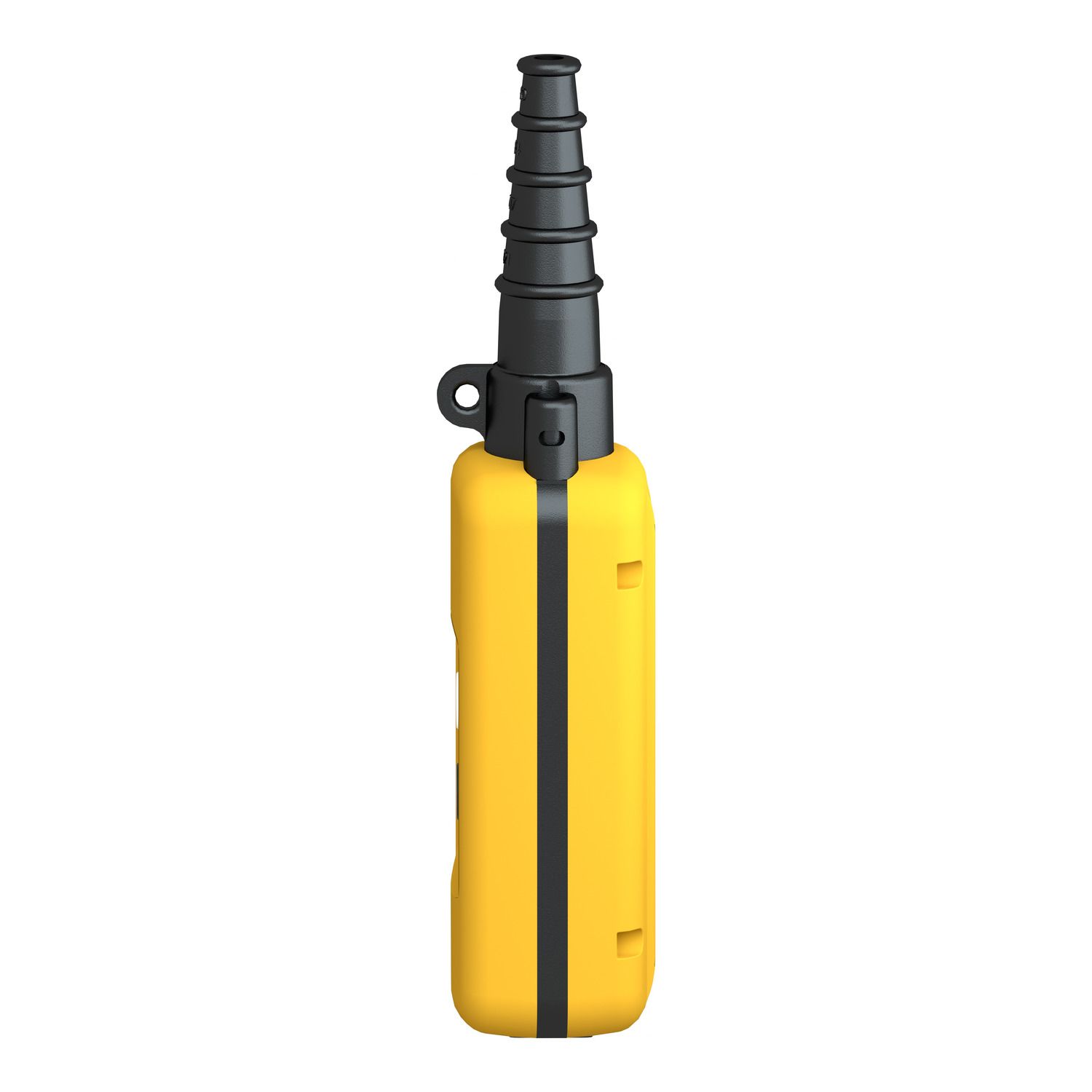

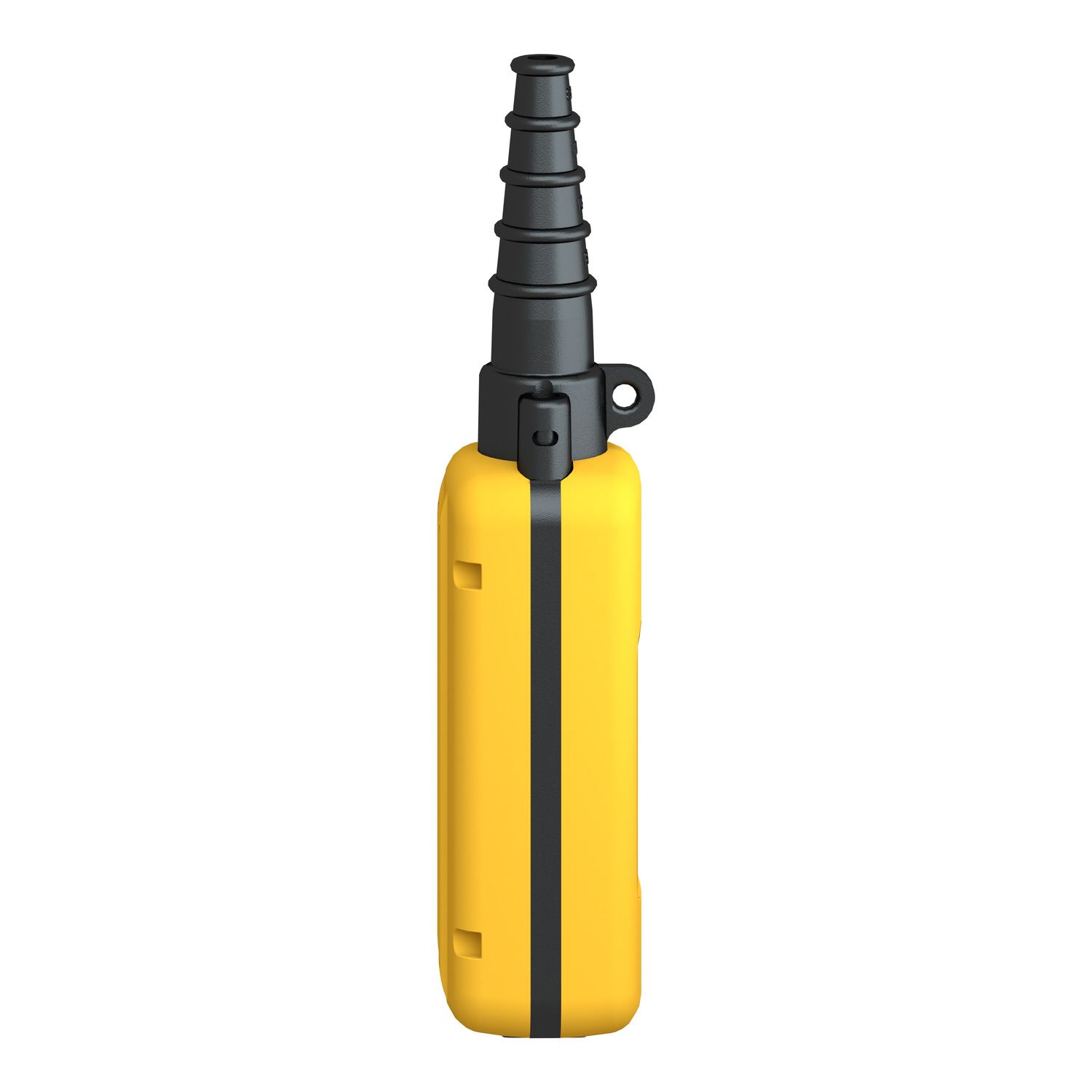

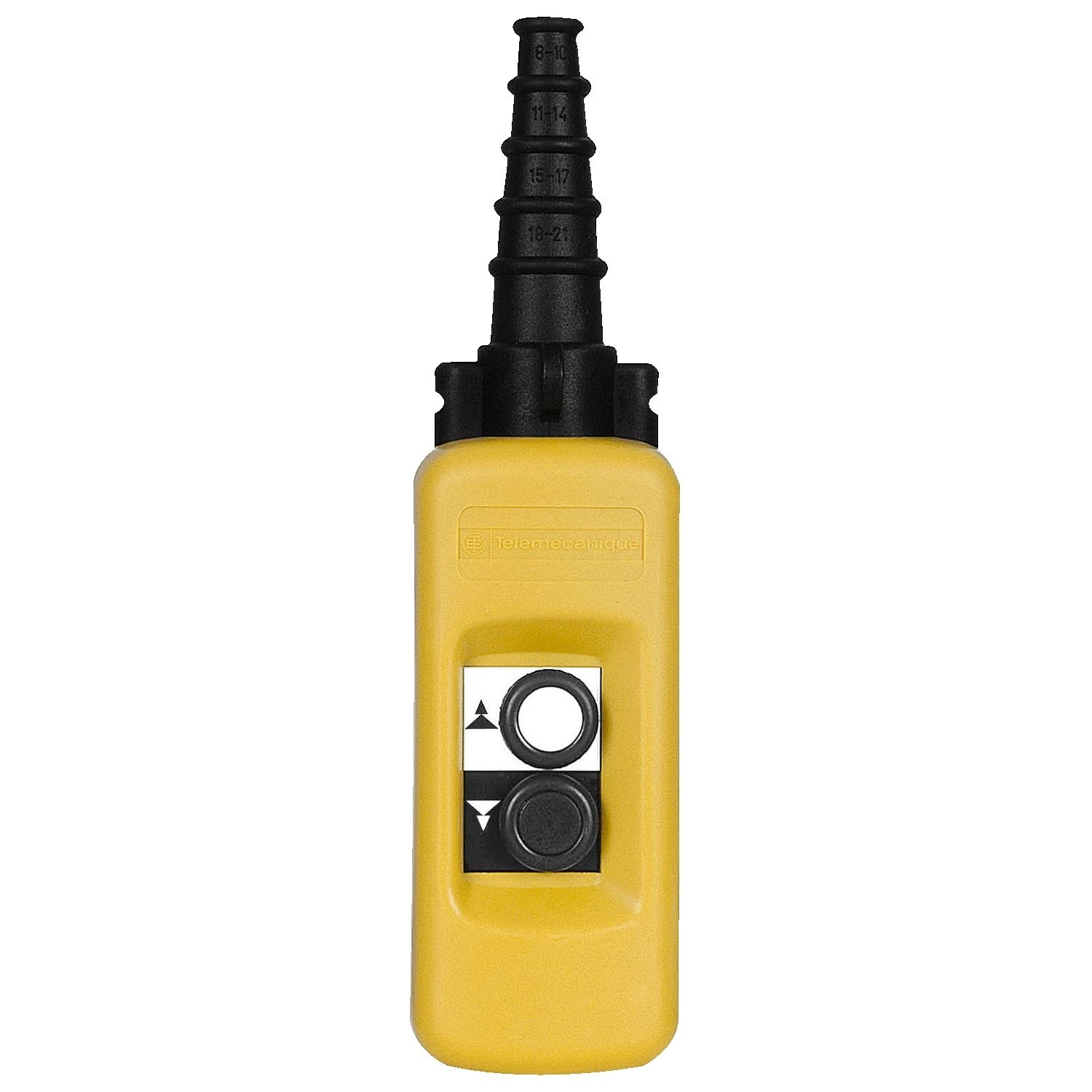

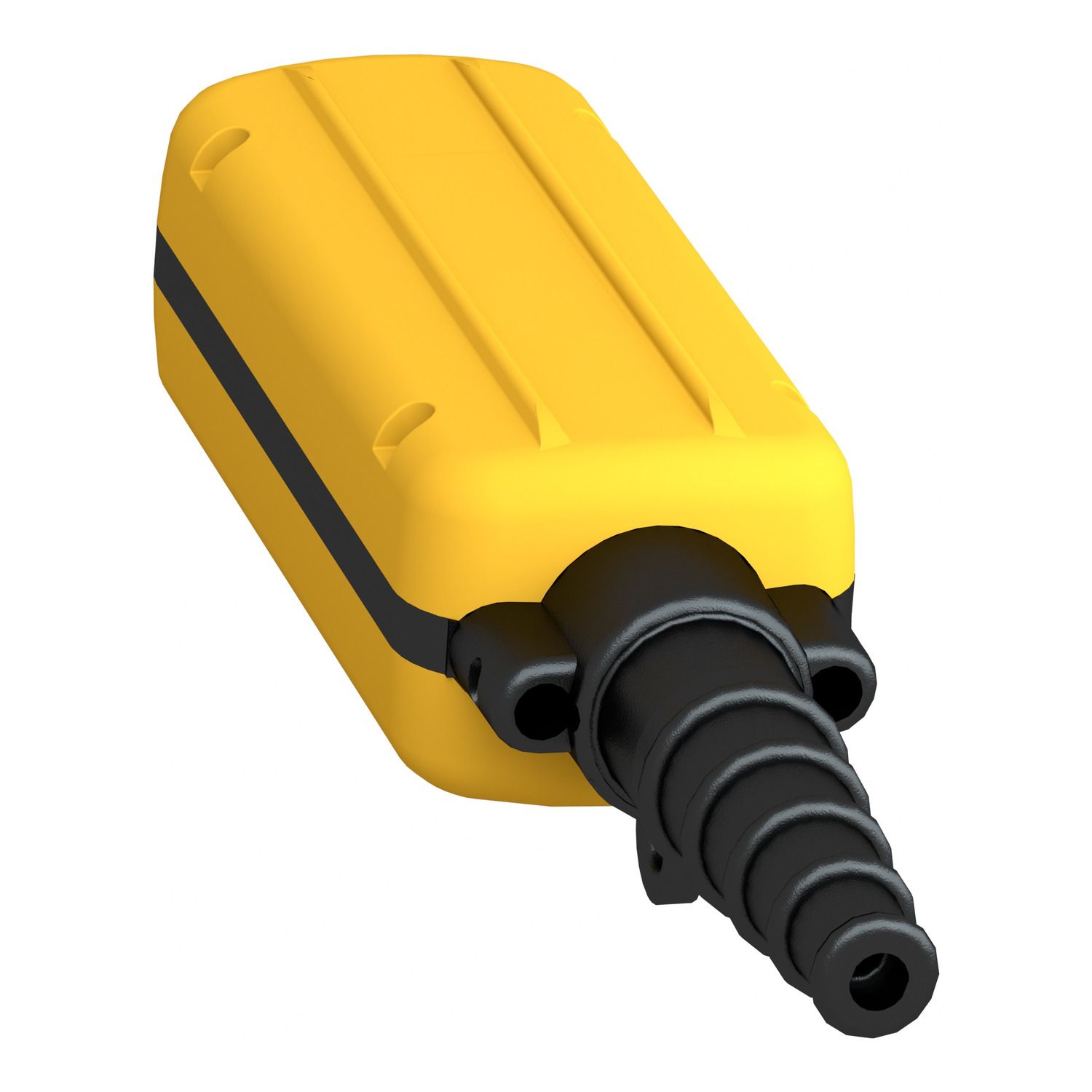

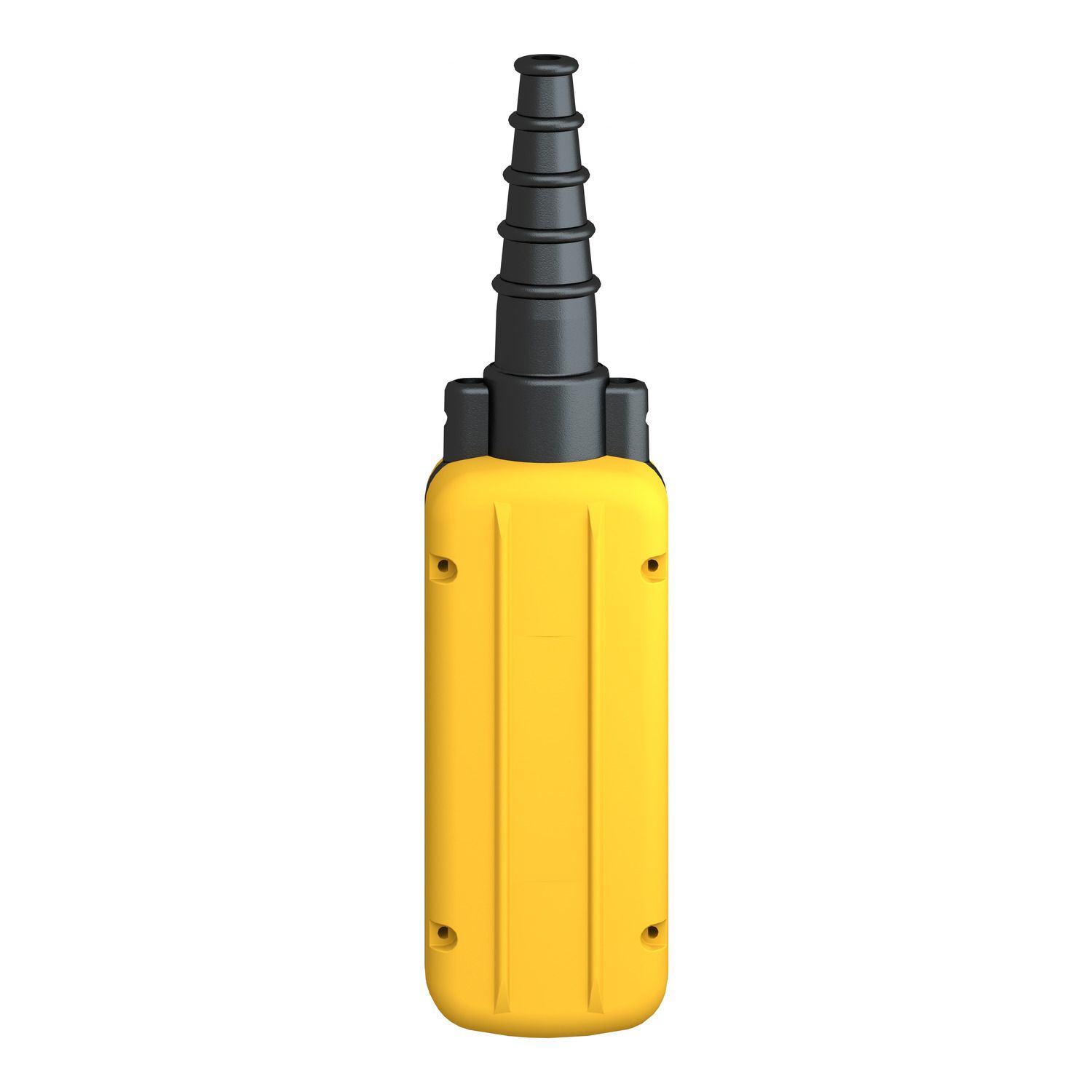

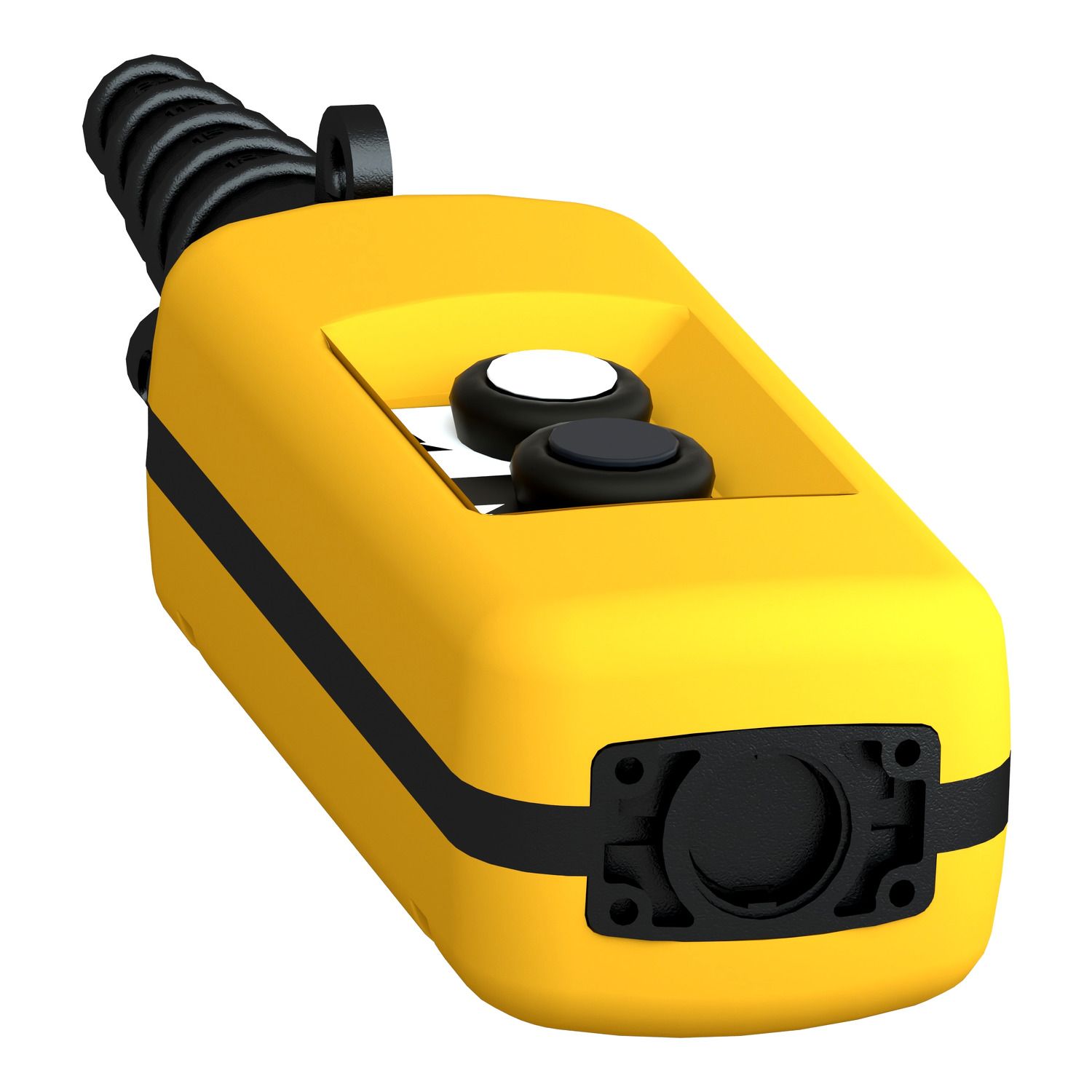

Pendant control station, Harmony XAC, plastic, yellow, 2 push buttons with 2NO+1NC

$399.13
Pendant control station, Harmony XAC, plastic, yellow, 2 push buttons with 2NO+1NC
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 25-Oct-2024
Declaration of conformity
Image of product
Image of product
Image of product
Instruction sheet
Product environmental
Image of product
Catalogue
Image of product
Image of product
Product Page Link
Product Data Sheet
This Harmony XACA291 is a pendant control station with 2 push buttons for control circuit. This yellow control station is double insulated and its enclosure material polypropylene. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.

Products specifications

Attribute nameAttribute value
Main
Device short nameXACA
Product or component typependant control station
Range of productHarmony XAC
Complementary
Rated operational power in W65 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 24 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C, 48 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 48 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C, 40 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C
Protective treatmentTH
Contact code designationQ600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 60947-5-1 appendix A, Q600 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A, A600 AC-15, Ue = 600 V, Ie = 1.2 A conforming to IEC 60947-5-1 appendix A, A600 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix A
Enclosure materialpolypropylene
[Ithe] conventional enclosed thermal current10 A
Electrical circuit typecontrol circuit
Control button typesecond push-button 1 NC + 2 NO lower, slow-fast, first push-button 1 NC + 2 NO raise, slow-fast
Operating force18-18 N push-button
Mechanical durability1000000 cycles
Control station colouryellow
Mechanical interlockingwith mechanical interlocking
Contact operationstaggered, slow-break
Overvoltage categoryclass II conforming to IEC 61140
Control station composition2 push-buttons
Ambient air temperature for storage-40-70 °C
[Ui] rated insulation voltage600 V (pollution degree 3)
Connections - terminalsscrew clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end, screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end
Control station typedouble insulated
IP degree of protectionIP65 conforming to IEC 60529
[Uimp] rated impulse withstand voltage6 kV conforming to IEC 60947-1
Product compatibilityXENG1191 for each direction
Net weight0.525 kg
Vibration resistance15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Enclosure typecomplete ready for use
Shock resistance100 gn conforming to IEC 60068-2-27
Cable entryrubber sleeve with stepped entry 8-26 mm
Short-circuit protection10 A fuse protection by cartridge fuse type gG
Maximum resistance across terminals25 MOhm
StandardsEN/IEC 60947-5-1, EN/IEC 60204-32, CSA C22.2 No 14, UL 508
Terminals description ISO n°1(13-14)NO, (21-22)NC, (33-34)NO_CL
Ambient air temperature for operation-25-70 °C
Terminal identifier(13-14)NO, (11-12)NC
IK degree of protectionIK08 conforming to EN 50102

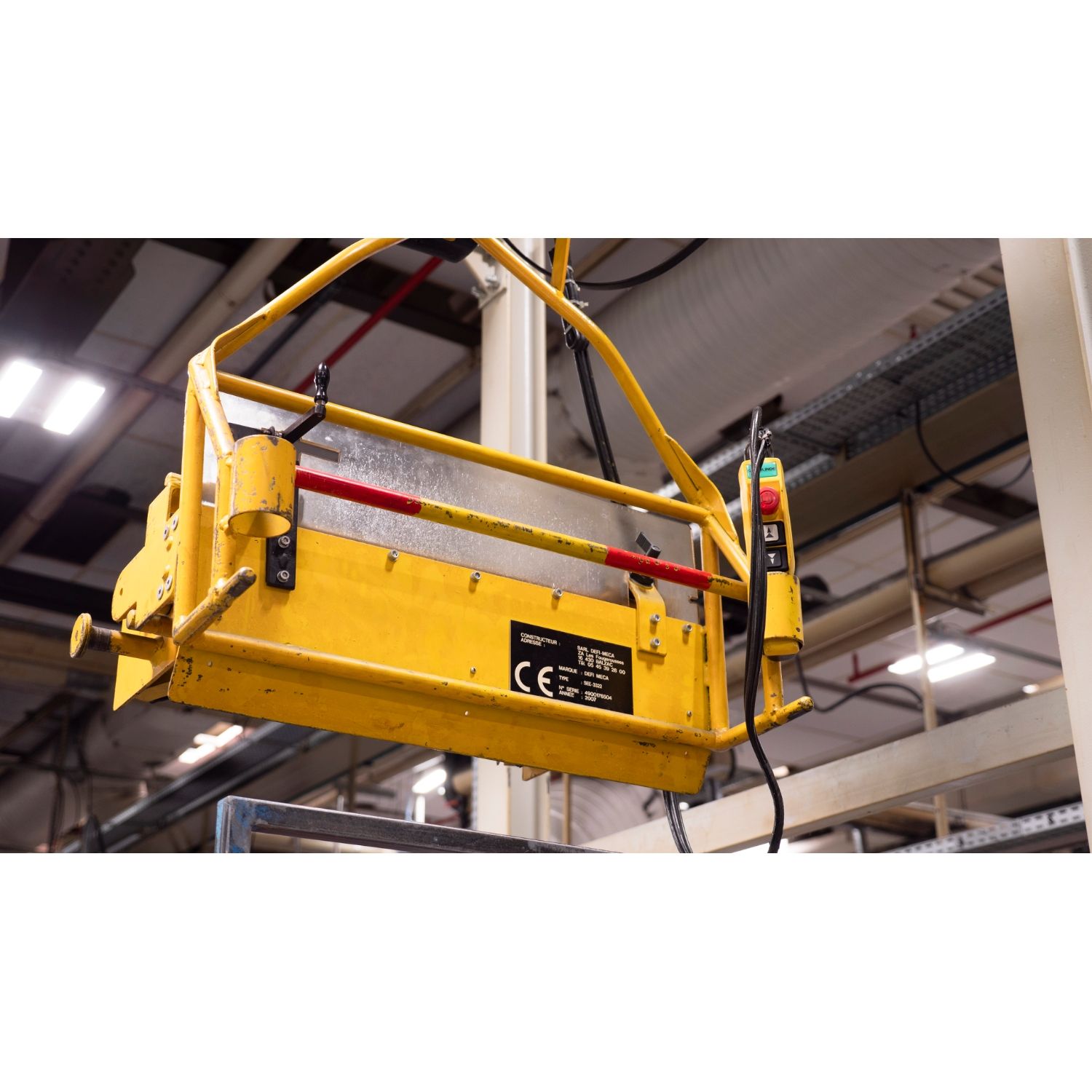

Control station applicationcontrol of 2-speed hoist motor
Product certificationsCCC, GOST
