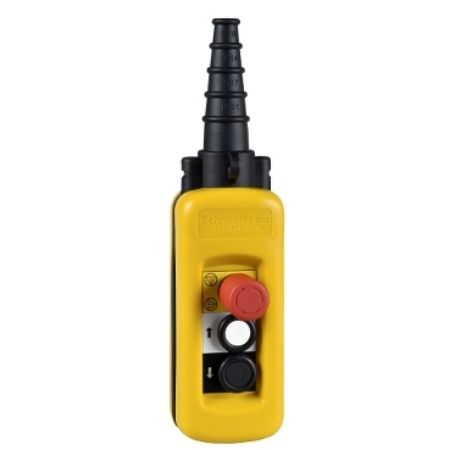

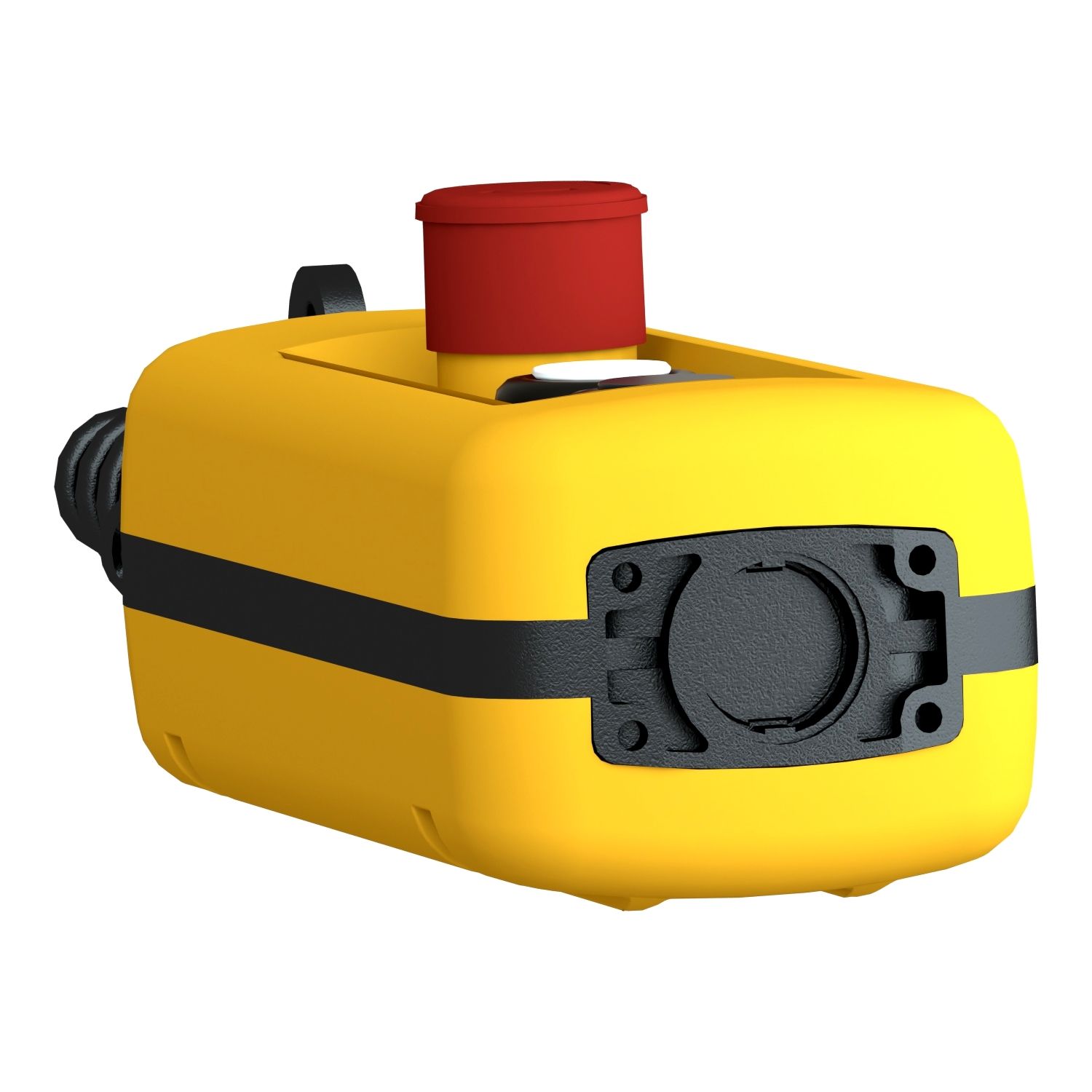

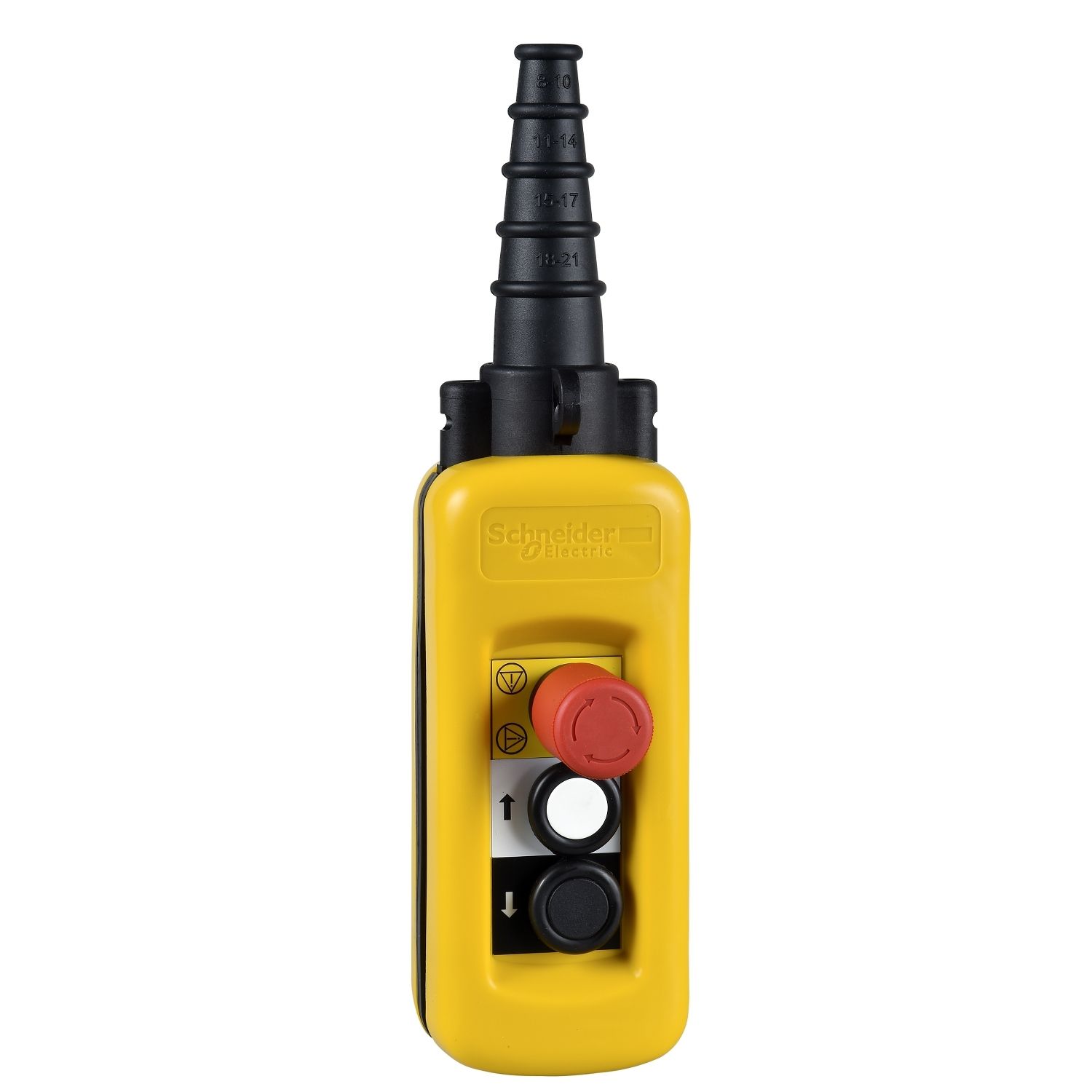

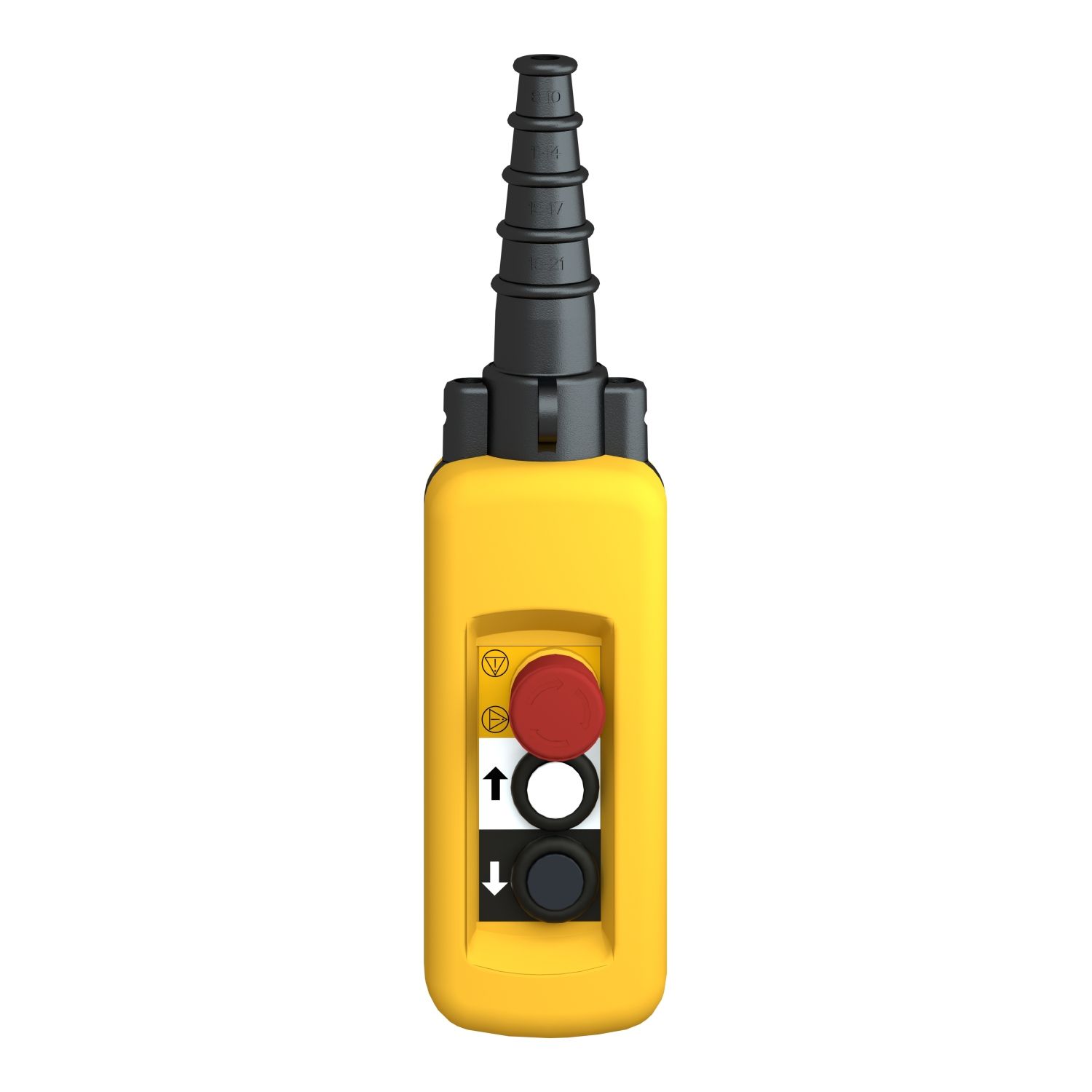

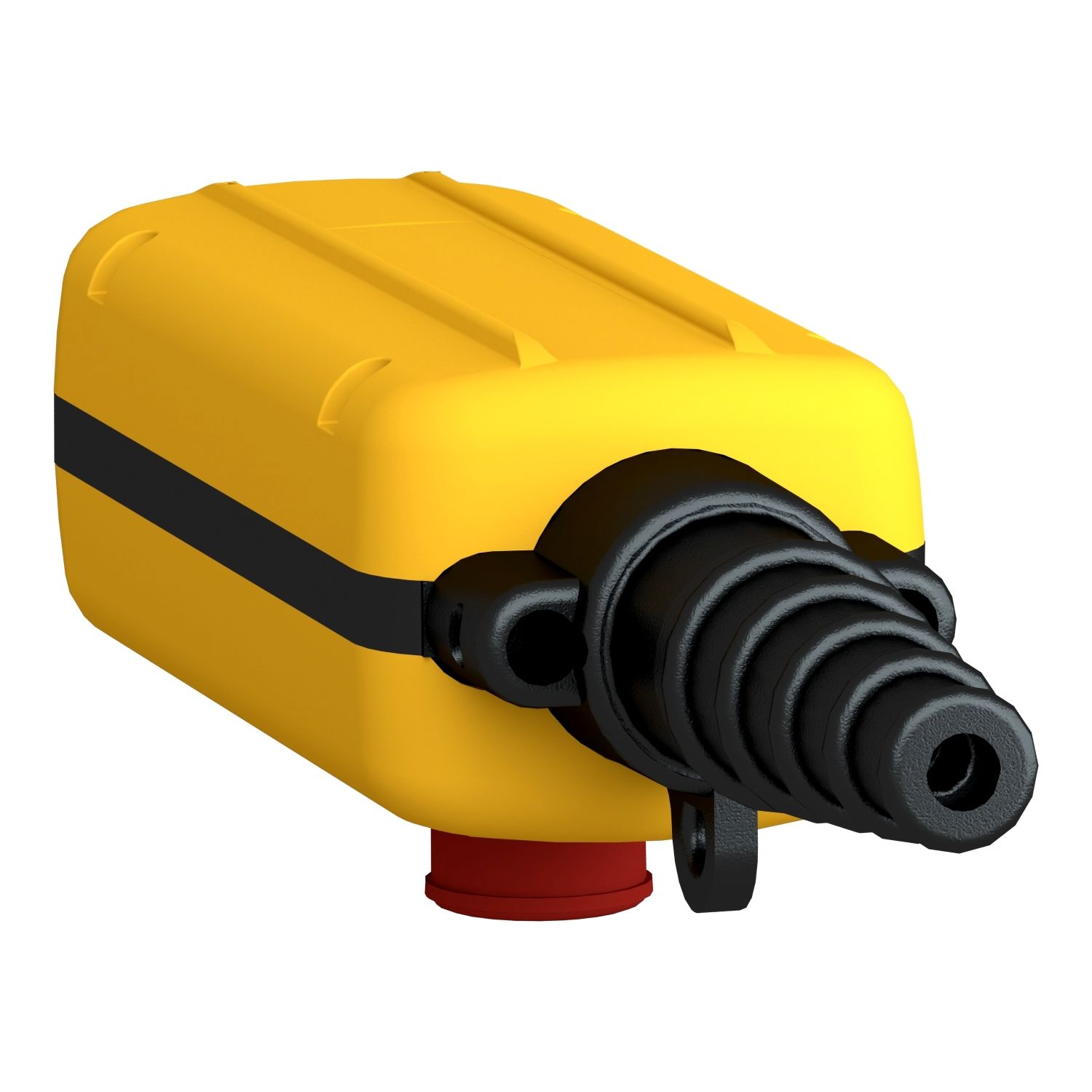

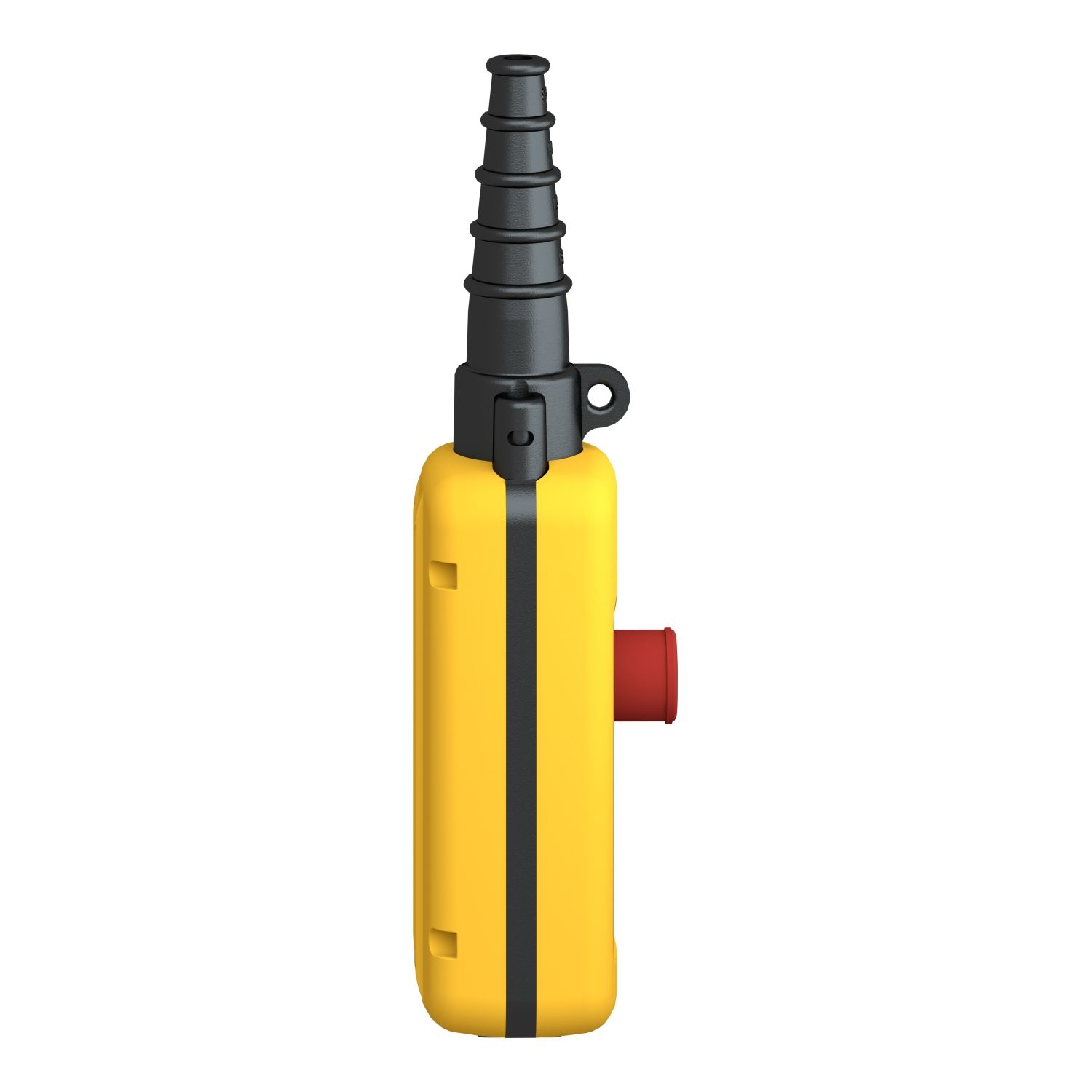

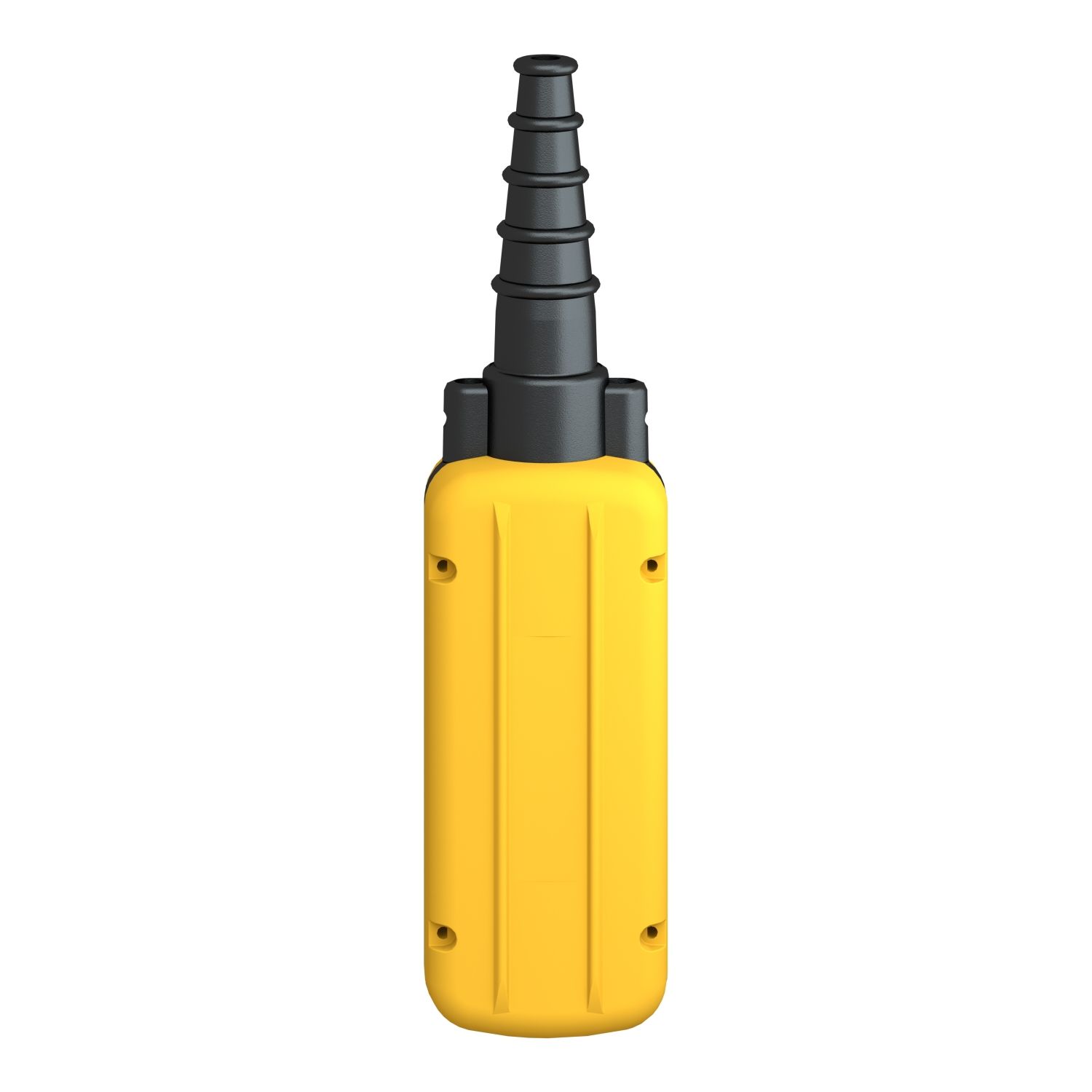

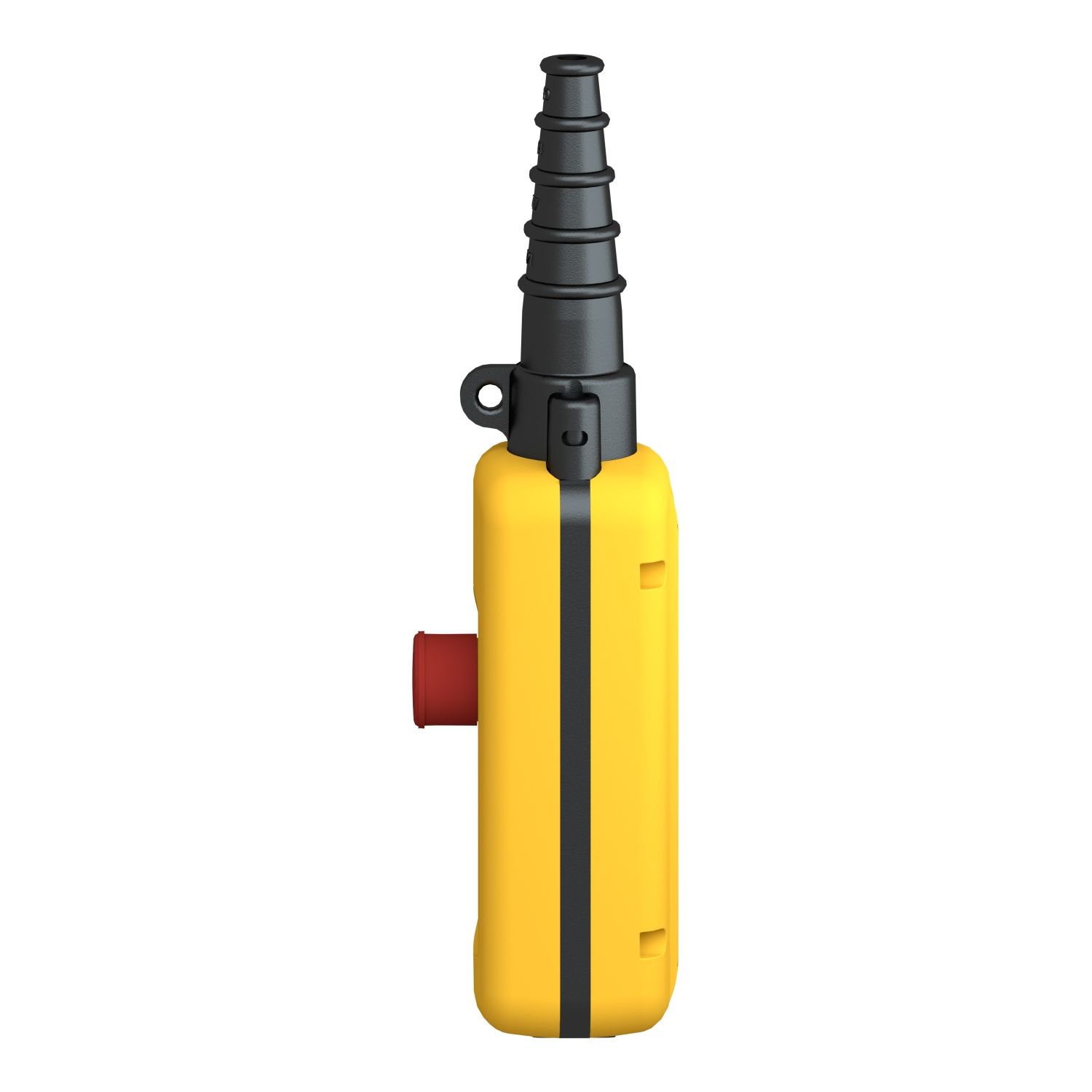

Picture of Pendant control station, Harmony XAC, plastic, yellow, 2 push buttons with 2NO+1NC, 1 emergency stop NC
SKU:

XACA2913

Pendant control station, Harmony XAC, plastic, yellow, 2 push buttons with 2NO+1NC, 1 emergency stop NC

$397.54
Available for Shipping : 24-Nov-2024
Pendant control station, Harmony XAC, plastic, yellow, 2 push buttons with 2NO+1NC, 1 emergency stop NC
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Instruction sheet
Catalogue
Declaration of conformity
Product Page Link
Product Data Sheet

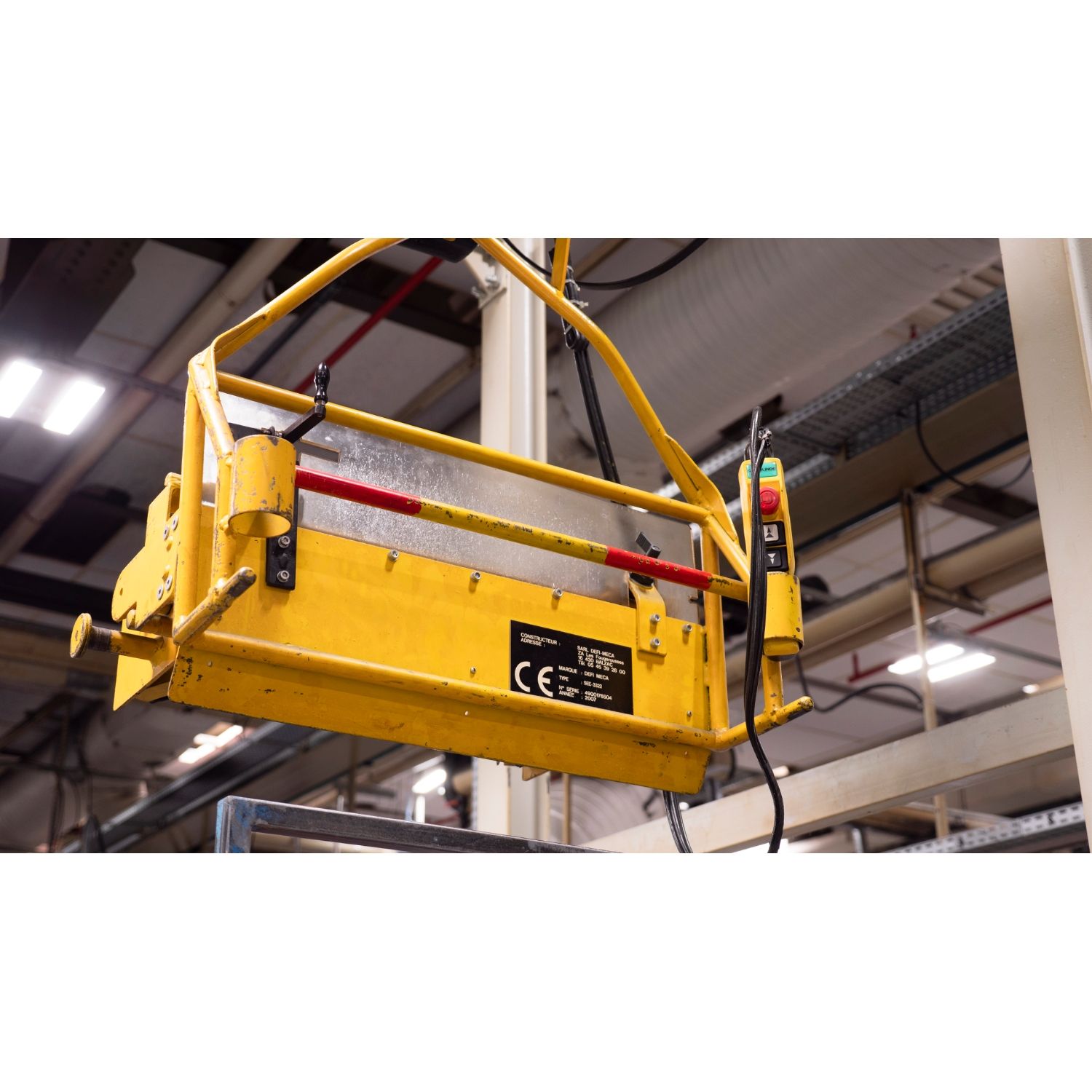

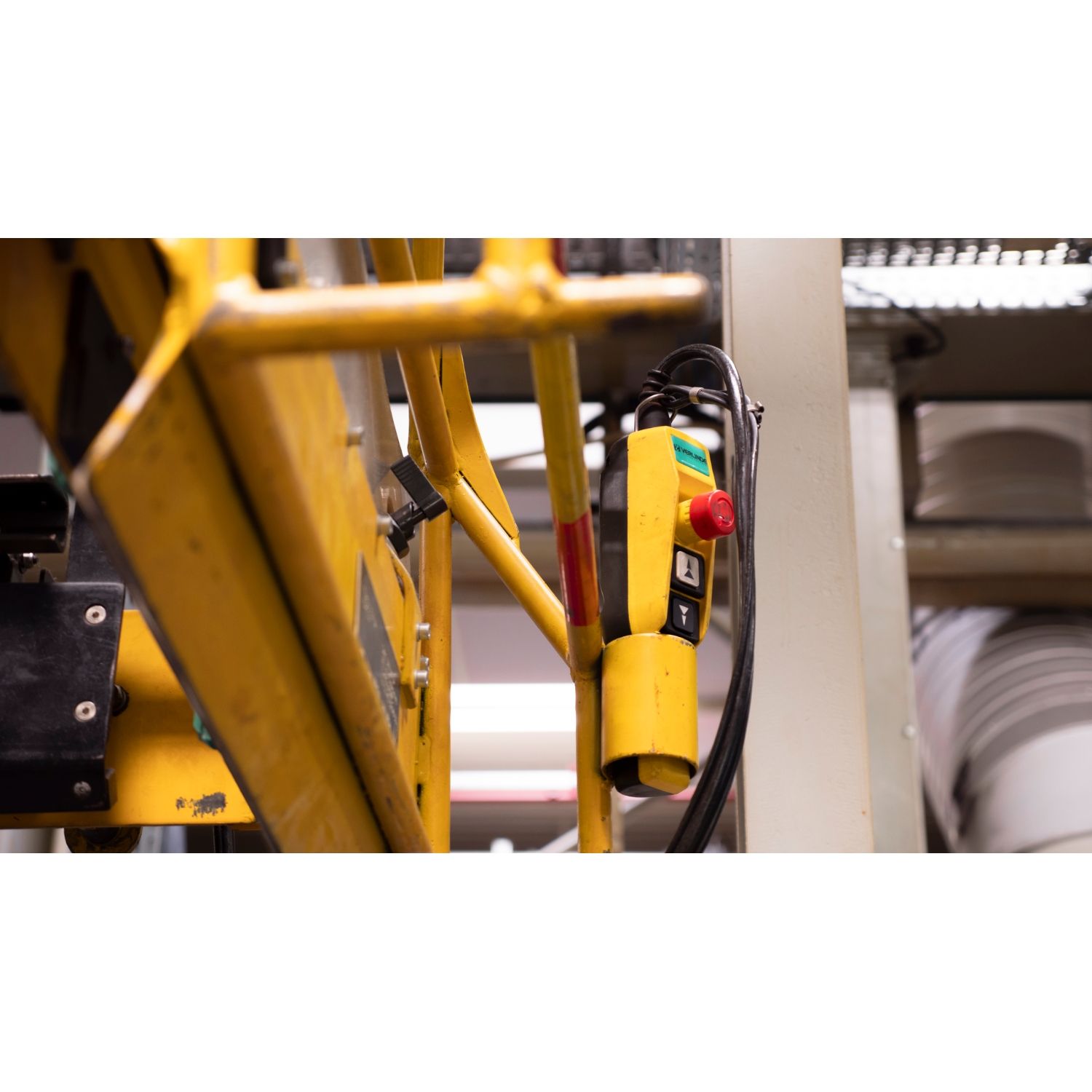

This Harmony XAC, is a complete ready to use pendant station for control of two-speed motors. It has 2 push buttons mechanically interlocked + 1 slow stop push button diameter 30mm operator. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. Designed for mechanical handling, these highly robust pendant control stations are not only simple and intuitive, but also very comfortable for the operator to use. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product. It provides a yellow polypropylène double insulated enclosure. This control station is ideal for hoists, travelling cranes applications. This robust pendant control station complies with the safety requirements of IEC standards.

Products specifications

Attribute name Attribute value
Main
Device short name XACA
Product or component type pendant control station
Range of product Harmony XAC
Complementary
Rated operational power in W 65 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 24 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C, 48 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 48 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C, 40 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C
Protective treatment TH
Contact code designation Q600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 60947-5-1 appendix A, Q600 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A, A600 AC-15, Ue = 600 V, Ie = 1.2 A conforming to IEC 60947-5-1 appendix A, A600 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix A
Enclosure material polypropylene
[Ithe] conventional enclosed thermal current 10 A
Electrical circuit type control circuit
Control button type second push-button 1 NC + 2 NO lower, slow-fast, first push-button 1 NC + 2 NO raise, slow-fast, stop push-button Ø 30 mm 1 NC latching
Operating force 8-8 N emergency stop, 18-18 N push-button
Mechanical durability 1000000 cycles
Control station colour yellow
Mechanical interlocking with mechanical interlocking
Contact operation staggered, slow-break
Overvoltage category class II conforming to IEC 61140
Control station composition 2 push-buttons + 1 emergency stop
Ambient air temperature for storage -40-70 °C
[Ui] rated insulation voltage 600 V (pollution degree 3)
Connections - terminals screw clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end, screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end
Control station type double insulated
IP degree of protection IP65 conforming to IEC 60529
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
Product compatibility XENG1191 for each direction, ZB2BE102 for emergency stop
Net weight 0.57 kg
Vibration resistance 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Enclosure type complete ready for use
Shock resistance 100 gn conforming to IEC 60068-2-27
Cable entry rubber sleeve with stepped entry 8-26 mm
Short-circuit protection 10 A fuse protection by cartridge fuse type gG
Maximum resistance across terminals 25 MOhm
Standards EN/IEC 60204-32, EN/IEC 60947-5-1, CSA C22.2 No 14, UL 508
Terminals description ISO n°1 (33-34)NO_CL, (13-14)NO, (21-22)NC
Terminals description ISO n°2 (11-12)NC
Ambient air temperature for operation -25-70 °C
Terminal identifier (11-12)NC, (13-14)NO
IK degree of protection IK08 conforming to EN 50102
Control station application control of 2-speed hoist motor
Product certifications GOST, CCC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 10.000 cm
Package 1 Width 11.000 cm
Package 1 Length 52.000 cm
Package 1 Weight 697.300 g
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 4.828 kg
Unit Type of Package 3 3
Number of Units in Package 3 24
Package 3 Height 75.000 cm
Package 3 Width 80.000 cm
Package 3 Length 60.000 cm
Package 3 Weight 27.311 kg

Related products

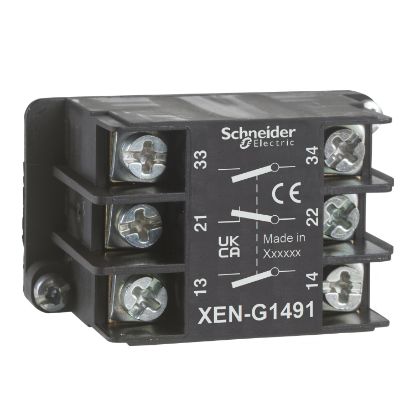

Single contact block, Harmony XAC, spring return, single speed, spring return, front mounting, 2NO+1NC

XENG1491
$78.55
View Detail

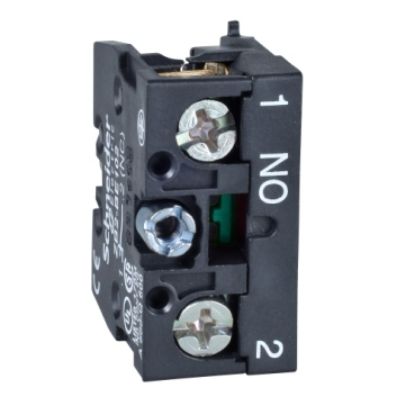

Picture of Contact block, Harmony XAC, single contact, spring return, 1 speed, front mounting, screw clamp terminal, 1NO

Contact block, Harmony XAC, single contact, spring return, 1 speed, front mounting, screw clamp terminal, 1NO

ZB2BE101
$23.52
View Detail

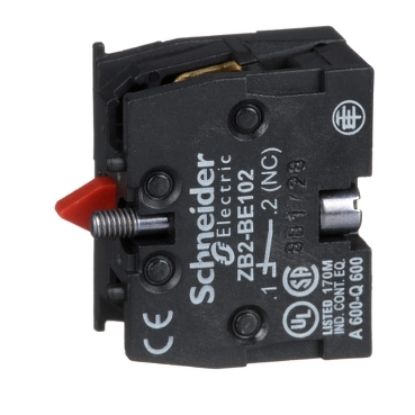

Picture of Contact block, Harmony XAC, single contact, spring return, 1 speed, front mounting, screw clamp terminal, 1NC

Contact block, Harmony XAC, single contact, spring return, 1 speed, front mounting, screw clamp terminal, 1NC

ZB2BE102
$23.52
View Detail

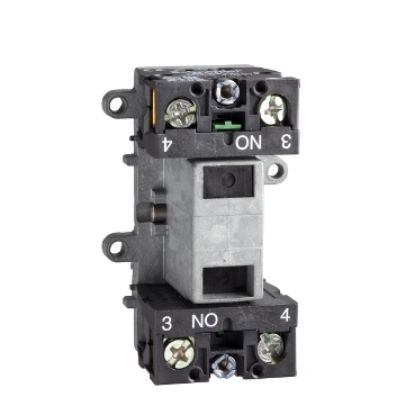

Picture of Contact block, Harmony XAC, double contact, latching, single speed, front mounting, 2NO
